Reserving Four Milliamps as a Live Zero: How Industrial Current Loops Distinguish Valid Null Readings From Severed Cables

When an industrial controller reads exactly 0.00 milliamps on an incoming sensor line, the system does not record a zero value. It triggers a hard fault alarm. That determination—distinguishing a true zero measurement from a severed copper cable—is the foundational mechanism of the 4-20 mA current loop.[1]

By artificially elevating the baseline measurement so that 4 milliamps represents a 0 percent reading, the standard creates a "live zero." If a pressure vessel is completely empty, the sensor transmits exactly 4 mA. If an excavator severs the wire feeding that sensor, the current drops to 0 mA.[1][6]

This simple mathematical offset allows a programmable logic controller to instantly differentiate between an empty tank and a dead instrument. In an era where industrial automation vendors heavily market complex digital fieldbuses, the unglamorous analog loop remains the undisputed backbone of the plant floor.[6][7]

It survives because it is physically robust, mathematically deterministic, and immune to the voltage drops that plague other wiring schemes. The 4-20 mA standard dictates that a field transmitter regulates the electrical current flowing through a circuit to represent a specific process variable.[3][4]

The Mechanics of the Live Zero

A reading of 4 mA corresponds to the lower range value, while 20 mA represents the upper range value. The NAMUR NE 43 standard formalizes the diagnostic zones surrounding this primary measurement range to ensure universal fault handling across different equipment manufacturers.[1]

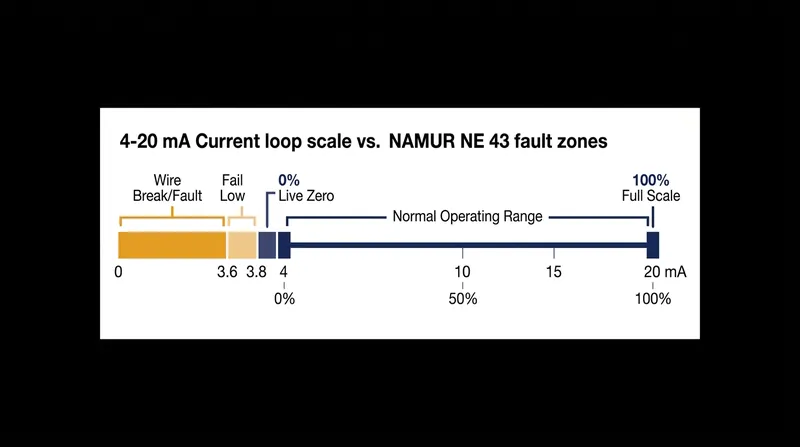

Under this standard, a current between 3.6 and 3.8 mA is explicitly designated as a fail-low fault. This specific bandwidth indicates a sensor malfunction or internal hardware failure, rather than a valid reading from the physical process.[1]

Anything below 3.6 mA indicates a catastrophic loss of loop continuity. Because the system relies on a continuous flow of electrons, a broken wire physically prevents current from circulating, forcing the reading to absolute zero and triggering an immediate safety interlock.[1][4]

Powering the Instrument Over Two Wires

The live zero serves a second, equally critical function: it provides the operating power for the sensor itself. A modern industrial transmitter contains a sensing element, a signal conditioning circuit, and an output amplifier that all require continuous electricity.[1][8]

If the standard used 0 mA to represent a zero reading, the transmitter would have no power available to operate its own circuitry when the tank was empty. By establishing a 4 mA floor, the standard guarantees a minimum continuous power supply.[1]

A typical loop-powered transmitter draws approximately 3.5 to 3.6 mA of quiescent current just to run its internal microprocessor. The remaining bandwidth up to 20 mA is dynamically modulated by the device to represent the actual physical measurement.[1]

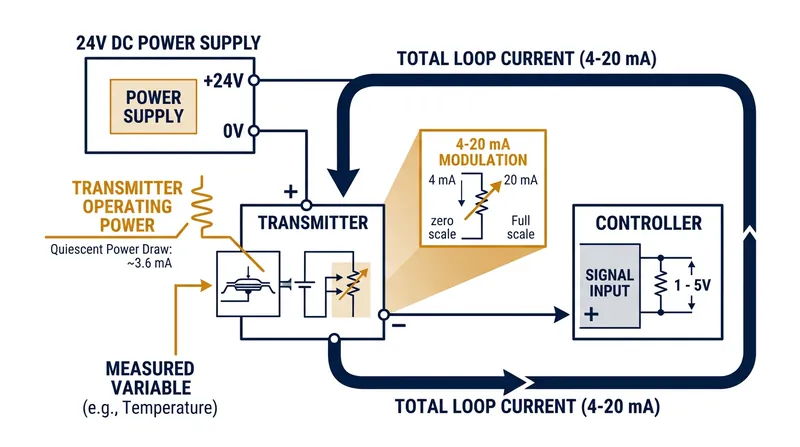

This two-wire topology means a single pair of copper cables delivers both the 24-volt DC operating power and the return measurement signal. Consolidating power and data onto two wires halves the required cabling infrastructure across sprawling industrial facilities.[3][4]

Defeating Voltage Drop and Electrical Noise

The choice of electrical current, rather than voltage, as the transmission medium is a deliberate defense against the physics of long cable runs. According to Kirchhoff's Current Law, the current flowing through a series circuit must be identical at every point.[4]

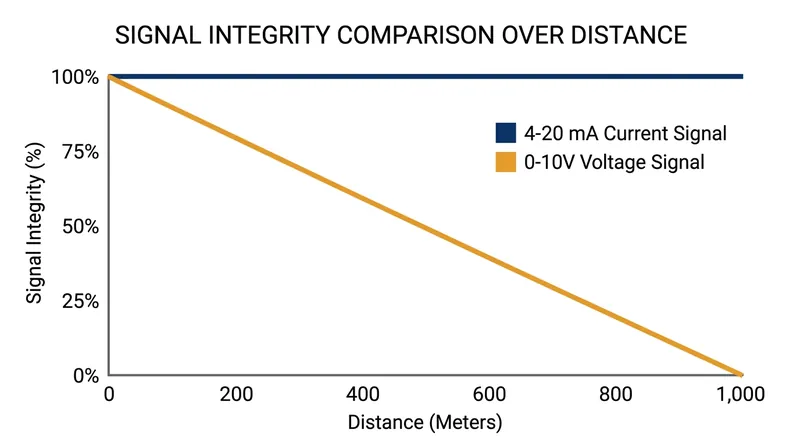

If a transmitter regulates the loop to exactly 12 mA, the receiving controller miles away will read exactly 12 mA. Conversely, a standard 0-10 volt analog signal suffers from voltage drop due to the inherent electrical resistance of the copper wire.[2][4]

Over a 1,000-meter run, a 10-volt signal might arrive at the controller as 8.5 volts, introducing a massive calibration error. Current loops are entirely immune to this wire resistance, provided the power supply has enough voltage to push the current through.[2][3]

Current signaling also provides exceptional immunity to electromagnetic interference. Industrial plants are saturated with electrical noise from variable frequency drives, heavy motors, and high-voltage switchgear that can easily corrupt sensitive data lines.[4]

While this ambient noise can easily induce stray voltages into a sensor wire, it lacks the sustained power required to alter the heavily regulated amperage of a 4-20 mA loop. The current signal simply powers through the interference.[3][4]

The Legacy of Pneumatic Control

The specific mathematical ratio of the 4-20 mA standard was not invented in a vacuum. It was engineered to perfectly mimic the mechanical systems it replaced during the transition to solid-state electronics in the mid-twentieth century.[5]

Before electronic sensors existed, industrial automation relied entirely on pneumatic control. Instruments transmitted measurements by varying compressed air pressure through copper or plastic tubing, utilizing a standard range of 3 to 15 pounds per square inch.[3][5]

The pneumatic standard established the original live zero concept, using 3 psi to represent 0 percent. If a ruptured air line dropped the pressure to 0 psi, the mechanical controllers would immediately recognize the fault and shut down the process.[5]

When electronic transmitters entered the market, engineers adopted the 4-20 mA range because it preserved the exact 1:5 minimum-to-maximum ratio of the 3-15 psi standard. This allowed facilities to upgrade from air tubes to copper wires without rewriting their percentage-based control logic.[3][5]

Calculating the Physical Limits

While current loops are immune to signal degradation over distance, they are eventually constrained by the total voltage available in the circuit. A standard industrial control panel provides a 24-volt DC power supply to drive the entire loop.[2][3]

The field transmitter itself requires a minimum operating voltage—typically around 15 volts—to power its internal electronics and drive the current regulation circuitry. Subtracting this requirement from the 24-volt supply leaves a 9-volt budget to overcome wire resistance.[2]

At the maximum signaling current of 20 mA, Ohm's Law dictates that the loop can tolerate exactly 450 ohms of total wire resistance. Any additional resistance would prevent the transmitter from drawing enough voltage to maintain the signal.[2]

Because standard 18 AWG copper instrument wire has a resistance of roughly 21 ohms per kilometer, a 4-20 mA signal can travel over 10 kilometers out and back. The physical limits of the power supply are rarely reached in standard facilities.[3]

If a plant engineer needs to run a signal further than 10 kilometers, they cannot simply use thicker wire indefinitely. They must install a higher-voltage power supply, such as a 36-volt or 48-volt unit, to increase the available voltage drop budget.[2]

However, increasing the loop voltage introduces new thermal management challenges at the transmitter. The device must dissipate the excess electrical power as heat, which can degrade the accuracy of sensitive temperature or pressure sensing elements over time.[2]

The Digital Overlay and Future Viability

Despite the aggressive marketing of digital Industry 4.0 solutions, the analog current loop has adapted rather than retired. The Highway Addressable Remote Transducer protocol allows digital data to be superimposed directly over the analog 4-20 mA signal.[3][8]

This hybrid protocol uses frequency shift keying to transmit secondary diagnostics, calibration data, and device health metrics. It achieves this without disrupting the primary analog current measurement that the legacy programmable logic controller relies upon.[8]

While modern fieldbuses like PROFINET and IO-Link offer vastly higher data bandwidth, they require complex network architectures, specialized cabling, and sophisticated digital handshakes. They also introduce cybersecurity vulnerabilities to the lowest level of the physical plant.[7]

The 4-20 mA loop remains the default choice for critical process control because it is universally compatible and deterministically reliable. When a multi-million-dollar process goes down, it can be troubleshot by any technician equipped with a basic ten-dollar digital multimeter.[4]
