How Merkle Trees Use Hash Chains to Verify Blockchain Data Without Downloading the Entire Ledger

Merkle trees verify blockchain data by pairing transaction hashes and hashing them together repeatedly until only one master hash—the root—remains. When a user needs to prove a specific transaction exists, they only download the small branch of hashes connecting their data to that root, bypassing the rest of the block entirely. This mechanism solves the fundamental scaling problem of decentralized networks: how to trust a massive database without storing it on your own hardware.[4][6]

The concept relies on cryptographic hash functions, typically SHA-256 in modern blockchain protocols. A hash function takes an input of any size and deterministically scrambles it into a fixed 256-bit (32-byte) string. Change a single comma in a gigabyte-sized file, and the resulting hash changes completely. This avalanche effect ensures that any tampering is immediately obvious to anyone checking the output.[2][6]

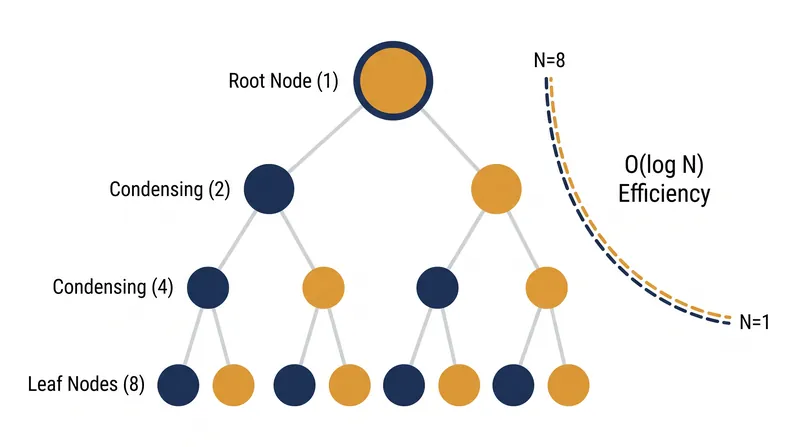

In a blockchain context, every transaction is first hashed individually. These individual hashes form the leaf nodes at the bottom of the Merkle tree. "Merkle trees are created by repeatedly hashing pairs of nodes until there is only one hash left," notes GeeksforGeeks. If there is an odd number of transactions in a block, the last hash is simply duplicated to create an even pair.[3]

The paired hashes are concatenated and hashed again to form the next layer up, known as branch nodes. This process repeats, halving the number of hashes at each level, until it culminates in a single 32-byte string at the top. "The root hash is used to verify the integrity of the whole data," according to Topcoder.[5]

This root hash is then embedded into the block header. Because the root is derived from every transaction beneath it, altering a single transaction at the leaf level alters its hash, which alters the branch hash above it, cascading all the way up to invalidate the root hash. The network immediately rejects the tampered block.[2][5]

The true power of this structure emerges during verification. To prove that a specific transaction exists within a block, a user does not need the entire tree. They only need the specific hashes that combine with their transaction's hash to reconstruct the root. This specific path of hashes is known as a Merkle proof.[4]

Because the tree halves the data at each step, the number of hashes required for a proof scales logarithmically, or O(log N). In a linear data structure, verifying one transaction out of a million would require checking all 1,000,000 entries, resulting in an O(N) time complexity operation.[3][4]

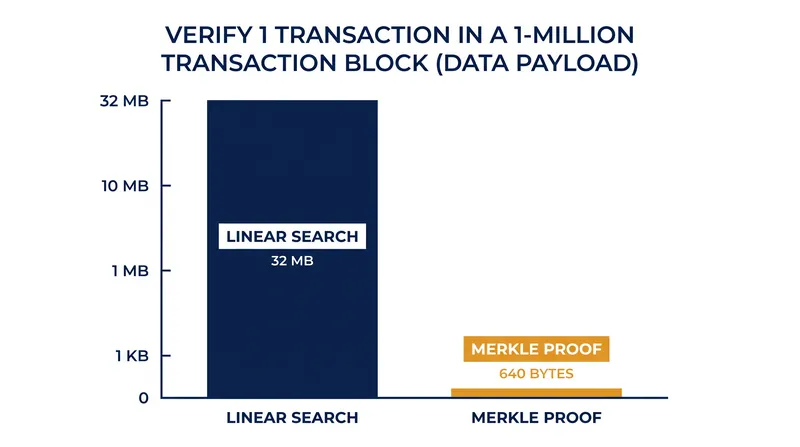

With a Merkle tree, proving a transaction in a 1,000,000-record dataset requires just 20 hashes. At 32 bytes per hash, the entire proof payload is a mere 640 bytes. This represents a 99.998% reduction in the data a client must download compared to fetching the full linear dataset.[6]

Satoshi Nakamoto explicitly leveraged this efficiency in the 2008 Bitcoin whitepaper to enable Simplified Payment Verification (SPV). SPV allows lightweight clients—like mobile wallets—to operate securely without downloading the hundreds of gigabytes that make up the full blockchain history.[2][6]

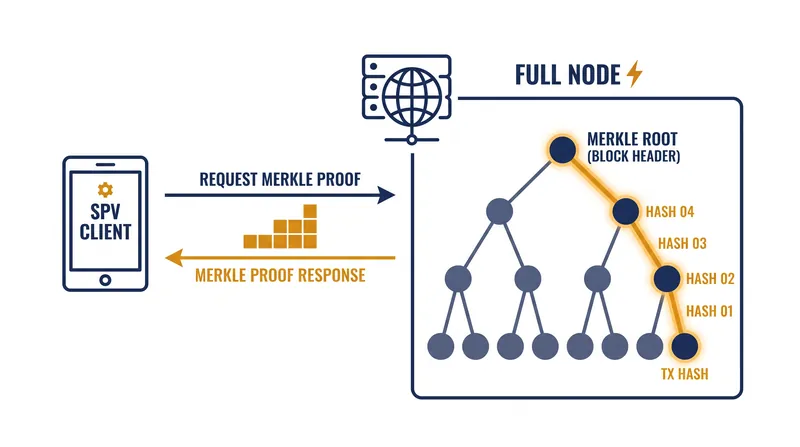

An SPV client downloads only the 80-byte block headers, which contain the Merkle roots. When the wallet needs to check a payment, it queries a full node for the Merkle proof connecting that payment to the known root. If the math checks out, the wallet knows the network has accepted the transaction.[4][6]

The invention predates blockchain by decades. Stanford researcher Ralph Merkle patented the concept of hash trees in 1979 as a method for creating digital signatures. Today, the structure extends far beyond cryptocurrency and underpins much of the modern internet.[1][2]

Distributed version control systems like Git use Merkle trees to track changes in code repositories, ensuring that no commit history is altered without detection. Peer-to-peer networks like BitTorrent and the InterPlanetary File System (IPFS) use them to verify that downloaded file fragments match the original file.[2][6]

The architecture is not without edge cases. If a tree is improperly implemented, it can be vulnerable to second pre-image attacks, where a malicious actor crafts a fake leaf node that produces the same hash as a legitimate branch node. Protocols mitigate this by prepending different byte flags to leaf and branch hashes before hashing them.[2]

Modern blockchains have also evolved the concept. Ethereum uses a Modified Merkle Patricia Trie, which combines the cryptographic verification of a Merkle tree with the efficient key-value routing of a Patricia trie. This allows Ethereum to securely store not just a static list of transactions, but the continuously updating state of millions of smart contracts.[6]

As networks scale to process thousands of transactions per second, researchers are developing Verkle trees. By replacing standard hash functions with vector commitments, Verkle trees aim to reduce proof sizes even further, paving the way for stateless clients that require almost zero local storage to validate the network.[6]
