33.7% Efficiency: Why the Shockley-Queisser Limit Sets the Hard Boundary on Single-Junction Solar Cell Performance

On one side of the renewable energy transition, techno-optimists argue that relentless engineering will eventually yield solar panels that capture nearly all the energy the sun beams to Earth, driving the cost of power to near zero. On the other side, physicists point to a mathematical wall erected in 1961, asserting that no matter how perfect the manufacturing or how pure the silicon, a standard solar cell will never convert more than 33.7% of that light into electricity.[1][3]

The physicists are right. The Shockley-Queisser limit is not an engineering challenge waiting for a clever workaround; it is a hard thermodynamic boundary dictated by the laws of quantum mechanics. Understanding why this limit exists reveals why the future of solar energy depends entirely on manufacturing scale and novel multi-layer architectures, rather than squeezing more juice from standard silicon wafers.[1][3]

To see why the boundary is impassable, one must look at how a photovoltaic cell actually operates. When sunlight strikes a semiconductor, it delivers energy in discrete packets called photons. If a photon carries enough energy, it knocks an electron loose from its atomic orbit, creating a free electron and a positively charged "hole." The movement of these electrons through a circuit is what we measure as electrical current.[1][2]

But semiconductors are picky about which photons they absorb. Every material has a specific "bandgap"—a minimum energy threshold required to knock an electron loose. According to the Department of Energy's Solar Energy Technologies Office, "The Shockley-Queisser limit describes the maximum solar energy conversion efficiency achievable for a particular material" based on this exact bandgap.[2]

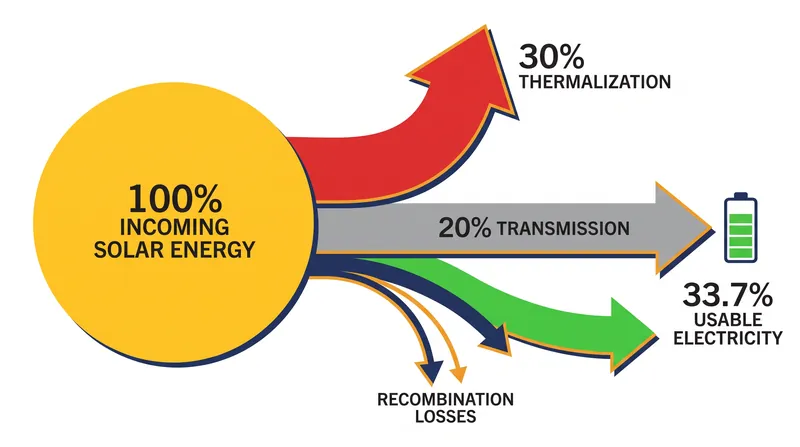

If a photon hits the cell with less energy than the bandgap, it passes straight through the material like a ghost through a wall. This phenomenon, known as transmission loss, accounts for roughly 20% of the energy lost in a standard silicon solar cell. The cell simply cannot see a large portion of the infrared spectrum.[1][3]

Conversely, if a photon arrives with significantly more energy than the bandgap, the semiconductor still only extracts the exact amount of energy needed to free the electron. The excess energy is instantly lost as heat, a process called thermalization. Because the sun's spectrum is incredibly broad—ranging from low-energy infrared to high-energy ultraviolet—thermalization bleeds away another 30% of the incoming solar energy.[1][3]

Even if a photon perfectly matches the bandgap, the cell cannot capture every resulting electron. Due to the second law of thermodynamics, the solar cell itself must emit some radiation back into the environment. Furthermore, some freed electrons will inevitably recombine with holes before they can be funneled into the electrical circuit, creating a baseline of unavoidable inefficiency.[1]

In 1961, researchers William Shockley and Hans Queisser tallied up these unavoidable physical losses. They calculated that for a single-junction solar cell—one made of a single continuous semiconductor material—the absolute maximum theoretical efficiency peaks at 33.7%. To hit this peak, the material must have a bandgap of exactly 1.34 electron volts (eV).[1]

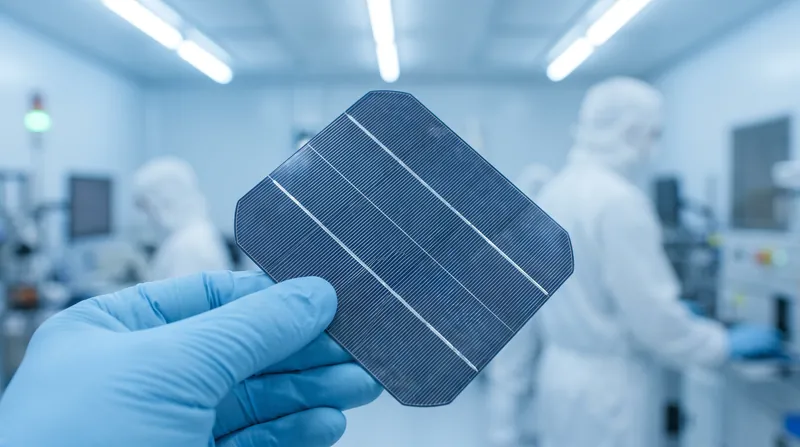

Silicon, the workhorse of the modern solar industry, has a bandgap of 1.1 eV. Because its bandgap is slightly off the ideal 1.34 eV target, silicon's specific theoretical limit is even lower, capping out at approximately 32%. No amount of polishing, purifying, or engineering can push a standard silicon cell past this number.[1][3]

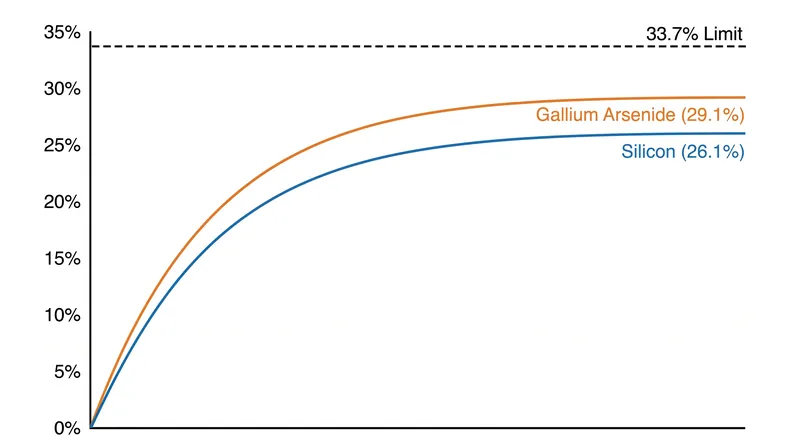

The industry is already brushing up against this ceiling. According to the National Renewable Energy Laboratory (NREL), the current world record for a single-crystal silicon cell sits at 26.1%. For gallium arsenide (GaAs), a material with a near-perfect bandgap, the record is 29.1%. Commercial panels have already captured over 85% of their physically possible performance.[3]

This reality forces a strategic pivot. Because single-junction efficiency is mathematically exhausted, the massive price drops in solar energy over the last decade—often described by Swanson's Law—have been driven entirely by economies of scale, cheaper supply chains, and automated manufacturing, not by fundamental changes to the silicon's efficiency.[3]

The only physical way to break the Shockley-Queisser limit is to break its primary constraint: the single junction. Materials scientists are now layering different semiconductors on top of each other to create "tandem cells." By placing a high-bandgap material like perovskite on top of a low-bandgap material like silicon, the cell can capture high-energy photons efficiently at the top and low-energy photons at the bottom.[2]

Tandem architectures theoretically push the efficiency limit beyond 40%, but they introduce severe manufacturing complexities and durability issues that standard silicon solved decades ago. The debate over whether to pursue highly efficient tandem cells or simply manufacture billions of cheap, 22% efficient silicon panels is the defining economic question of the 2026 renewable energy landscape.[3]

The 33.7% boundary remains the most important number in renewable energy physics. It guarantees that a single-layer solar panel will always waste two-thirds of the sunlight that hits it. By accepting this thermodynamic reality, the global energy transition can stop chasing impossible miracles and focus on the brute-force logistics of covering more surface area with the technology we already have.[1][3]
