Traffic Analysis in Signals Intelligence: How Metadata Reveals Network Structures Without Decryption

The outcome of signals intelligence (SIGINT) is not determined when a cryptanalyst breaks a cipher, but earlier in the collection pipeline: during traffic analysis, when an analyst correlates the metadata of a transmission—its time, origin, destination, and frequency—against a known pattern of life. This step is the fulcrum of modern surveillance because it renders the payload of the message irrelevant. The mere existence and rhythm of a communication reveal a network's structure, command hierarchy, and operational tempo, allowing intelligence agencies to map an adversary's intentions without ever reading a single decrypted word.[5]

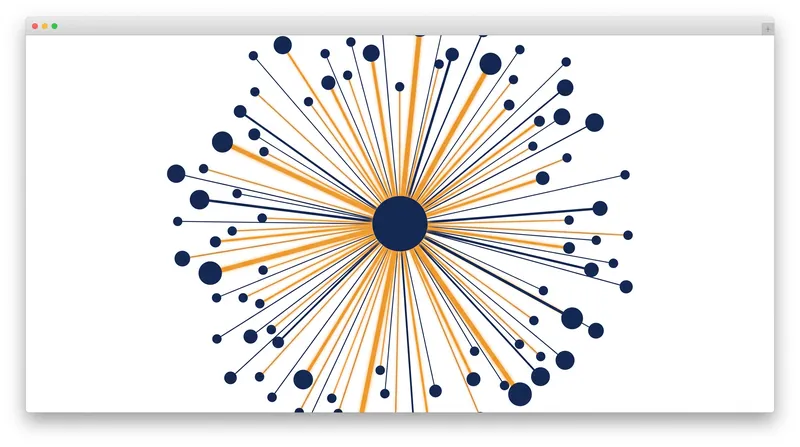

Traffic analysis operates on the principle that the external characteristics of a signal are as informative as its internal contents. According to a declassified National Security Agency (NSA) manual, the discipline deals with "the study of the external characteristics of signal communications and related materials for the purpose of obtaining information concerning the organization and operation of a communication system" [5]. By isolating the routing data—who called whom, when, for how long, and from where—analysts construct an Electronic Order of Battle (EOB) that maps the physical and logical connections between targets.[1][2]

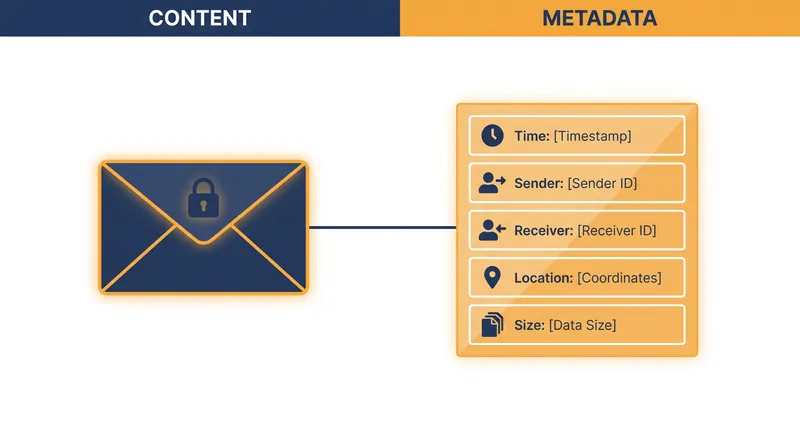

The reliance on metadata over content is driven by the ubiquity of modern encryption. With over 90 percent of contemporary internet traffic protected by cryptographic protocols, intercepting the actual text of a message is increasingly difficult. However, as Blackscore AI notes, "traffic analysis can reveal patterns even when content is unreadable" [3]. When a target switches from an open cellular network to an encrypted messaging application, the content is shielded, but the metadata—the packet size, the transmission timing, and the IP addresses of the routing servers—remains visible to passive collection systems.

This metadata forms the foundation of pattern-of-life analysis, a methodology that aggregates temporal and spatial data to establish a baseline of normal behavior for a specific target. Intelligence platforms ingest specialized formats, including call detail records and Wi-Fi probe requests, to map a target's daily routine. As Cambridge Intelligence outlines, "the temporal aspect is key to identifying patterns. A single snapshot isn't enough – we need to follow events as they unfold, to work out what typically happens when, and how often" [7].[4]

Once a baseline is established, deviations from that pattern serve as predictive indicators of future action. In a military context, specific metadata signatures correlate to specific operational phases. Frequent communications between distributed nodes often denote planning, while rapid, short bursts of data indicate active negotiations or tactical execution. Conversely, a sudden cessation of communication across a previously active network can signal that a finalized plan is moving into its execution phase, prompting a heightened state of readiness from defensive forces.[1]

The legal framework governing SIGINT heavily favors the collection of metadata over content. In the United States, Section 702 of the Foreign Intelligence Surveillance Act (FISA) Amendments Act treats metadata differently than the contents of a communication, operating on the premise that routing information does not carry the same expectation of privacy. This distinction allows agencies to collect and store metadata at scale. For example, documents leaked in 2013 revealed that the NSA's MARINA database was designed to store intercepted internet metadata for up to 365 days, providing analysts with a historical repository for retroactive pattern-of-life correlation.[1]

Despite its utility, metadata analytics carries inherent limitations regarding the nature of the relationships it uncovers. A quantitative analysis of traffic flow can definitively prove that two nodes communicate frequently, but it cannot independently verify the context of that communication. As researchers in the journal Targeting in International Law observe, "Metadata analytics can detect that people from both those groups are closely linked because they communicate with each other and have similar travel patterns, but it cannot determine with certainty which individuals are actively participating in hostilities and which ones are only providing non-military support" [6].[3]

To counter traffic analysis, network security engineers employ traffic flow security measures, such as onion routing and continuous channel masking. Systems like the Tor network attempt to anonymize users by routing traffic through multiple encrypted relays. However, these systems remain vulnerable to active traffic analysis. Researchers at the University of Cambridge demonstrated that adversaries can infer which nodes relay anonymous streams by altering the timing of packets on one side of the network and observing the corresponding timing variations on the exit node, effectively linking the sender to the receiver despite the anonymization layers.[1]

The ongoing evolution of SIGINT relies on the integration of artificial intelligence to automate the correlation of vast metadata repositories. As the volume of encrypted traffic expands, the decisive advantage in network surveillance will belong to the systems capable of isolating anomalous behavioral signatures from the background noise of global communications, shifting the focus of intelligence gathering permanently from what a target says to how and when they choose to say it.[5]
