The Three-Dimensional Grid, Physical Equations, and Parameterizations That Predict Future Climate

Some atmospheric physicists argue that climate models must resolve cloud formation and turbulence at the meter scale to produce trustworthy projections of a warming Earth, pointing to the persistent uncertainties in how water vapor amplifies heat. Conversely, operational modeling centers maintain that waiting for exascale computing to simulate every cumulus cloud is a paralyzing delay.

They argue that statistical approximations, known as parameterizations, already capture the macroscopic energy balance accurately enough to guide global policy. This tension defines the current frontier of climate science, where the demand for precise local forecasts collides with the hard limits of silicon processors.[1][2]

At the core of this debate is the General Circulation Model (GCM), the mathematical engine that drives the projections of the Intergovernmental Panel on Climate Change (IPCC). A GCM does not view the Earth as a seamless sphere, but rather as a three-dimensional grid of discrete boxes wrapping the planet.

By dividing the continuous atmosphere and ocean into finite volumes, scientists can translate the continuous laws of physics into discrete algebra that a supercomputer can process. This grid forms the scaffolding upon which all future climate scenarios are built, dictating both the resolution of the forecast and the computational cost of the simulation.[5]

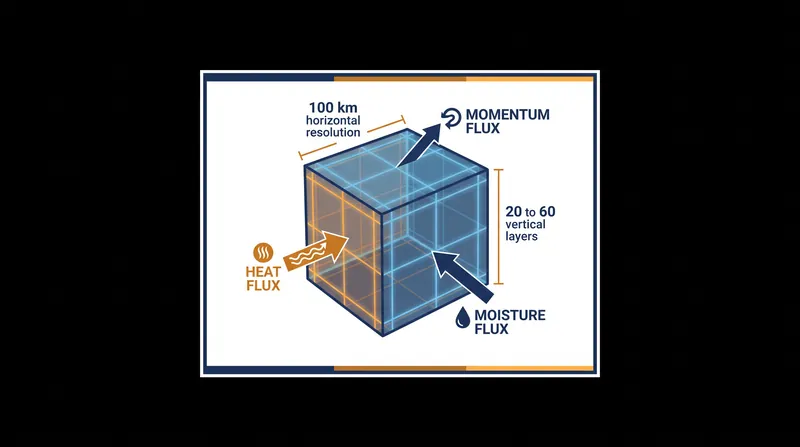

These grid cells typically measure roughly 100 kilometers on each side horizontally, stacked in 20 to 60 vertical layers reaching from the surface of the Earth up to the stratosphere. Within each of these millions of individual cells, the model calculates the state of the atmosphere using seven fundamental equations of fluid dynamics and thermodynamics. These equations track the conservation of mass, the conservation of energy, and the conservation of momentum, ensuring that no heat or matter is artificially created or destroyed as the simulation steps forward in time.[2]

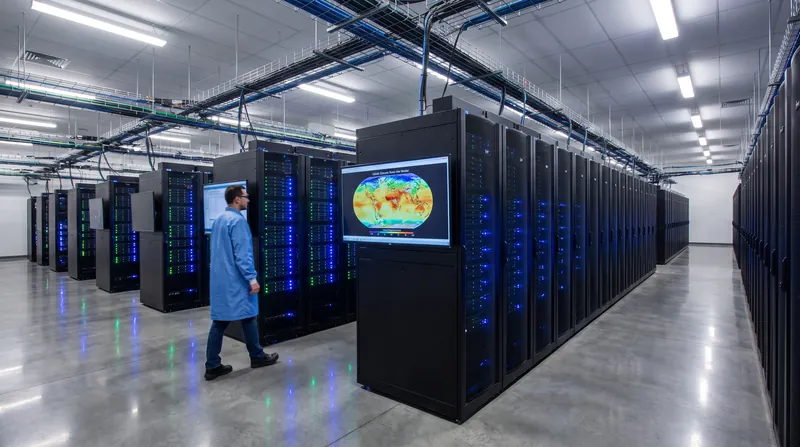

The most computationally demanding of these mathematical rules are the Navier-Stokes equations, which describe how fluids like air and water move in response to pressure gradients, temperature differentials, and the Coriolis effect generated by the Earth's rotation.

By solving these equations at discrete time steps—often every 15 to 30 minutes of simulated time—the model tracks the flow of mass and energy across the boundaries of every single grid cell. This continuous exchange of fluxes between neighboring boxes is what generates the simulated jet streams, trade winds, and ocean currents that distribute heat around the globe.

However, the physical world does not neatly align with a 100-kilometer grid. A single thunderstorm, which transports massive amounts of heat and moisture vertically through the troposphere, might be only 10 kilometers wide. Because the model's grid cannot "see" anything smaller than its own cells, it cannot simulate these critical sub-grid processes directly using the Navier-Stokes equations. If a model simply ignored everything smaller than 100 kilometers, the simulated climate would rapidly diverge from reality, failing to produce rain, reflect sunlight, or transport heat effectively.[3]

This fundamental limitation necessitates the use of parameterization. Parameterizations are statistical approximations or empirical formulas that estimate the aggregate effect of sub-grid phenomena based on the large-scale conditions that the model can actually resolve. Instead of simulating the individual updrafts and downdrafts of a thunderstorm, a parameterization scheme looks at the average temperature and humidity of the entire 100-kilometer grid cell and calculates how much heat and moisture a hypothetical storm would transfer vertically under those specific conditions.[4]

For example, if a grid cell reaches a certain threshold of relative humidity and instability, the cloud parameterization scheme calculates the probable amount of cloud cover, the optical thickness of those clouds, and the resulting precipitation that falls to the surface.

According to the Geophysical Fluid Dynamics Laboratory (GFDL) at the National Oceanic and Atmospheric Administration (NOAA), "Climate models are mathematical representations of the interactions between the atmosphere, oceans, land surface, ice – and the sun." Parameterizations are the bridge that connects the macroscopic physics of the grid to the microscopic reality of the Earth system.[2]

The reliance on parameterization is driven by the brutal mathematics of computational scaling. Halving the horizontal grid spacing of a model from 100 kilometers to 50 kilometers does not simply double the computational cost; it increases the number of horizontal cells by a factor of four. When applied across the entire surface of the Earth, this geometric expansion rapidly consumes the available memory and processing power of even the most advanced supercomputing clusters, making brute-force resolution increases prohibitively expensive.[6]

Furthermore, a finer grid requires a shorter time step to maintain mathematical stability—a constraint known in fluid dynamics as the Courant-Friedrichs-Lewy condition. If the time step is too long, simulated winds can cross multiple grid cells in a single step, causing the equations to produce fatal errors. Consequently, halving the grid resolution requires roughly an eightfold increase in total computational power. This scaling law demonstrates why resolving meter-scale turbulence globally remains mathematically impossible on current hardware, cementing parameterization as a permanent fixture of climate modeling.[6]

To manage this immense complexity, institutions like NOAA have developed the Common Community Physics Package (CCPP). This open-source framework allows researchers to collaboratively develop and swap different physical parameterizations—such as varying models for aerosol-cloud interactions or soil moisture evaporation—into the same dynamic core. By standardizing the interface between the grid physics and the sub-grid parameterizations, the CCPP enables scientists to rigorously test how different statistical assumptions alter the projected climate, isolating the specific variables that drive uncertainty in long-term forecasts.[4]

The geometry of the grid itself is also evolving to meet the demands of modern computing. Traditional models used a standard latitude-longitude grid, which creates a mathematical singularity at the poles where the meridians converge. This convergence forces models to artificially filter data near the poles to prevent the simulation from crashing.

Modern architectures, such as the Expanded Spherical Cube, project a cube onto the surface of the sphere, creating a much more uniform grid that eliminates the polar singularity and scales far more efficiently across the thousands of processors used in parallel supercomputers.

While the atmosphere reacts quickly to changes in solar radiation, the ocean acts as the climate's massive thermal flywheel, absorbing over 90 percent of the excess heat trapped by greenhouse gases. Ocean General Circulation Models operate on similar grid principles but must account for much slower timescales and entirely different sub-grid processes. For instance, mesoscale ocean eddies, which are crucial for transporting heat across ocean basins, are much smaller than atmospheric storms, requiring even finer grids or highly specialized parameterizations to accurately simulate the global thermohaline circulation.[5]

AI

Not all climate questions require the immense complexity and computational expense of a full three-dimensional GCM. Simple climate models, which might treat the entire Earth as a single box or divide it into a handful of large hemispheric regions, are used to rapidly simulate the global-mean surface temperature response to specific radiative forcing scenarios. Because they do not need to solve the Navier-Stokes equations across millions of grid cells, these simple models can run on a standard laptop in seconds rather than requiring months on a supercomputer.

These simple models were heavily utilized in early IPCC assessments, such as the 1995 Second Assessment Report, to explore a wide range of emission pathways quickly and efficiently. Today, they are often used in tandem with complex GCMs to emulate the behavior of the larger models across thousands of different policy scenarios. By calibrating a simple model to match the output of a fully coupled GCM, researchers can generate massive ensembles of projections that capture the full range of economic and demographic uncertainties surrounding future greenhouse gas emissions.[1]

The structural uncertainty in climate projections—the spread between different models predicting the global temperature in the year 2100—stems almost entirely from how different modeling centers choose to parameterize clouds, aerosols, and ocean mixing. As computing power inches toward the exascale era, the boundary between what must be parameterized and what can be resolved directly will continue to shift. Until we can simulate every cloud on Earth, the accuracy of our climate future will depend on the mathematical elegance of the statistical approximations running between the grid lines.[1][3]
