The Nine Climate Tipping Elements and the Temperature Thresholds That Trigger Irreversible Change

Some climate dynamicists argue that the Earth system is highly sensitive, with interconnected biophysical systems poised to collapse like dominoes once a strict 1.5°C warming threshold is breached, locking in catastrophic, irreversible warming regardless of subsequent human action. Conversely, other researchers contend that the climate is more resilient, viewing these "tipping points" not as sudden cliffs but as gradual, probabilistic transitions where thresholds are highly uncertain, and where crossing 1.5°C merely increases the risk rather than guaranteeing an immediate, unstoppable cascade.[2][8]

Before assessing the risk, it is necessary to understand how a tipping element functions. A climate tipping element is a large-scale component of the Earth system that can be pushed into a qualitatively different state by a small external perturbation. This occurs through positive feedback loops—mechanisms where a change in a system amplifies the very process that caused it. Once the feedback loop becomes self-sustaining, the system crosses a tipping point, and the change becomes irreversible on human timescales, even if the initial forcing is removed.[1][6]

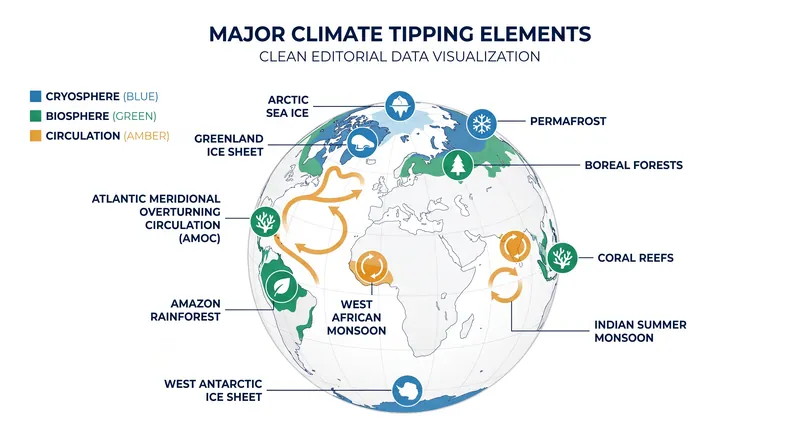

In 2008, a foundational paper in the Proceedings of the National Academy of Sciences (PNAS) formally identified several of these elements. By 2022, a comprehensive reassessment published in the journal Science refined this list, categorizing them based on their temperature thresholds. Today, researchers at institutions like the Potsdam Institute for Climate Impact Research (PIK) and the Planetary Health Check track nine major global tipping elements. These are broadly divided into three categories: the cryosphere (ice), the biosphere (ecosystems), and ocean-atmosphere circulation patterns.[1][2][5][6]

The cryosphere contains some of the most sensitive tipping elements, notably the Greenland Ice Sheet. The mechanism driving its potential collapse is the melt-elevation feedback. As the ice sheet melts, its surface lowers into warmer air at lower altitudes, which accelerates further melting. If global temperatures remain elevated, this feedback loop could become self-sustaining. Complete melting of the Greenland Ice Sheet would contribute approximately 7 meters to global sea levels, fundamentally altering coastlines worldwide.[2][3]

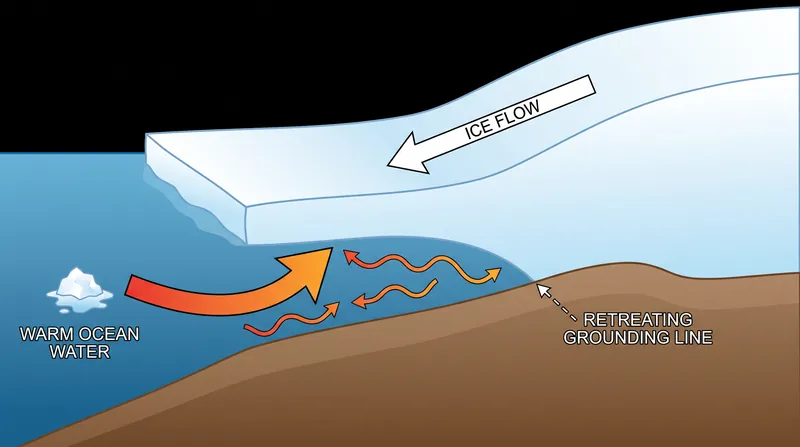

Similarly, the West Antarctic Ice Sheet is vulnerable due to a mechanism known as marine ice sheet instability. Much of this ice sheet rests on bedrock that slopes downward inland, below sea level. As warm ocean water melts the ice shelf from below, the grounding line—the point where the ice detaches from the bedrock and begins to float—retreats downhill. This exposes progressively thicker ice to the ocean, increasing the rate of ice discharge into the sea in a runaway process.[2][3]

The third major cryosphere element is the boreal permafrost, which stores an estimated 1,500 billion metric tons of carbon—nearly double the amount currently in the atmosphere. The mechanism here is a biogeochemical feedback: as permafrost thaws, microbes decompose the previously frozen organic matter, releasing carbon dioxide and methane. Methane is a potent greenhouse gas, and its release drives further atmospheric warming, which in turn thaws more permafrost.[3][6]

In the biosphere, the Amazon rainforest represents a critical tipping element governed by moisture recycling. The Amazon generates up to half of its own rainfall through transpiration; trees release water vapor into the atmosphere, which gathers into clouds and falls as rain further downwind. Deforestation and global warming disrupt this cycle. If the dry season extends beyond a critical threshold, the forest can no longer sustain its own microclimate, triggering a rapid dieback and transition into a degraded savanna ecosystem.[3][5]

Other biosphere elements include the boreal forests of the Northern Hemisphere and tropical coral reefs. Boreal forests face a tipping point driven by heat stress, increased pest outbreaks, and more frequent wildfires, which could shift the ecosystem from a carbon sink to a carbon source. Meanwhile, tropical coral reefs are highly sensitive to thermal stress. Prolonged marine heatwaves cause corals to expel their symbiotic algae in a process called bleaching. If warming exceeds 1.5°C, models project that 70 to 90 percent of coral reefs could cross a threshold into mass mortality.[2][3]

The most closely monitored circulation tipping element is the Atlantic Meridional Overturning Circulation (AMOC), a massive system of ocean currents that transports heat from the tropics to the North Atlantic. The AMOC is driven by the sinking of cold, salty, dense water in the subpolar regions. However, as the Greenland Ice Sheet melts, it injects vast quantities of fresh, less dense water into the North Atlantic. This freshwater anomaly dilutes the surface water, preventing it from sinking and potentially slowing or halting the entire circulation system.[3][6]

Other circulation elements include the West African Monsoon and the El Niño-Southern Oscillation (ENSO). Shifts in global temperature gradients can abruptly alter the strength and position of the West African Monsoon, drastically changing precipitation patterns across the Sahel region. Similarly, some models suggest that continued warming could push ENSO into a state of near-permanent El Niño conditions, fundamentally rewiring global weather patterns, though the exact threshold for this shift remains highly uncertain.[1][3]

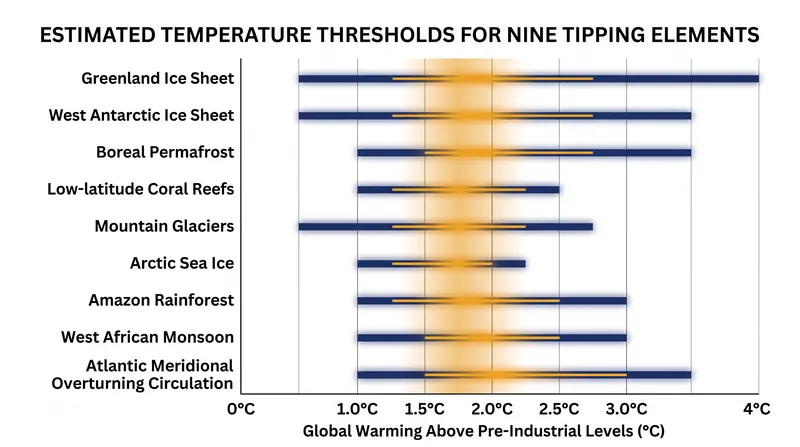

The critical question for climate scientists is precisely when these tipping points will be triggered. The 2022 Science reassessment synthesized hundreds of studies to estimate these thresholds. The data indicates that the Greenland Ice Sheet, the West Antarctic Ice Sheet, tropical coral reefs, and abrupt permafrost thaw all have estimated thresholds clustered around 1.5°C of global warming above pre-industrial levels. As the Carbon Brief noted in a 2022 analysis, "Global warming above 1.5C could trigger 'multiple' tipping points."[2][7]

This clustering creates a severe risk profile. While the Earth has currently warmed by approximately 1.2°C to 1.3°C, crossing the 1.5°C mark transitions several systems from the realm of "possible" tipping to "likely." Between 1.5°C and 2.0°C, the Amazon rainforest and the AMOC also enter their estimated danger zones. "We’re approaching critical climate tipping points," warned researcher Tim Lenton in a 2021 Mongabay interview, highlighting the narrowing window for preventative action.[2][4]

The risk is compounded by the fact that these elements do not exist in isolation; they interact in ways that can trigger cascading failures. For example, the melting of the Greenland Ice Sheet directly contributes to the slowdown of the AMOC. A weakened AMOC reduces heat transport to the Northern Hemisphere, which can shift the Intertropical Convergence Zone southward. This shift would alter precipitation patterns over the Amazon basin, accelerating the rainforest's dieback. In this scenario, crossing one threshold effectively lowers the threshold for the next.[5][6][8]

Despite these detailed models, significant uncertainty remains. Much of our understanding of tipping points comes from paleoclimate data—records of past abrupt climate shifts preserved in ice cores and ocean sediments. During the Dansgaard-Oeschger events of the last glacial period, the AMOC repeatedly collapsed and restarted, causing massive temperature swings in the Northern Hemisphere. However, modern anthropogenic forcing is occurring at a rate unprecedented in the geological record, making it difficult to perfectly map historical precedents onto future outcomes.[1][8]

The exact temperature at which any single tipping element will irreversibly shift cannot be predicted with absolute certainty. The thresholds are probabilistic ranges rather than hard boundaries. What the collective data from PIK, the Planetary Health Check, and foundational assessments demonstrates is that the architecture of the Earth's climate system contains hidden tripwires. The further global temperatures rise, the higher the probability that one of these mechanisms will be triggered, shifting the trajectory of the planet's climate out of human control.[5][6][8]
