The Science of Showing What We Don't Know: How Visualizing Uncertainty Increases Public Trust

We often assume that presenting a single, exact number projects authority and competence. In complex fields ranging from climate science to public health and artificial intelligence forecasting, absolute precision is frequently an illusion. Yet, for decades, the standard practice in public-facing data communication has been to smooth over the rough edges, presenting clean trend lines and definitive point estimates. The underlying assumption was that showing the public the inherent messiness of the data would only breed confusion and skepticism. However, a sweeping reevaluation within the data science community is turning this conventional wisdom on its head, revealing that the exact opposite is true.[7]

A growing body of evidence suggests that hiding the variability of data actively backfires. When experts present point estimates without acknowledging the margins of error, inevitable real-world fluctuations look like catastrophic failures. If a financial model predicts an exact revenue figure and misses it by a fraction, the entire model is deemed untrustworthy by stakeholders. Ignoring uncertainty misleads audiences into overconfidence, and when that overconfidence shatters, it takes institutional credibility down with it.[5]

The solution lies in an emerging subfield known as "uncertainty visualization." This discipline focuses entirely on how to graphically represent what we do not know. Counterintuitively, researchers are discovering that explicitly showing the boundaries of our ignorance actually makes audiences trust the underlying data more. By treating the audience as capable of handling nuance, data communicators foster a more resilient form of public confidence.[7]

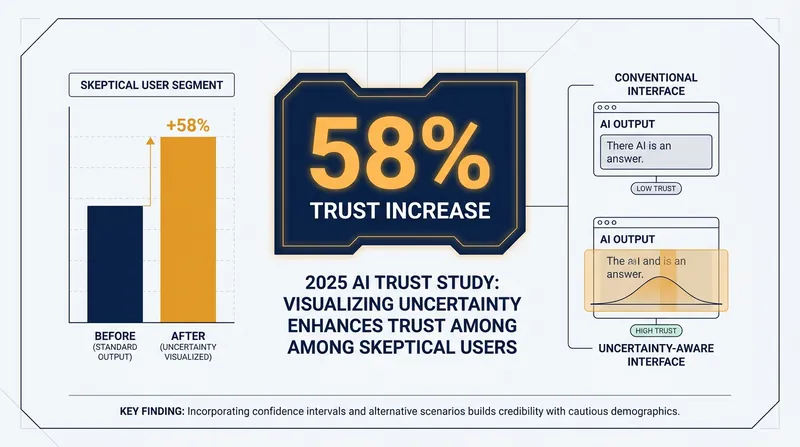

A landmark February 2025 study published in the journal Frontiers in Computer Science tested this dynamic directly, exploring how humans interact with machine learning models. Researchers designed an experiment where 147 participants collaborated with an artificial intelligence system on complex decision-making tasks. In one control group, the AI provided standard, binary predictions with absolute certainty. In the experimental group, the AI’s interface was modified to explicitly visualize its own mathematical uncertainty.[1]

The findings were striking, particularly for users who entered the study with preconceived biases against artificial intelligence. For participants who already held negative attitudes toward AI, visualizing the system's uncertainty significantly enhanced their trust in the machine in 58 percent of cases. Far from making the AI look weak or defective, the admission of doubt made it appear more reliable.[1]

The mechanism behind this increased trust was rooted in the visual cues themselves. The researchers used a mix of size, color saturation, and transparency to signal probabilities. When the AI was less confident, its visual outputs became slightly more transparent or shifted in color intensity. By seeing the AI's "doubt" represented visually, users felt more confident in their own collaborative decisions. The machine wasn't pretending to be omniscient; it was being transparent about its limitations.[1]

While the concept of showing uncertainty is gaining traction, the traditional methods used to do so are increasingly viewed as flawed. For decades, the gold standard for showing uncertainty in scientific literature has been the "error bar"—a simple line drawn through a data point to indicate a confidence interval. While mathematically precise and highly space-efficient for academic journals, error bars are notoriously difficult for the general public to interpret.[2]

Cognitive scientists have found that error bars trigger specific perceptual biases. Lay audiences frequently mistake the ends of the bars for absolute maximum and minimum limits, rather than statistical confidence intervals. Viewers tend to assume that any outcome within the bar is equally likely, entirely missing the reality that outcomes are usually heavily concentrated near the center point.[2]

Furthermore, error bars fail to show the actual shape of the probability distribution. A 2023 study published in the journal Assessment highlighted this exact issue, noting that visualizations placing less emphasis on hard range limits better represent the continuous nature of measurement uncertainty. When people are forced to look at hard lines, they engage in categorical reasoning, stripping away the nuance that the data is trying to convey.[3]

Perhaps the most famous example of a misunderstood uncertainty visualization is the "cone of uncertainty" used for hurricane forecasting. Jessica Hullman, a researcher at Northwestern University's MU Collective who studies information visualization, points to the hurricane cone as a prime example of visual misinterpretation that can have life-or-death consequences during natural disasters.[4]

When viewing the hurricane cone, many people interpret the widening shape as the physical size of the storm growing over time, assuming that the entire shaded area will be struck simultaneously. In reality, the cone is intended to indicate the expanding range of possible paths the center of the storm might take. Because the visualization makes the uncertainty easy to misinterpret, people often make poor evacuation decisions based on a flawed understanding of the graphic.[4]

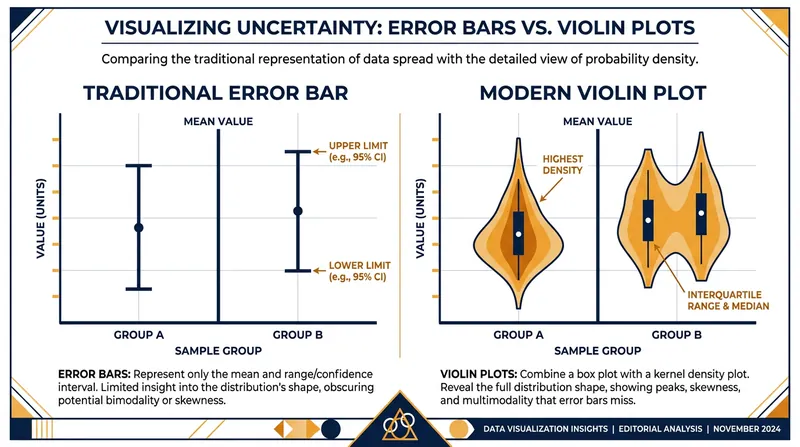

To combat these cognitive biases, data designers are moving toward more expressive, intuitive techniques. One highly effective alternative is the "violin plot." By combining a traditional boxplot with a kernel density plot, the violin plot creates a curved, organic shape that graphically highlights the complexity of the data distribution, showing exactly where the most likely outcomes are clustered.[6]

The clinical evidence supporting these new shapes is robust. The 2023 Assessment study found that violin plots and histograms successfully ameliorated important misconceptions about the likelihood of measurement errors among clinicians. By visually emphasizing the density of the data rather than just the extreme limits, these plots outperformed traditional error bars in helping professionals make accurate judgments.[3]

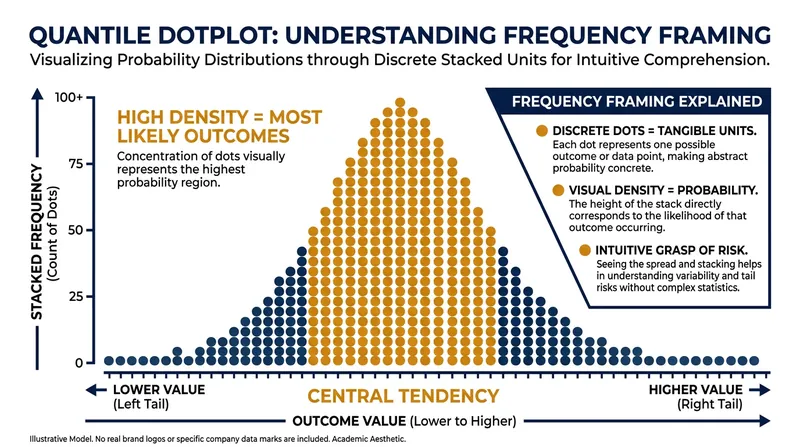

Another breakthrough technique gaining rapid adoption is the "Quantile Dotplot." Instead of using a continuous gradient or a solid geometric shape, this chart represents probability as a stack of discrete dots. If a model predicts a 30 percent chance of an event, the chart might show three colored dots out of ten total dots, arranged in a distribution curve.[2]

The success of the quantile dotplot relies on a psychological concept known as "frequency framing." Human brains are evolutionarily wired to count discrete objects rather than estimate abstract areas or continuous probabilities. By forcing the viewer to see individual, discrete possibilities, dotplots drastically reduce "denominator neglect"—a common cognitive error where people focus on the number of times an event happens while ignoring the total number of opportunities.[2]

Taking the concept of frequency framing even further, some designers are abandoning static images entirely in favor of animation. Hypothetical Outcome Plots (HOPs) are a state-of-the-art technique that rapidly cycles through different possible outcomes drawn from a probability distribution, creating a "jittering" effect on the screen.[2]

By watching the chart animate through various scenarios, the viewer gets an intuitive, visceral sense of the uncertainty without needing to understand complex statistical math. If a trend line jumps wildly across the screen during the animation, the viewer instantly understands that the prediction is highly uncertain. If it barely moves, they know the confidence is high. It bypasses mathematical literacy and taps directly into visual intuition.[2]

As data analytics increasingly drive corporate strategy, healthcare planning, and government policy, transparently communicating uncertainty is evolving from a design choice into an ethical imperative. When analysts transparently communicate the limits of their models, stakeholders develop a deeper awareness of inherent biases and become better-informed decision-makers.[6]

In practical business applications, this often takes the form of color gradients and opacity variations. By making a data point blurry or highly transparent when confidence is low, designers can signal uncertainty at a glance without cluttering an executive dashboard. This subtle visual cue prevents leaders from placing unwarranted, absolute faith in a single predictive metric.[5]

The era of the falsely confident, razor-sharp bar chart is slowly coming to an end. By embracing the visual language of probability—through dotplots, violin shapes, and strategic blur—data communicators are learning a profound lesson. The best way to build enduring public trust is not to project an illusion of perfection, but to be radically, visually honest about the limits of our knowledge.[7]
