The Science of Pose Estimation: How Deep Learning Gives Smart Gym Equipment Real-Time Form Correction

For decades, the gym mirror served a single, analog purpose: allowing lifters to subjectively check their own form. But a quiet revolution in computer vision is transforming the reflective glass into an active participant. Smart gym equipment—from connected home mirrors to commercial cable machines—is now equipped with artificial intelligence that can "see" and correct human biomechanics in real time.[1][8]

The technology driving this shift is called human pose estimation. Originally developed for autonomous vehicles and robotics, pose estimation allows a computer to map the human body in three-dimensional space. By tracking the exact position of joints and limbs during a workout, these systems can identify a rounded back during a deadlift or a shallow squat, delivering instant corrective feedback without a human trainer in the room.[2][3]

This capability represents a massive leap in fitness technology. Early fitness trackers could only count steps or monitor heart rates, relying on simple accelerometers. Today's deep learning models analyze the geometry of movement itself, democratizing access to the kind of elite biomechanical analysis previously reserved for professional sports laboratories and elite athletic facilities.[4][8]

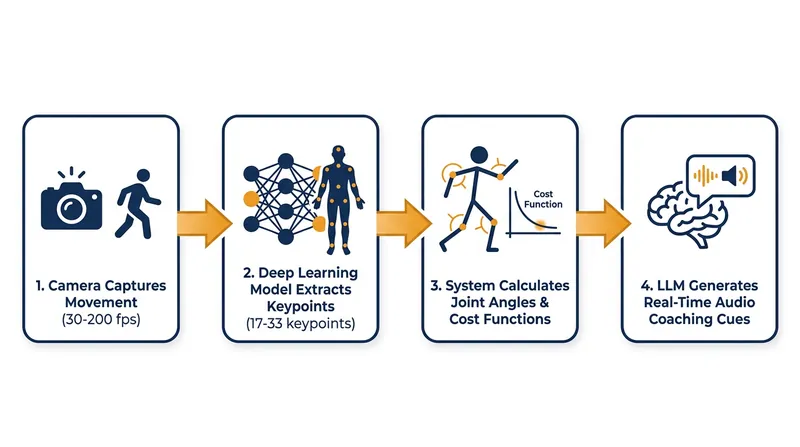

The mechanism begins with the camera, which captures the user's movement at high frame rates—often between 30 and 200 frames per second for high-end sports applications. As each frame is ingested, a deep learning model, such as Ultralytics' YOLO11 or Google's MediaPipe, scans the image to identify specific anatomical landmarks.[1][2]

Once the model identifies the user, it plots a digital skeleton over their body. Standard models track between 17 and 33 specific "keypoints," including the shoulders, elbows, wrists, hips, knees, and ankles. The software then calculates the angles between these keypoints in real time. If a user is performing a bicep curl, the system continuously measures the angle of the elbow hinge and the stability of the shoulder joint.[1][2][4]

To determine if the form is correct, the system uses a mathematical cost function. It compares the user's real-time joint coordinates against a database of idealized biomechanical models. If the discrepancy—or "D value"—exceeds a certain threshold, the system flags the movement as incorrect. This allows the software to differentiate between a safe, full-range-of-motion squat and one that places dangerous shear force on the lower back.[5]

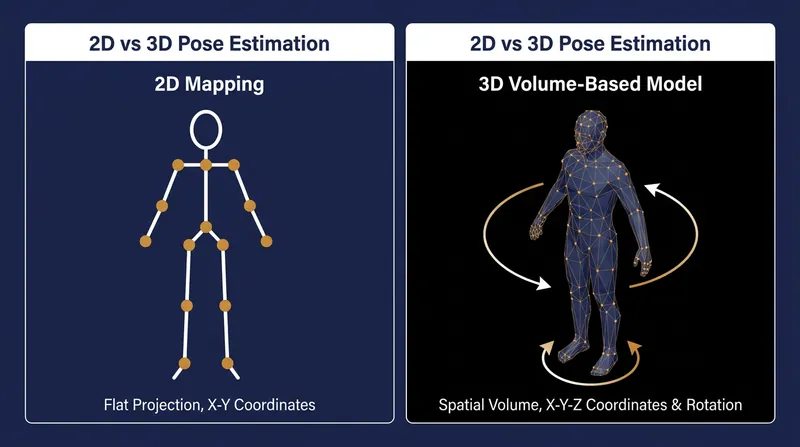

Historically, pose estimation was limited to 2D mapping, which struggled with depth perception. If a user turned sideways, the camera could not accurately measure the rotation of their torso. Modern smart equipment increasingly relies on 3D volume-based models. These models generate complex geometric meshes that estimate the depth and orientation of the body, allowing the AI to understand complex, multi-planar exercises like kettlebell swings or Turkish get-ups.[2][4][5]

The sheer computational power required to process high-definition video and map 33 keypoints in milliseconds used to require massive cloud servers. However, sending video feeds to the cloud introduces latency—a fatal flaw when a lifter needs instant feedback mid-rep. It also raises significant privacy concerns for users working out in the privacy of their own homes.[6]

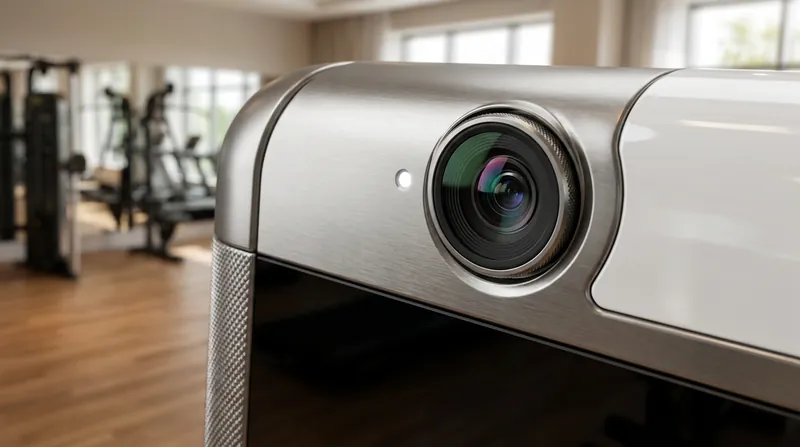

The solution has been the integration of Edge AI. Modern smart fitness machines are equipped with dedicated Neural Processing Units (NPUs) that run the deep learning models locally on the device. By processing the video feed at the "edge," the system can achieve latency of under 50 milliseconds. The camera sees the movement, the NPU calculates the keypoints, and the screen displays the correction instantly, all while discarding the video frames immediately to protect user privacy.[6][7]

But raw biomechanical data is only half the equation; the system must communicate the correction to the user in a natural way. This is where Large Language Models (LLMs) enter the pipeline. When the pose estimation algorithm detects an error—such as the knees caving inward during a squat—it generates a data discrepancy alert.[3]

An internal software "orchestrator" catches this discrepancy and feeds it into an LLM as a prompt. The LLM instantly translates the raw geometric error into conversational coaching cues. Instead of displaying a complex angle chart, the machine's audio system might say, "Push your knees outward on the way up," or "Keep your chest up." This creates the illusion of a highly observant human coach standing right next to the user.[3]

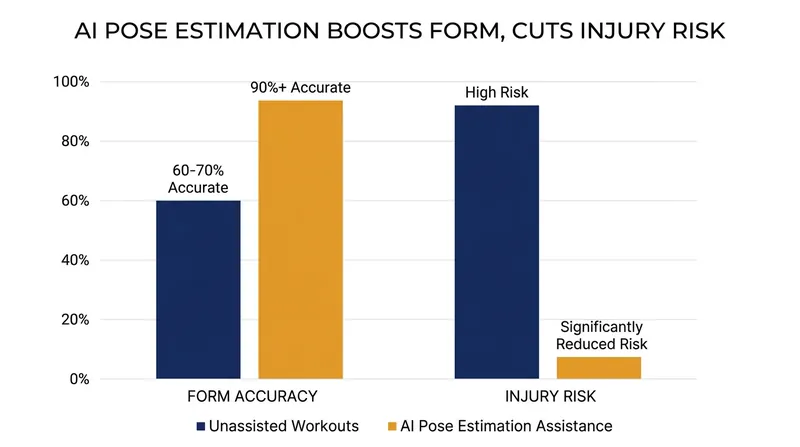

The clinical implications of this technology are significant. Studies on deep learning in physical rehabilitation and fitness show that real-time, phase-sensitive feedback drastically reduces injury risk. By correcting form during both the concentric (lifting) and eccentric (lowering) phases of a movement, users avoid the micro-traumas that lead to joint pain and chronic wear over time.[5]

Furthermore, computer vision models are shifting from traditional Convolutional Neural Networks (CNNs) to Vision Transformers (ViTs). While CNNs analyze images in isolated patches, Vision Transformers look at the entire image simultaneously, capturing global spatial relationships. This makes the AI much better at maintaining its tracking lock even in cluttered home gyms or when the user is partially obscured by a bench or barbell.[7]

Despite these rapid advancements, the technology still faces physical and computational hurdles. The most prominent challenge is occlusion. When a user's arm crosses in front of their torso, or when they use heavy, bulky equipment, the camera's line of sight to key joints is blocked. While 3D models are getting better at predicting the location of hidden joints based on the visible ones, complex contortions can still confuse the algorithm.[4]

Clothing also introduces a variable of uncertainty. Deep learning models are highly accurate when users wear form-fitting athletic gear, which clearly outlines joint hinges. Baggy sweatpants or oversized hoodies can obscure the exact location of the hips and knees, forcing the AI to guess the joint's center point, which can slightly degrade the accuracy of the angle calculations.[2]

There is also an ongoing debate about the standardization of "perfect" form. Human biomechanics vary wildly based on femur length, hip socket depth, and ankle mobility. A squat that looks mathematically incorrect for one body type might be the safest anatomical path for another. The next frontier for AI fitness developers is creating models that calibrate to an individual's unique skeletal structure rather than enforcing a rigid, universal standard.[5][8]

Traditional personal trainers emphasize that while AI can correct a joint angle, it cannot read a client's facial expression to know when they are pushing too hard, nor can it provide the tactile cues that help a beginner activate the correct muscle group. The technology is currently a supplement to, rather than a total replacement for, human coaching.[3][8]

Nevertheless, the integration of pose estimation into consumer fitness equipment marks a permanent shift in how humans interact with machines. By merging computer vision, edge processing, and generative AI, smart gym equipment is evolving from passive heavy metal into an active, intelligent partner in physical health.[1][3][8]
