The Mechanics of Sacred Geometry: How Islamic Art Encodes Mathematical Infinity

When most people look at the mesmerizing, kaleidoscopic ceilings of medieval Islamic mosques, they assume they are looking at the work of obsessive draftsmen armed with nothing but a compass, a straightedge, and infinite patience. The conventional wisdom has long held that these dizzying arrays of stars and polygons were painstakingly drawn line by zigzagging line, directly onto the plaster. It is a romantic image of the ancient artisan, but it fundamentally underestimates what was actually happening on those scaffolds.[1][4]

The truth, hidden in plain sight on the walls of shrines like the Darb-i Imam in Isfahan, Iran, is far more sophisticated than simple drafting. These artisans were not just drawing pretty shapes; they were manipulating a modular system of advanced mathematics to solve complex spatial problems. By the 15th century, Islamic architects were routinely deploying geometric concepts that Western science would not formally discover or understand until the 1970s. They had effectively mapped infinity using glazed brick, creating patterns that could expand forever without ever repeating themselves.[3]

To understand how this happened, we have to look at the cultural constraints that drove the innovation. In Islamic theology, the concept of tawhid—the indivisible oneness of God—is paramount. Coupled with a strict aniconic tradition that forbade the depiction of humans or animals in religious spaces to prevent idolatry, artisans were forced to look beyond the physical world for inspiration. They could not paint the face of the divine, so they sought to represent the underlying order of creation itself.[4]

They found their muse in mathematics, elevating it from a practical tool to a spiritual medium. Geometry became a powerful visual metaphor for the divine presence. A perfect circle or an infinitely expanding star pattern wasn't just a decorative choice; it was a profound theological statement about the unending, harmonious order of the universe. The religious mandate to avoid drawing a face or a figure inadvertently launched a golden age of geometric abstraction, pushing scholars, mathematicians, and craftsmen to collaborate and explore the absolute limits of spatial tessellation across the Islamic world.[4]

In the early centuries of the Islamic Golden Age, roughly from the 9th to the 12th century, these geometric patterns were relatively straightforward. Artisans adapted classical Greek and Roman mathematical principles to create periodic tessellations—patterns that repeat predictably and uniformly, much like a checkerboard, using simple stars, squares, and lozenges. These early designs were undeniably beautiful, but they were mathematically finite, relying on basic radial and translational symmetries that could be easily calculated and drafted by hand on a small scale without requiring advanced theoretical frameworks.[2][4]

But as the ambition of the architects grew, so did the sheer scale of the buildings they were commissioned to decorate. Drawing complex, intersecting lines across massive, curved domes using only a compass and a straightedge introduced a fatal flaw into the process: the inevitability of human error. Even a fraction of a degree of misalignment at the center of a dome would compound exponentially, turning into a glaring, unfixable mess by the time the pattern reached the outer edges. A radically new method was required to maintain absolute mathematical precision over vast architectural surfaces.[1]

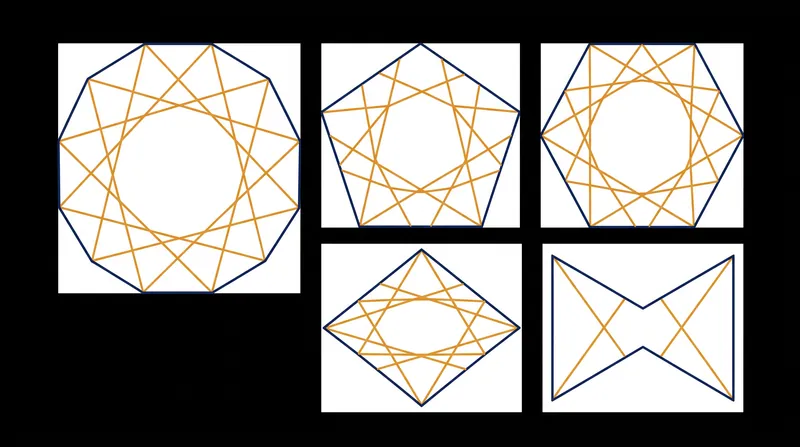

The solution was a brilliant conceptual breakthrough that occurred around the year 1200. Instead of drafting complex lines directly onto the walls, artisans developed a modular system based on five standardized polygonal tiles: a regular decagon, a pentagon, an elongated hexagon, a rhombus, and a distinctive bowtie shape. These are now known to modern researchers as 'girih tiles,' named after the Persian word for the intricate, knot-like strapwork that decorates their surfaces. By moving the geometric complexity from the drafting phase on the wall to the pre-fabrication phase of the tile, they completely revolutionized Islamic architecture.[1][3]

The true genius of the girih tile system lies in its strict, uncompromising internal rules. Every edge of every single tile, regardless of its overall shape, is exactly the same length. More importantly, the decorative lines drawn inside each tile intersect the outer edges at exactly the same angle—precisely 54 degrees. Because of this mathematical uniformity, when you place any two tiles next to each other, their internal lines match up perfectly. This guarantees the creation of a continuous, unbroken network of strapwork across the entire surface, entirely eliminating the risk of drafting errors.[1]

This meant the artisans no longer had to calculate complex geometry while balancing on scaffolding on the side of a building. They simply laid out the physical tiles according to a master grid, and the intricate star-and-polygon patterns automatically emerged from the interlocking lines. Once the installation was complete, the physical boundaries of the tiles themselves were often hidden, glazed over, or obscured, leaving only the mesmerizing 'girih' web visible to the worshipper below. This clever optical illusion created an appearance of impossible, free-hand complexity that masked the rigorous modular grid beneath.[1][2]

This modular system allowed for flawless execution over massive surface areas, but it also unlocked a mathematical door to something much more profound. Armed with the versatility of girih tiles, 15th-century designers began experimenting with the concept of self-similarity. They started creating massive, overarching patterns out of large 'macro-tiles,' which were themselves meticulously filled with smaller, scaled-down versions of the exact same geometric shapes. Without the aid of modern computers or algebraic topology, these medieval architects were intuitively building complex fractal geometries that scaled infinitely inward and outward.[3]

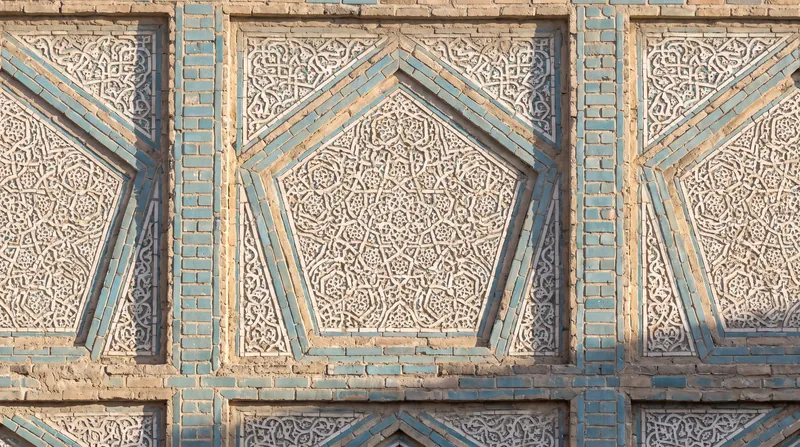

The full magnitude of this achievement wasn't recognized by Western science until 2007, when Harvard physicist Peter J. Lu and Princeton physicist Paul J. Steinhardt published a bombshell paper in the journal Science. While examining detailed photographs of the Darb-i Imam shrine in Isfahan, which was constructed in 1453, Lu noticed something extraordinary about the tilework. The patterns possessed a highly specific five-fold rotational symmetry, and crucially, they did not repeat periodically. Lu realized with astonishment that he was looking at a perfect quasi-crystalline pattern, specifically a mathematical structure known as a Penrose tiling.[3]

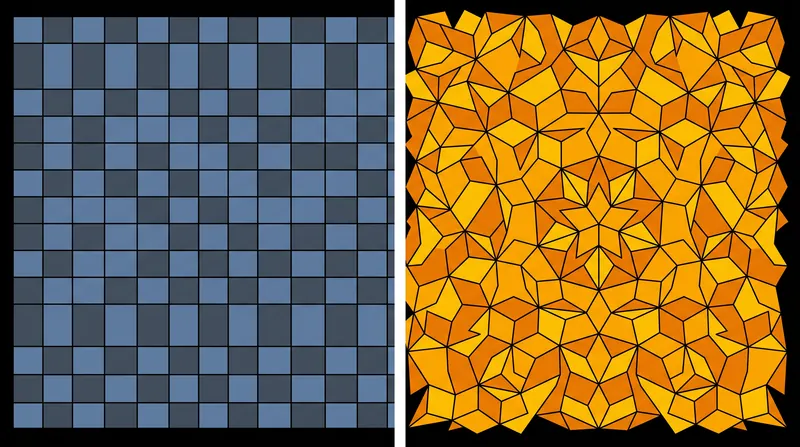

Named after the renowned British mathematician Roger Penrose, who formally discovered and described them in the 1970s, Penrose tilings are a unique class of geometric patterns. They have the remarkable ability to completely fill a two-dimensional plane without leaving any gaps, yet they never exactly repeat their arrangement, no matter how far they extend. For decades, modern crystallographers and mathematicians firmly believed that such aperiodic structures were mathematically impossible to construct in the physical world. Yet there they were, perfectly executed in vibrant glazed brick on the walls of a 500-year-old Iranian shrine.[3]

Through trial, error, and deep spatial intuition, the Islamic artisans had empirically discovered how to map aperiodic infinity. By cleverly nesting small girih tiles inside larger macro-tiles, they created a self-sustaining fractal geometry that could theoretically expand forever without ever falling into a predictable, repeating loop. It was a stunning intellectual leap that bridged the gap between theology and advanced mathematics, allowing them to visually represent the infinite, unknowable nature of the divine in a way that periodic, repeating checkerboards simply could not achieve.[3]

Exactly how much of the underlying algebraic theory these medieval architects actually understood remains a subject of intense academic debate today. We do not have their written equations, and there are no surviving treatises detailing their mathematical proofs. What we do have, however, are invaluable artifacts like the Topkapi scroll, a 15th-century architectural manual discovered in Istanbul. This remarkable document contains absolutely no text; instead, it features a masterclass of complex grid patterns and color-coded templates that serve as a visual guide to two- and three-dimensional geometric projection.[1]

The existence of the Topkapi scroll conclusively proves that the creation of these quasi-crystalline patterns was not a happy accident or a localized fluke. It was a deliberate, highly standardized methodology that was carefully codified and transmitted across the vast expanse of the Islamic world, influencing structures from the palaces of Andalusia in Spain to the madrasas of Central Asia. The master artisans knew exactly what they were doing and how to replicate it, even if they used a visual and geometric language rather than a modern algebraic one to describe their discoveries.[1]

Today, the enduring legacy of girih tiles extends far beyond the confines of art history and architectural preservation. The profound mathematical principles encoded in the walls of these ancient mosques are actively being studied by modern physicists seeking to understand the complex atomic structure of quasi-crystalline metallic alloys. Similarly, contemporary structural engineers and architects are looking to these 15th-century tessellations for novel, highly efficient ways to distribute structural loads and design sustainable, modular building facades in the 21st century.[3]

Ultimately, the story of Islamic geometric patterns serves as a profound reminder that the rigid division between art and science is a relatively recent human invention. For the master artisans who designed and built the Darb-i Imam shrine half a millennium ago, there was absolutely no distinction between exploring the absolute mathematical limits of a pentagon and expressing the infinite, harmonious majesty of the divine. To them, rigorous geometry and deep spiritual devotion were not opposing forces; they were simply two different, equally valid ways of describing the exact same universal truth.[5]
