The Core Mechanics of PCR: How Thermal Cycling and Primers Amplify DNA

Polymerase chain reaction (PCR) relies on precise temperature shifts and specialized heat-resistant enzymes to exponentially copy specific DNA sequences. By repeatedly heating and cooling genetic material, the technique transforms a single microscopic target into billions of readable copies within hours.

By Harper Lane

Molecular Biologists 40%Forensic Scientists 30%Clinical Diagnosticians 30%
Molecular Biologists
Focus on the technique as an indispensable daily tool for cloning, sequencing, and genetic manipulation.
Forensic Scientists
Emphasize the extreme sensitivity of PCR, allowing identification from microscopic crime scene evidence.
Clinical Diagnosticians
View PCR primarily through the lens of speed and accuracy for pathogen detection, prioritizing real-time qPCR.

Perspectives this story doesn't cover

  • Bioethics Researchers
  • Laboratory Equipment Manufacturers

Summary

  • PCR uses precise, rapid temperature changes to exponentially copy specific DNA sequences.
  • The process relies on Taq polymerase, a highly heat-resistant enzyme derived from hot spring bacteria.
  • A standard 30-cycle run can amplify a single DNA molecule into over a billion identical copies.
  • The three core steps of every cycle are denaturation, annealing, and extension.

The fundamental problem of molecular biology is a matter of scale. A human genome contains over three billion base pairs, yet a scientist looking for a specific viral gene or a single genetic mutation is usually searching for a sequence just a few hundred letters long. Finding it is only half the battle; isolating and extracting enough of it to actually study requires overcoming the physical fragility of DNA itself. Traditional chemical extraction methods are too blunt, often destroying the very microscopic evidence they seek to isolate.[1][2]

The polymerase chain reaction (PCR) resolves this tension not through complex chemical extraction, but through brute-force exponential replication. By hijacking the natural machinery cells use to copy DNA and subjecting it to extreme, rapid temperature shifts, PCR forces a microscopic genetic needle to clone itself until it becomes the entire haystack. It is a process that turns a single molecule into a billion identical copies in roughly an hour.[2][4]

The mechanism requires four primary components, mixed into a single microscopic tube. First is the template DNA, which is the raw sample containing the target sequence. Second are primers: short, custom-built strands of DNA designed to perfectly match the beginning and end of the target sequence. Third are free nucleotides, the individual A, T, C, and G building blocks. Finally, the engine of the process is Taq polymerase, a specialized enzyme adapted from bacteria living in boiling hot springs.[1][3]

The reliance on Taq polymerase is the elegant solution to PCR's central physical contradiction. To separate a double-stranded DNA molecule, the sample must be heated to near-boiling temperatures. However, standard biological enzymes denature and permanently break down under such extreme heat. Before the discovery of Taq polymerase, scientists had to manually open the tubes and add fresh enzyme after every single heating cycle, making the process agonizingly slow.[3][5]

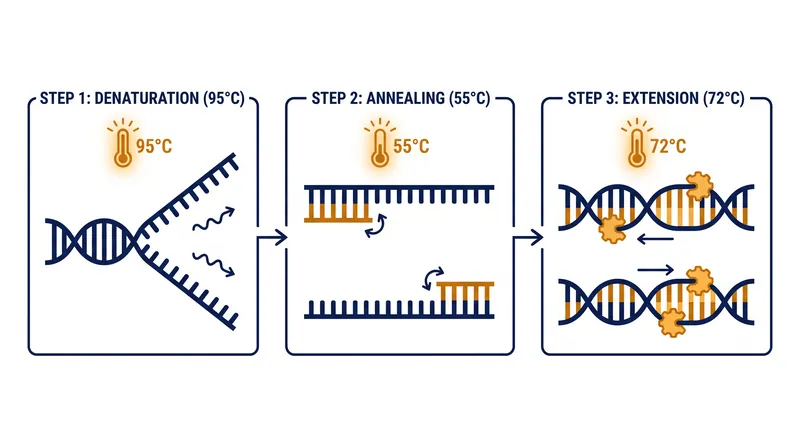

The three core temperature phases of a single PCR cycle.

The automated thermal cycling process begins with a step called denaturation. The thermal cycler—a highly precise automated heating block—raises the sample temperature to between 94°C and 98°C. At this extreme threshold, the weak hydrogen bonds holding the two strands of the DNA double helix together break apart, yielding two separate single strands of genetic material.[4][5][6]

Once the strands are separated, the machine rapidly cools the sample to an annealing temperature, typically between 50°C and 65°C. This specific temperature range is carefully calculated based on the exact sequence of the primers. At this cooler temperature, the custom primers bind—or anneal—to their complementary sequences on the single-stranded template DNA, acting as bookends that mark the exact region to be copied.[2][3][4]

Once the strands are separated, the machine rapidly cools the sample to an annealing temperature, typically between 50°C and 65°C.

The temperature is then raised to exactly 72°C, which is the optimal operating temperature for the Taq polymerase enzyme. The polymerase binds to the primer and begins moving along the single DNA strand, pulling free nucleotides from the surrounding solution and attaching them to build a new, complementary double strand. This final step is known as extension.[1][3][5]

This three-step cycle—denature, anneal, extend—takes only a few minutes to complete. At the end of cycle one, the single target sequence has become two. The thermal cycler then immediately heats back up to 94°C to start cycle two, separating the newly formed double strands and turning two copies into four.[4][6]

Because the newly synthesized strands serve as templates in the next round, the amplification is strictly exponential. After 10 cycles, there are 1,024 copies. After 20 cycles, there are over a million. By the end of a standard 30-cycle run, a single starting molecule has been amplified into over one billion identical copies, creating a concentration high enough to be easily analyzed by standard laboratory equipment.[2][4]

DNA amplification follows a strict exponential curve, yielding over a billion copies in 30 cycles.

While the theoretical yield is perfectly exponential, real-world data shows that PCR efficiency eventually plateaus. As the concentration of amplified DNA rises, the primers and free nucleotides in the solution are depleted. Simultaneously, the Taq polymerase gradually loses its structural integrity and activity due to the repeated exposure to extreme heating during the denaturation phases.[1][3]

The extreme sensitivity of PCR is also its greatest vulnerability. Because the process is designed to amplify even a single molecule of DNA, microscopic contamination from a technician's skin, a previous experiment, or ambient laboratory dust can easily be amplified alongside or instead of the intended target. This necessitates rigorous sterile techniques and isolated clean rooms for sample preparation.[2][5]

The core thermal cycling mechanism has spawned numerous specialized variations to handle different biological challenges. Quantitative PCR (qPCR) incorporates fluorescent dyes that bind to the newly formed DNA, allowing researchers to measure the exact amount of DNA being produced in real-time during the cycles, rather than waiting for the end of the reaction to measure the final yield.[4][6]

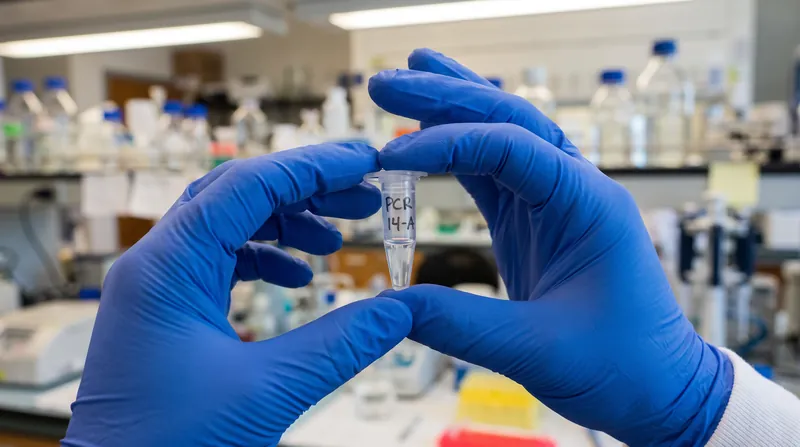

All the necessary components—template DNA, primers, nucleotides, and polymerase—are mixed into a single tube.

For RNA viruses, an additional preliminary step is required because Taq polymerase can only copy DNA. Reverse transcription PCR (RT-PCR) uses a different enzyme to first translate the viral RNA into complementary DNA (cDNA). Once this translation is complete, the standard thermal cycling process can begin, allowing scientists to detect RNA-based pathogens.[1][2]

Ultimately, PCR represents a triumph of applied thermodynamics and evolutionary biology. By harnessing an enzyme evolved to survive in boiling geysers and subjecting it to mathematically precise temperature oscillations, scientists transformed DNA replication from a slow cellular process into an industrial-scale manufacturing technique that underpins modern genetics.[3][7]

94–98°C
Denaturation temperature
72°C
Optimal extension temperature
1 billion
Copies generated after 30 cycles
20–40
Standard number of thermal cycles

Limits of the evidence

  • How to completely eliminate the plateau effect that stops exponential amplification in the later thermal cycles.
  • The absolute theoretical limit of PCR sensitivity when attempting to amplify highly degraded ancient DNA samples from archaeological sites.
