Mapping the Unseen: How Lidar, Radar, and Magnetometry Detect Subsurface Archaeological Features

Before a single trowel breaks the earth, modern archaeologists can map the exact dimensions of a buried city down to a resolution of 30 centimeters [1]. This level of precision, measured on a scale roughly the length of a human forearm, represents a fundamental shift in how historical landscapes are analyzed. Since O.G.S. Crawford laid the theoretical foundations of aerial archaeology in 1923, the transition from physical excavation to remote sensing has fundamentally altered how human history is uncovered, replacing decades of speculative digging with precise electromagnetic and laser-based imaging [3]. By deploying an array of sensors from the sky and the surface, researchers can now visualize the complete footprint of ancient settlements, agricultural networks, and defensive earthworks before any physical intervention occurs. This approach not only accelerates the pace of discovery but also preserves the fragile physical context of the site, ensuring that the act of finding history no longer requires destroying it [4].[1][3][4]

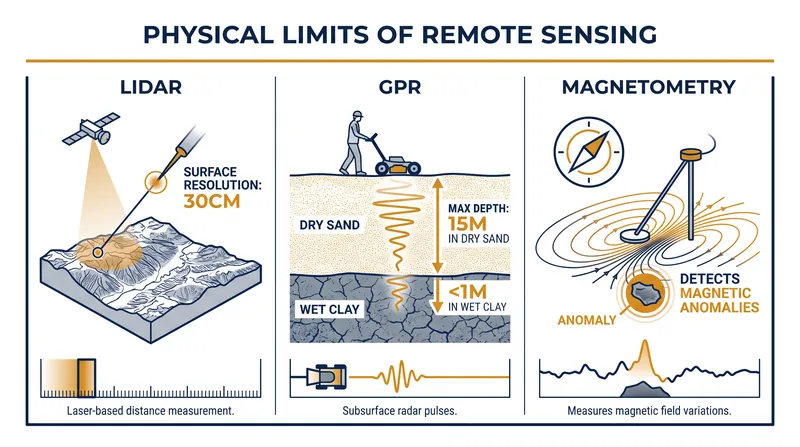

This methodological shift relies on three primary technologies: Light Detection and Ranging (Lidar), Ground-Penetrating Radar (GPR), and Magnetometry [3][4]. Each operates on a fundamentally different physical principle, and each is constrained by different environmental factors. Together, they allow researchers to strip away dense forest canopies and peer through meters of solid earth without disturbing the stratigraphy [5]. The integration of these tools has moved archaeology away from a reliance on isolated excavation trenches, which often provide a narrow and potentially misleading view of a site, toward a holistic understanding of entire regional landscapes. By combining the data streams from lasers, radio waves, and magnetic sensors, archaeologists can construct highly detailed three-dimensional models of the unseen world, mapping the intersection of human activity and natural topography over thousands of years [3][5].[3][4][5]

Lidar functions by emitting rapid laser pulses—often hundreds of thousands per second—from an aircraft or drone toward the ground [1]. The system measures the exact time it takes for the reflected light to return to the optical receiver, calculating the distance to the target with sub-meter accuracy [1]. By varying the wavelength from 10 micrometers in the infrared spectrum to approximately 250 nanometers in the ultraviolet, the laser beam can map physical features with extraordinary precision [1]. An aircraft equipped with a Lidar sensor can map terrain at a 30-centimeter resolution or better, capturing the micro-topography of a landscape across thousands of hectares in a single flight [1]. This rapid data acquisition produces a dense point cloud, a massive dataset of three-dimensional coordinates that represents every surface the laser touched, from the tops of trees to the forest floor [1].[1]

In forested environments, while the vast majority of laser pulses reflect off the canopy, branches, and leaves, a small fraction pass through gaps in the vegetation and reach the ground [1]. Advanced classification algorithms then process the point cloud to separate the canopy returns from the ground returns, producing a bare-earth digital elevation model [1]. This process of 'digital deforestation' reveals subtle topographic anomalies—such as collapsed stone walls, ancient causeways, and terraced agricultural systems—that are entirely invisible from the air and often imperceptible even to a person standing directly on top of them [1][3]. By stripping away the modern vegetation, Lidar exposes the enduring footprint of human engineering, allowing researchers to identify massive urban centers that have been swallowed by dense jungle for centuries [3].[1][3]

However, Lidar is strictly a surface-mapping tool; it cannot penetrate the soil to reveal what lies beneath [1][5]. To detect structures buried beneath the earth, archaeologists deploy Ground-Penetrating Radar [2]. GPR directs high-frequency polarized radio waves, typically ranging from 10 MHz to 2.6 GHz, directly into the ground [2]. When these electromagnetic pulses encounter a boundary between materials with different electrical permittivities—such as a dense stone foundation buried in loose loam, or a void left by a collapsed tomb—the energy is reflected, refracted, or scattered back to a receiving antenna on the surface [2]. The receiver records the variations in the return signal, capturing a vertical profile of the subsurface stratigraphy [2].[1][2][5]

The travel time of the reflected radar signal indicates the precise depth of the buried object, allowing researchers to construct detailed three-dimensional models of the subsurface [2]. GPR is highly effective in uniform, dry environments where the radio waves can travel with minimal interference. In dry sandy soils or massive dry materials like granite, limestone, and concrete, the radar signal can penetrate up to 15 meters (50 feet) deep [2]. This depth allows archaeologists to map deeply buried architectural features, multi-layered occupation zones, and complex burial crypts without moving a single grain of soil, providing a clear blueprint of the site's subterranean architecture [2]. Because the data can be horizontally sliced at different depths, researchers can effectively walk through the buried structure layer by layer, tracing the evolution of a building or a settlement over successive generations of occupation [2].[2]

The primary limitation of GPR lies in its severe vulnerability to the electrical conductivity of the ground [2]. Fine-grained sediments, particularly clays and silts, absorb and attenuate the radar signal rapidly [2]. In moist or clay-laden soils, the penetration depth drops precipitously, sometimes yielding useful data only a few centimeters below the surface [2]. Rocky or heterogeneous sediments further complicate the readings by scattering the signal in multiple directions, weakening the useful return while simultaneously increasing extraneous noise [2]. Consequently, a GPR system that can map a deep stone wall in a dry desert may be rendered completely blind by a thin layer of wet clay in a temperate river valley, requiring archaeologists to carefully match the technology to the local geology [2].[2]

When GPR is rendered ineffective by highly conductive soil conditions, Magnetometry often fills the diagnostic gap [4]. A magnetometer is a highly sensitive instrument that maps the direction and strength of the Earth's magnetic field, measuring minute deviations caused by local iron-rich objects or disturbed sediments [4]. Archaeological features such as fired clay kilns, ancient hearths, and even filled-in defensive ditches create distinct magnetic anomalies compared to the surrounding undisturbed soil [4]. These anomalies occur because human activities—particularly those involving high heat or the movement of topsoil—permanently alter the magnetic alignment of the iron oxides present in the earth, leaving a durable magnetic signature that persists for millennia [4].[4]

By systematically recording these magnetic readings across a tightly spaced grid, archaeologists generate a high-contrast magnetic image of the subsurface [4]. While magnetometry does not provide the precise vertical depth profiling of GPR, it is entirely unaffected by groundwater levels or clay content, allowing surveys to proceed in wet, highly conductive conditions that would completely blind a radar system [4][5]. The technique is particularly adept at identifying the sprawling layouts of ancient industrial zones, the post-holes of wooden structures that have long since rotted away, and the boundaries of massive earthworks, providing a broad two-dimensional map of human activity across the landscape [4].[4][5]

As the Factlen Editorial Team notes in their 2026 synthesis, 'The integration of these three remote sensing methods means that physical excavation is no longer a process of blind discovery, but one of targeted confirmation' [5]. By combining Lidar's topographic precision, GPR's depth profiling, and Magnetometry's material contrast, researchers can document the full spatial organization of ancient settlements while leaving the vast majority of the site perfectly preserved [3][5]. As these technologies continue to improve in resolution and accessibility, the future of archaeology will increasingly take place on computer screens rather than in the trenches, fundamentally changing how we interact with the fragile remnants of the human past [5].[3][5]
