The Archard Equation: Why Wear Volume Is Proportional to Load, Not Contact Area

Engineers specifying the lifespan of a sliding joint—whether a brake caliper, a piston ring, or a robotic hinge—face a rigid set of physical constraints. They control the normal load applied to the joint, they select the hardness of the materials, and they determine the geometry of the contact pad.

When they next sit down to draft a mechanical assembly, the intuitive choice is often to widen the contact pad to reduce the rate at which the material wears away. Yet, the physics of tribology dictates that this geometric adjustment achieves exactly nothing for the total volume of material lost.[1]

The governing rule of this interaction is the Archard wear equation, first formulated in 1953. It states that the volume of material worn away in a sliding system is directly proportional to the normal load and the sliding distance, and inversely proportional to the hardness of the softer surface.[2]

Noticeably absent from that mathematical relationship is the apparent area of contact. A brake pad with a surface area of 100 square centimetres and one with an area of 50 square centimetres, pressed against a rotor with the exact same total force, will shed the exact same volume of dust over 1,000 kilometres of driving.[1]

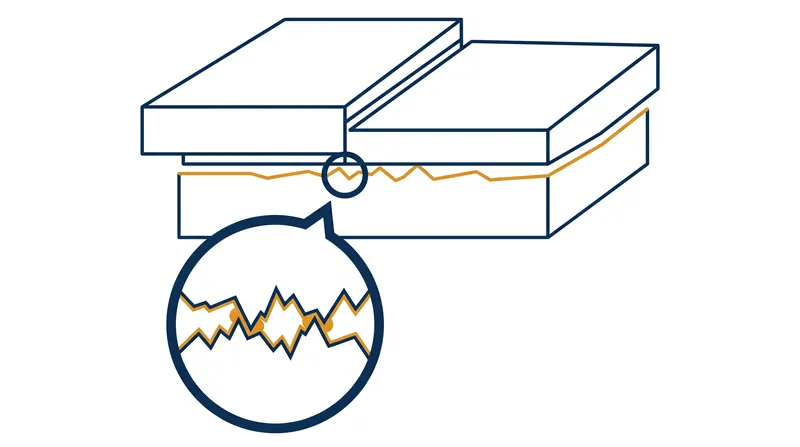

To understand why the macroscopic geometry is irrelevant, one must look at the surfaces through a microscope. No machined metal is perfectly flat. At the microscopic level, surfaces resemble jagged mountain ranges, characterized by peaks known as asperities.

When two surfaces are pressed together, they do not touch across their entire apparent area. They touch only where the highest asperities of the two surfaces meet. This true contact area is remarkably small—often 10,000 times smaller than the apparent contact area visible to the naked eye.[3]

As the normal load increases, the pressure on these microscopic peaks exceeds the yield hardness of the material. The asperities crush and deform plastically until the true contact area grows just enough to support the applied load.[3]

This creates a strict mathematical proportionality: the true contact area is equal to the normal load divided by the material's yield hardness. If an engineer applies 1,000 newtons of force to a steel plate with a hardness of 1.5 gigapascals, the true contact area is fixed by those two numbers alone.[1]

If the engineer then doubles the width of the steel plate while keeping the 1,000-newton load constant, the apparent area doubles, but the true contact area remains exactly the same. The load is simply distributed across a larger number of smaller asperity contacts, or the asperities deform less, but the total microscopic area supporting the load does not change.[3]

Because wear occurs precisely at these asperity junctions—where microscopic cold-welds form and tear apart during sliding—the volume of material removed is dictated entirely by the true contact area.[3]

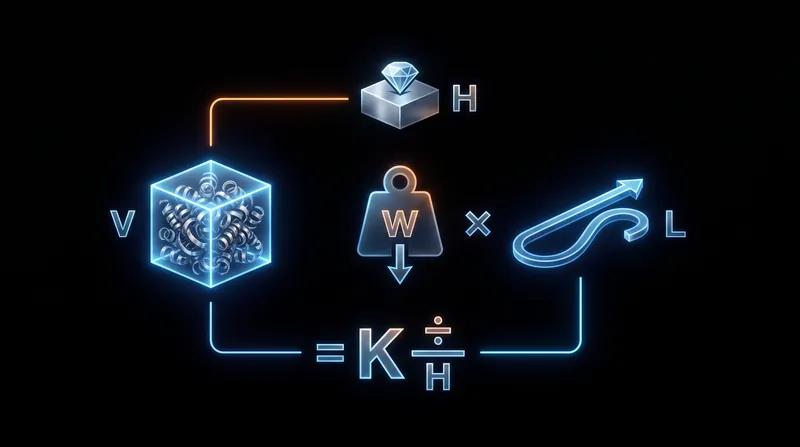

John F. Archard codified this in his 1953 paper in the Journal of Applied Physics, noting explicitly that "the wear is independent of the apparent area of contact." The equation formalizes this, where V is wear volume, L is sliding distance, and K is the dimensionless wear coefficient.[2]

The wear coefficient, K, represents the probability that any given asperity collision will result in the creation of a wear particle. For unlubricated mild steel sliding on steel, K typically hovers around 0.002, meaning only a fraction of a percent of asperity interactions actually tear material away.

The strongest counter-argument to this principle comes from everyday observation: larger brake pads genuinely do last longer before needing replacement. This creates a cognitive dissonance between the theoretical physics and the practical reality of automotive maintenance.[1]

The resolution to this paradox lies in the distinction between volumetric wear and linear wear. The Archard equation governs the volume of material lost. If a large pad and a small pad lose the exact same volume of material, the smaller pad must lose a greater depth or thickness to account for that volume.[1]

Because mechanical components fail when they wear through their functional thickness, spreading the same volumetric loss over a wider apparent area reduces the linear wear rate. The large brake pad lasts longer in service not because it sheds less total material, but because it sheds it from a wider reservoir.

This distinction forces a specific analytical approach. If the goal is to prevent a component from thinning out, increasing the contact area is a valid engineering tactic. If the goal is to reduce the total mass of particulate debris generated by the system—a critical metric in aerospace and medical implants—changing the area is entirely ineffective.[1][3]

To reduce volumetric wear, the equation leaves the designer with only three levers. They can reduce the sliding distance, which is usually impossible given the mechanical function of the part. They can reduce the normal load, which is often dictated by the weight or force requirements of the machine.[3]

Or, they can increase the hardness of the softer material. This is why surface treatments, such as carburizing or nitriding steel, are the primary defense against adhesive wear. Doubling the surface hardness halves the true contact area, which directly halves the volumetric wear rate.[3]

The final lever is the wear coefficient itself, which can be manipulated through lubrication. Introducing a fluid film separates the asperities, shifting the system out of the pure adhesive wear regime that Archard modeled and fundamentally altering the probability of particle generation. The physics of the dry contact, however, remain a fixed boundary condition for the underlying materials.[1]
