The 120/70 ZR 17 M/C 58W Code: How Sidewall Markings Dictate a Motorcycle Tire's Size, Speed Rating, and Load Capacity

Many riders argue that upgrading to a wider rear tire—swapping a factory 180-section for a 190 or 200—delivers superior straight-line traction and gives the motorcycle a muscular, custom stance that transforms its road presence. Conversely, suspension engineers and chassis purists maintain that altering the manufacturer's specified tire width fundamentally disrupts the bike's engineered geometry, slowing down turn-in response and distorting the contact patch during aggressive cornering.

Both camps view the rubber connecting the rim to the road as the defining factor in how a motorcycle behaves, yet they fundamentally disagree on whether the factory specification is a baseline to improve upon or a strict boundary to respect.

The actionable takeaway for anyone replacing rubber in 2026 is that the alphanumeric code stamped on the sidewall is not a loose suggestion—it is a strict engineering boundary that dictates safety. Before spending hundreds of dollars on a new set of tires or attempting to modify a bike's footprint for aesthetic reasons, a rider must understand exactly what the factory specified.

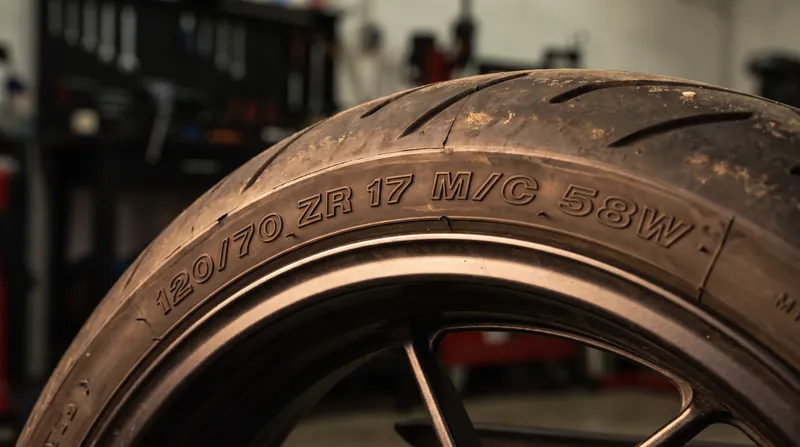

The sequence "120/70 ZR 17 M/C 58W" contains the precise dimensions, construction type, weight limits, and thermal thresholds the tire was built to withstand. Ignoring these metrics can lead to compromised handling or catastrophic failure at speed.

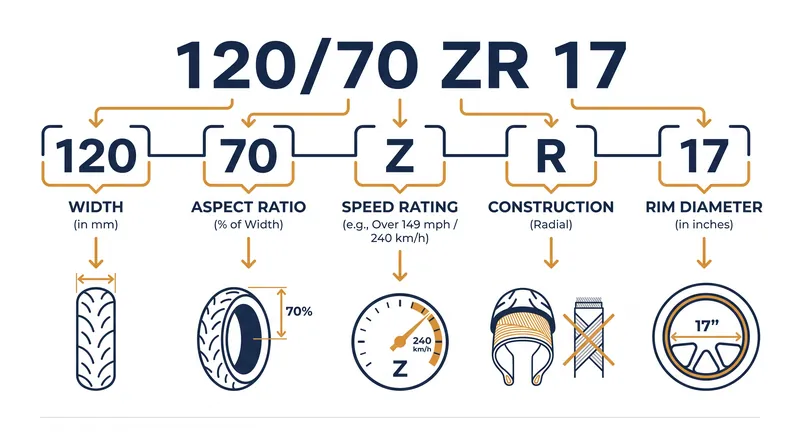

The first segment of the code, "120/70," dictates the physical size of the tire in a mix of absolute and relative measurements. The "120" is the nominal section width in millimeters, measured from sidewall to sidewall when the tire is mounted on the correct rim and fully inflated. The "70" is the aspect ratio, meaning the height of the sidewall is exactly 70 percent of that 120-millimeter width. In this specific example, the sidewall stands 84 millimeters tall from the bead seat to the tread surface.

This aspect ratio directly governs ride quality, suspension dynamics, and handling characteristics. A lower aspect ratio, such as 50 or 55 percent, creates a shorter, stiffer sidewall that resists flexing under heavy cornering loads, making it the standard choice for high-performance sport bikes that require precise feedback. A higher aspect ratio, like 90 percent, provides a taller cushion of air that absorbs impacts and road imperfections, which is why it is commonly found on heavy touring motorcycles, cruisers, and adventure bikes designed for long-distance comfort.

Following the size dimensions are the letters "ZR" and the number "17," which define the tire's performance category and fitment. "The letter 'Z' indicates the tire's speed rating, denoting its capability to handle speeds above 149 mph," states the Universal Technical Institute. The "R" signifies radial construction, meaning the internal ply cords run at a 90-degree angle to the direction of travel. The "17" indicates that this tire is designed exclusively for a 17-inch wheel diameter, which has become the universal standard for modern street motorcycles.

Radial tires dominate the modern street motorcycle market because their construction allows the sidewall and the tread to function independently, reducing heat buildup at high speeds and providing a more stable contact patch. If the tire featured a "B" instead of an "R," it would indicate a bias-belted construction, where the internal plies overlap diagonally across the carcass. Mixing radial and bias-ply tires on the same motorcycle can cause severe handling instability and unpredictable steering behavior, a practice strongly advised against by tire manufacturers.

The "M/C" designation stands simply for Motorcycle. While it might seem redundant to print that on a tire clearly shaped for a bike, this marking is a critical safety standard designed to prevent the mounting of 17-inch car tires onto 17-inch motorcycle rims. The bead seat profile and flange shape on a motorcycle wheel differ significantly from those of a passenger car. Forcing automotive rubber onto a bike rim—a controversial and highly debated practice known as "dark-siding"—can lead to catastrophic bead failure under heavy load.

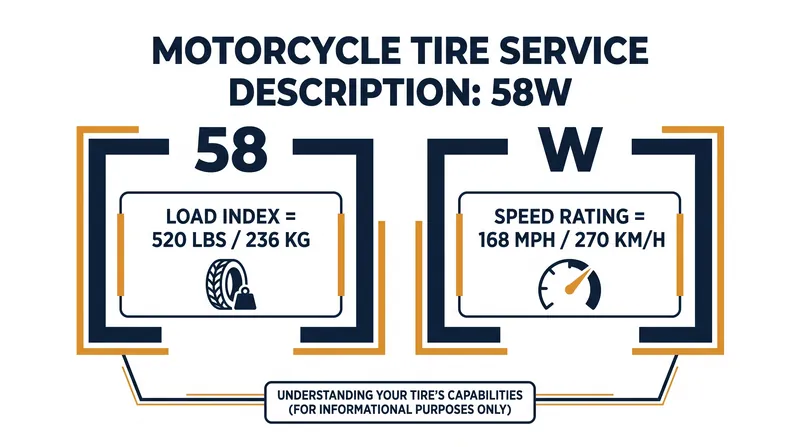

The final sequence in the primary code, "58W," is known as the service description. Michelin's technical guide notes that "the service description following the size (e.g. 58W) gives load index and a specific speed rating letter". The number "58" is the load index, which corresponds to a maximum carrying capacity of 520 pounds, or 236 kilograms, at the tire's maximum cold inflation pressure. This metric is non-negotiable for riders who regularly carry passengers or load their bikes with heavy touring luggage.

Calculating a motorcycle's actual safe payload requires adding the load limits of both the front and rear tires, then subtracting the wet weight of the fully fueled bike itself. If a front tire carries a 58 index (520 pounds) and a rear tire carries a 73 index (805 pounds), the total combined capacity is 1,325 pounds. Subtracting a standard 600-pound motorcycle leaves exactly 725 pounds of available capacity for the rider, the passenger, and any added accessories or cargo.[1]

The "W" at the end of the sequence confirms the tire's absolute maximum speed rating under load. A W-rated tire is certified to sustain speeds up to 168 mph (270 km/h) without the carcass delaminating from extreme centrifugal force. Other common speed ratings include "H" for 130 mph and "V" for 149 mph. Exceeding these certified speeds generates excessive internal friction and heat that rapidly breaks down the chemical bonds in the rubber, leading to sudden and catastrophic blowouts.

AI

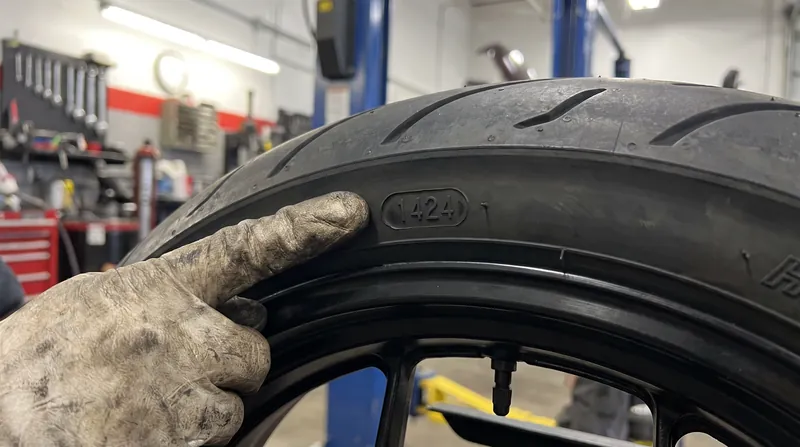

Beyond the primary size code, the sidewall also houses a four-digit Department of Transportation (DOT) date stamp, typically enclosed in a small oval near the bead. The first two digits represent the week of manufacture, and the final two represent the year. A tire stamped "1424" was built in the 14th week of 2024. Because rubber compounds oxidize, harden, and lose their grip over time, most tire manufacturers recommend replacing motorcycle tires after five years of use, regardless of how much tread depth remains.

"The size embossed on the sidewall of a tire gives vital information that every motorcyclist should know," according to Dunlop's technical documentation. "By comparing your motorcycle's specifications to the tire code, you can check that the tires can safely handle the bike's weight and top speed". The sidewall code strips away the guesswork and the aesthetic debates, ensuring that the rubber mounted to the rim exactly matches the mechanical, thermal, and load demands of the machine it carries.
