Angled Hub Ramps Clamp Under Drive and Separate Under Back-Torque: Why Assist-and-Slipper Clutches Halve Lever Pull and Prevent Wheel Hop

The physical force required to operate a motorcycle clutch is determined the moment engine torque meets the transmission input shaft. Traditional clutches rely entirely on heavy steel coil springs to clamp the friction plates together. If those springs are too stiff, the rider's left hand quickly fatigues in stop-and-go traffic.

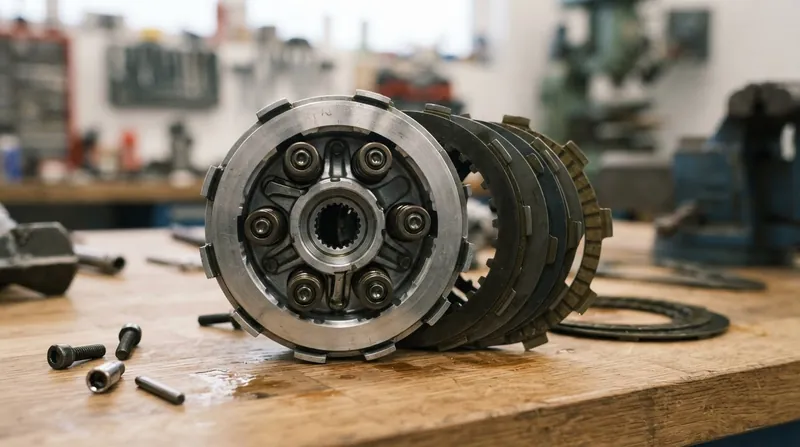

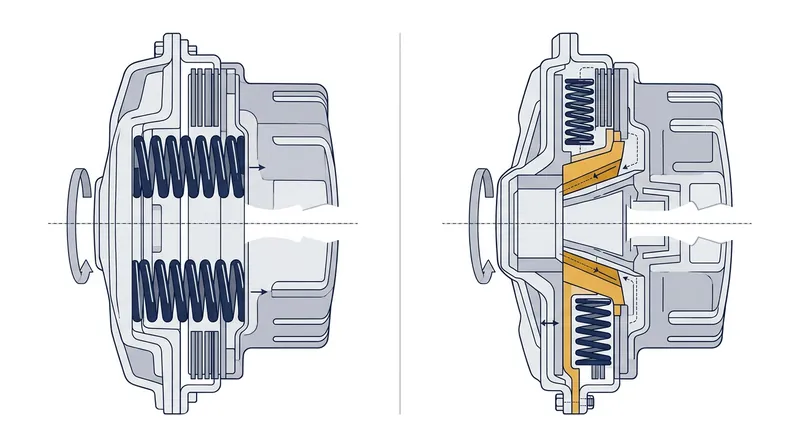

The assist and slipper clutch replaces that static spring tension with a dynamic mechanical advantage. By machining angled ramps into the inner hub and pressure plate, engineers force the engine's rotational energy to do the clamping work. Opening the throttle drives the ramps together, wedging the pressure plate inward.[1]

Because the engine's own torque provides the clamping force during acceleration, the physical coil springs can be significantly softer. Japanese component manufacturer FCC Co., Ltd. routinely drops static spring rates from 130 Newtons per millimeter down to 80 Newtons per millimeter. This mechanical substitution directly reduces handlebar lever effort.[1]

"The assist function relies on the rotational torque of the clutch hub to generate a self-servo effect," notes the 2023 technical documentation from FCC. "This allows us to utilize lower-rate clutch springs, translating to a lighter feel at the lever while maintaining total torque capacity."[1]

Managing Back-Torque During Deceleration

The second half of the mechanism activates during aggressive downshifting, when the physical relationship between the engine and the rear wheel reverses. Dropping two gears at highway speeds forces the rear tire to spin the engine faster than its current throttle setting dictates.

This creates massive back-torque, which traditionally locks the rear tire and causes the motorcycle to skid or hop violently. An assist and slipper clutch physically separates the driveline to prevent this traction loss. The same hub contains a set of reverse-angled slipper ramps.[3]

When back-torque hits the hub, the reverse rotational force drives the pressure plate up the slipper ramps, pushing it outward against the coil springs. This outward movement slightly separates the friction and steel plates, allowing the clutch to slip just enough to bleed off the excess driveline force.[1][3]

The rear wheel maintains traction with the pavement, and the suspension remains stable. Once the engine speed matches the rear wheel speed, the ramps slide back down, and full clamping force returns to the driveline.[3]

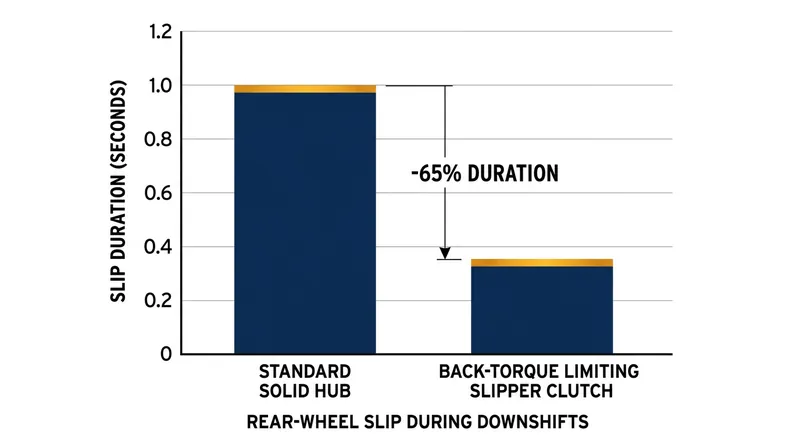

The safety implications of this mechanical slip are substantial, particularly for newer riders navigating emergency braking maneuvers. A 2021 engineering analysis published by SAE International measured the dynamic stability of motorcycles during high-speed downshifts. Researchers found that back-torque limiting clutches reduced rear-wheel slip duration by 65 percent.[3]

The Shift to Lightweight Commuters

For years, this technology was restricted to high-performance superbikes, where racers needed slipper clutches to stabilize the chassis entering corners at 150 miles per hour. Today, the primary beneficiary is the entry-level commuter market, where the lighter lever pull is a massive selling point.[2]

Kawasaki Motors integrated the technology into its entry-level Ninja 400 platform in 2018, and it remains a standard feature on the 2024 models. According to Kawasaki's engineering specifications, the angled hub ramps reduce the required lever pull by exactly 20 percent compared to a traditional clutch assembly.[2]

Yamaha Motor reports an identical 20 percent reduction for its MT-07 naked bike. "By utilizing the rotational forces of the engine, we can make the motorcycle vastly more accessible to riders with smaller hands or less grip strength," Yamaha's 2022 technical overview states.

"The rider experiences less fatigue during a one-hour urban commute, while still benefiting from the chassis stability during deceleration," the Yamaha documentation continues. This dual benefit has forced competing manufacturers to adopt the technology across their entire lightweight and middleweight lineups.

Maintenance and Wear Considerations

Introducing intentional slip into a friction-based system naturally raises questions about component longevity. Because the slipper function physically rubs the friction plates against the steel drive plates to bleed off back-torque, the clutch pack generates more heat during aggressive downshifts.[1]

However, this wear is distributed evenly across the entire stack of plates. In practice, the lifespan of an assist and slipper clutch pack closely mirrors that of a traditional unit under normal street riding conditions. The friction material is constantly bathed in engine oil, which dissipates the generated heat.[1][4]

Most riders will still see 20,000 to 30,000 miles out of a factory clutch pack. The cost of replacing the friction plates remains identical, as the specialized ramps are machined into the hard-anodized aluminum hub and pressure plate, not the consumable friction discs.[4]

Unless the hub itself suffers catastrophic damage from oil starvation, the angled ramps will last the lifetime of the motorcycle engine. The mechanical components that dictate the slip and assist functions do not degrade as the friction material wears down.[4]

Standardizing the Modern Driveline

The widespread adoption of the assist and slipper hub represents a rare instance where a racing-derived technology directly solves a practical ergonomic problem for beginners. By changing the physical geometry of the hub, engineers bypassed the traditional compromise between clamping force and lever effort.[2]

Some riders attempt to reduce heavy lever pull by converting traditional cable-actuated clutches to hydraulic master cylinders. While a hydraulic system provides a smoother feel, it does not change the fundamental spring rate required to clamp the clutch pack.[4]

The assist and slipper hub fundamentally alters the mechanical equation at the source. Because the static spring rate is physically lower, a standard, inexpensive steel cable can easily disengage the clutch, keeping production costs low while delivering a premium feel.[1][4]

Buyers shopping for a new motorcycle in 2026 should consider the feature a baseline requirement for any bike intended for daily urban use. The physical ramps inside the engine case dictate the physical effort at the handlebar, providing an advantage no aftermarket accessory can replicate.[4]
