The 12-Step Cycle: How the Circle of Fifths Organizes All Tonal Relationships in Western Music

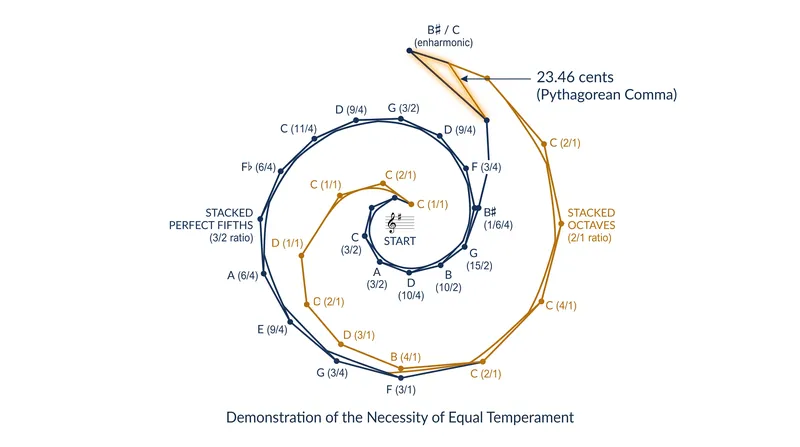

For any of this to work, the math has to be slightly wrong. If you stack twelve acoustically pure perfect fifths on top of each other, you do not arrive back at your starting pitch. You overshoot the octave by a microscopic acoustic sliver—exactly 23.46 cents, or about a quarter of a semitone, a discrepancy known as the Pythagorean comma.

To bend that spiral into a closed loop, Western music had to adopt equal temperament, shaving a fraction of a percent off every fifth so the ends would seamlessly meet. That mathematical compromise is the binding constraint that makes the entire system possible.[3][8]

Built on that tempered foundation, the circle of fifths serves as the fundamental user interface of Western harmony. As the Encyclopedia Britannica defines it, the diagram is "a visual representation of the relationships among the 12 tones of the chromatic scale." It arranges the twelve musical notes like numbers on a clock face, where each step clockwise represents an interval of seven semitones—a perfect fifth. Moving from C to G, then to D, and eventually back to C, the diagram maps the invisible gravitational pull between chords.[3]

The earliest known depiction of this geometric map did not emerge from the musical capitals of Vienna or Leipzig, but from late seventeenth-century Muscovy. In 1679, the Ukrainian-born theorist Nikolai Diletskii published his Grammatika, a foundational treatise designed to teach polyphonic composition to Russian choir directors. Diletskii's text featured a circular diagram that explicitly linked musical keys by fifths, providing a practical heuristic for composers navigating an expanding harmonic universe.[1]

Diletskii's innovation was a harbinger of a massive structural shift in how humans conceptualized sound. For centuries, European music had been governed by the church modes—linear scales with specific melodic behaviors. But as German theorists between 1592 and 1802 began to document, those modes were collapsing into the binary system of major and minor keys. The circle of fifths provided the cartography for this new tonal landscape, allowing composers to visualize how far they could travel from a home key before the listener lost their sense of harmonic gravity.[7]

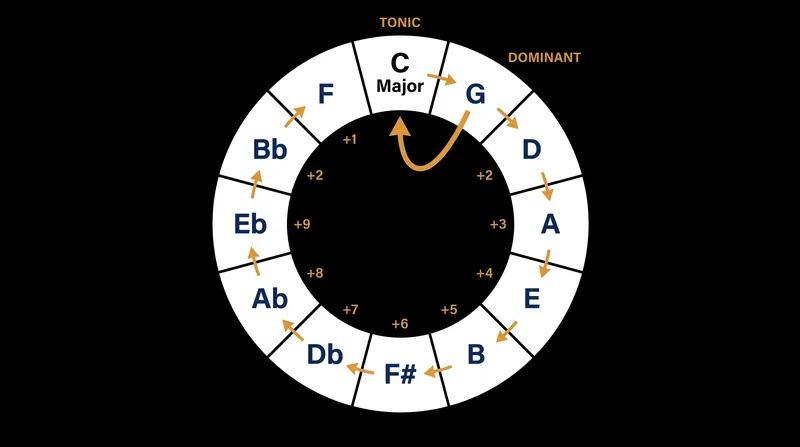

The mechanism itself operates with mechanical precision. At the top of the clock face sits C major, a key with zero sharps or flats. Moving one step clockwise to G major adds one sharp (F-sharp) to the key signature. Moving another step to D major adds a second sharp (C-sharp). This additive process continues around the right side of the circle until it reaches the bottom at F-sharp major, which contains six sharps. The symmetry is absolute: every step clockwise increases the harmonic tension by exactly one accidental.[5]

Moving counter-clockwise from C major introduces flats in the exact same sequential manner. One step to the left lands on F major (one flat), then B-flat major (two flats), continuing down the left side until meeting F-sharp major at the bottom—which can be enharmonically respelled as G-flat major, containing six flats. This dual-directional architecture means that any two adjacent keys on the circle share six of their seven diatonic notes, making them "closely related" and allowing composers to transition smoothly between them.[5]

In his 1965 text Harmony in Western Music, Richard Franko Goldman emphasized that this structural logic became the defining engine of the classical era. The relationship between a chord and the chord one step counter-clockwise to it—the dominant-to-tonic resolution—is the most powerful forward-driving force in tonal music. When a piece of music modulates, it is essentially walking along the perimeter of Diletskii's circle, building tension as it moves away from the starting point and releasing it as it returns.[6]

By 1998, mathematicians and music theorists began formalizing these relationships into explicit spatial models. Research published in Taylor & Francis under the title "Prelude to Musical Geometry" demonstrated that the circle of fifths is not just a useful metaphor, but a literal geometric space. When pitches and chords are mapped onto a torus—a donut-shaped mathematical surface—the distances between them perfectly mirror the acoustic realities of consonance and dissonance that human ears perceive.[2]

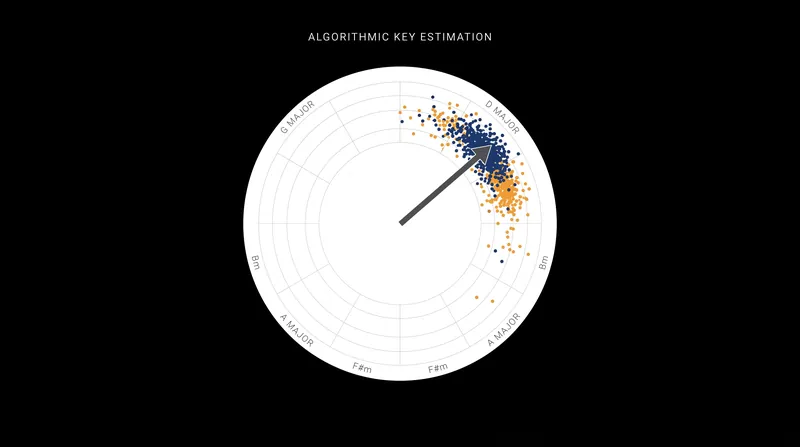

This geometric reality has profound implications for modern technology. In 2016, researchers published a methodology for algorithmic key estimation that relies entirely on the circle of fifths. By analyzing the frequency spectrum of an audio file and mapping the prominent pitches onto the circle's coordinates, software can accurately predict the tonal center of a recorded song. The algorithm calculates the "center of mass" of the audio data on the circular plane, proving that the 300-year-old diagram remains computationally robust.[4]

However, the circle is a map of a specific cultural artifact, not a universal acoustic law. It perfectly describes the functional harmony of Bach, Mozart, and The Beatles, but it breaks down when applied to musical traditions outside that lineage. The microtonal ragas of Indian classical music, the gamelan ensembles of Indonesia, and even the blue notes of American jazz rely on pitch relationships that exist in the cracks between the twelve equal-tempered keys. For those systems, the circle is an inadequate projection.[5][8]

Even within Western music, the late nineteenth and early twentieth centuries saw composers deliberately dismantling the circle's authority. Atonal music and twelve-tone serialism sought to treat all twelve pitches equally, actively avoiding the dominant-tonic gravity that the circle illustrates. Yet, despite these avant-garde departures, the vast majority of commercial music consumed globally today still operates strictly within the geometric boundaries established centuries ago.[5]

The endurance of the circle of fifths lies in its elegant synthesis of art and mathematics. It took an acoustic imperfection—the Pythagorean comma—and smoothed it into a perfect, navigable loop. From a seventeenth-century Muscovite choir manual to the code running inside modern DJ software, that loop remains the definitive architecture of Western sound, proving that music is ultimately a geometry we experience in time.[1][4][8]
