Shear and Tensile Load: How Different Wall Anchors Actually Distribute Weight in Drywall and Concrete

In 2024, the American Concrete Institute updated its anchoring provisions, refining the Concrete Capacity Design (CCD) method to better predict how fasteners fail under combined shear and tensile loads. For homeowners and contractors, the physics of hanging a 65-inch television or a floating shelf remain identical to those industrial standards: the fastener rarely fails, but the material around it does.[1]

The distinction begins with the load vector. As Tim Carter, founder of AsktheBuilder.com, explains to builders: 'Remember that anchors have two types of strength: shear and tension. Shear strength refers to the vertical load experienced by the anchor... Tension refers to the force required to pull it from the hole.' In a shear scenario, the wall material acts as a direct backstop against gravity.[3]

Conversely, when a floating shelf holds 50 pounds of books 10 inches from the wall, it acts as a lever. This geometry converts the downward weight into tensile load—a force pulling the fastener straight out of the wall. The American Institute of Steel Construction requires engineers to calculate combined tensile and shear loads, as a fastener subjected to both will fail at lower thresholds than one facing a single vector.[1]

Drywall, or gypsum board, is particularly vulnerable to tensile forces. According to industry testing standards, the flexural strength of a standard 1/2-inch drywall sheet ranges from 50 to 100 pounds of force (lbf) before it ruptures. Under pure shear load, the fastener's shank presses down against the gypsum core, which can support the weight. Under tension, the screw simply pulls the crumbly core out in a cone-shaped blowout.[2][3]

To counteract this, hollow-wall anchors must manipulate surface area. A toggle bolt, for instance, deploys spring-loaded metal wings that open behind the drywall. By bracing against the back of the panel, the wings distribute the tensile load across several square inches of paper and gypsum, rather than concentrating it on the 1/4-inch diameter of the drilled hole.[4]

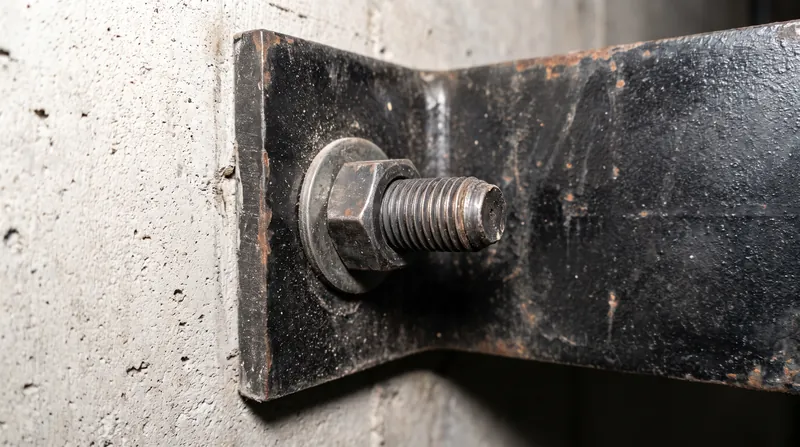

Solid concrete presents a fundamentally different mechanical environment. A 1/2-inch carbon steel wedge anchor embedded in 4,000 psi uncracked concrete can hold over 12,000 lbf in tension before the steel itself yields. The concrete's compressive strength provides a nearly immovable grip.[1]

However, concrete anchors face distinct vulnerabilities under shear load, particularly near the edges of a slab. Lateral force can cause the concrete to fracture and break out before the steel anchor snaps. Consequently, engineering guidelines often apply a stricter strength reduction factor for shear (0.65) than for tension (0.75) in concrete applications.[1]

The condition of the concrete also dictates capacity. Anchors installed in cracked concrete—where microscopic fissures intersect the embedment zone—typically lose 30 to 40 percent of their pullout strength compared to uncracked installations. This reduction forces contractors to upsize anchors in older foundations or seismic zones.[1]

In the consumer market, manufacturers frequently print a single weight rating on anchor packaging, typically representing the ultimate shear failure point divided by a safety factor of four. This single number masks the critical difference between pulling down and pulling out, leading to catastrophic failures when a hollow-wall anchor rated for 100 pounds of shear load is subjected to 50 pounds of tensile leverage.[2][3]

Understanding how different anchors distribute these forces is the only way to prevent property damage. The choice of fastener dictates whether the load is absorbed by the steel, distributed across the wall's surface, or concentrated on a single point of brittle material. The following analysis compares the primary anchor types, quantifying their trade-offs and failure modes.[5]
