Orthogonal 2D Rotations Make Query-Key Inner Products Depend Solely on Relative Distance

When teaching how large language models read, computer science textbooks often claim that Transformers track word order by adding a "position vector" directly into the word's mathematical meaning. The original 2017 Google architecture relied entirely on this additive approach to prevent the model from treating a sentence as a scrambled bag of words.[2]

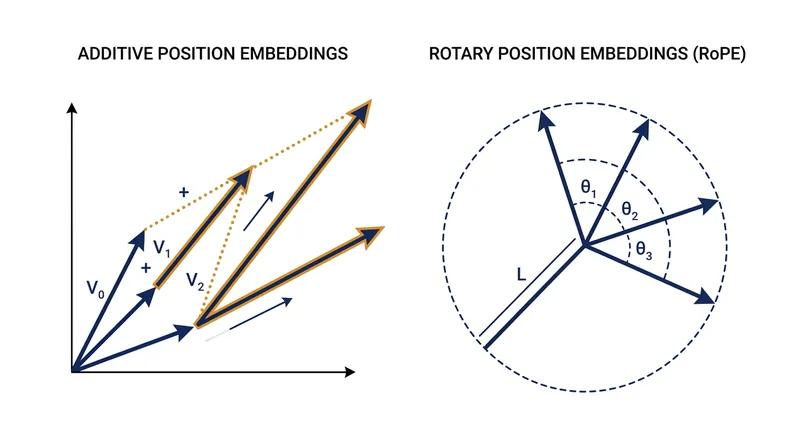

But injecting position by addition fundamentally distorts the underlying semantic data. Adding a vector to a word's embedding alters its magnitude and direction, effectively changing the word's definition to force-fit its location. The model must then spend compute cycles disentangling what the word means from where it sits.[8]

"The additive nature of absolute position embeddings means the semantic representation and positional representation are entangled," researchers at EleutherAI noted in a 2022 architectural review. They argued that this entanglement limits a model's ability to generalize to sequences longer than its training data.[5]

The Additive Bottleneck

To understand the shift, one must look at how the attention mechanism calculates relevance. A Transformer compares every word to every other word using a dot product between a "Query" vector and a "Key" vector. The resulting score dictates how much attention the first word should pay to the second.[2]

Under the 2017 absolute additive framework, the dot product expands into four distinct algebraic terms. Only one of those terms represents the pure semantic match between the two words. The other three terms mix semantics with absolute position, creating mathematical noise that the neural network must learn to ignore.[1][2]

This noise grows exponentially as sequences get longer. If a model is trained on paragraphs of 2,048 tokens, the additive position vectors for token 2,049 and beyond remain entirely undefined. The network simply crashes when asked to process text longer than its strict training window.[7]

In 2021, a team led by Jianlin Su published the RoFormer architecture, introducing Rotary Position Embedding (RoPE). Instead of adding a vector, Su proposed treating the token's features as complex numbers and rotating them in a two-dimensional plane. The angle of rotation corresponds directly to the token's absolute position in the sequence.[1]

Geometry Replaces Addition

"By multiplying the context representation with a rotation matrix, we incorporate explicit relative position dependency in self-attention formulation," Su wrote in the foundational 2021 preprint. This multiplicative approach leaves the magnitude of the semantic vector completely untouched, altering only its phase.[1]

The mathematical elegance of RoPE reveals itself during the Query-Key dot product. When you take the inner product of two vectors that have been rotated by different angles, the absolute angles cancel out. The final attention score depends strictly on the difference between the two angles.[1][5]

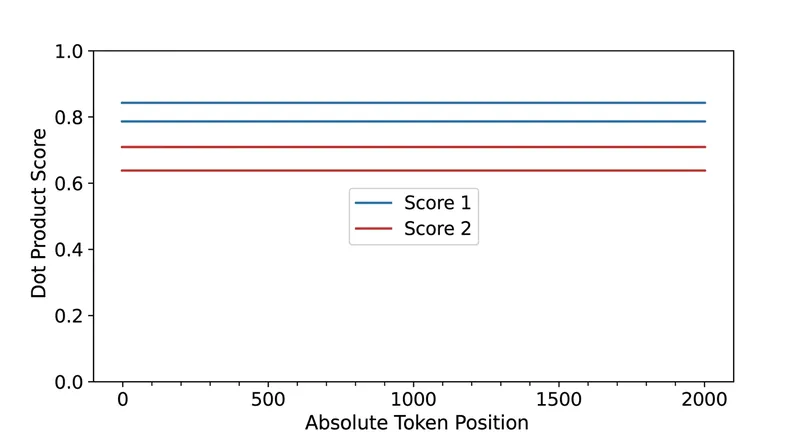

If the word "cat" is at position 10 and "sat" is at position 12, their relative distance is 2. If they appear at positions 1,010 and 1,012, the relative distance remains exactly 2. Under orthogonal 2D rotations, the dot product yields the exact same mathematical result in both scenarios.[8]

This property, known as relative distance invariance, solved the entanglement problem overnight. The model no longer needs to memorize absolute positions. It inherently understands that the relationship between an adjective and a noun is identical regardless of whether they appear in the first sentence or the fiftieth.[1][8]

Scaling to Frontier Models

The theoretical breakthrough quickly became industry standard. When Meta AI released the 65-billion-parameter LLaMA model in early 2023, they explicitly cited Su's work. "We remove the absolute positional embeddings, and instead, add rotary positional embeddings (RoPE) at each layer of the network," the LLaMA technical report stated.[3]

Google followed suit with PaLM, and Mistral integrated RoPE into its open-weight releases. By late 2023, nearly every major frontier model had abandoned additive vectors. The transition marked a rare moment where a fundamental architectural component of the Transformer was universally replaced.[3][8]

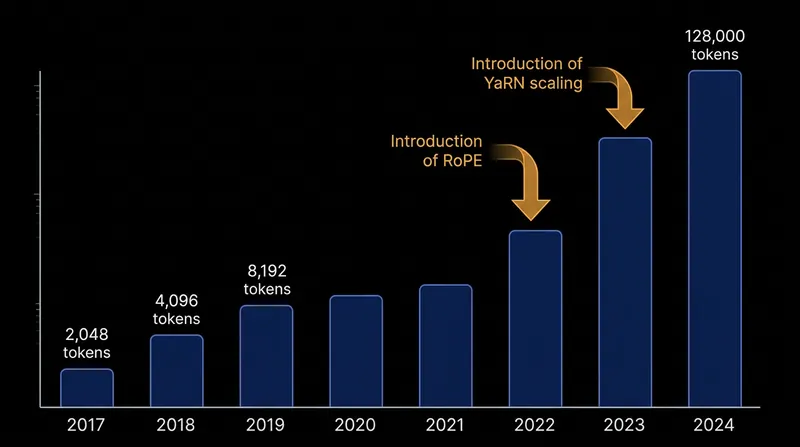

The shift to rotations also unlocked unprecedented context windows. Because RoPE relies on angles rather than fixed additive vectors, researchers discovered they could mathematically compress the angles to fit longer texts. This technique, known as position interpolation, allowed models trained on 4,096 tokens to suddenly read 32,000 tokens.[4]

"We show that RoPE has a strong extrapolation capability," researchers from the YaRN project published in August 2023. By altering the base frequency of the rotations—typically set at 10,000—they extended context windows to 128,000 tokens without requiring massive retraining runs.[4]

The Mechanics of the Base Frequency

The rotation does not happen in a single 2D plane. A modern token embedding contains roughly 4,096 dimensions, which RoPE pairs off into 2,048 separate two-dimensional slices. Each slice rotates at a different speed, governed by an exponential decay formula.[1][5]

The first few dimensions rotate very quickly, completing a full 360-degree turn every few tokens. These fast-spinning planes allow the model to track immediate, local relationships, such as the link between a verb and its direct object in a tight clause.[5]

The later dimensions rotate at a glacial pace. At a base frequency of 10,000, the final 2D plane barely shifts a fraction of a degree across an entire document. These slow-moving dimensions give the model a macro-level sense of where it is within a massive textbook or codebase.[1][4]

When developers want to double a model's context window, they simply increase that base frequency from 10,000 to 500,000 or even 1,000,000. This slows down the rotation across all dimensions, ensuring that the model never completes a full, confusing 360-degree loop even when processing a million words.[4]

Implementation and Hardware Costs

While mathematically superior, RoPE is not entirely free. Rotating thousands of dimensions for every token requires computing sines and cosines on the fly. In 2021, early adopters worried that this trigonometric overhead would slow down inference speeds compared to simple vector addition.[1][6]

Hardware optimization quickly erased that penalty. Nvidia and AMD developed fused CUDA kernels specifically designed to execute orthogonal 2D rotations in a single memory operation. Today, the computational cost of applying RoPE is statistically indistinguishable from the additive baseline.[6][8]

"The overhead of RoPE is negligible in practice, especially when implemented with fused kernels," Hugging Face engineers noted in their 2024 optimization documentation. The library now applies rotary embeddings by default across its entire suite of causal language models.[6]

The only remaining friction lies in quantization. When models are compressed into 4-bit or 8-bit precision to run on consumer hardware, the delicate phase angles of the rotations can suffer rounding errors. Researchers are currently developing specialized quantization formats that preserve angular precision without bloating memory.[8]

The Future of Positional Encoding

Despite its dominance, RoPE is not the final word on sequence modeling. Alternative architectures like ALiBi (Attention with Linear Biases) attempt to inject relative distance directly into the attention matrix without rotating the embeddings at all.[7]

ALiBi penalizes the attention score between two words based purely on how far apart they are, applying a steep discount to distant tokens. While ALiBi excels at zero-shot length extrapolation, it struggles on tasks that require retrieving specific facts from the very beginning of a long prompt.[7]

For now, orthogonal 2D rotations remain the undisputed standard. By treating language as a geometric space where distance is measured in angles, RoPE fixed a fundamental flaw in the original Transformer. It proved that in neural networks, how you represent a problem is often more important than how much compute you throw at it.[1][8]

The transition from additive to multiplicative positional encoding highlights a broader trend in machine learning. Early architectures relied heavily on brute-force parameter learning, assuming the network would eventually figure out how to separate position from meaning.[2][8]

Modern design favors inductive biases—mathematical structures that inherently enforce the rules of the data. By hardcoding relative distance invariance into the geometry of the attention mechanism, researchers freed up millions of parameters that were previously wasted on memorizing absolute positions.[1][3]

As the industry pushes toward models capable of reading entire libraries in a single prompt, the underlying mathematics of sequence order will continue to evolve. But the realization that word relationships are best expressed as angles in a complex plane will likely remain a foundational pillar of artificial intelligence.[4][8]
