How Residual Connections and ReLU Activation Prevent Vanishing Gradients in Deep Neural Networks

Deep neural networks overcome the vanishing gradient problem through two specific mathematical interventions: Rectified Linear Unit (ReLU) activation functions that stop signals from shrinking at each individual node, and residual connections that provide physical bypass routes for those signals to skip across entire layers. Before these innovations, adding layers to a neural network paradoxically made it worse at learning, as the error signals used to update the model decayed exponentially until they disappeared entirely.[2][4][7]

To understand why gradients vanish, one must look at backpropagation, the algorithm that powers all modern deep learning. During training, a network makes a prediction, calculates its error, and sends that error backward through its layers to adjust its internal weights. This backward pass relies on the chain rule of calculus, multiplying the gradients—the mathematical slopes indicating how much to change each weight—layer by layer from the output back to the input.[2][7]

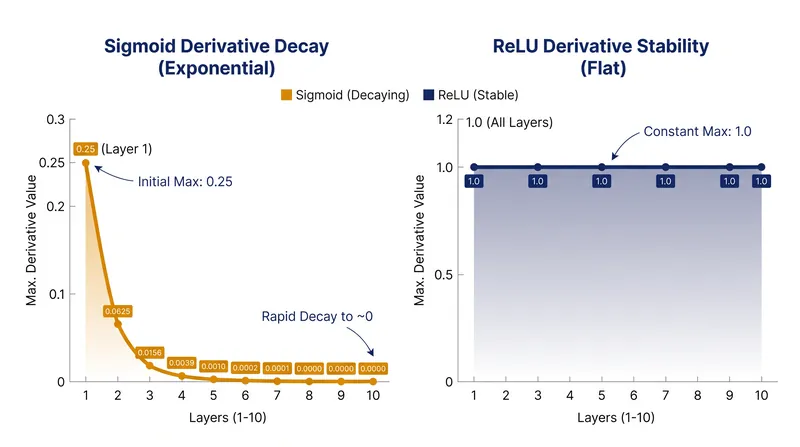

Historically, researchers used activation functions like the sigmoid curve to determine whether a given artificial neuron should fire. The sigmoid function takes any input and squashes it into a value between 0 and 1. However, as KDnuggets notes in a 2023 technical review of the phenomenon, the derivative of the sigmoid function has a maximum value of exactly 0.25.[4]

This 0.25 maximum is the root of the vanishing gradient problem. When backpropagation multiplies gradients across dozens of layers, multiplying fractions by fractions causes the signal to shrink exponentially. If a network has 10 layers, the gradient at the first layer might be multiplied by 0.25 ten times, reducing the learning signal to roughly 0.0000009. The earliest layers of the network effectively freeze, receiving no meaningful updates and failing to learn foundational features.[2][4]

The first major structural fix was the widespread adoption of the Rectified Linear Unit, or ReLU. Unlike the sigmoid curve, ReLU applies a brutally simple mathematical rule: if the input is negative, output zero; if the input is positive, output the input exactly as it is without squashing it.[2][6]

Because ReLU does not squash positive values, its derivative for any positive input is exactly 1. Multiplying by 1 during backpropagation does not shrink the gradient. This allowed error signals to flow backward through many more layers without attenuating, pushing the viable depth of neural networks from single digits into the dozens.[4][7]

However, ReLU introduced its own vulnerability, documented extensively by practitioners on the Data Science Stack Exchange. If a large weight update pushes a neuron's inputs into negative territory, the ReLU function outputs zero, and its derivative also becomes zero. Because multiplying by zero kills the gradient entirely, that neuron can never recover. This "dying ReLU" problem means portions of the network can become permanently inactive during training.[6]

Even with ReLU mitigating the vanishing gradient, researchers hit a hard ceiling. When networks grew beyond roughly 30 layers, their performance degraded. They did not overfit the training data; they simply failed to optimize. The gradients were surviving individual nodes, but the sheer complexity of passing through dozens of sequential transformations still scrambled the learning signal.[1][5]

The definitive solution arrived in December 2015, when Kaiming He and his team at Microsoft Research published "Deep Residual Learning for Image Recognition" on arXiv. They introduced the residual block, a structural change that fundamentally altered how information flows through a network.[1]

Instead of forcing the signal to pass through every single layer sequentially, a residual block includes a "skip connection" or "shortcut." This connection takes the input of a layer and adds it directly to the output of a layer further down the stack. As explained in AI Stack Exchange architectural breakdowns, if the layers in between fail to learn anything useful, the network can simply rely on the skip connection to pass the original identity matrix forward.[1][5]

Crucially, these skip connections work in reverse during backpropagation. They act as mathematical highways, allowing the error gradient to bypass the complex transformations of intermediate layers and flow directly back to earlier layers unimpeded. The addition operation in a residual block distributes the gradient equally, ensuring the signal does not vanish.[5][7]

The empirical results of this architectural shift were immediate and staggering. In their 2015 paper, the researchers demonstrated a residual network—dubbed ResNet—with 152 layers. This was eight times deeper than the previous state-of-the-art VGG networks, yet it had lower complexity and won the ImageNet competition with an error rate of just 3.57%.[1]

Today, the combination of ReLU-family activations and residual connections is non-negotiable in frontier AI. The Transformer architecture, which underpins every major large language model from GPT-4 to Claude, relies heavily on residual connections to maintain gradient flow across hundreds of attention layers and billions of parameters.[7]

While the core vanishing gradient problem is largely considered solved for standard feed-forward and convolutional networks, research continues into edge cases. A 2022 paper published in PMC explored "pseudo-normalizing methods" to further stabilize gradients in highly specialized recurrent architectures, indicating that as models scale to trillions of parameters, maintaining pristine signal flow remains an active engineering discipline.[3]
