Is the US Strategy to Control Chip Packaging the Final Step in Fracturing the Global Semiconductor Supply Chain?

The smartphone in your pocket, the AI model diagnosing your health, and the defense systems protecting the skies all rely on a physical bottleneck that most people have never heard of: advanced semiconductor packaging. For decades, the global technology sector operated on a simple division of labor: the United States designed the chips, Taiwan manufactured the silicon wafers, and the final, crucial step of assembling them into functional systems was outsourced across Asia. This hyper-efficient, borderless supply chain drove down costs and accelerated innovation. Now, that era is ending. The U.S. government and domestic tech giants are aggressively moving to onshore the final step of chip production, fundamentally altering how the world builds its most critical hardware.

The U.S. strategy to onshore advanced packaging—backed by billions in federal funding—is not just a supply chain correction; it is the final step in fracturing the global semiconductor ecosystem. By attempting to control the back-end of chipmaking, Washington is signaling that the era of a unified tech supply chain is over, replacing it with a localized, security-first model. This shift is driven by the realization that controlling chip design and fabrication is meaningless if the physical assembly remains vulnerable to geopolitical chokepoints. The evidence suggests that this strategy will successfully secure critical defense and AI components, but it will also permanently divide the global market into competing regional blocs.[4]

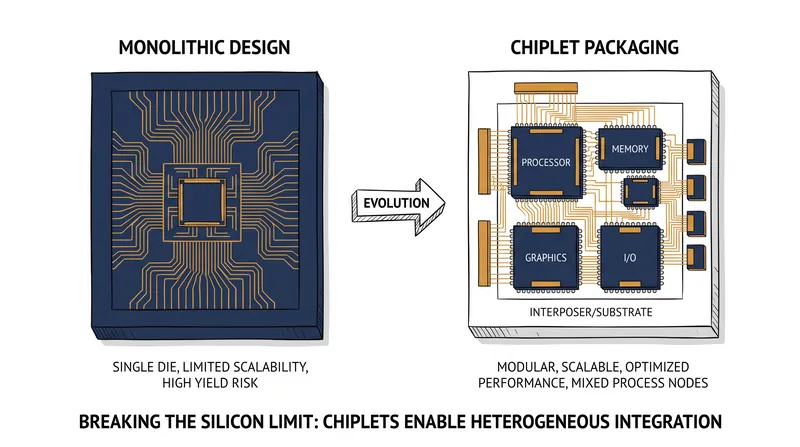

To understand why this matters, one must look at the physics of modern computing. Traditional transistor scaling—cramming more transistors onto a single piece of silicon, famously known as Moore's Law—is hitting atomic limits. The industry's solution is advanced packaging: breaking a large chip into smaller, specialized components called chiplets and stitching them together in complex 2.5D or 3D configurations. Instead of a single sprawling city, advanced packaging builds skyscrapers, connecting different logic and memory units with microscopic bridges and vertical tunnels. This approach mitigates the rising costs and yield degradation associated with manufacturing massive, monolithic chips, allowing for higher performance in a smaller physical footprint.

The evidence supporting the necessity of this technology is absolute. High-bandwidth memory (HBM), which is the critical bottleneck for artificial intelligence workloads, relies entirely on advanced packaging techniques. These include 2.5D architecture and through-silicon vias (TSVs)—vertical structures that pass electrical signals directly between stacked chips to drastically reduce the distance data must travel. Without these techniques, the intense computing demands of modern AI and high-performance computing (HPC) simply cannot be met. The data shows that advanced packaging is no longer a niche manufacturing step; it is the primary enabler of next-generation computational power, making it a strategic asset on par with the silicon itself.[3]

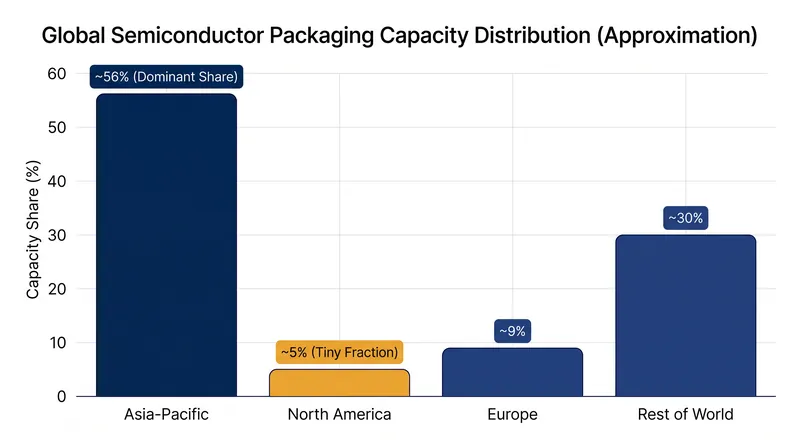

However, the data on current market concentration reveals a stark vulnerability for the United States. As of the mid-2020s, the Asia-Pacific region controls the vast majority of the global semiconductor packaging market, driven by deeply established manufacturing ecosystems in Taiwan, China, and South Korea. The U.S. holds a negligible fraction of this physical capacity. This asymmetry means that even if a cutting-edge chip is fabricated in Arizona or Texas, it must currently be shipped across the Pacific to be packaged and finalized. This logistical reality undermines the core objective of domestic semiconductor resilience, leaving the supply chain exposed to the very disruptions it seeks to avoid.[4]

The U.S. policy response is aggressive and heavily funded. The CHIPS and Science Act of 2022 authorized roughly $280 billion in new spending, with $39 billion dedicated specifically to subsidies for chip manufacturing on U.S. soil. A critical component of this legislation is the National Advanced Packaging Manufacturing Program (NAPMP), which explicitly aims to establish a self-sustaining, high-volume domestic packaging industry. The government's stated objective is to ensure that advanced node chips can be both manufactured and packaged entirely within the United States, effectively closing the loop on a fully domestic semiconductor supply chain.[1][4]

The evidence of corporate alignment with this federal strategy is growing. Major U.S. semiconductor firms are expanding their domestic packaging footprints to meet the demands of both commercial AI and defense contracts. For example, Intel has positioned its facilities in New Mexico as a primary hub for advanced packaging, utilizing proprietary technologies like Foveros stacking and EMIB (Embedded Multi-die Interconnect Bridge) interconnects. These facilities are pushing the boundaries of what is physically possible, expanding the reticle limit to interconnect multiple specialized chips into a single, powerful unit capable of handling massive future workloads.[2]

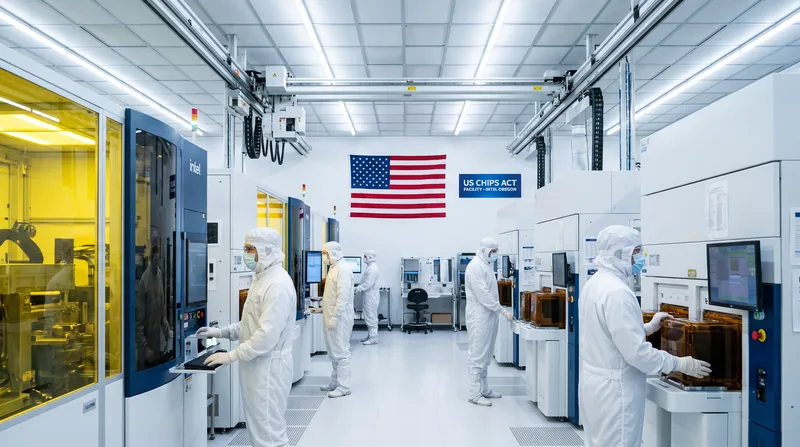

Despite these massive investments, the evidence that the U.S. can fully insulate its supply chain remains weak. Building a domestic packaging ecosystem requires significantly more than just constructing new facilities; it demands specialized substrates, advanced chemical materials, and a highly trained engineering workforce. The U.S. currently lacks the dense, interconnected network of secondary suppliers that exists in Asia, making full decoupling a monumental logistical challenge. Furthermore, the thermal management and warpage issues inherent in stacking multiple chips require highly specialized materials that are currently dominated by foreign suppliers, introducing new dependencies even as old ones are resolved.[3][4]

Furthermore, duplicating this infrastructure domestically introduces massive economic costs. Advanced packaging is highly capital-intensive, utilizing processes and techniques that overlap with traditional semiconductor fabrication. If the global supply chain fractures into regional blocs, the cost of consumer electronics and AI compute will inevitably rise as the efficiencies of globalization are lost. The data suggests that while the U.S. can successfully build strategic capacity for defense applications and high-end AI accelerators, replicating the entire commercial packaging ecosystem for everyday electronics is economically unfeasible. The result will likely be a bifurcated market: a secure, high-cost domestic chain for critical tech, and a globalized chain for everything else.[4]

The long-term impact on the global market remains highly uncertain. While industry analysts project the advanced packaging sector to grow exponentially over the next decade, it is unclear how much of that physical manufacturing growth will actually shift to North America versus remaining in established Asian hubs. The success of the U.S. strategy depends heavily on private capital following federal grants, and on the ability of universities to rapidly produce a workforce capable of managing these complex 3D integration processes. If these elements fail to materialize, the U.S. risks building expensive facilities that lack the surrounding ecosystem to operate efficiently.[4]

Ultimately, the U.S. push into advanced packaging represents a fundamental shift in geopolitical economics. The semiconductor industry is no longer optimizing purely for cost and efficiency; it is optimizing for resilience, national security, and technological sovereignty. The global supply chain is indeed fracturing, and the battle over how chips are packaged is the definitive fault line. As the U.S. attempts to pull the final pieces of the puzzle back within its borders, the era of a single, unified global tech ecosystem is officially drawing to a close.[4]
