How a Near-Zero Eigenvalue in the Design Matrix Reveals Multicollinearity in Regression

For ordinary least squares regression to calculate stable coefficients, the predictor variables must be mathematically independent of one another. This binding constraint—that the design matrix must maintain full column rank—ensures that the model can isolate the unique effect of each input. When this condition holds, the matrix can be cleanly inverted to solve for the coefficients. When it fails, the matrix approaches singularity, and the regression engine loses its ability to distinguish which variable is actually driving the outcome.[1]

The mechanical failure that occurs when variables overlap is known as multicollinearity. In a standard linear model, the variance of the estimated coefficients is proportional to the inverse of the matrix formed by multiplying the transposed design matrix by itself. If two columns in that matrix are nearly identical—perhaps representing temperature in Celsius and Fahrenheit, or square footage and the number of bedrooms—the determinant of that matrix shrinks toward zero.[2]

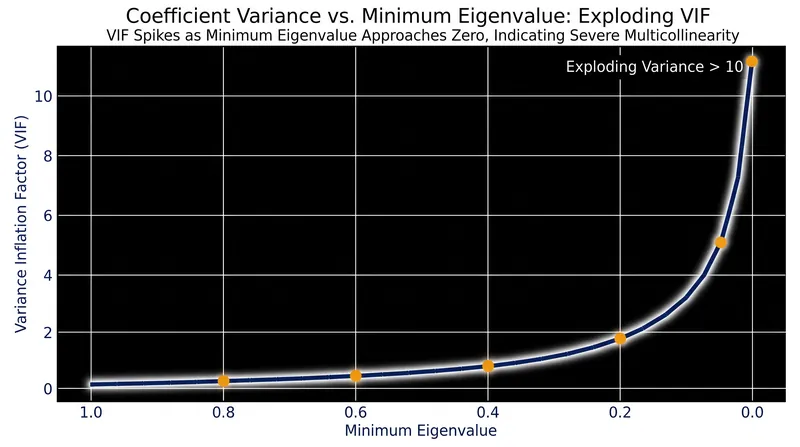

As the determinant approaches zero, the inverse of the matrix explodes toward infinity. This mathematical reality means that even microscopic changes in the training data will produce massive, erratic swings in the resulting coefficient estimates. A variable that appears to have a strong positive effect in one sample might show a strong negative effect in another, rendering the model entirely unreliable for real-world inference.[3]

To diagnose this instability before it corrupts a model, statisticians rely on the eigenvalues of the scaled design matrix. An eigenvalue represents the amount of variance captured by a principal component of the data. If a model contains five independent predictors, the matrix will yield five eigenvalues of relatively similar magnitude, indicating that each dimension contributes meaningful, distinct information to the system.[4]

The diagnostic warning sign emerges when one or more eigenvalues drop near zero. A near-zero eigenvalue mathematically proves that at least one principal component contains almost no variance. In practical terms, this means that one of the predictor variables can be almost perfectly reconstructed using a linear combination of the other variables in the dataset.[1]

"Multicollinearity does not reduce the predictive power or reliability of the model as a whole, at least within the sample data set," notes the Korean Journal of Anesthesiology in its 2019 review of statistical pitfalls. "It only affects calculations regarding individual predictors. That is, a multivariate regression model with collinear predictors can indicate how well the entire bundle of predictors predicts the outcome variable, but it may not give valid results about any individual predictor."[1]

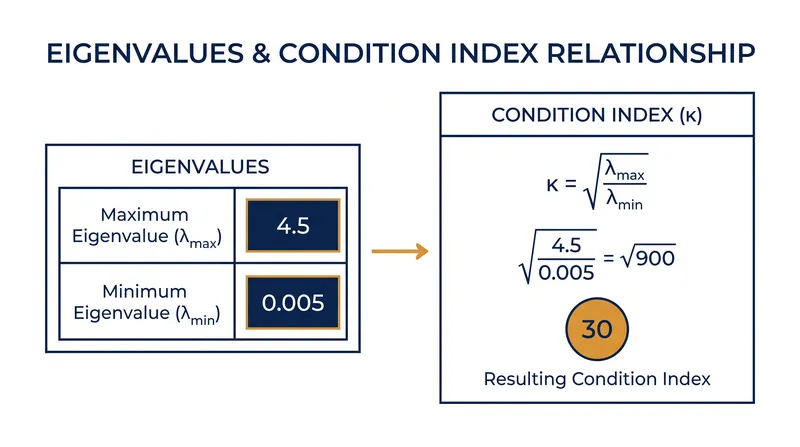

The severity of this overlap is quantified using the Condition Index, a metric derived directly from the eigenvalues. The Condition Index is calculated as the square root of the ratio between the maximum eigenvalue and the specific eigenvalue being evaluated. When the smallest eigenvalue shrinks, the denominator of this ratio approaches zero, driving the Condition Index exponentially higher.[4]

A Condition Index between 10 and 30 indicates moderate multicollinearity, while a value exceeding 30 is widely accepted as the threshold for severe, model-breaking instability. At a Condition Index of 30, the variance of the affected coefficients is artificially inflated by a factor of roughly 10, stripping the model of its statistical power and making hypothesis testing nearly impossible.[5]

This eigenvalue analysis provides a more granular diagnostic tool than the more commonly used Variance Inflation Factor (VIF). While a VIF score—which measures how much the variance of an estimated regression coefficient increases if predictors are correlated—can flag that a variable is redundant, it cannot always identify the specific cluster of variables causing the problem. The VIF simply isolates one variable against all others.[2]

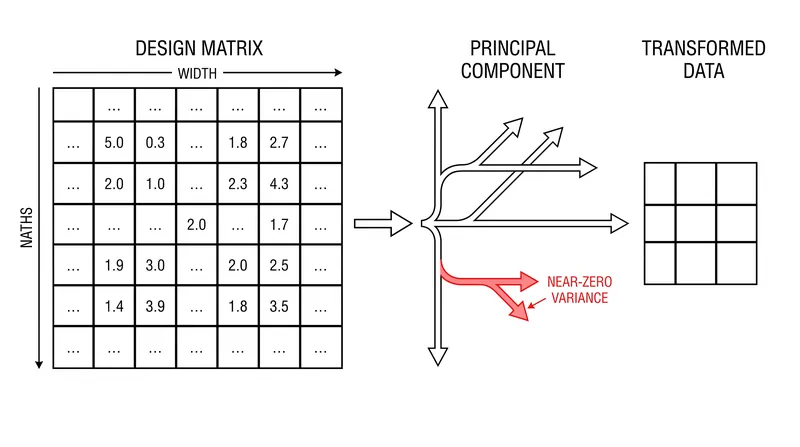

Eigenvalue decomposition, by contrast, isolates the exact dimensions of the overlap. By examining the eigenvectors associated with the near-zero eigenvalues, an analyst can see the precise weights of the linear combination that is causing the singularity. If the eigenvector for a near-zero eigenvalue places heavy weights on 'age' and 'tenure', the math explicitly identifies those two variables as the collinear pair.[4]

Modern data science platforms increasingly automate this matrix decomposition. In a 2023 technical breakdown, Hex data scientists demonstrated how Python libraries like statsmodels compute these eigenvalues by default during ordinary least squares summary generation. "When you have a high condition number, it means that the matrix is close to being singular," the Hex engineering team explains, noting that this singularity prevents the algorithm from finding a unique mathematical solution.[5]

The standard remedy for a near-zero eigenvalue is dimensionality reduction. Analysts can either drop one of the redundant variables identified by the eigenvector, or they can use Principal Component Regression (PCR) to project the data onto the orthogonal components associated with the non-zero eigenvalues. By discarding the dimension with the near-zero variance, the matrix regains full rank, and the remaining coefficients stabilize.[3]

Alternatively, regularization techniques like Ridge Regression mathematically force the matrix away from singularity. Ridge regression adds a small positive constant—a penalty term—to the diagonal elements of the matrix before inversion. This artificial boost ensures that no eigenvalue can drop all the way to zero, capping the maximum possible variance of the coefficients at the cost of introducing a small amount of bias.[2]

The choice of remedy depends entirely on the analyst's objective. If the goal is pure prediction, the instability of individual coefficients might be tolerated, and regularization is often sufficient. If the goal is causal inference—understanding the precise impact of a single variable, like a drug dosage or a price change—the collinear variables must be untangled or removed to restore the integrity of the design matrix.[6]
