Fractured Rock vs. Closed Loops: The Two Engineering Models Decoupling Geothermal Power from Geography

The binding constraint for geothermal energy has always been geological coincidence: a commercial power plant required naturally occurring subterranean water, extreme heat, and highly permeable rock all to exist in the exact same location. For a century, that strict condition held only in rare volcanic hotspots like Iceland or the Pacific Ring of Fire, severely limiting the technology's global footprint. Today, two distinct North American engineering models are attempting to remove that constraint entirely, decoupling geothermal power from geography by manufacturing the subterranean conditions the earth failed to provide naturally.[5]

The electrical grid requires firm, round-the-clock clean power to backstop intermittent wind and solar generation, a demand curve now sharply accelerated by the massive energy requirements of artificial intelligence data centers. Next-generation geothermal technology promises to unlock a subterranean thermal resource thousands of times larger than total global energy demand, provided the extraction cost can be engineered to compete with natural gas. Achieving that cost parity requires adapting the heavy machinery and drilling techniques of the fossil fuel era to harvest pure heat instead of extracting hydrocarbons.[4]

In the United States, Houston-based Fervo Energy is commercializing Enhanced Geothermal Systems (EGS), adapting horizontal drilling and multi-stage hydraulic fracturing from the shale oil boom to crack open hot, dry rock formations deep underground. North of the border, Calgary-based Eavor Technologies is scaling Advanced Geothermal Systems (AGS), drilling massive closed-loop underground radiators that rely entirely on thermal conduction rather than fluid exchange. Both approaches aim to make geothermal power viable anywhere on the continent, but they accept fundamentally different engineering, capital, and environmental trade-offs to achieve that geographic independence.[4][5]

Fervo's EGS mechanism relies on active fluid flow through the earth's crust. The company pumps cold water down a deep injection well, forces it under high pressure through artificially created fractures in granite rock heated to 460 degrees Fahrenheit, and extracts the resulting superheated fluid from a parallel production well. Upon reaching the surface, that thermal energy is transferred to a secondary fluid to spin a conventional power turbine, while the cooled water is continuously reinjected into the reservoir to repeat the cycle and maintain subterranean pressure.[1]

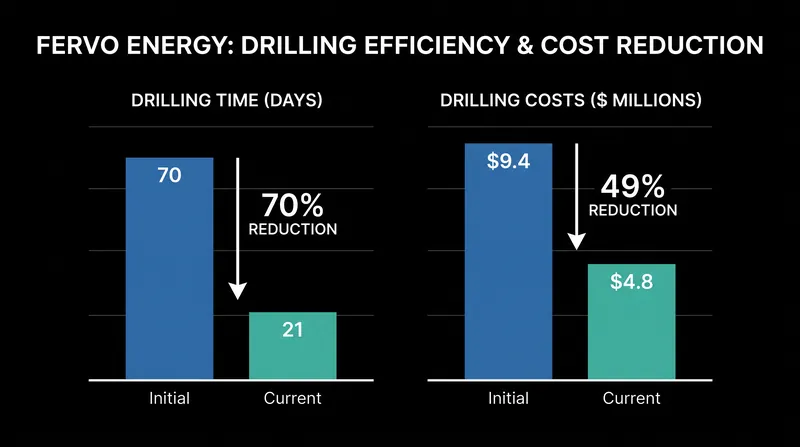

The EGS economic model relies heavily on brute-force manufacturing efficiency and rapid iteration. At its 400-megawatt Cape Station project in southwest Utah, Fervo systematically reduced the drilling time for its deepest horizontal wells—reaching 19,448 feet in measured depth with a 7,500-foot lateral—from an initial 70 days down to just 21 days. By standardizing the well design and keeping drilling rigs continuously active, the company aims to replicate the steep learning curves that previously drove down the cost of solar panels and lithium-ion batteries over the last decade.[1][2]

The company reports this operational learning curve has already driven drilling costs down from $9.4 million to $4.8 million per well across its first four horizontal attempts. 'With this momentum from initial Phase II drilling, we expect Fervo's 3.0 well design to produce substantially more megawatts per well and significantly improve the unit economics of future GeoBlocks,' said Fervo CEO Tim Latimer. The company is currently targeting an installed capacity cost of $5,500 per kilowatt for its Phase II buildout, with a long-term goal of reaching $3,000 per kilowatt as the supply chain matures.[1][2]

Eavor's AGS mechanism rejects hydraulic fracturing entirely. Instead, the Eavor-Loop system drills two vertical wells connected by a vast network of horizontal laterals, creating a completely sealed subterranean radiator. A proprietary working fluid circulates passively through the loop via the thermosiphon effect—hot fluid naturally rises to the surface while cold fluid sinks—absorbing heat through pure conduction without the fluid ever touching the surrounding rock. This closed-loop architecture essentially functions as a massive underground heat exchanger, isolating the power generation cycle from the unpredictable chemistry of the deep subsurface.[3]

Because AGS relies on thermal conduction rather than fluid flow through porous rock, it requires vastly more surface area to extract the same amount of heat, demanding unprecedented drilling lengths. To hit a competitive levelized cost of energy of $70 per megawatt-hour, Eavor must drive its lateral drilling costs below $400 per meter. Achieving that metric requires advanced directional drilling technologies capable of steering drill bits through hard igneous rock with pinpoint accuracy over distances of several kilometers, a technical hurdle that currently keeps upfront capital costs high.[5]

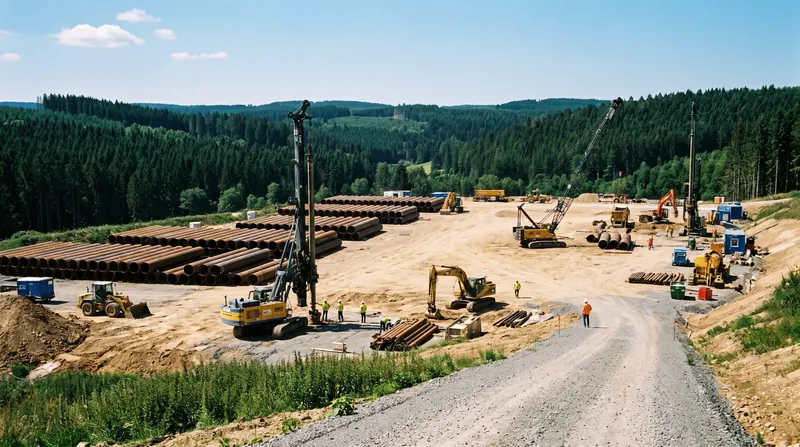

Its flagship commercial project in Geretsried, Germany, is currently proving this conduction model at scale. Situated on a site where traditional geothermal development previously failed because the rock was hot but entirely dry, the facility aims to deliver 8 megawatts of electrical output and 60 megawatts of thermal heat when it comes online in late 2025. The project recently secured a €91.6 million grant from the EU Innovation Fund to validate the commercial viability of the closed-loop approach, demonstrating that geothermal energy can be harvested even in impermeable geological formations.[3]

The two systems diverge most sharply on their environmental footprint and regulatory risk. Fervo's open-loop EGS requires continuous water access to make up for subsurface fluid losses and carries a heavily monitored risk of induced seismicity from the high-pressure fracturing process. Conversely, Eavor's closed-loop system consumes zero operational water and poses no seismic risk, making it viable for deployment near dense urban centers where EGS would face insurmountable permitting hurdles and intense public opposition over groundwater usage and minor earthquakes.[3][5]

The two technologies will likely partition the energy market rather than monopolize it. EGS fits well when deployed in remote, arid regions with existing oilfield supply chains and high grid demand, provided industrial water rights can be secured and seismic risks managed. AGS fits well when integrated directly into European or North American urban district heating networks, where zero seismic risk and zero water consumption easily justify the higher upfront capital expenditure required to drill the massive subterranean loops.[5]
