Evidence Pack: Comparing Fuel Cell, Stirling, and Lithium-Ion Submarine Propulsion Systems

In March 2009, the Japanese Maritime Self-Defense Force commissioned the Sōryū, a 4,200-ton diesel-electric submarine equipped with four Kockums Stirling engines. It marked a threshold in naval architecture: a conventional submarine that could remain submerged for up to two weeks without snorkeling to recharge its batteries. By burning diesel fuel and liquid oxygen in a pressurized chamber, the Stirling engines generated 75 kilowatts of power while the vessel remained hidden below the thermal layer.[1][2][4]

That capability, known as air-independent propulsion (AIP), fundamentally altered the calculus of underwater warfare. For decades, the divide in submarine technology was binary. Nuclear-powered vessels offered unlimited endurance and high speeds, but cost billions to construct. Furthermore, as naval architects note, "most naval nuclear reactors use pumps to constantly circulate the reactor coolant, generating some amount of detectable noise." Conventional diesel-electric submarines were virtually silent when running on battery power, but their lead-acid cells depleted rapidly.[1]

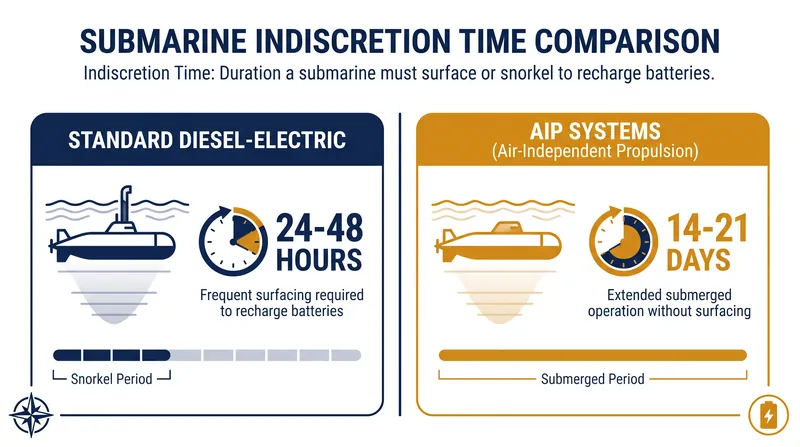

A conventional submarine typically requires surfacing or raising a snorkel mast every 24 to 48 hours to run its air-breathing diesel engines. This recharging period, known as indiscretion time, exposes the vessel to radar, visual, and acoustic detection. AIP systems bridge this gap. As noted in the technical literature, "AIP can augment or replace the diesel-electric propulsion system of non-nuclear vessels," allowing them to operate independently of atmospheric oxygen for 14 to 21 days at cruising speeds of 4 to 6 knots.[1][2]

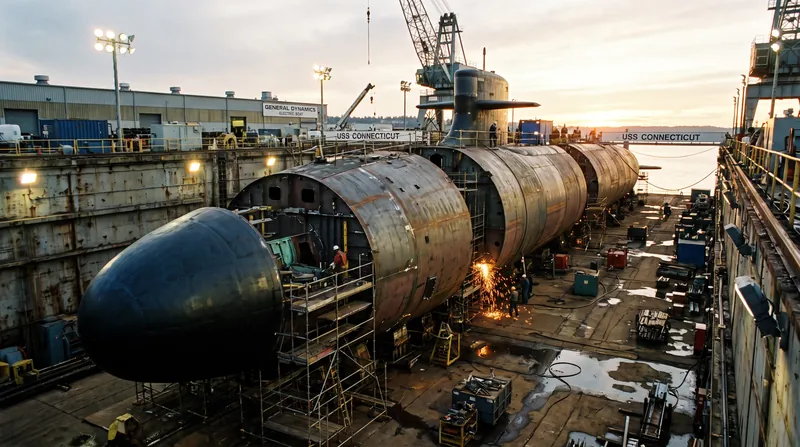

The engineering pathways to achieve this endurance diverge sharply, primarily splitting between external combustion engines and electrochemical fuel cells. The Swedish defense manufacturer Saab Kockums pioneered the Stirling engine approach, installing an eight-meter AIP hull section into the HMS Näcken in 1988. The system relies on a closed-cycle process where a working gas, typically helium, is alternately heated and cooled to drive pistons.[1][2]

Because the Stirling engine burns pure oxygen and diesel fuel at a pressure higher than the surrounding seawater, the exhaust products can be dissolved into the ocean without the need for a noisy mechanical compressor. This eliminates the valve clatter and exhaust signature associated with traditional diesel engines. Currently, Saab's A26 Blekinge-class submarines utilize this architecture to achieve a submerged endurance of more than 18 days at 5 knots.[2][5]

However, the Stirling cycle remains a mechanical process. It involves moving pistons, crankshafts, and circulating fluids, which inherently generate some level of vibration. While Saab employs advanced acoustic isolation mounts to prevent these vibrations from transferring to the hull, the energy conversion efficiency of a Stirling engine typically peaks between 25% and 35%.[1][5]

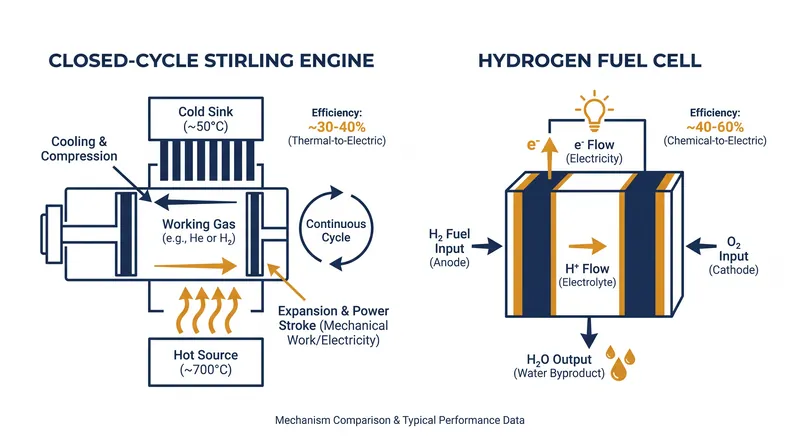

The alternative architecture, championed by Germany's ThyssenKrupp Marine Systems (TKMS), eliminates moving parts entirely. The Type 212 and Type 214 submarines utilize hydrogen fuel cells to generate electricity through an electrochemical reaction. By combining stored liquid oxygen with hydrogen—often stored in metal hydride cylinders outside the pressure hull—the fuel cells produce direct electrical current, with pure water as the only byproduct.[3][5]

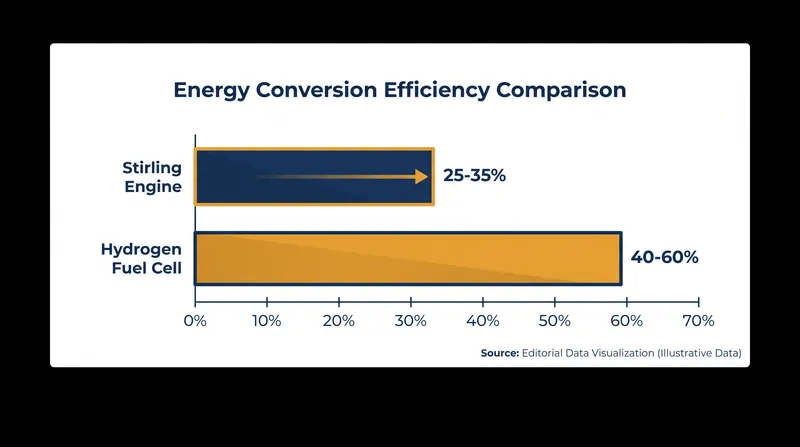

This electrochemical conversion achieves an efficiency rate of 40% to 60%, significantly outperforming external combustion. More importantly for submarine operations, the absence of mechanical motion renders the fuel cell system virtually silent. The Type 212A, jointly developed for the German and Italian navies, leverages this technology to maintain a continuous submerged patrol without the acoustic transients that plague even the quietest mechanical engines.[1][3][5]

The operational constraint of fuel cells lies in logistics and energy density. Hydrogen is notoriously difficult to store and handle, requiring specialized infrastructure at naval bases. The endurance of a fuel cell submarine is strictly limited by the volume of hydrogen it can carry, whereas a Stirling-equipped vessel uses standard marine diesel fuel, requiring only the specialized storage of liquid oxygen.[2][3]

The evidence suggests that both systems impose a severe speed penalty. An AIP power plant typically generates only about 10% of the output of a conventional diesel engine—roughly 300 kilowatts compared to 3 megawatts. Consequently, AIP is utilized exclusively for low-speed loitering and hotel loads. If an AIP submarine needs to sprint at 20 knots to intercept a target or evade a torpedo, it must switch to its main battery banks, draining them in a matter of hours.[1][2]

This limitation has catalyzed a third technological shift that threatens to bypass traditional AIP entirely: the integration of lithium-ion batteries. In 2018, Japan launched the Ōryū, the eleventh submarine of the Sōryū class, and the first to replace both the Stirling AIP system and the traditional lead-acid batteries with massive lithium-ion arrays.[4]

Lithium-ion technology offers double the energy density of lead-acid cells and can be recharged at significantly higher rates. This allows a submarine to drastically reduce its snorkeling indiscretion time while storing enough energy to match the two-to-three-week submerged endurance of a Stirling or fuel cell system. Furthermore, unlike AIP systems, lithium-ion batteries can discharge their energy rapidly, allowing the submarine to sustain high-speed sprints for much longer durations.[4][5]

The transition is accelerating. Japan's subsequent Taigei-class submarines rely exclusively on diesel engines and lithium-ion batteries, abandoning the Stirling AIP architecture entirely. The data indicates that while fuel cells provide the absolute lowest acoustic signature, the volumetric efficiency of lithium-ion arrays offers a more versatile operational profile for navies that require both stealth and high-speed maneuverability.[4][5]

The strategic consequence of these technologies is the proliferation of highly capable, localized sea-denial platforms. A conventional submarine equipped with advanced AIP or lithium-ion batteries costs roughly $500 million to $800 million, a fraction of the $3 billion price tag of a nuclear-powered attack submarine.[1][5]

For nations operating in constrained littoral environments—such as the Baltic Sea, the Mediterranean, or the First Island Chain—these vessels present an asymmetric threat. They can lie dormant on the seabed or loiter at 4 knots for weeks, emitting less noise than the ambient ocean background, waiting for a high-value target to cross their acoustic horizon.[1][5]

The trajectory of non-nuclear propulsion is now defined by energy storage rather than energy generation. As battery chemistries continue to improve, the mechanical complexity of Stirling engines and the logistical burden of hydrogen fuel cells may relegate traditional AIP to a transitional technology, bridging the gap between the lead-acid past and a fully solid-state future.[4][5]
