The Science of Snowboard Profiles: How Camber, Rocker, and 3D Bases Change the Ride

To the untrained eye, a snowboard is simply a flat plank of wood, fiberglass, and steel. But lay a modern snowboard on a perfectly flat table, and its true complexity reveals itself. The board won't sit flush against the surface; instead, it will arch, dip, or twist. This hidden geometry—the board's profile and sidecut—is the invisible engine driving every turn, jump, and carve on the mountain.[7][1]

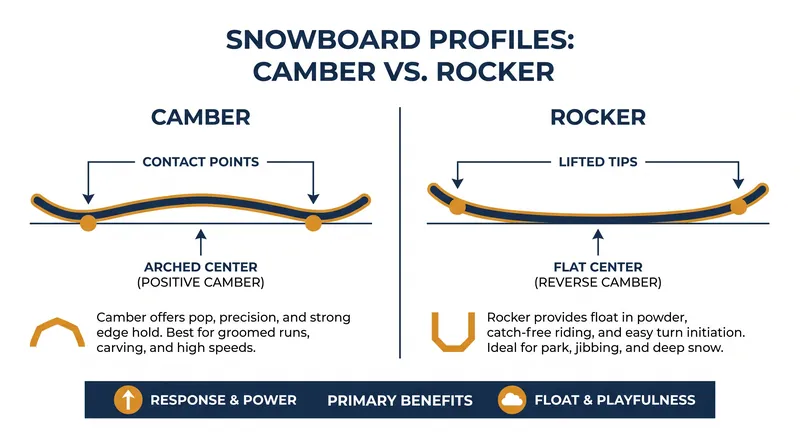

For decades, the physics of snowboarding were dominated by a single, undisputed design: traditional camber. If you look at a cambered board from the side, the center of the board arches off the snow, resembling a shallow bridge or a rainbow. The board only touches the ground at two distinct contact points, located just before the nose and tail kick up.[4][3]

This shape is essentially a pre-tensioned spring. When a rider steps onto a cambered board, their body weight presses the arched center down flat against the snow. This downward force drives the steel edges at the tip and tail aggressively into the hardpack. The result is unparalleled edge hold and stability at high speeds, allowing riders to carve deep trenches into icy slopes without washing out.[4][2]

Furthermore, because the board is constantly fighting to return to its natural arched shape, it stores kinetic energy. When a rider loads up the tail to jump—a maneuver known as an "ollie"—the board snaps back like a coiled spring, launching them into the air. However, this aggressive edge pressure comes with a steep learning curve. The same contact points that provide grip can easily catch on uneven snow, violently throwing a rider to the ground.[3][1]

In the late 2000s, the snowboard industry experienced a design revolution that fundamentally altered how boards interact with the snow. Seeking a more forgiving and playful ride, engineers inverted the traditional camber profile, creating what is known as "rocker" or reverse camber.[5][1]

A rockered board looks like the rails of a vintage rocking chair or a banana. The center of the board rests flat on the snow, while the nose and tail curve upwards, lifting the traditional contact points completely off the ground. This single geometric shift transformed the physics of riding.[2]

Because the edges near the tip and tail are elevated, a rocker board is incredibly "catch-free." Riders can spin, slide sideways on rails, and make mistakes without the immediate penalty of a caught edge. Moreover, the upward-curving nose naturally planes above deep powder, eliminating the leg-burning effort required to keep a traditional camber board from sinking into the snow.[2][5]

But physics demands trade-offs. By lifting the contact points, rocker boards sacrifice the locked-in edge hold and explosive pop of camber. On hard, icy snow, a pure rocker board can feel "skiddy" and loose, like sliding around on a cafeteria tray, because the rider cannot engage the full length of the effective edge.[4]

Recognizing that neither extreme was perfect for every condition, manufacturers began blending the two concepts into hybrid profiles. Some boards feature camber under the bindings for grip and pop, with rocker at the tips for float and forgiveness. Others place rocker between the feet for a loose, surfy feel, with camber zones under the bindings to retain some carving power.[5][2]

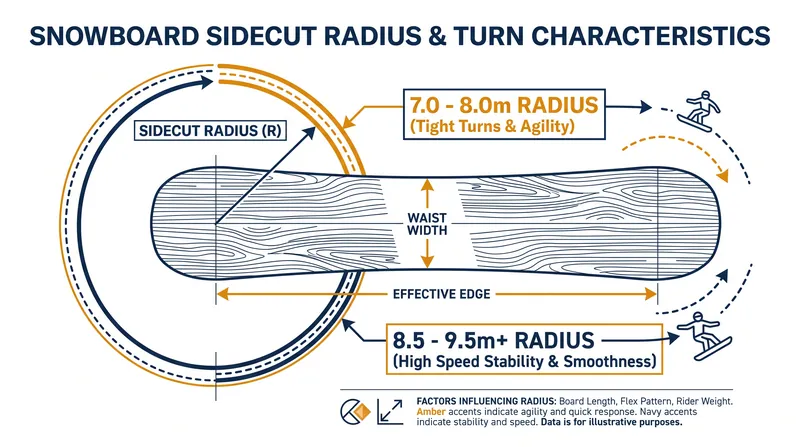

Yet, the profile (viewed from the side) is only half of the snowboard's geometric equation. The other half is the sidecut radius—the curve cut into the sides of the board, visible when viewed from above. If you were to extend the curve of a snowboard's edge outward, it would eventually form a complete circle. The radius of that imaginary circle is the board's sidecut radius.[6]

Sidecut dictates the natural size of the turn a board wants to make. A board with a small sidecut radius—typically between 7.0 and 8.0 meters—is designed to carve tight, quick arcs. These boards are highly maneuverable, making them ideal for darting through dense trees or setting up for quick spins in the terrain park.[6][7]

Conversely, freeride boards built for big mountains and high speeds feature larger sidecut radii, often 8.5 to 9.5 meters or more. A larger radius requires more speed and space to initiate a turn, but it provides locked-in stability when pointing the board straight down steep, open faces.[7][6]

The true magic of snowboarding physics occurs when the sidecut and the profile interact. When a rider tilts the board onto its edge, the center of the board must bend downward to allow the entire curved edge to touch the snow. A cambered board, already pre-bent in the opposite direction, requires forceful input to bend into the turn, rewarding the rider with a powerful, rebounding carve as it snaps back.[6][4]

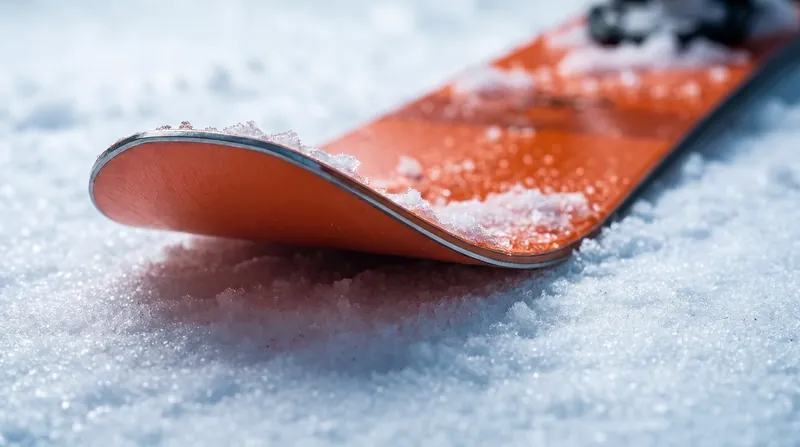

Today, the industry is moving beyond two-dimensional profiles into the realm of 3D base technology. Pioneered by brands pushing the boundaries of material science, these designs introduce a lateral curve to the board's base.[7][4]

Instead of the base being perfectly flat from edge to edge, the sides of the base near the nose and tail are gently spooned or uplifted, resembling the hull of a boat. This 3D shaping deflects snow and lifts the most catch-prone sections of the edge out of the way when the board is riding flat.[4]

The genius of 3D base technology is that it allows manufacturers to use a full, aggressive traditional camber profile from tip to tail—retaining all the pop and high-speed carving power—while using the spooned edges to provide the catch-free, forgiving feel of a rocker board.[4]

Ultimately, there is no single "best" geometry. The physics of snowboard design are a continuous negotiation between grip and slip, power and playfulness. Understanding these invisible curves allows riders to select an instrument perfectly tuned to their personal style and the terrain they wish to conquer.[7][2]
