The Science of Knee-Saving Ski Bindings: How Lateral Release is Changing the Slopes

Skiing is an inherently mechanical sport, relying on a rigid connection between the human body and a long, composite lever arm. When a skier carves down a mountain, that lever arm provides control and stability. But in a crash, the ski transforms into a powerful force multiplier, transferring massive rotational energy directly up the leg. For decades, the mechanical interface managing that energy—the ski binding—has remained fundamentally unchanged, leaving a critical vulnerability that affects hundreds of thousands of winter athletes every year.[1]

The statistics highlight the scale of the problem. On average, over 500,000 adults are injured while skiing annually, and between 30% and 40% of those incidents involve the knee. While modern equipment has made the sport safer in many respects, the sheer volume of anterior cruciate ligament (ACL) tears has become an accepted, if dreaded, reality of alpine skiing. Now, a wave of biomechanical research and new binding technology is attempting to solve the sport's most stubborn injury.[2]

To understand the current breakthrough, it helps to look at how bindings evolved. In the mid-20th century, the primary danger to skiers was the spiral fracture of the tibia. To combat this, engineers standardized the two-mode release system that dominates the market today: the toe piece releases laterally (side-to-side) to prevent twisting breaks, and the heel piece releases vertically (upward) to prevent forward-pitching fractures. This design was incredibly successful at saving bones, but it inadvertently shifted the stress upward.[4]

By locking the heel firmly in the lateral plane, the traditional binding created a mechanical "blind spot." The toe and heel mechanisms are designed to release under direct fracture-risk loading, but they often fail to respond to the complex, multi-directional forces that target soft tissue. When the binding refuses to yield, the knee becomes the weak link, tearing before the mechanical clamps let go.[1]

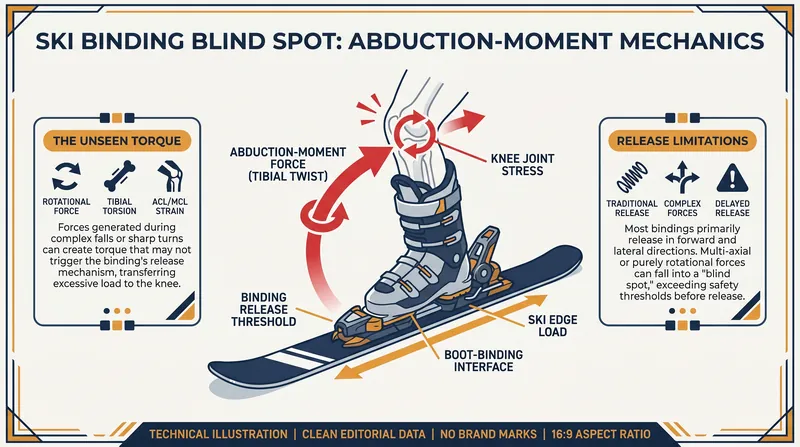

This vulnerability is most exposed during a specific type of crash known as the "slip-catch" or "phantom foot" event. This occurs when a skier loses balance and falls backward, inadvertently catching the inside edge of the downhill ski. The geometry of modern shaped skis aggressively drives the ski into a sharp turn, while the skier's body momentum continues downhill.[1][6]

The result is a violent "abduction-moment"—a valgus force that pushes the lower leg sideways and twists the knee joint simultaneously. Because the traditional heel piece cannot release sideways, the rotational torque acts over the entire length of the lower leg, generating an injury-producing moment centered directly on the ACL, medial collateral ligament (MCL), and meniscus.[1][6]

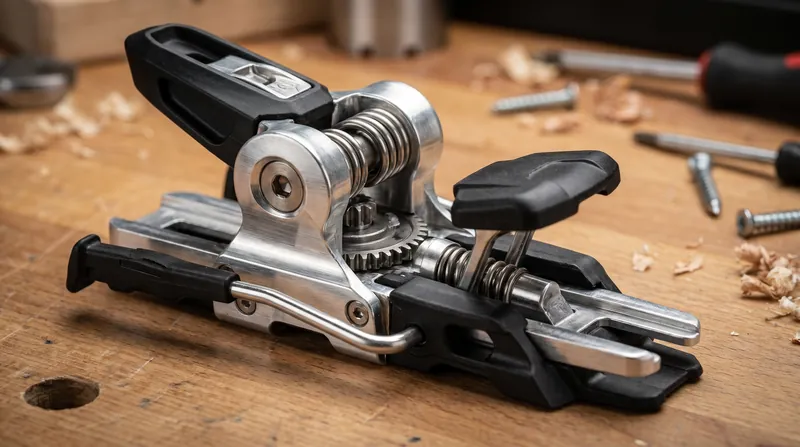

Fixing this blind spot is not as simple as allowing the heel to swivel. The primary job of any ski binding is retention; a binding that releases prematurely—known as a "pre-release"—can cause catastrophic high-speed crashes. Engineers have spent decades trying to balance the need for a lateral heel release with the absolute necessity of keeping the ski attached during aggressive, high-force carving.[4]

The secret to achieving this balance lies in "elastic travel." Before a binding fully ejects the boot, it must be able to absorb short, high-energy shocks and snap back to the center. Without sufficient elastic travel, the vibrations of skiing over hardpack snow would constantly trigger accidental releases.[3][5]

Early pioneers in the space, such as KneeBinding and Howell SkiBindings, focused heavily on decoupling these dangerous moments by introducing dedicated lateral heel release mechanisms. By allowing the heel to release outward or inward under specific torsional loads, these designs aimed to interrupt the kinematic pathway between the applied abduction-force and the fragile ligaments of the knee.[4][6]

Recently, this technology has crossed into the mainstream market. Tyrolia, one of the world's largest binding manufacturers, introduced the Protector binding, featuring what the company calls Full Heel Release (FHR). This system brings lateral heel technology to a wider audience, blending a traditional toe piece with a highly engineered heel track that moves in 180 degrees.[3][5]

The mechanics of the FHR system rely on a two-stage process. First, the heel piece allows for 7 millimeters of bilateral horizontal travel. This elasticity absorbs the low, short-term forces of aggressive skiing, preventing pre-release. However, if the rotational load exceeds the safety threshold—as it does in a backward twisting fall—the heel slides the full 7 millimeters and then rotates open by 30 degrees to completely eject the ski boot.[3]

The biomechanical data supporting this approach is compelling. Finite-element model simulations conducted by the University of Innsbruck demonstrated that lateral heel release can reduce ACL strain by more than 50% during simulated backward twisting falls. By maintaining constant release values during these complex crashes, the binding effectively halves the force required to free the leg.[3]

Despite the safety benefits, lateral release bindings come with distinct trade-offs that have made some advanced skiers hesitant. The complex mechanics require additional parts, making the bindings heavier than traditional models. They also feature a higher "stack height"—the distance between the ski and the boot sole—which can slightly reduce the skier's tactile connection to the snow, a factor highly scrutinized by performance-focused athletes.[5]

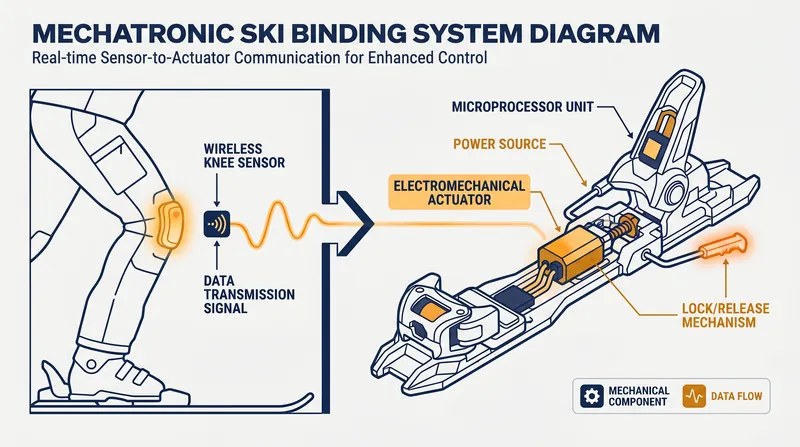

While mechanical bindings are reaching new heights of sophistication, researchers are already looking toward the next frontier: mechatronics. At Stanford University, a team collaborating with the Department of Orthopedics recently developed a proof-of-concept rapid-release binding that abandons purely mechanical force-sensing in favor of electronic intervention.[2]

The Stanford prototype pairs a specialized binding with a separate sensor system worn directly on the skier's knee. When the sensor detects a dangerous abduction-moment, it transmits a digital signal to an actuator sub-assembly housed within the binding. A pull-type solenoid, powered by stored potential energy in a spring, instantly unlocks additional lateral and rotational degrees of freedom at the heel.[2]

In laboratory testing, the actuator responded to the digital signal and decoupled the boot in 41 milliseconds or less. This speed is critical, as it meets the biomechanical requirement to reduce loading on the knee within a 60-millisecond window—faster than the ligaments can reach their tearing point.[2]

Other experimental approaches are exploring alternative triggers. The Computational Neuroscience Group has tested a system utilizing a sensor glove that measures finger abduction; if a skier senses an impending crash and spreads their fingers rapidly, a radio signal automatically commands a servomotor to open the binding. While still in the prototype phase, these concepts highlight a shift toward active, skier-triggered safety systems.[7]

Despite these massive technological leaps, experts caution that no binding can guarantee complete immunity from injury. Skiing involves inherent risks, and ligaments can still tear from direct impacts, simple falls, or forces that fall just below the mechanical release threshold.[6]

Nevertheless, the evolution of lateral release technology represents a fundamental shift in the industry's mindset. For decades, the standard was simply to prevent broken bones. Now, manufacturers and researchers are actively engineering solutions to protect the complex, vulnerable soft tissues that keep athletes in motion.[8]

As these technologies become lighter, lower, and more integrated into standard gear, they offer a tangible solution to the sport's most pervasive risk. By understanding the mechanics of how bindings interact with the human body, skiers are increasingly empowered to make equipment choices that prioritize their long-term joint health and keep them carving down the mountain for years to come.[8]
