The Mechanics of Meta-Analysis: How Systematic Reviews Aggregate Evidence and Determine the True Effect Size

People assume a meta-analysis is just a glorified literature review or a simple average of past experiments. If five studies say a new drug works and three say it does not, the public assumes the drug wins five to three. Alternatively, observers assume researchers simply dump all the raw patient data into one giant spreadsheet and calculate a new, massive average. Both assumptions are mathematically incorrect. A meta-analysis is a highly specific statistical engine designed to model a 'true' effect size by aggregating disparate data, and the mechanics of how it weights that data can completely alter the final conclusion.[6]

A meta-analysis does not count studies; it weighs them. The core mechanism driving this aggregation is 'inverse variance weighting.' Under this mathematical rule, a study's influence on the final result is determined entirely by its statistical precision, which is primarily driven by its sample size and the tightness of its data spread. The formula is literal: the weight assigned to a study is one divided by its variance (the square of its standard error). A massive, multi-center clinical trial with a narrow confidence interval is assigned a massive weight, while a small, noisy pilot study receives only a fraction of a percent of the total influence.[1]

However, the math becomes philosophical when researchers must choose between a 'fixed-effect' and a 'random-effects' model. A fixed-effect model operates on a rigid assumption: there is exactly one true effect size in the universe. It assumes every included study is measuring the exact same underlying biological or physical truth, and any difference between their results is purely sampling error—the luck of the draw. Under this model, the largest study dominates the pooled result because it is mathematically assumed to be the most accurate lens on that single, universal truth.[4]

Real-world science is rarely that clean. Studies use slightly different dosages, test different demographics, or measure outcomes at different timeframes. To account for this, researchers use a random-effects model. This model assumes there is no single true effect, but rather a distribution of true effects across different contexts. It introduces a new variable into the math: τ² (tau-squared), which represents the between-study variance. This variable acknowledges that the studies are fundamentally different from one another, not just victims of sampling noise.[4][5]

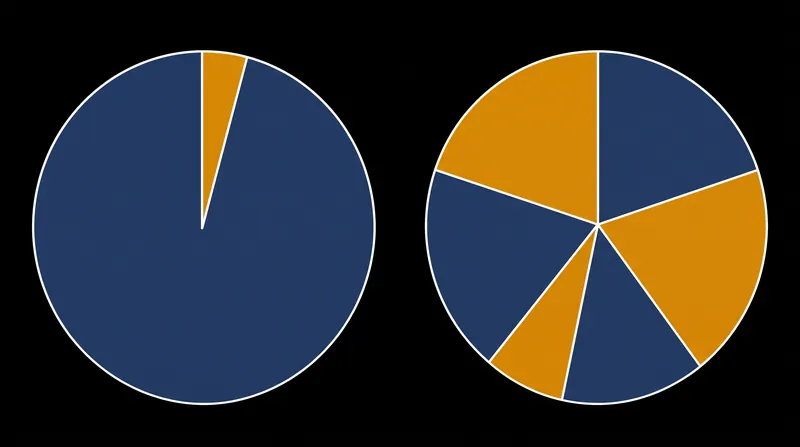

The introduction of τ² triggers a profound mathematical shift in how evidence is weighed. When researchers apply a random-effects model, the τ² value is added as a constant to the denominator of every single study's weight. Because a constant is added to every variance, the relative difference in weights between massive trials and small trials shrinks dramatically. A mega-trial loses its dominance, and smaller trials are mathematically 'up-weighted.' The model essentially dictates that because the true effect varies by clinical context, the meta-analysis must listen to the smaller studies, as they represent different, equally valid contexts.[4][5]

To determine which model to use, statisticians measure 'heterogeneity'—the degree to which study results conflict. Cochran's Q is a statistical test that checks whether the variation between studies is greater than what would be expected by chance alone. The I² statistic then quantifies this variation as a scannable percentage. An I² of 0% means all variation is just statistical noise, validating a fixed-effect approach. An I² of 75% means three-quarters of the variation is due to real, structural differences between the studies. If I² is excessively high, pooling the data into a single number might be entirely inappropriate, akin to combining apples and oranges to calculate the average citrus.[1][4]

Even with perfect weighting, a meta-analysis is blind to what it cannot see. This vulnerability is known as the 'file drawer problem'—the reality that statistically significant, positive results are eagerly published by journals, while boring, null results are stuffed in a drawer. If a meta-analysis only aggregates published data, it will artificially inflate the true effect size. To detect this invisible bias, researchers rely on a visual diagnostic tool called a funnel plot.[3]

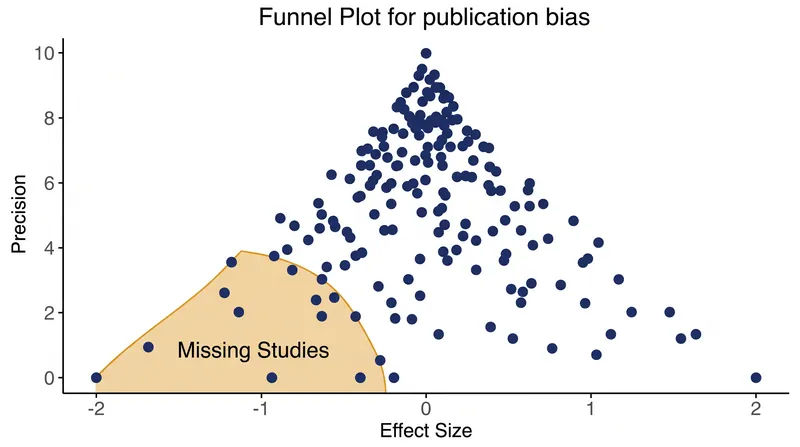

A funnel plot graphs each study's effect size on the horizontal x-axis against its precision (usually the standard error) on the vertical y-axis. In a perfectly unbiased scientific landscape, the plot looks like an inverted funnel. The highly precise mega-trials cluster tightly at the top around the true pooled effect, while the smaller, noisier studies scatter widely but symmetrically at the bottom. The symmetry proves that small studies with negative results are being published at the same rate as small studies with positive results.[3]

If the lower-left corner of the funnel is empty, the plot becomes asymmetrical. This asymmetry is a glaring mathematical footprint indicating that small studies with negative or null results are missing from the literature. Statistical tools like Egger's regression test can quantify this skew. When publication bias is detected, researchers can deploy the 'trim and fill' method, an algorithm that mathematically imputes the missing studies to balance the funnel, revealing what the true effect size would likely be if the file drawers were finally opened.[3]

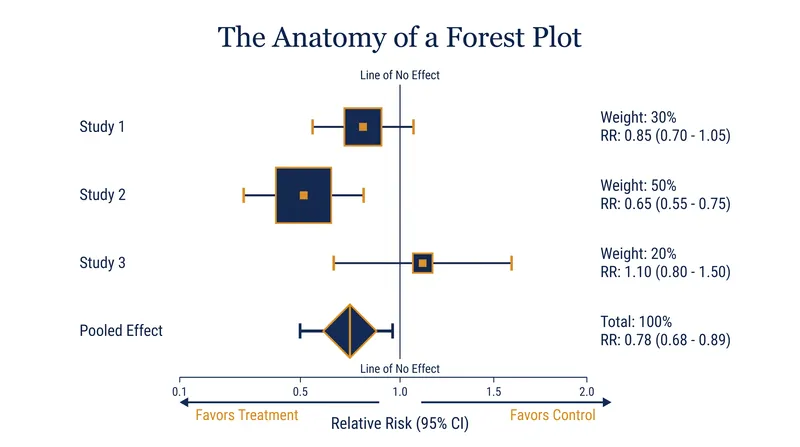

Because these mathematical choices—fixed versus random effects, the handling of heterogeneity, and the imputation of missing data—can completely flip the clinical conclusion of a paper, transparency is heavily regulated. The PRISMA 2020 statement provides a strict 27-item checklist that researchers must follow when publishing a systematic review. By forcing authors to declare exactly how they weighted the data and hunted for bias, PRISMA ensures that the mechanics of the aggregation are visible to anyone reading the final, authoritative diamond on the forest plot.[2]
