The Mechanics of Browser Fingerprinting: How Canvas, WebGL, and Audio APIs Create a Unique Digital ID

The most persistent myth in digital privacy is the belief that 'Incognito Mode' makes you invisible. For over a decade, users have been trained to clear their cookies, block third-party trackers, and assume their slate is wiped clean. Consumer VPN marketing heavily emphasizes IP address masking as the ultimate shield. But modern tracking does not need to leave a file on your computer, nor does it care about your IP address. Instead, it asks your browser to draw a picture.[3]

This technique is known as browser fingerprinting. Rather than storing a stateful identifier like a cookie, a website executes a series of mathematical and rendering tasks in the background. Because every computer has a slightly different combination of hardware, graphics drivers, operating system, and installed fonts, the output of those tasks varies at the microscopic level. By measuring these minute differences, a tracker can generate a unique hash that identifies a specific device with startling accuracy.[2]

The capability relies entirely on standard web APIs designed to make the internet interactive and rich. The HTML5 Canvas API, WebGL, and the Web Audio API were built to enable browser-based gaming, complex data visualization, and dynamic media. However, the exact mechanisms that make these APIs powerful also make them highly idiosyncratic to the machine executing them.[1][2]

The most widely deployed technique is Canvas fingerprinting. When you visit a page utilizing this method, a hidden script instructs your browser to draw a specific, complex string of text and shapes onto an invisible HTML5 Canvas element. The script typically uses a mix of colors, overlapping geometries, and standard system fonts.[1]

Crucially, the web standard does not dictate exactly how a pixel should be colored when rendering a curve or a font edge. That job is handed off to the device's operating system and graphics processing unit (GPU). A Windows machine with an Nvidia graphics card applies anti-aliasing (smoothing jagged edges) differently than a MacBook with Apple Silicon. Even two identical laptops might render the text differently if one has a slightly older graphics driver.[1]

Once the hidden image is drawn, the script calls a function named `toDataURL()`. This command reads the canvas pixel by pixel and converts the entire image into a Base64 encoded string. Because of the subtle rendering differences, this string is unique to the user's specific hardware and software stack. The tracker then hashes this string into a short, permanent ID.

While Canvas focuses on 2D rendering, WebGL fingerprinting targets the 3D graphics pipeline. WebGL allows browsers to render interactive 3D graphics without plugins. A fingerprinting script will ask the browser to render a complex 3D scene—complete with lighting, shadows, and textures—on a hidden canvas.

WebGL is even closer to the metal than the 2D Canvas API. It relies heavily on the specific floating-point mathematical precision of the device's GPU. Different GPUs handle complex math with microscopic variations in rounding errors. By extracting the rendered pixels of the 3D scene, trackers can effectively identify the exact model and driver version of the user's graphics card.[3]

Visuals are not the only vector. The Web Audio API, designed for processing and synthesizing audio in web applications, provides another rich source of entropy. Audio fingerprinting does not require the user's microphone; instead, it tests how the device's audio stack processes sound mathematically.

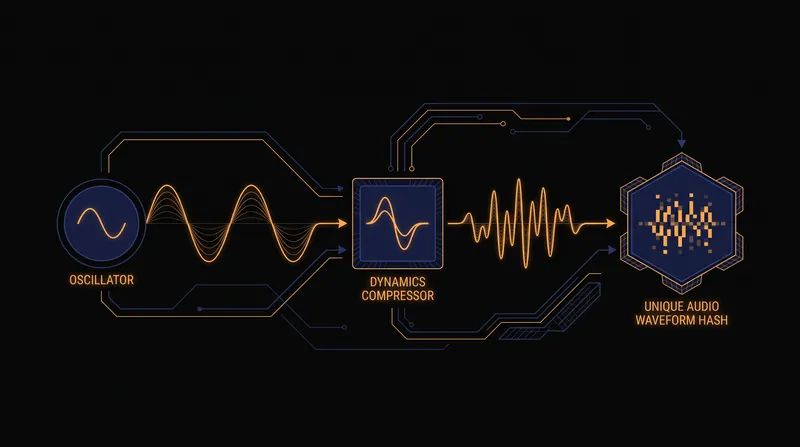

An audio fingerprinting script generates a low-frequency oscillator—a basic sine wave. It then passes this wave through a series of dynamic compressors and filters provided by the AudioContext API. Finally, it reads the resulting audio waveform data before it ever reaches the speakers.

Just like graphics rendering, audio processing relies on the underlying operating system and hardware architecture. The exact mathematical output of the compressed sine wave will differ slightly between an Android phone, an iPhone, and a Windows desktop. This provides a completely separate, highly stable data point that trackers use to corroborate the visual fingerprints.[2]

Individually, these signals are powerful, but they are rarely used in isolation. Trackers combine Canvas, WebGL, and Audio fingerprints with traditional passive signals: the user agent string, screen resolution, color depth, timezone, and the list of supported languages. In information theory, the uniqueness of these combined data points is measured in 'entropy'.[2]

When enough entropy is gathered, the resulting fingerprint is virtually guaranteed to be unique among millions of users. Because this identifier is generated on the fly every time a page loads, there is no cookie to delete. If a user clears their browser data, restarts their router to get a new IP address, and returns to the site, the hardware rendering math remains identical. The tracker instantly recognizes them.[2][3]

Defending against fingerprinting presents a massive engineering challenge. Browser vendors cannot simply disable Canvas, WebGL, or AudioContext without breaking millions of legitimate websites, web apps, and browser games. The APIs are fundamental to the modern web experience.[3]

Currently, there are two primary defensive philosophies. The first is uniformity, championed by the Tor Browser. Tor attempts to make every user look exactly the same by restricting API access, standardizing window sizes, and blocking specific fonts. If everyone has the exact same fingerprint, the entropy drops to zero, and tracking becomes impossible.[2]

The second approach is randomization, utilized by privacy-focused browsers like Brave. Instead of blocking the APIs, Brave subtly injects random cryptographic noise into the output of Canvas, WebGL, and AudioContext requests. Every time a tracker asks the browser to draw the hidden image or process the audio wave, the browser returns a slightly different, randomized result, rendering the fingerprint useless for long-term tracking.[2][3]

Despite these defenses, the arms race continues. As browsers implement noise injection, tracking companies develop machine learning models to filter out the noise and find the underlying hardware signature. Understanding this ecosystem is critical: true digital privacy requires structural browser-level defenses, not just clearing a cache.[2][3]
