The Chemiosmotic Gradient: How a 150-Millivolt Transmembrane Charge Drives Cellular Energy

The synthesis of ATP relies on a microscopic electrochemical gradient across cellular membranes. By pumping protons to create a severe charge differential, mitochondria and chloroplasts power the molecular rotary turbine that sustains biological life.

By Ishani Patel

Share this story

Listen

In short

  • The chemiosmotic hypothesis replaced the search for a high-energy chemical intermediate with an electrical gradient model.
  • Protons pumped across the inner mitochondrial membrane generate a localized electric field of nearly 30 million volts per meter.
  • ATP synthase functions as a literal rotary motor, spinning at up to 130 revolutions per second to fuse ADP and phosphate.

One faction of biochemists insists that cellular energy must rely on a tangible, high-energy intermediate molecule. In this view, the process of cellular respiration operates exactly like glycolysis: a direct chemical handoff where a yet-undiscovered compound physically transfers a phosphate group to synthesize ATP.

The opposing camp argues that no such molecule exists, and that searching for it is a biochemical wild goose chase. Instead, they propose that the energy is stored not in a chemical bond, but as a physical electrical gradient across an impermeable membrane, functioning exactly like a charged battery.[2][3]

This fundamental divide over how life harnesses energy defined bioenergetics throughout the mid-20th century. If the chemical coupling theory held true, energy transfer was a purely fluid, spatial reaction that could occur anywhere in a solution. If the opposing chemiosmotic hypothesis was correct, life was fundamentally electrical and relied on strict spatial compartmentalization to separate positive and negative charges.[2][8]

The mechanics of the latter model require a closed circuit. As electrons are stripped from food molecules and passed down a chain of proteins in the inner mitochondrial membrane, their kinetic energy is used to pump positively charged protons out of the mitochondrial matrix. Because the membrane is impermeable to these ions, they accumulate on one side, creating a severe electrochemical imbalance.[4][8]

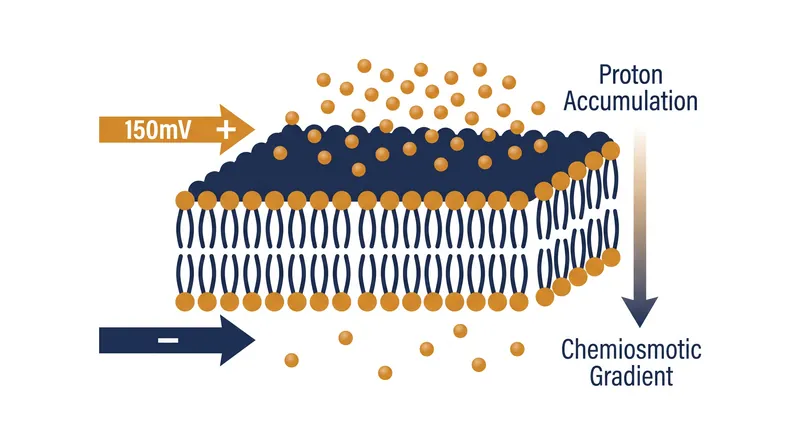

The scale of this imbalance is extreme. The accumulation of protons generates a transmembrane potential of roughly 150 to 200 millivolts. While that figure appears small in absolute terms, it occurs across a lipid bilayer just five nanometers thick. This translates to a localized electric field strength of nearly 30 million volts per meter—equivalent to the dielectric breakdown voltage of a lightning strike.[2][6]

The accumulation of protons generates a localized electric field of nearly 30 million volts per meter.

To resolve this immense pressure, the protons must flow back across the membrane, and they do so through a specialized molecular machine called ATP synthase. This enzyme complex is divided into two main domains: the membrane-embedded F_O motor and the protruding F_1 catalytic head. As protons funnel through the F_O domain, they bind to a circular arrangement of proteins known as the c-ring.[5][9]

The binding of protons induces a physical rotation of the c-ring within the lipid membrane. This is not a metaphor; ATP synthase is a literal rotary motor. The spinning c-ring turns an asymmetric central stalk that protrudes into the F_1 head. As the stalk rotates at speeds up to 130 revolutions per second, it forces the catalytic subunits through a series of conformational changes that bind ADP and inorganic phosphate, fusing them into ATP.[5]

The exact efficiency of this biological turbine depends entirely on the size of its rotor. Recent advances in cryogenic electron microscopy have allowed structural biologists to count the exact number of c-subunits in the rotors of different organisms, revealing a stark divergence between mammalian mitochondria and plant chloroplasts.[1][9]

In bovine mitochondria, the c-ring is constructed from exactly 8 identical subunits. Because one full 360-degree rotation of the F_1 head always produces exactly 3 molecules of ATP, the mammalian motor requires 8 protons to complete a cycle. Conversely, the ATP synthase found in spinach chloroplasts features a much larger c-ring composed of 14 subunits, requiring 14 protons to achieve the same single rotation.[1][9]

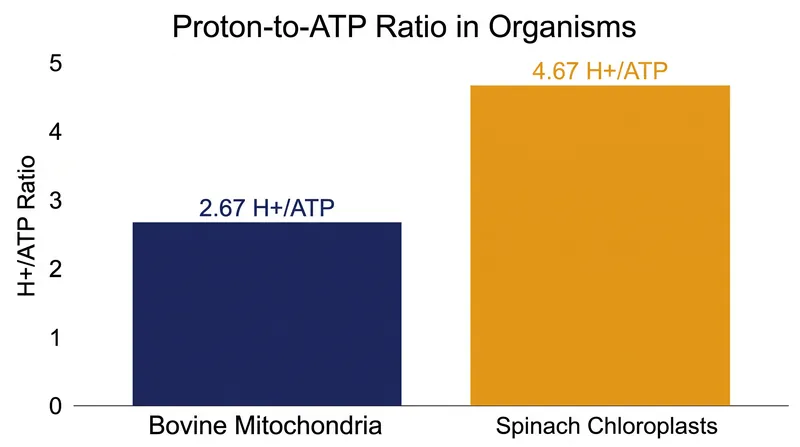

This structural difference translates directly to thermodynamic cost. The mammalian mitochondrial motor operates at a ratio of 2.67 protons per ATP synthesized. The chloroplast motor requires 4.67 protons to yield the same single ATP molecule. Plant organelles thus demand 75 percent more proton motive force to generate cellular energy than their mammalian counterparts.[10]

Chloroplasts require 75 percent more proton motive force per ATP synthesized than mammalian mitochondria.

This discrepancy reflects an evolutionary trade-off rather than a biological flaw. Mammalian cells require a constant, highly efficient energy supply to maintain homeostasis, driving their mitochondria toward the absolute thermodynamic floor. Chloroplasts, however, must manage extreme fluctuations in light intensity and prevent the dangerous over-accumulation of protons during peak photosynthesis, making a "stiffer," less efficient motor a structural advantage.[7]

The regulation of these motors extends beyond their physical structure. The adenylate kinase equilibrium acts as a critical buffering system, continuously monitoring the ratio of ATP to ADP and AMP within the cell. When energy demands spike, this enzymatic network modulates the proton gradient, ensuring that the rotary motors do not stall under heavy metabolic load.[7]

The theoretical foundation for this entire mechanism was laid by Peter Mitchell in 1961. Facing intense skepticism from the chemical coupling establishment, Mitchell published a paper outlining his radical alternative. "The chemiosmotic hypothesis," Mitchell wrote, "postulates that the coupling of phosphorylation to electron and hydrogen transfer is mediated by a proton-translocating reversible ATPase."[3]

ATP synthase functions as a physical rotary motor, spinning at up to 130 revolutions per second.

It took nearly two decades for the biochemical community to abandon the search for a high-energy intermediate and accept the electrical reality of the cell. Mitchell was awarded the Nobel Prize in Chemistry in 1978, and the subsequent resolution of the rotary mechanism by Paul Boyer and John Walker earned them the same prize in 1997.[3][8]

The precise atomic pathway that protons take through the stationary a-subunit to enter the spinning c-ring remains partially obscured. High-resolution mapping of extremophile bacteria, which operate in highly acidic or alkaline environments, will determine if the 8-subunit mammalian ring represents the absolute minimum size for a biological turbine, or if life has engineered an even tighter gear ratio.[1][9]

Key terms

Chemiosmosis
The movement of ions across a semipermeable membrane down their electrochemical gradient to generate cellular energy.
Proton Motive Force
The combined chemical and electrical potential energy stored in a gradient of protons across a membrane.
ATP Synthase
A complex rotary enzyme that uses the flow of protons to catalyze the synthesis of ATP from ADP and inorganic phosphate.
c-ring
The rotating, membrane-embedded portion of ATP synthase that physically turns as protons bind to it.
Adenylate Kinase
An enzyme that helps maintain cellular energy homeostasis by balancing the ratios of ATP, ADP, and AMP.

Viewpoints in depth

Structural Biologists' view

The mechanism of energy conversion is fundamentally a problem of physical engineering and atomic architecture.

Researchers in this camp prioritize mapping the exact physical structure of the ATP synthase complex using cryogenic electron microscopy. By resolving the precise number of c-subunits in the rotor ring, they can calculate the exact mechanical gear ratio of the enzyme. Their evidence demonstrates that the biological turbine operates through literal, physical rotation, driven by the sequential binding and release of protons, making it one of the most efficient mechanical motors in the natural world.

Bioenergetic Theorists' view

Cellular energy is best understood through the lens of thermodynamics and electrochemical gradients.

This perspective focuses on the 150-millivolt charge differential across the membrane rather than the physical machinery itself. Theorists argue that the chemiosmotic gradient represents a universal, deeply conserved evolutionary strategy that predates complex proteins. They measure the proton motive force and calculate the absolute thermodynamic floor of energy conversion, arguing that mammalian mitochondria have evolved to operate as close to 100 percent efficiency as the laws of physics allow.

Structural Biologists 40%Bioenergetic Theorists 35%Plant Physiologists 25%
Structural Biologists
Focuses on the mechanical rotation, atomic resolution, and physical gear ratios of the ATP synthase motor.
Bioenergetic Theorists
Examines the thermodynamic efficiency, electrochemical limits, and evolutionary origins of the proton gradient.
Plant Physiologists
Analyzes how chloroplasts regulate the proton motive force to maintain stability under fluctuating light conditions.

Perspectives this story doesn't cover

  • Evolutionary Microbiologists
  • Quantum Biologists
