Optical Lens Stabilization and Sensor-Shift Systems: How Camera Shake Correction Dictates Low-Light Performance

In January 2019, technicians at Lensrentals disassembled a stabilized camera lens, revealing a floating optical group suspended by electromagnets—a mechanism designed to physically shift glass elements to counteract hand tremors. This physical intervention dictates whether a photograph taken in low light is sharp or ruined by motion blur, and it represents one of the most significant hardware divides in modern photography.[2]

For buyers evaluating a new camera system, the primary utility question is where this stabilization hardware lives. The industry offers two distinct approaches: Optical Image Stabilization (OIS), which places the correction mechanism inside the lens, and In-Body Image Stabilization (IBIS), which moves the camera's image sensor itself.[5][7]

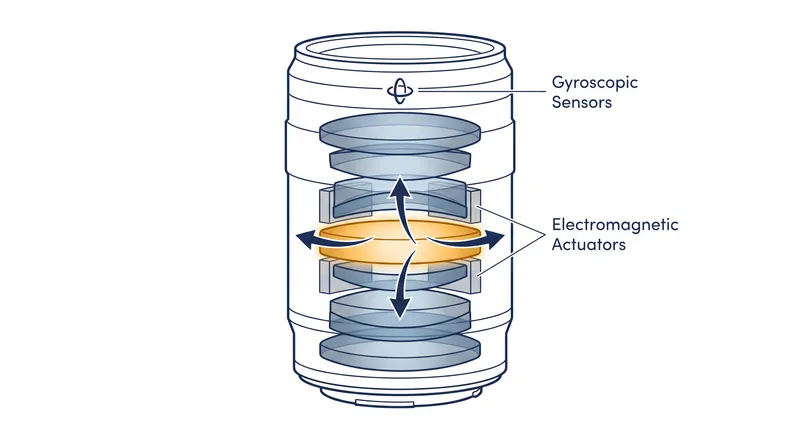

OIS operates by using gyroscopic sensors to detect movement, then directing electromagnets to shift a specific internal lens element in the opposite direction. Because the stabilization group is engineered for one specific optical formula, it is highly optimized for that exact focal length.[2][4]

The practical advantage of OIS emerges at extreme telephoto lengths. Canon notes that correcting the narrow field of view of a 400mm or 600mm lens requires significant physical movement to offset a tiny hand tremor. Shifting a small glass element inside the lens barrel is physically faster and more efficient than trying to move the entire camera sensor.[4][6]

However, the OIS approach forces consumers to pay for stabilization hardware every time they buy a new lens. It adds weight, complexity, and cost to the optical design, and leaves older or cheaper lenses completely unstabilized.[6][7]

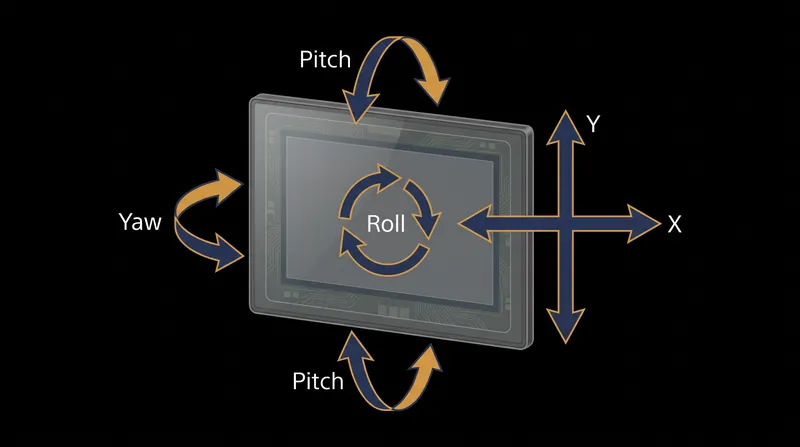

IBIS flips this architecture by placing the stabilization mechanism inside the camera body. Fujifilm explains that sensor-shift technology uses a magnetic field to float the entire image sensor, moving it across five distinct axes—pitch, yaw, roll, horizontal (X), and vertical (Y)—to compensate for motion.[3]

The immediate consumer benefit of IBIS is universal stabilization. Any lens attached to an IBIS-equipped body becomes stabilized, including vintage manual-focus glass, cheap prime lenses, and specialty optics that lack internal OIS. Digital Trends highlights this as a major cost-saving factor for photographers building a comprehensive lens collection.[5]

The physical limitation of IBIS appears when using long telephoto lenses. At 500mm, the sensor must physically travel a relatively large distance across the image plane to correct for a minor angular shake. Eventually, the sensor hits the physical boundaries of the camera mount and cannot move any further.[4][6]

Historically, the photography industry debated which system was superior, but the maturation of IBIS technology has shifted the baseline. DPReview editors explained their shift in a piece titled "Why we haven't taken a stance on in-body stabilization vs OIS - and why that has changed," noting that IBIS has become a fundamental requirement for modern mirrorless cameras.[1]

Modern camera manufacturers have largely stopped treating the two systems as mutually exclusive. Instead, companies like Canon and Fujifilm have developed hybrid systems where the lens OIS and the camera IBIS communicate continuously, sharing the shake-correction workload.[3][4]

In a hybrid setup, the stabilization tasks are divided based on physical efficiency. The lens OIS typically handles pitch and yaw corrections, which it manages best, while the IBIS system corrects for roll and X/Y translations, yielding up to eight stops of total stabilization—a level neither system could achieve independently.[4][7]

The actionable takeaway for equipment buyers is straightforward: for wide-angle, standard portrait, and everyday photography, an IBIS-equipped camera body provides the best value and versatility. For wildlife and sports photographers relying on massive telephoto lenses, paying the premium for OIS-equipped glass remains a physical necessity.[5][6][7]
