Measuring the Vacuum: How Zero-Point Energy Exerts a Physical Force on Uncharged Plates

For the Casimir effect to manifest as a measurable force, two surfaces must be brought within a few micrometres of each other while remaining entirely free of electrostatic charge. If even a fractional voltage exists between the plates, standard Coulomb attraction overwhelms the quantum vacuum. Achieving this electrical neutrality at sub-micrometre distances in a high vacuum is the fundamental barrier to observing the phenomenon. In 1997, physicist Steve Lamoreaux finally satisfied these conditions, using a torsion pendulum to measure the force between a gold-coated sphere and a flat plate at separations ranging from 0.6 to 6 micrometres.[1]

The force Lamoreaux measured does not come from gravity or electromagnetism, but from the vacuum itself. In classical physics, a vacuum is a space entirely devoid of matter and energy, a completely empty void. Quantum field theory, however, dictates that empty space is constantly boiling with virtual particles—electromagnetic waves that pop into and out of existence before they can be directly observed. These zero-point energy fluctuations occur continuously at all possible wavelengths, filling the universe with a baseline level of background energy.[2][4]

When two perfectly conducting plates are placed close together, they act as mirrors for these virtual waves. Just as a guitar string can only vibrate at specific resonant frequencies tied to its physical length, the gap between the plates can only support virtual photons whose wavelengths fit exactly within that confined space. Waves larger than the gap are excluded from the region, meaning the vacuum between the plates is fundamentally different from the vacuum outside them. This restriction alters the energy density of the space itself.[7][9]

Because the infinite expanse of space outside the plates contains all possible wavelengths, while the restricted space inside lacks the larger waves, a pressure differential emerges. The radiation pressure from the external vacuum is greater than the pressure from the internal vacuum. This imbalance physically pushes the plates together. At a separation of 1 micrometre, this pressure is roughly 1.3 millipascals—equivalent to the weight of a water droplet spread across a square metre, but easily enough to move nanoscale components.[2][4]

Lamoreaux’s 1997 demonstration at the University of Washington provided the first high-precision evidence for Hendrik Casimir's 1948 prediction. "The Casimir force is a macroscopic manifestation of quantum fluctuation," notes the University of Liège's editorial review of the phenomenon. By measuring the twist of a pendulum suspended by a tungsten wire, Lamoreaux confirmed the force scaled inversely with the fourth power of the distance, exactly as Casimir's equations required. The experiment required compensating for seismic vibrations and stray electrical charges to isolate the quantum effect.[1][6]

Subsequent research has moved beyond flat plates to explore how geometry alters the vacuum. In 2011, researchers demonstrated that microstructured geometries—such as corrugated silicon surfaces—can modify the boundary conditions of the vacuum fluctuations. By etching deep trenches into the plates, physicists can reduce the effective area and alter the spectrum of allowed virtual photons, thereby tuning the strength of the Casimir attraction. This proved that the vacuum's energy could be engineered by changing the shape of the boundaries confining it.[3]

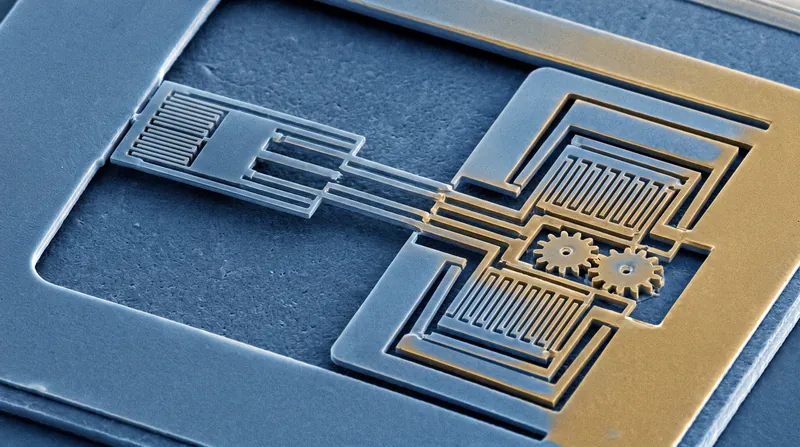

This geometric tuning is not merely an academic exercise. In the rapidly expanding field of micro-electromechanical systems (MEMS)—which includes the microscopic accelerometers in smartphones, the micromirrors in optical projectors, and medical pressure sensors—the Casimir effect is a critical failure mechanism. When silicon components are etched with gaps smaller than 1 micrometre, the quantum vacuum pushes them together, overriding the mechanical stiffness of the silicon beams and causing the device to malfunction before it ever leaves the fabrication facility.[5]

Engineers refer to this catastrophic failure mode as "stiction." Once the Casimir force pulls two nanoscale cantilevers into physical contact, short-range Van der Waals forces lock them permanently in place, destroying the device. A comprehensive review of MEMS metrology indicates that accounting for zero-point energy is now a mandatory step in the design phase of any sub-micrometre mechanical system. Designers must carefully calculate the quantum pressure and stiffen their components to resist the invisible crush of empty space.[5]

Beyond engineering, the Casimir effect provides the most direct laboratory evidence for the energy of the vacuum, a concept that deeply troubles cosmologists. If the vacuum contains energy, Einstein's theory of general relativity dictates that this energy should exert a gravitational pull. When physicists calculate the expected density of this zero-point energy based on quantum mechanics, the result is 120 orders of magnitude larger than the observed expansion rate of the universe allows. This represents the largest discrepancy between theory and observation in the history of science.[7][8]

This discrepancy is known as the cosmological constant problem. The vacuum energy measured between plates in a laboratory is undeniably real and exerts a physical force. Yet, if that same energy density filled the cosmos, the universe would have collapsed in on itself fractions of a second after the Big Bang. "Trying to get the down-low on gravity" at these quantum scales remains one of the most significant unresolved challenges in modern physics, as researchers struggle to understand why the vacuum pushes plates together but does not crush the universe.[1][8]

Theoretical models suggest that the Casimir force does not always have to be attractive. By carefully selecting the dielectric properties of the interacting materials and the fluid separating them, physicists predict that the vacuum fluctuations could induce a repulsive force. If realized reliably, a repulsive Casimir effect could provide frictionless quantum levitation for nanoscale gears and rotors, entirely eliminating stiction. This would allow for the creation of microscopic machines that never wear out, powered and suspended by the fluctuations of the vacuum.[2][5]

The evidence for the attractive force is robust, but precision measurements remain difficult. Surface roughness, patch potentials caused by microscopic variations in electrical charge, and finite temperature corrections all introduce noise into the data. At separations below 100 nanometres, the standard Casimir equations break down, and the interaction transitions into the non-retarded Van der Waals regime, requiring complex corrections to model accurately. Isolating the pure quantum effect from these material realities requires increasingly sophisticated metrology, pushing the limits of what can be measured in a terrestrial laboratory.[2][9]

As fabrication techniques improve, researchers are pushing these measurements into the nanometre regime. The ability to structure the vacuum using metamaterials offers a pathway to control quantum fluctuations directly. The next generation of experiments aims to isolate the thermal contributions to the Casimir force, testing whether the vacuum's energy changes as the ambient temperature approaches absolute zero. By mastering the forces that emerge from nothing, physicists are laying the groundwork for the next era of quantum engineering.[2][3]
