Making Samples a Billion Times Bigger: How 1000ExM Lets Simple Microscopes See Amino Acids

For decades, mapping the exact position of individual amino acids within a protein required multimillion-dollar equipment, such as cryo-electron microscopes or X-ray crystallographers. These tools, while powerful, represent a massive bottleneck in structural biology due to their cost and complexity. Now, an international team of researchers claims to have bypassed this hardware limitation entirely using chemistry. In a new preprint highlighted by Nature, scientists introduced "Thousandfold Expansion Microscopy" (1000ExM), a technique that physically inflates biological samples to a billion times their original volume. This allows standard, widely available light microscopes to achieve sub-nanometer resolution, pinpointing individual amino acids.[1][2]

The core premise of expansion microscopy (ExM) is counterintuitive: rather than building a more powerful magnifying lens, researchers make the target bigger. The biological sample is embedded in a swellable polymer—similar to the absorbent material found in baby diapers. When water is added, the hydrogel expands. Because the biological molecules are chemically anchored to the gel, they are pulled apart as the gel swells. Early iterations of this technique, pioneered around 2015, achieved roughly four-fold linear expansion, which was sufficient to resolve cellular structures like synapses but fell far short of atomic resolution.[2]

Pushing the expansion factor from 4x to 1000x required a radical redesign of the underlying chemistry. The 1000ExM protocol utilizes a "four-network interpenetrating hydrogel architecture." This means the sample undergoes four successive rounds of gelation and expansion. Achieving a 1,000-fold linear expansion translates to a 1,000,000,000-fold increase in the sample's total volume. At this massive scale, the distance between individual amino acids—normally measured in fractions of a nanometer—is stretched to a distance easily visible under a conventional confocal light microscope.[1][2]

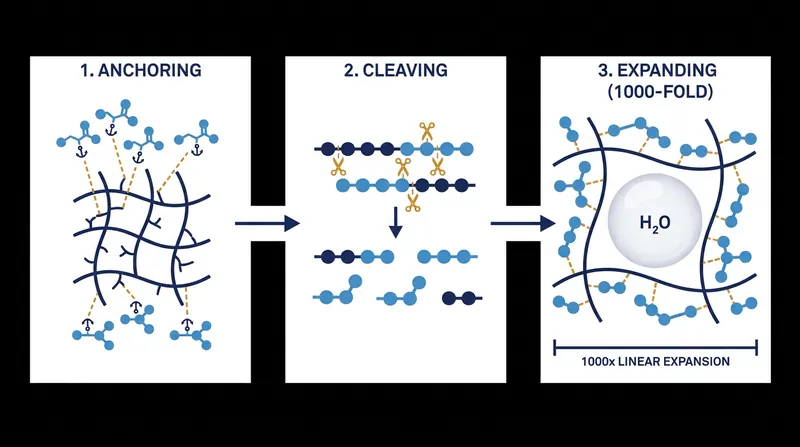

A major hurdle in expanding a single protein is the sheer strength of the chemical bonds holding it together. A protein is a folded chain of amino acids linked by tough backbone amide bonds. If the hydrogel simply swelled, these bonds would resist the pulling force, causing the gel to tear or the protein to distort unpredictably. To solve this, the 1000ExM protocol anchors the side chains of the amino acids to the polymer matrix, and then chemically cleaves the backbone amide bonds.[2]

By severing the backbone, the protein is technically destroyed as a continuous molecule. However, because every amino acid is firmly glued to the hydrogel before the cuts are made, their relative spatial coordinates are perfectly preserved. As the gel expands, the disconnected amino acids drift apart uniformly. The biological information is not lost; it is simply scaled up, transforming a dense, tangled molecular machine into a vast, easily readable constellation of individual points.[2]

The primary claim of the 1000ExM paper is that this massive expansion is "isotropic"—meaning it expands equally in all directions without warping the underlying geometry. To provide evidence for this claim, the researchers tested the protocol on proteins with well-documented, known structures, such as green fluorescent protein (GFP) and specific nanobodies. By comparing the expanded optical images against established cryo-electron microscopy models, the team verified that the spatial relationships between the amino acids remained accurate after the billion-fold volume increase.[2]

While the physical expansion solves the resolution problem, it creates a severe signal-to-noise problem. Fluorescent tags are used to make the amino acids visible, but when a sample is diluted across a billion times more space, the light emitted by these tags becomes incredibly faint. The researchers had to develop a custom, multi-stage computational pipeline to detect these sparse emitters. Using unsupervised graph-based segmentation, the software filters out background detector noise and validates the physical shape of the true molecular signals.

Despite the strong validation data on purified proteins, the evidence for 1000ExM's utility in complex, intact tissue remains preliminary. Transparent uncertainty exists regarding how the four-network hydrogel will behave in dense cellular environments, where varying tissue densities might cause uneven expansion. Furthermore, the multi-round gelation chemistry is highly complex. Whether standard biology laboratories can reliably reproduce the protocol without introducing structural artifacts is a question that will only be answered through broader community adoption.[3]

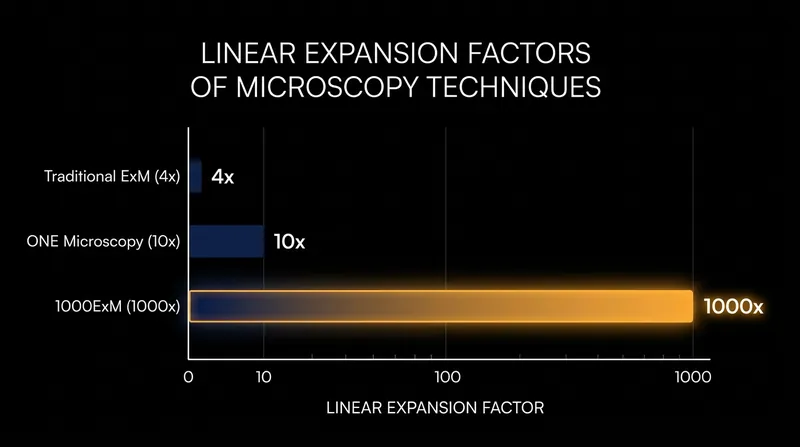

The leap to 1000ExM builds on a recent, crucial stepping stone known as ONE (One-step nanoscale expansion) microscopy. Developed by many of the same researchers, ONE microscopy achieved a 10-fold linear expansion, which was enough to reveal the overall morphology and conformational changes of individual proteins, such as calmodulin. ONE microscopy proved that individual proteins could survive the expansion process and yield useful structural data, laying the conceptual groundwork for the extreme magnification of 1000ExM.

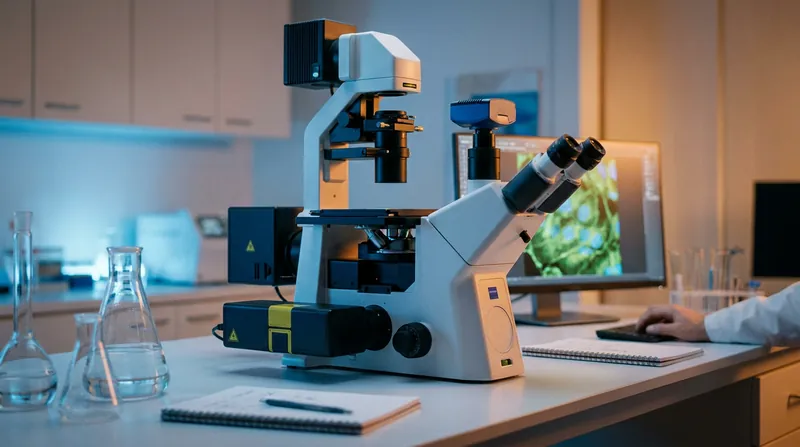

If the 1000ExM protocol proves robust, its impact on the scientific community will be transformative. Currently, determining a protein's structure requires securing rare, expensive time on a cryo-electron microscope, a barrier that limits the pace of biomedical research. By shifting the burden of resolution from the optical hardware to the sample chemistry, 1000ExM democratizes atomic-scale imaging. Any research institution equipped with standard fluorescence microscopes could potentially map protein structures and interactions.[1]

The ability to easily visualize protein structures has profound clinical implications. Many devastating neurodegenerative conditions, including Alzheimer's and Parkinson's diseases, are driven by protein misfolding and aggregation. The researchers anticipate that expansion techniques could eventually be used on clinical samples, such as cerebrospinal fluid or biopsied tissue, allowing doctors to directly observe the morphology of pathological protein aggregates for earlier and more accurate disease diagnosis.[3]

Looking ahead, the ultimate goal for 1000ExM is to map the exact molecular makeup of intact biological systems in situ. Rather than isolating a protein in a test tube, scientists hope to expand entire cellular structures—like a synapse or a viral infection site—and pinpoint the exact location and orientation of every amino acid within that complex environment. While significant chemical optimization is still required to reach that milestone, 1000ExM has proven that the physical limits of light microscopy are far more flexible than previously imagined.[1][2][3]

The timing of this breakthrough also intersects with the rise of artificial intelligence in structural biology, such as AlphaFold. While AI can predict how a protein should fold based on its genetic sequence, experimental validation is still required to confirm these predictions, especially when proteins interact with drugs or mutate. 1000ExM provides a rapid, low-cost method to physically verify the structural models generated by AI, creating a powerful feedback loop between computational prediction and optical observation.[3]

Ultimately, Thousandfold Expansion Microscopy represents a triumph of lateral thinking in scientific methodology. By treating spatial resolution as a materials science challenge rather than an optics problem, the researchers have unlocked a new frontier in biology. As laboratories worldwide begin to test and refine the 1000ExM protocol, the billion-fold expansion of biological samples may soon become a standard procedure, illuminating the fundamental building blocks of life with unprecedented clarity.[1][3]
