Inside Starship V3: How SpaceX's Redesigned Megarocket Changes the Math for Deep Space

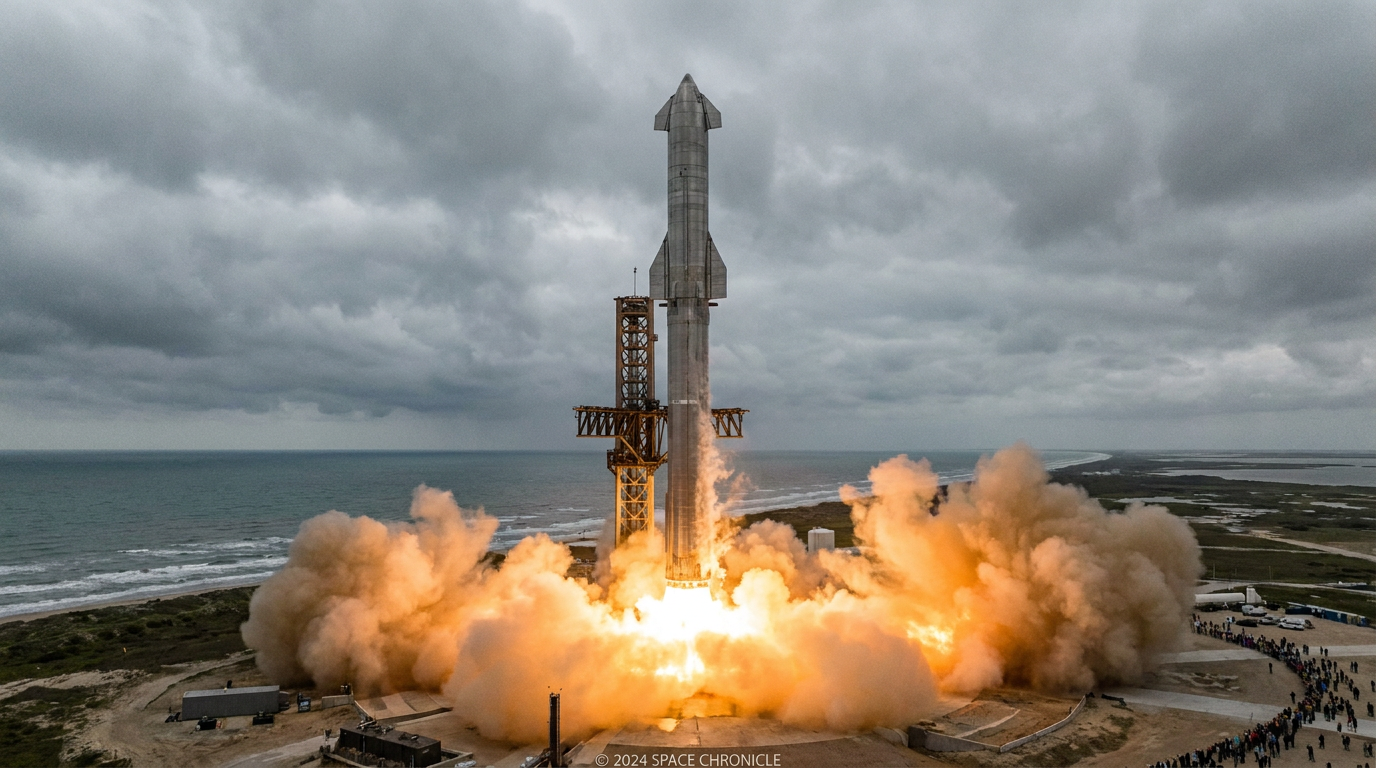

On May 22, 2026, the largest flying object ever constructed lifted off from the South Texas coastline, marking a pivotal transition in the commercial space race. SpaceX's Flight 12 was not merely another iterative test of its Starship program; it served as the debut of the Starship V3 architecture. Standing 124 meters (408 feet) tall, the fully integrated vehicle represents a complete design overhaul intended to move the rocket from an experimental prototype to an operational heavy-lift workhorse.[1]

The stakes for the V3 architecture extend far beyond SpaceX's own ambitions. NASA has anchored its multi-billion-dollar Artemis program to Starship, selecting a modified version of the vehicle to serve as the Human Landing System (HLS) that will eventually return American astronauts to the lunar surface. Consequently, every structural change and software update introduced on Flight 12 is closely monitored by the broader aerospace industry, as the vehicle's success dictates the timeline for deep-space exploration.[1][3]

At the core of the V3 upgrade is the introduction of the Raptor 3 engine. The Super Heavy booster is powered by 33 of these next-generation methane-oxygen engines, which feature a more integrated, lighter design than their predecessors. To ensure reliable ignition—a recurring challenge in earlier flights—SpaceX completely redesigned the booster's fuel-transfer tubes, allowing all 33 engines to light simultaneously and efficiently.[2][3]

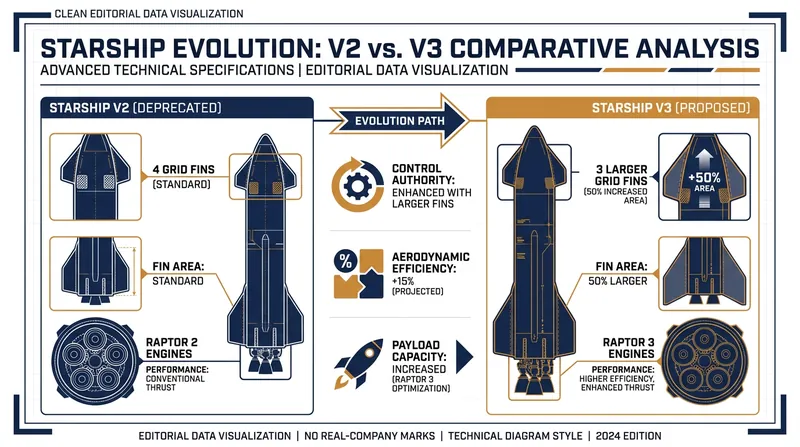

The exterior of the Super Heavy booster also underwent a visible transformation. Engineers increased the size of the vehicle's grid fins—the aerodynamic surfaces used to steer the booster during its descent—by 50 percent, while reducing the total number of fins from four to three. These new fins incorporate reinforced catch-points, specifically engineered to support the immense structural loads of being plucked out of the air by the launch tower's mechanical arms during future recovery operations.[2]

The upper stage, simply referred to as the Ship, received an equally comprehensive overhaul. The V3 Ship features an increased propellant tank volume to maximize its range, alongside a new engine start-up sequence and an improved reaction-control system for precise in-flight steering. For the commercial market, the most vital upgrade is the enhanced 'PEZ dispenser'—an internal deployment mechanism designed to release satellites into orbit at unprecedented speeds.[2]

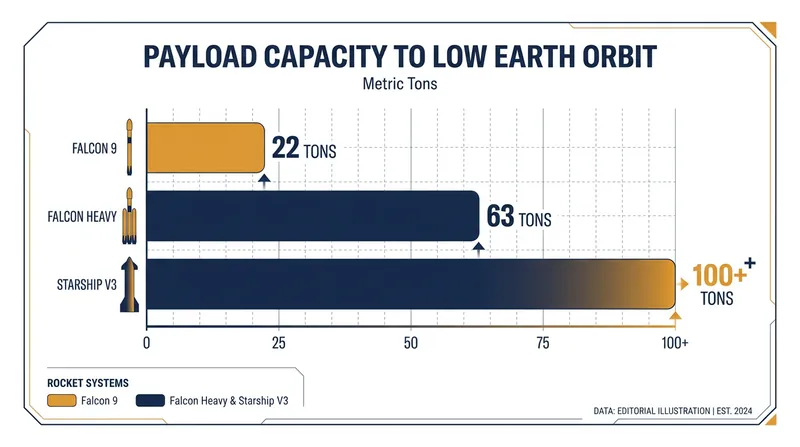

During Flight 12, this new deployment system was put to the test. Once in space, the Ship successfully ejected 20 Starlink mass simulators, along with two modified Starlink satellites equipped with cameras to image the vehicle during its orbital coast. SpaceX has stated that dedicated Starlink missions utilizing Starship are expected to begin in mid-2027, leveraging the vehicle's capacity to carry more than 100 metric tons of payload to low Earth orbit in a single launch.[1][2]

Beyond satellite deployment, the V3 upper stage introduces hardware that is strictly necessary for NASA's lunar ambitions. The new Ship includes specialized docking ports designed to facilitate in-space propellant transfer. Because a fully loaded Starship requires immense amounts of fuel to break Earth's orbit and reach the Moon, SpaceX must master orbital refueling—the complex process of launching multiple tanker ships to top off a lunar-bound Starship while it circles the Earth.[2]

The flight itself demonstrated both the promise and the lingering challenges of the new architecture. As the vehicle cleared the launch pad, one of the 33 Raptor 3 engines on the Super Heavy booster shut down early. Despite the engine out, the rocket's flight computers compensated, guiding the vehicle through the atmosphere and successfully executing a hot-staging maneuver, where the upper stage engines ignite while still attached to the booster to maximize payload efficiency.[2][3]

Following separation, the Super Heavy booster was scheduled to perform a partial boost-back burn to simulate a return to the launch site. However, the booster failed to reignite all the necessary engines for the maneuver, prematurely ending its descent profile and crashing into the Gulf of Mexico. While the loss of the booster was a setback, it underscored the difficulty of managing the complex fluid dynamics required to reignite multiple engines in the upper atmosphere.[1][2]

The upper stage, however, executed its mission profile flawlessly. Ship 39 reached its target trajectory, surviving the intense heat of atmospheric reentry before initiating its final landing sequence. In a novel test of the V3 flight software, the Ship performed a complex banking maneuver during its landing burn. This maneuver was specifically designed to mimic the trajectory and orientation that will be required to align the vehicle with the launch tower during a future catch attempt.

Following the simulated catch maneuver, the Ship splashed down in the Indian Ocean exactly as planned, toppling over and exploding in a fiery finale that was met with cheers from the engineering teams at Starbase. The successful reentry and controlled descent of the completely redesigned upper stage provided SpaceX with a wealth of empirical data on the new thermal protection systems and aerodynamic control surfaces.[1]

For many observers, the most notable aspect of Flight 12 was what it did not attempt. In October 2024, SpaceX achieved a historic milestone by catching a returning Super Heavy booster with the launch tower's mechanical arms. Yet, for the debut of V3, the company explicitly ruled out a tower catch, opting instead for a simulated ocean landing.[1][3]

This conservative strategy was driven by the sheer volume of untested hardware on the V3 vehicle. Because the booster, engines, control surfaces, and staging architecture were all new or significantly modified, attempting a tower catch posed an unacceptable risk to the expensive launch pad infrastructure. Aerospace analysts praised the decision as a sensible engineering step: prioritizing the collection of flight dynamics data before reintroducing the high-stakes risk of a pad recovery.[1]

The data gathered from Flight 12 will directly inform the testing roadmap for the remainder of 2026. SpaceX's immediate objective is to achieve a series of perfect soft landings in the ocean with the V3 hardware. Only when the descent control and engine reignition sequences are proven highly reliable will the company attempt to bring the massive booster back to the South Texas launch tower.[1]

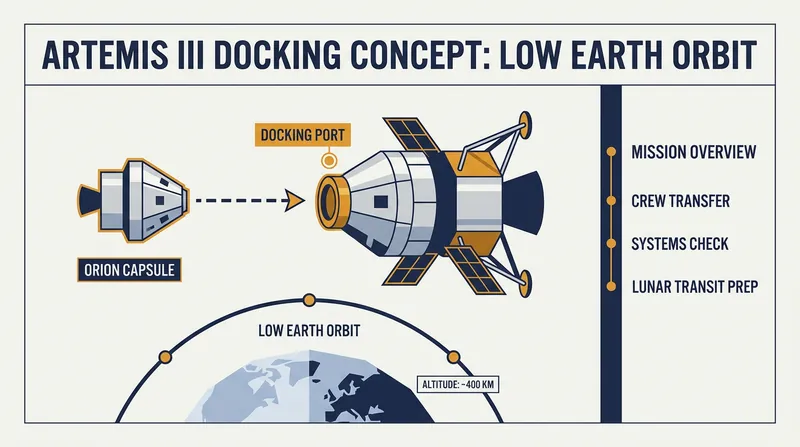

For NASA, the steady maturation of the V3 architecture is a welcome signal. In early 2026, the space agency revised the Artemis III mission profile, shifting the actual Moon landing to 2028 and repurposing the upcoming flight as an Earth-orbit docking test between the Orion capsule and the Starship HLS pathfinder. The successful orbital coast of Flight 12 proves that the base vehicle is scaling toward the reliability required for those critical docking and refueling tests.

Ultimately, the debut of Starship V3 represents a shift from proving that a fully reusable super-heavy rocket is possible, to proving that it can be operationalized. As SpaceX refines the Raptor 3 engines and perfects the new recovery hardware, the aerospace industry is moving closer to an era where launching 100 tons into orbit becomes a routine, rather than historic, event.[1][2]
