How Variable Baselines in Stacked Area Charts Distort the Perception of Middle-Series Trends

Data visualizers argue stacked area charts perfectly capture cumulative totals and part-to-whole relationships over time. Cognitive psychologists counter that the human eye cannot accurately read any series above the baseline, turning middle layers into optical illusions.[1]

The fundamental issue lies in how the human brain processes geometry. When a baseline shifts, the visual system struggles to isolate the vertical y-axis distance, which represents the actual data value in a standard Cartesian coordinate system.[1]

Instead, viewers instinctively judge the orthogonal distance—the shortest perpendicular path between two curves. This biological quirk fundamentally alters the perceived data, overriding the mathematical reality printed on the axis and distorting the viewer's understanding of the trend.[6]

As a result, a middle series that remains perfectly flat at 100 units in the underlying dataset will appear to expand or contract depending entirely on the behavior of the series beneath it.[6]

This perceptual failure is not a matter of poor chart design or incorrect data. It is an unavoidable consequence of stacking continuous variables on a two-dimensional plane, a practice that dates back to William Playfair’s 1786 publications.[2]

The Hierarchy of Graphical Perception

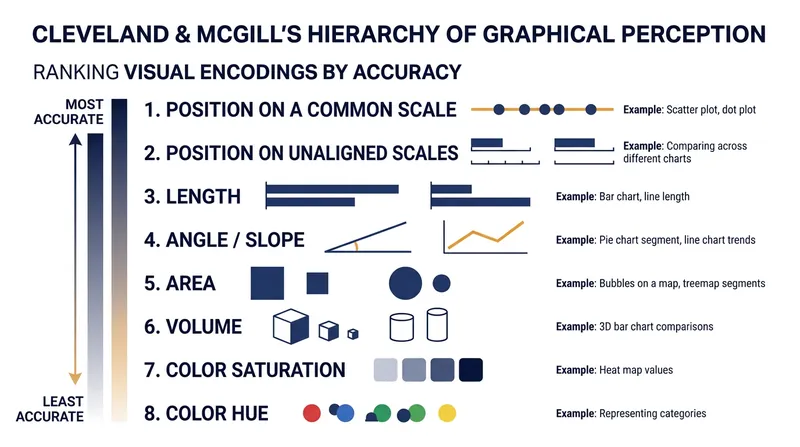

In 1984, statisticians William Cleveland and Robert McGill published a foundational paper ranking human accuracy across different visual encodings. Their rigorous experiments established a perceptual hierarchy that still governs data visualization and automated dashboard design today.[5]

They found that humans are highly accurate at judging position along a common scale, such as the heights of bars aligned on a flat zero-axis. Scatter plots and standard line charts also benefit from this precise common scale.[5]

However, accuracy plummets when viewers must judge length or area without a shared baseline. Stacked area charts force the reader to perform these exact lower-tier perceptual tasks for every series except the bottom one.[5]

"Understanding perception is critical to effective visualization design," wrote computer scientists Jeffrey Heer and Michael Bostock in their 2010 study.[4]

They replicated Cleveland's findings using crowdsourced participants on Amazon Mechanical Turk. Their results confirmed that unaligned area judgments produce significantly higher error rates than aligned position judgments.[4]

Because only the bottom band of a stacked area chart sits on a flat zero-axis, it is the only component that readers can interpret with high accuracy. Every subsequent layer is compromised by the shifting foundation beneath it.[4]

The Mechanics of the Sine Illusion

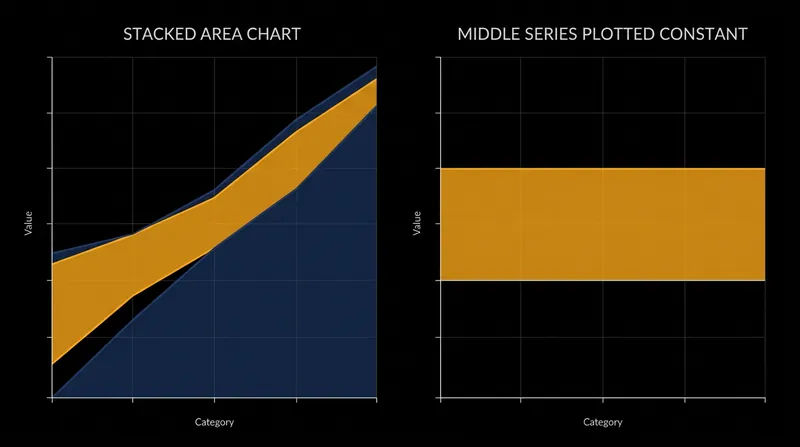

The distortion of middle layers is driven by a geometric phenomenon known as the sine illusion, or the line-width illusion. When two parallel curves slope sharply upward or downward, they appear to move closer together.[6]

Susan Vanderplas and Heike Hofmann documented this effect in 2015 using time-series data. They demonstrated that human perception systematically biases the assessment of optical stimuli when curves feature steep seasonal components or sudden, sharp spikes.[6]

The math behind the illusion relies on straightforward trigonometry. The perceived thickness of a band is equal to its actual vertical thickness multiplied by the cosine of the baseline's angle.[6]

If a bottom series spikes, creating a 45-degree upward slope, the band above it will appear to shrink by 29.3 percent. The data has not changed, but the visual representation has collapsed.[6]

This means a sudden outbreak in one region on a cumulative health chart can make it look like cases in another region are dropping. The steep slope pinches the visual width of the upper bands, hiding the true trend.[1]

Slope Distortion and Trend Misreading

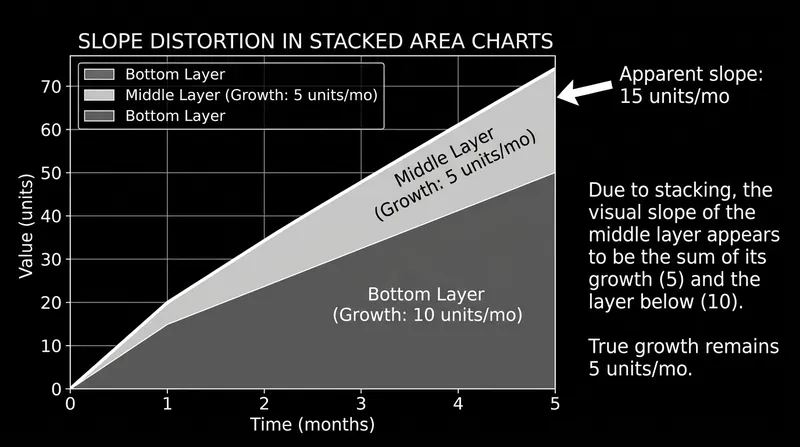

Beyond thickness, variable baselines also distort the perceived slope of middle series. A reader attempting to gauge whether a specific category is growing or shrinking must visually subtract the slope of the layer below it.[1]

If the bottom layer is rising at a rate of 10 units per month, and the middle layer is rising at 5 units per month, the top edge of the middle layer will slope upward at 15 units per month.[1]

The human eye naturally follows this top edge, leading the viewer to conclude that the middle category is growing rapidly. In reality, its independent growth is much slower than the visual suggests.[1]

Conversely, if the bottom layer drops sharply while the middle layer remains flat, the middle layer will appear to be in a steep decline. The visual narrative is entirely hijacked by the foundation.[1]

This makes stacked area charts highly unreliable for tracking individual component trends. They excel at showing the cumulative total, but actively mislead viewers about the behavior of the constituent parts buried in the middle layers.[1]

The Impact of Smoothing Algorithms

The distortion introduced by variable baselines is often exacerbated by aesthetic choices, particularly the use of spline interpolation. Many charting libraries apply smoothing algorithms to round off sharp corners, creating a more organic, flowing appearance.[7]

While these smoothed curves look visually appealing, they detach the line from the actual data points. A sharp spike in the data is mathematically averaged out, spreading the baseline distortion over a wider horizontal area.[7]

This creates artificial lead and lag effects in the middle series. A sudden jump in the bottom layer will cause the smoothed baseline to begin rising before the actual event occurred, dragging the middle series up with it prematurely.[7]

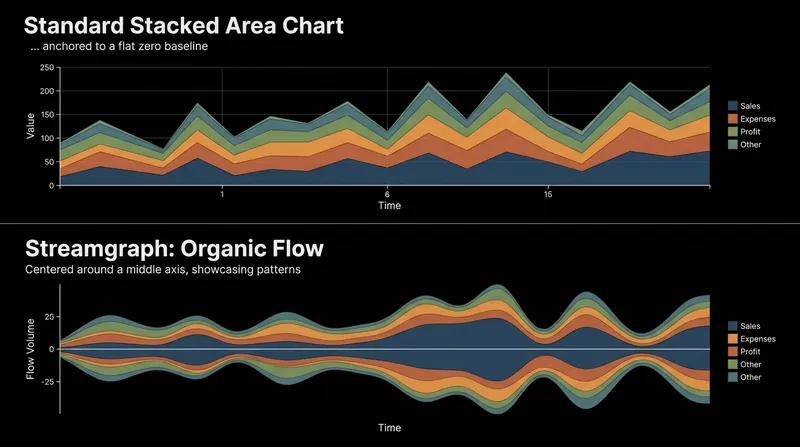

Streamgraphs, a popular variant of the stacked area chart introduced in 2008, attempt to solve the baseline problem by centering the entire stack around a middle axis. This creates a flowing, organic aesthetic rather than anchoring the bottom to zero.[7]

While this centering technique reduces the maximum slope angle across the chart, it comes at a severe analytical cost. Because no single series has a flat baseline, the readability of every category is compromised, rendering precise value extraction impossible.[7]

Mitigation and Alternative Encodings

To avoid these perceptual traps, data scientists frequently recommend alternative encodings when component trends are the primary focus. Standard line charts allow every series to share the zero-baseline, eliminating geometric distortion entirely.[1]

While line charts can become cluttered if more than four or five series overlap heavily, they preserve the mathematical integrity of the slopes. Viewers can accurately compare the rate of change across multiple categories without visual interference.[1]

Another alternative is the small multiples approach, where each category is plotted on its own separate chart. This maintains the common baseline while avoiding the visual noise of overlapping lines, though it requires more screen space.[1]

For datasets where the part-to-whole relationship is strictly proportional, a 100-percent stacked area chart can normalize the total to a constant ceiling. However, this format still suffers from the sine illusion on the internal boundaries.[1]

When a stacked area chart is absolutely necessary, analysts can mitigate the distortion by carefully ordering the series. Placing the most stable, low-variance categories at the bottom creates a flatter foundation for the layers above them.[1]

Conversely, placing highly volatile categories at the top of the stack ensures their spikes and drops do not ripple through the rest of the chart. The top edge still shows the accurate total, while the middle layers remain relatively undisturbed.[1]

The Impact on Automated Dashboards

The proliferation of automated business intelligence tools has made stacked area charts a default option in many corporate dashboards. Users often select them simply because they look more sophisticated than standard bar charts.[1]

This default behavior introduces widespread analytical errors into daily corporate decision-making. Executives reviewing sales or performance data may misallocate millions in resources based on optical illusions rather than actual metric changes hidden within the chart.[1]

Modern visualization libraries are beginning to incorporate heuristic algorithms to minimize wiggle and optimize the ordering of stacked series. By placing the most volatile series at the top, the baseline distortion for the rest of the chart is reduced.[1]

However, computational research shows that finding the optimal order to minimize wiggle is an NP-hard problem. Perfect optimization is mathematically complex and computationally expensive for real-time dashboards rendering millions of rows.[1]

Until software can automatically correct for human perceptual flaws, analysts must remain vigilant. Recognizing the biological limits of the human eye is the first step toward more honest and accurate data communication in the modern enterprise.[1]
