Why Lead Aprons Increase Radiation Doses During X-Rays

Patients and legacy state regulations universally demand that radiologic technologists drape a heavy lead apron over the pelvis during routine X-rays to protect reproductive organs. The American Association of Physicists in Medicine and the National Council on Radiation Protection and Measurements now argue the exact opposite.[1][4]

These leading medical physics organizations state that routine gonadal shielding provides zero meaningful protection. Worse, the physical evidence demonstrates that placing lead on a patient actively increases their total radiation exposure during modern diagnostic imaging.[1][2]

The persistence of the lead apron is a psychological crutch masquerading as a safety protocol. To understand why the medical consensus has completely reversed, we must examine how X-ray photons actually behave once they enter human tissue.[2][8]

The original mandate for gonadal shielding emerged in the 1950s, following a National Academy of Sciences report warning that stray radiation could cause hereditary genetic mutations. At the time, X-ray equipment was primitive, and the doses required to capture an image were massive.[2][9]

The fear of genetic damage was based on experiments involving fruit flies exposed to massive amounts of radiation. Scientists extrapolated those findings to humans, assuming that any exposure to the reproductive organs would cause birth defects in future generations.[2][8]

However, more than 70 years of subsequent human data, including long-term studies of atomic bomb survivors, have failed to demonstrate any heritable genetic mutations caused by radiation exposure. The foundational premise of the 1950s shielding mandate was biologically incorrect.[2][9]

"The amount of radiation used in X-rays has dropped by about 95 percent since the 1950s," explains Dr. Rebecca Marsh, a medical physicist at the University of Colorado. That massive reduction in baseline exposure fundamentally changes the risk calculus for diagnostic imaging.[9][10]

The Reality of Internal Scatter

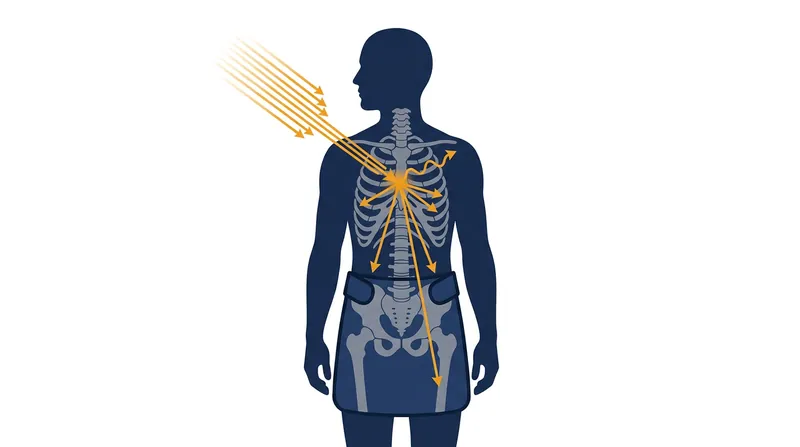

The primary flaw in the lead apron theory involves a phenomenon called Compton scatter. When an X-ray beam targets a specific body part, like a chest or a wrist, the photons do not simply travel in a straight line through the tissue.[1][2]

Instead, some photons strike atoms inside the patient's body and ricochet in random directions. This internal scatter is the actual source of radiation reaching the reproductive organs when a completely different part of the body is being imaged.[2][5]

A lead apron placed on the outside of the patient's pelvis does absolutely nothing to stop photons that are already bouncing around inside the body. The radiation originates from within the patient's own tissues, rendering the external shield physically useless.[1][4]

The American Journal of Roentgenology published a definitive review in 2019 confirming this physical reality. Their analysis concluded that external shielding cannot intercept internal scatter, which accounts for the vast majority of the dose reaching the gonads during adjacent imaging.[2]

If the apron simply did nothing, the practice might be dismissed as harmless medical theater. However, the introduction of modern digital radiography transformed this inert psychological blanket into an active dosimetric hazard for the patient.[2][3]

Tricking the Automatic Exposure Control

Nearly all modern X-ray systems utilize a technology called automatic exposure control, or AEC. These sensors continuously measure the amount of radiation passing through the patient and automatically adjust the beam's intensity to ensure a clear, diagnostic image.[3][5]

The AEC system is calibrated for human tissue, which allows a predictable percentage of X-rays to pass through to the detector. Lead, by design, is incredibly dense and blocks nearly all X-ray photons from reaching the digital sensor beneath the patient.[3][6]

If a lead apron slips even slightly into the imaging field, the AEC sensor detects a sudden, massive drop in radiation. The computer assumes it is trying to image an exceptionally dense patient and immediately spikes the radiation output to compensate.[3][5]

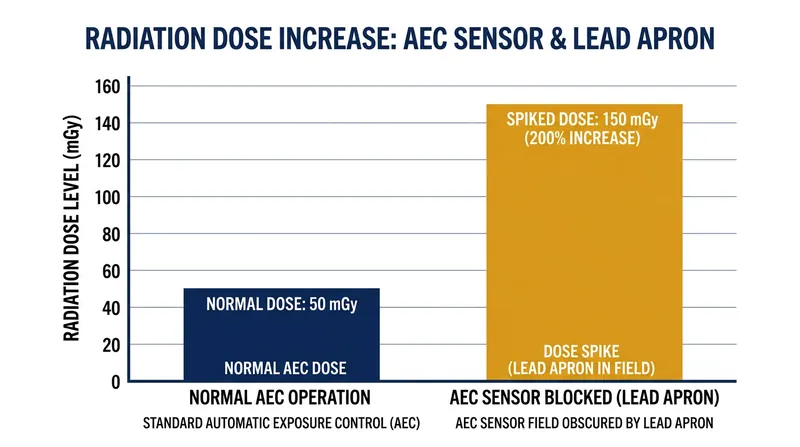

A 2017 study published in Pediatric Radiology quantified this exact failure mode. Researchers found that when a lead shield obscured the AEC sensor, the machine increased the total radiation dose to the patient by a staggering factor of up to 200 percent.[3]

This dose escalation completely negates any theoretical benefit of the shield. The patient receives a massive spike in primary radiation, which proportionally increases the internal Compton scatter reaching every organ in their body, including the gonads.[2][3]

Ruined Images and Repeat Exposures

Beyond tricking the exposure controls, lead aprons frequently ruin the diagnostic quality of the image itself. Because the aprons are heavy and difficult to secure, they routinely shift out of position while the patient is being positioned on the table.[4][5]

When the lead obscures the actual anatomy the physician needs to see, the radiologic technologist has no choice but to discard the image. The patient must then undergo a repeat X-ray, doubling their total radiation exposure for that specific procedure.[5][7]

The National Council on Radiation Protection and Measurements issued a definitive statement in 2021 urging an end to the practice. They emphasized that anatomical variations between patients make it nearly impossible to accurately place a shield without risking the image.[4]

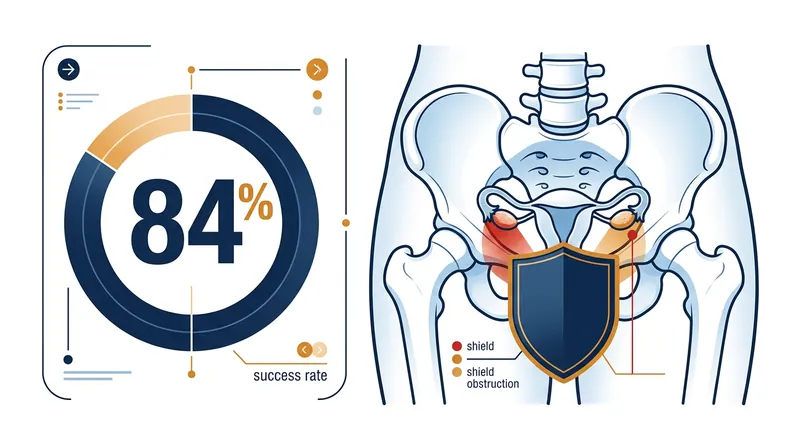

For female patients, the ovaries are located internally and vary wildly in position. Attempting to shield them blindly from the outside results in the lead covering the necessary anatomy in up to 84 percent of pelvic radiographs, guaranteeing a retake.[2][4]

The British Institute of Radiology notes that repeat exposures due to misplaced shielding are a documented, persistent problem in clinical practice. Removing the shield entirely eliminates this specific cause of repeat imaging, lowering the overall population dose.[5]

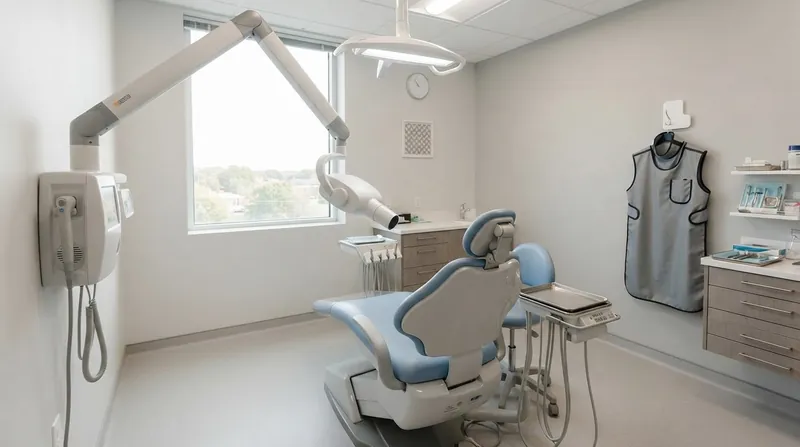

The dental field has reached the exact same conclusion regarding panoramic and intraoral imaging. In 2023, the Journal of the American Dental Association updated its clinical recommendations, explicitly advising against the routine use of lead aprons and thyroid collars.[6]

Dental X-ray doses are already extraordinarily low, often measuring less than 0.01 millisieverts. The American Dental Association determined that the risk of the collar interfering with the image far outweighed any theoretical benefit, given that modern digital sensors require minimal exposure.[6]

The Psychological Barrier to Change

If the physics and the medical consensus are so clear, the obvious question is why lead aprons remain ubiquitous in hospitals and dental offices. The answer lies in decades of entrenched patient expectations and outdated state regulations.[8][9]

"It’s a huge culture change," notes Dr. Donald Frush, a pediatric radiologist at Stanford University. Patients have been conditioned since the 1950s to view the heavy lead apron as the ultimate symbol of radiological safety and professional care.[10]

When a technologist attempts to perform an X-ray without offering the apron, patients frequently become anxious or combative. Many clinics continue to provide the shields simply to avoid arguing with frightened patients, prioritizing customer service over dosimetric physics.[8][10]

Furthermore, state health departments still legally mandate the use of gonadal shielding in many jurisdictions. Regulatory codes written in the 1970s and 1980s cannot be updated overnight, forcing hospitals to comply with obsolete laws that actively harm patients.[7][9]

The American Society of Radiologic Technologists officially endorsed the removal of fetal and gonadal shielding in January 2021. However, they acknowledge that technologists are caught in an impossible position between modern physics, anxious patients, and lagging state inspectors.[7]

The transition will require a massive public health education campaign to undo 70 years of conditioning. Until patients understand that the absence of lead is a sign of advanced technology rather than negligence, the aprons will stubbornly remain.[8][9]
