Why Capacitive Charging Currents Drive Terminal Voltage Above the Source on Unloaded Power Lines

The moment a high-voltage transmission line is energized, it begins to consume current before a single home draws power. This charging current flows into the space between the wires and the ground, treating the corridor as a massive capacitor. Because this current leads the voltage, it fundamentally alters the grid's electrical profile.[3]

That leading current must travel through the line’s inherent magnetic inductance to reach the far end. When a leading current crosses an inductor, the resulting voltage drop does not subtract from the source voltage—it adds to it. This interaction determines the final voltage at the terminal, pushing it higher than the voltage generated at the power plant.[1][3]

This phenomenon is known as the Ferranti effect, and it dictates how modern power grids manage long-distance transmission. Without constant intervention, an unloaded 300-kilometer line can easily push terminal voltages past equipment safety limits. Grid operators must actively suppress this natural voltage rise to prevent catastrophic insulation failures.[1]

The physics of empty wires

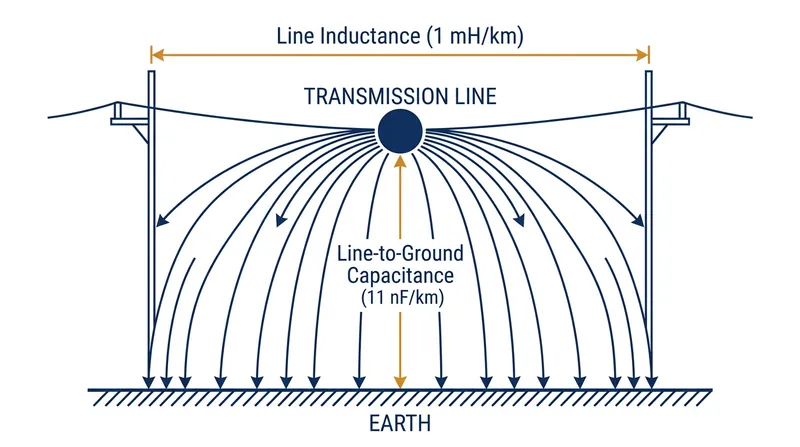

To understand why an empty wire amplifies voltage, one must abandon the idea that a transmission line is just a pipe for electrons. At 345 kilovolts, a 300-kilometer overhead line is a complex electromagnetic environment. The parallel conductors and the earth below form a distributed capacitor, storing electrical energy along every meter.[3]

"A transmission line is never truly empty; it is constantly charging and discharging at 60 times a second," explains Dr. Arindam Ghosh in his textbook on power system dynamics. This continuous cycle requires a steady flow of charging current from the source. For a standard 345 kV line, this capacitive charging current can exceed 1.5 amps per kilometer.[3]

Over a 300-kilometer span, that charging current accumulates to a massive 450 amps of reactive power flowing through the line, even when the receiving end is completely disconnected. This current is not doing useful work, but it is physically moving through the conductors. As it moves, it encounters the line’s distributed inductance.[1][3]

Inductance opposes changes in current by storing energy in a magnetic field. When the capacitive charging current—which peaks before the voltage peaks—flows through this inductance, the phase relationship causes the inductive voltage drop to align with the source voltage. Instead of dropping along the line, the voltage steps up.[1][3]

The historical discovery

The counterintuitive reality of voltage rise was first documented in 1887 by Sebastian Ziani de Ferranti. Tasked with designing the Deptford Power Station in London, Ferranti opted for an unprecedented 10,000-volt alternating current system. He used paper-insulated tubular cables buried underground to transmit power to the city center.

When Ferranti energized the system, the voltage at the London receiving station read higher than the 10,000 volts generated at Deptford. Engineers initially suspected faulty voltmeters, as conventional direct-current theory dictated that voltage must always drop over distance due to wire resistance. Ferranti correctly deduced that the cables' high capacitance was interacting with the alternating current.

Underground cables exhibit roughly 20 to 40 times more capacitance than overhead lines because the conductors are packed tightly together and surrounded by earth. This high capacitance magnified the charging current, making the voltage rise impossible to ignore. Ferranti’s discovery proved that alternating current networks required a completely different mathematical approach.

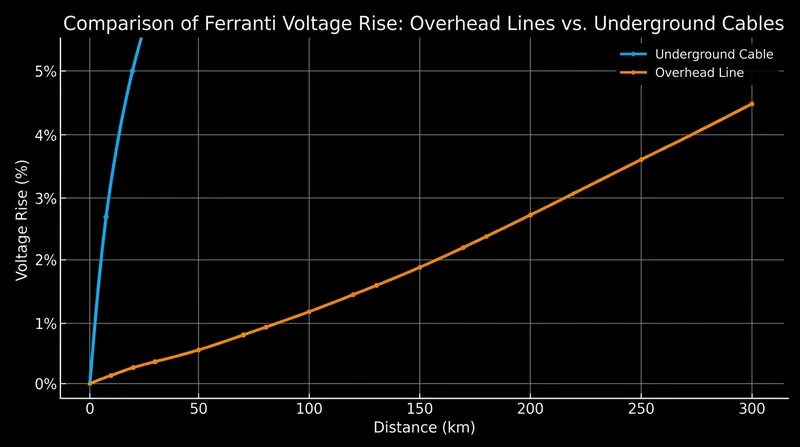

Today, the Ferranti effect remains a primary constraint on underground transmission. While overhead lines might see a 5 percent voltage rise over 300 kilometers, an uncompensated underground cable can experience the same rise in just 20 kilometers. This physical limit restricts how far high-voltage AC cables can be buried without intervention.

Managing the grid's natural amplification

Grid operators cannot simply allow terminal voltages to drift upward during periods of low demand. High-voltage equipment, including transformers and circuit breakers, is engineered with strict dielectric limits. If a 345 kV line drifts above 362 kV, the electrical stress begins to degrade the insulation, risking a catastrophic arc flash.

The risk peaks during the middle of the night or immediately after a widespread blackout. When industrial and residential loads drop to near zero, the grid loses the resistive current that normally counteracts the capacitive charging effect. The transmission lines suddenly behave like massive voltage amplifiers.[2]

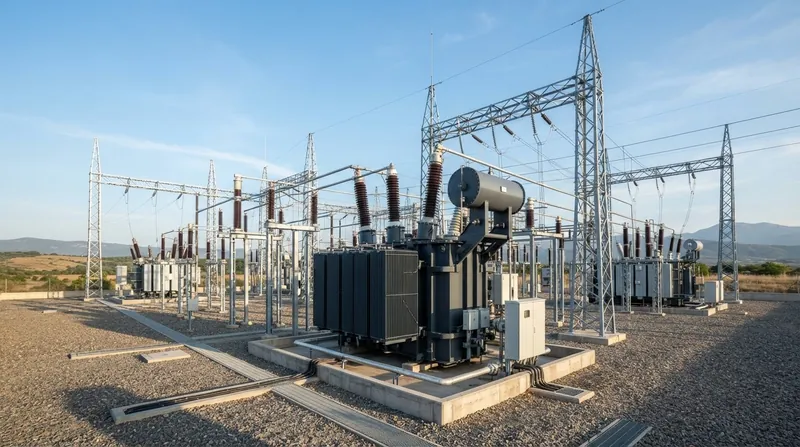

To neutralize the Ferranti effect, utilities install massive inductive devices called shunt reactors at the receiving ends of long lines. A shunt reactor is essentially a giant coil of wire that absorbs the leading capacitive current by drawing a lagging inductive current. By matching the line's capacitance with the reactor's inductance, operators flatten the voltage profile.

"Without shunt compensation, restoring power after a major blackout would be nearly impossible," notes a 2024 reliability report from the North American Electric Reliability Corporation. Energizing a long, unloaded transmission corridor during a black start would immediately trigger overvoltage relays, tripping the line back offline before load could be connected.[2]

The mathematical certainty of voltage rise

The magnitude of the Ferranti effect is not a random variable; it is a strict function of line length and operating frequency. The voltage rise is proportional to the square of the transmission line's length. Doubling the length of an unloaded line quadruples the voltage amplification at the receiving terminal.[3]

Operating frequency also plays a critical role. Power grids operating at 60 hertz, such as those in North America, experience a 20 percent stronger Ferranti effect than 50 hertz grids in Europe and Asia, assuming identical line lengths. The higher frequency drives a faster charging cycle, increasing the capacitive current.[3]

For a standard 345 kV overhead line, the distributed capacitance is approximately 11 nanofarads per kilometer, while the inductance sits near 1 millihenry per kilometer. When these values are normalized against the 60 hertz operating frequency, the theoretical voltage rise over a 300-kilometer unloaded span reaches approximately 4.5 percent.[1][3]

This 4.5 percent rise means a 345 kV source voltage will arrive at the open terminal at roughly 360.5 kV. While this remains just inside the typical 5 percent safety margin for continuous operation, any sudden voltage spike from a switching event would easily push the terminal past its 362 kV maximum rating.[1]

The limits of alternating current

The Ferranti effect ultimately dictates the maximum practical length of an alternating current transmission line. Beyond 600 kilometers, the capacitive charging current becomes so massive that it consumes the entire thermal capacity of the wire. The line would melt just from the current required to charge its own capacitance.

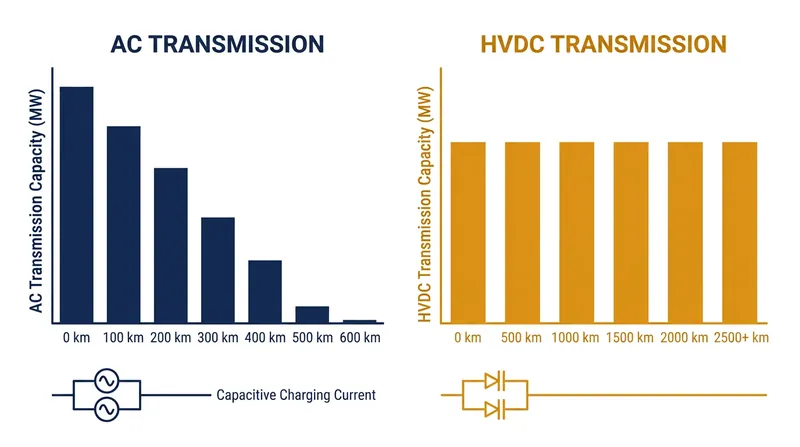

This physical barrier is the primary reason the energy industry shifts to High-Voltage Direct Current for ultra-long-distance transmission. Because direct current does not alternate, it only charges the line's capacitance once when energized. After the initial charge, the capacitive current drops to zero, completely eliminating the Ferranti effect.

"HVDC is the only viable technology for moving gigawatts of power across continental distances," states a 2025 technical review in IEEE Power and Energy Magazine. By bypassing the reactive physics of alternating current, HVDC lines can stretch for thousands of kilometers without requiring a single shunt reactor to manage voltage rise.

As the global grid expands to connect remote renewable energy sites to urban centers, understanding the physics of unloaded wires becomes increasingly critical. The wind farms of the North Sea and the solar arrays of the Sahara require massive transmission corridors that operate at the very edge of physical limits.[1]

The transition to renewable energy actually exacerbates the Ferranti effect in many regional grids. Wind and solar plants are often located far from population centers, requiring long, lightly loaded transmission lines during periods of low generation. When the wind stops blowing, these massive corridors remain energized but unloaded, turning into giant capacitors.

Grid operators are now deploying dynamic reactive power compensators, such as Static VAR Compensators, to manage these rapid shifts. Unlike fixed shunt reactors, these devices can instantly adjust their inductive absorption to match the exact charging current of the line. This active management keeps the terminal voltage locked at a safe level.

The Ferranti effect serves as a constant reminder that the power grid is not a passive delivery network. It is a dynamic, reactive machine where the wires themselves actively shape the electricity flowing through them. Managing that reality requires constant vigilance and precise engineering at every node.[1]
