Why Two-Way Diverter Valves Must Vent Air to Stop Siphonage in Potable Water Lines

On July 1, 2018, the American Society of Mechanical Engineers published a revised A112.18.1 standard that quietly reclassified the two-way diverter valve from a simple flow switch into a mandatory public health barrier. The update mandated that any diverter connected to a flexible hose must actively vent air to break a vacuum.[1]

The engineering consensus was clear, but the implementation sparked immediate resistance from fixture manufacturers. By forcing diverters to incorporate atmospheric vents, the standard introduced a deliberate leak point into a system designed to be watertight. This trade-off prioritized safety over aesthetic perfection.

The argument for this mechanical vulnerability is rooted in a non-negotiable hydraulic reality. Without an air vent, a submerged hand shower combined with a sudden drop in municipal water pressure transforms a standard bathroom fixture into a deadly siphon.[2]

The mechanism of backsiphonage is a matter of basic fluid dynamics, driven by atmospheric pressure pushing against a vacuum. When a water main breaks or a fire hydrant opens down the street, the pressure in the residential supply line can instantly drop below zero.[2]

The Physics of a Submerged Vacuum

This negative pressure creates a vacuum that seeks to pull fluid backward through the pipes. If a two-way diverter is left open to a hand shower resting in a bathtub full of dirty water, that water becomes the path of least resistance.

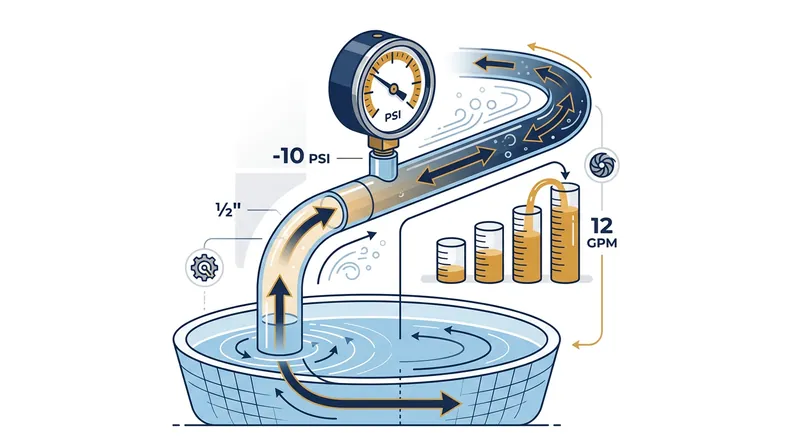

At a standard negative pressure of 10 pounds per square inch, the vacuum can pull up to 12 gallons of contaminated water per minute backward through a half-inch hose. This rapid reverse flow can drain a bathtub in minutes.[3]

This contaminated fluid bypasses the water heater and flows directly into the home’s potable water supply, and potentially into the municipal grid. The only way to stop this reverse flow is to break the vacuum before the fluid column reaches the diverter.[4]

This is where the atmospheric vent becomes the critical line of defense. A two-way diverter must be engineered to fail open to the atmosphere the moment internal water pressure drops below atmospheric pressure, sacrificing the watertight seal to save the water supply.[1]

How the Air Vent Breaks the Siphon

Inside a modern diverter, a small poppet valve or elastomeric disc is held closed by the forward pressure of the water. When the water flows normally, the pressure seals the vent tightly against the valve body, keeping the water inside the pipe.

The moment that forward pressure collapses, gravity and a light spring force the poppet to drop away from the seal. This action opens a vent hole, usually located at the base of the diverter or integrated into the showerhead bracket.

Instead of pulling heavy, viscous water up from the bathtub, the vacuum immediately draws in ambient air through this vent. Air is roughly 800 times less dense than water, meaning it rushes into the pipe instantly, equalizing the pressure.[3]

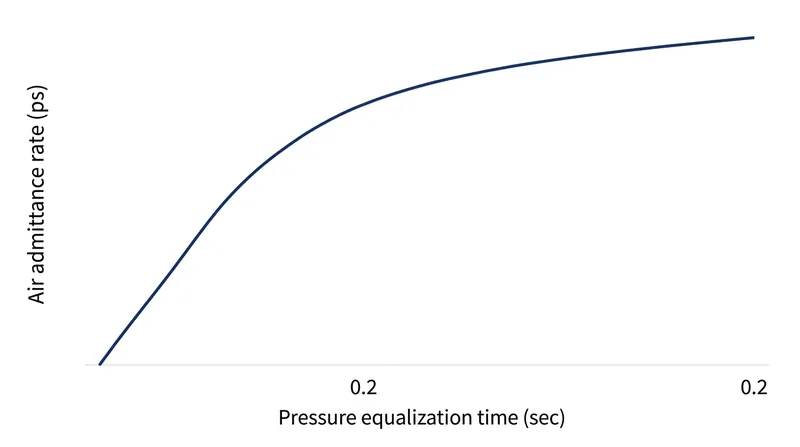

A vent opening of just 0.15 square inches can admit 15 liters of air per minute at a negative 10 psi vacuum. This rapid air admittance equalizes the internal pipe pressure in under 0.2 seconds, completely arresting the fluid column.[3]

The Manufacturer's Dilemma

While the physics of the vacuum breaker are elegant, manufacturing them into consumer fixtures presents a persistent engineering headache. An atmospheric vent is, by definition, a hole in a water pipe that relies on a moving part to stay sealed.

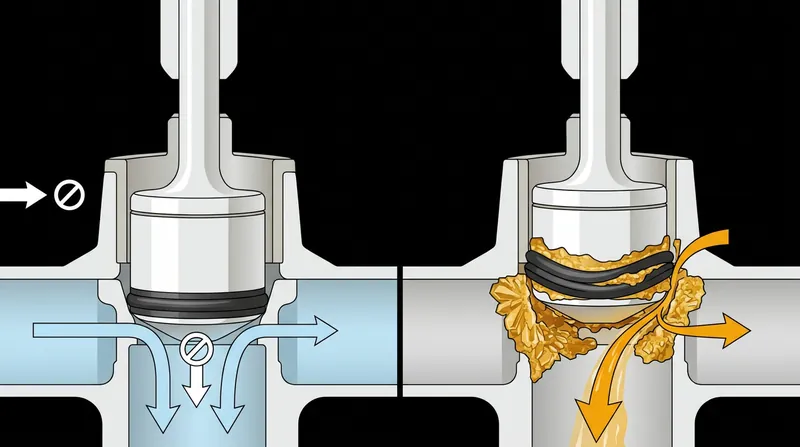

Valve manufacturers argue that these moving parts are highly susceptible to failure from hard water. Calcium and magnesium deposits can quickly build up on the poppet valve, preventing it from sealing properly when the water is turned on.[4]

When the poppet fails to seal, the diverter leaks water out of the vent during normal operation. Consumers frequently misinterpret this safety feature as a broken valve, leading to warranty claims, negative product reviews, and costly plumbing service calls.

To mitigate this perceived leak, some homeowners attempt to tape over or seal the vent with epoxy. This tampering instantly defeats the vacuum breaker, restoring the cross-connection hazard without the user realizing the severe danger they have created.[2]

The Public Health Imperative

Despite the maintenance challenges, public health officials maintain that the mechanical vent is a non-negotiable requirement. The Environmental Protection Agency classifies submerged hoses as one of the most common and dangerous cross-connections in residential plumbing systems.[2]

The EPA’s cross-connection control manual documents numerous instances where backsiphonage from bathtubs, darkrooms, and utility sinks has contaminated local water grids. These incidents have introduced bacteria, harsh cleaning chemicals, and heavy metals directly into drinking water supplies.[2]

In these scenarios, the two-way diverter is the only mechanical barrier between a reservoir of contaminated water and the drinking water supply. Relying on the user to always remove the hose from the tub is considered an unacceptable behavioral risk.[4]

Therefore, the plumbing code mandates that the protection must be passive and automatic. The diverter must vent air without any human intervention, and it must do so reliably even after years of neglect or mineral buildup.[1]

Evolving Valve Standards

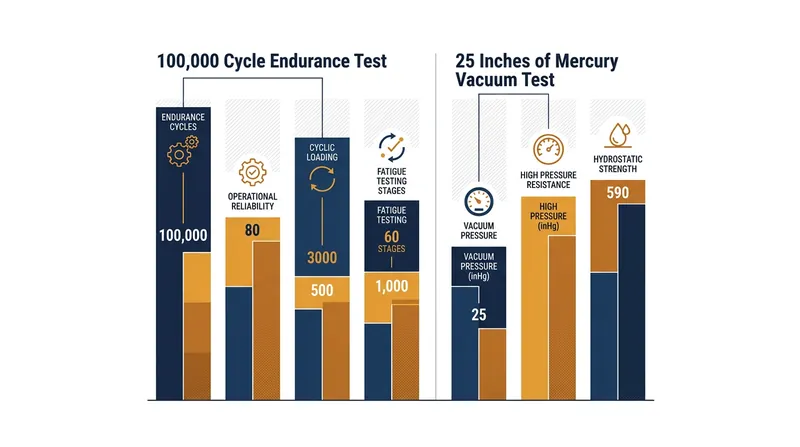

To certify a valve under the ASME standard, laboratories subject the diverter to a grueling cycle of pressure tests. Technicians apply a sudden negative pressure of 25 inches of mercury to ensure the vent opens instantaneously under extreme vacuum conditions.[1]

The valve must also survive 100,000 cycles of normal operation without the poppet sticking or the elastomeric seal degrading. This rigorous testing ensures the vacuum breaker will outlast the typical lifespan of the bathroom remodel it is installed in.[1]

If the vent fails to open during the vacuum test, or if it leaks more than a few drops during the positive pressure cycle, the entire fixture design is rejected. This strict binary pass-fail criteria forces manufacturers to prioritize the vent's reliability.[4]

To address the reliability issues, recent engineering efforts have focused on redesigning the elastomeric seals inside the diverter. Modern valves use advanced silicone compounds that resist mineral scale adhesion far better than traditional rubber gaskets.

Additionally, some high-end diverters now incorporate a dual-check valve system in series with the atmospheric vent. This redundancy ensures that even if the vent poppet sticks closed, a secondary mechanical barrier prevents the reverse flow of water.[1]

However, check valves alone are not considered sufficient protection against backsiphonage by most plumbing codes. A check valve can be fouled open by a single grain of sand, whereas an air vent physically breaks the hydraulic continuity of the pipe.[4]

The requirement for two-way diverters to vent air represents a fundamental principle of sanitary engineering. It prioritizes a fail-safe mechanical defense over aesthetic perfection, ensuring that a pressure drop draws harmless air rather than hazardous wastewater.[3]

Ultimately, the occasional drip from a scaled-up vacuum breaker is the intended cost of doing business. It is the visible proof that the valve is ready to draw air, rather than contaminated water, the next time the municipal grid fails.
