How a Trapped Air Bubble Shatters Fire Sprinkler Bulbs Using Hydraulic Force

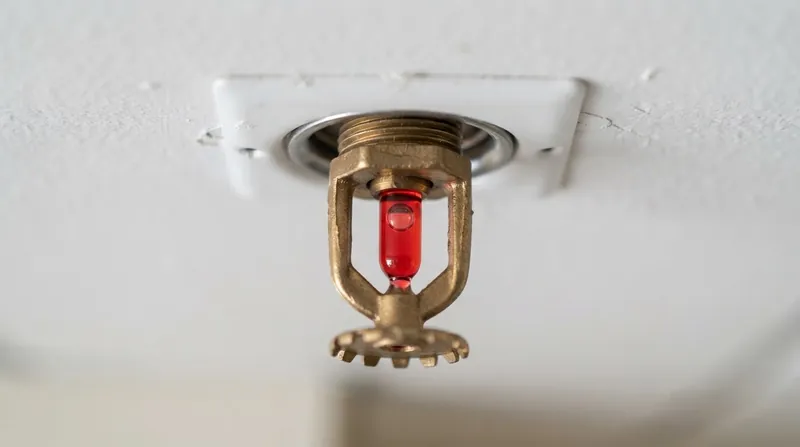

A standard commercial fire sprinkler holds back a continuous water pressure of 175 pounds per square inch. This is roughly the equivalent of balancing a heavy adult's weight on a surface the size of a postage stamp. That entire force is restrained by a single piece of glass no thicker than a pencil lead.[1][4]

The mechanism that finally shatters this glass is not the external heat of the fire itself. Instead, it is a microscopic bubble of trapped air suspended inside the bulb's glycerin-based liquid. This tiny pocket of gas dictates exactly when the system will deploy.[1][5]

Understanding how this bubble operates reveals the central genius of modern fire protection. The system relies on a sudden transition from compressible gas to incompressible liquid. This shift converts a slow thermal expansion into an instantaneous hydraulic hammer.[5]

When a fire breaks out, the ambient temperature near the ceiling rises rapidly. The glycerin-based fluid inside the sealed glass bulb absorbs this thermal energy and begins to expand in volume. The liquid pushes outward against the rigid glass walls.[1]

If the bulb were completely full of liquid, even a minor temperature fluctuation would shatter the glass prematurely. The trapped air bubble acts as a vital shock absorber. It compresses to accommodate the liquid's gradual expansion during normal climate variations.[5]

The Incompressible Transition

As the room temperature approaches the sprinkler's rated threshold, the expanding liquid forces the air bubble to shrink continuously. The pressure inside the glass casing remains relatively stable during this phase. The system is safe as long as any volume of compressible gas remains.[5]

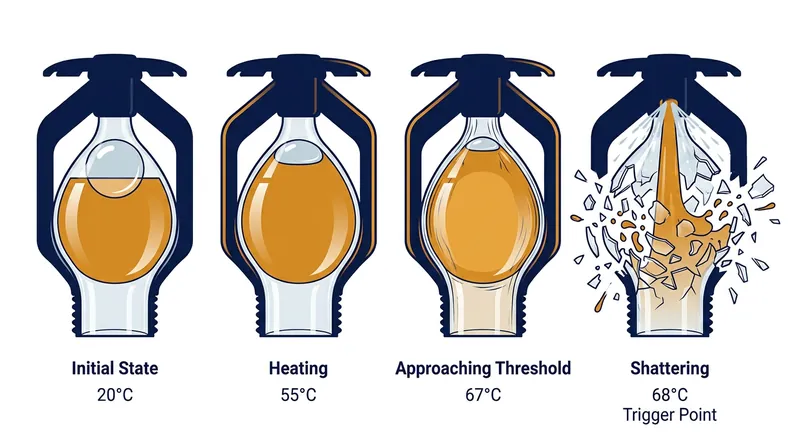

The critical moment occurs the exact millisecond the air bubble is fully absorbed into the liquid. With the gas gone, the interior environment loses its shock absorber. The contents of the bulb become entirely incompressible.[5]

Because liquids cannot be squeezed into a smaller volume, any further thermal expansion generates a catastrophic spike in internal pressure. This sudden hydraulic force easily overwhelms the structural integrity of the glass wall. The 5-millimeter casing simply cannot contain the expanding fluid.[1][5]

The bulb shatters outward, instantly releasing the mechanical plug that holds back the municipal water supply. Pressurized water immediately rushes through the open orifice. The stream then strikes a specialized metal deflector plate mounted below the valve.[1]

This deflector forces the solid stream of water to disperse outward in a precise, sweeping umbrella pattern. The mechanical dispersion ensures the water blankets a broad surface area. This action suppresses the flames and rapidly cools the surrounding air.[1][4]

The Color-Coded Calibration

The exact temperature at which this hydraulic shattering occurs is never left to chance. Manufacturers precisely calibrate the size of the air bubble during production. This initial volume dictates the sprinkler's exact thermal activation point.[1][5]

A larger initial air bubble requires more thermal expansion to compress, meaning the sprinkler will activate at a higher temperature. This calibration is visually communicated to inspectors through a standardized color-coding system. The National Fire Protection Association defines these strict visual rules.[1]

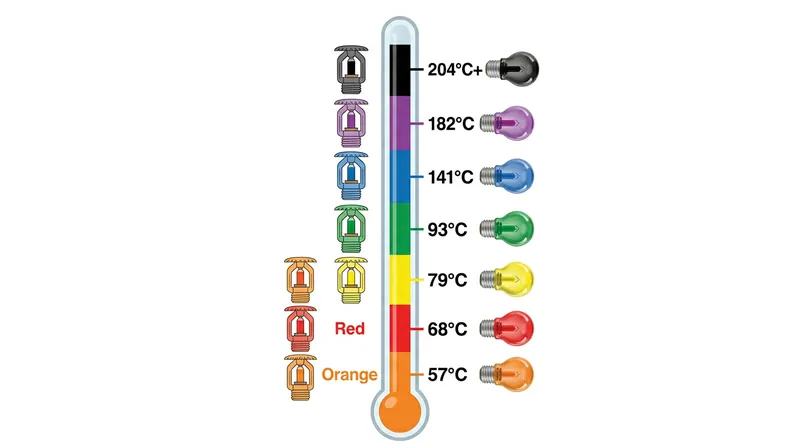

Under the NFPA 13 standard, an orange bulb indicates an activation temperature of 57 degrees Celsius, or 135 degrees Fahrenheit. A red bulb shatters at 68 degrees Celsius. This red rating remains the most common choice for standard offices and residential hotels.[1]

For industrial environments, the ratings scale upward to accommodate higher ambient heat without triggering false alarms. A yellow bulb activates at 79 degrees Celsius. Meanwhile, a green bulb is rated for 93 degrees Celsius, making it typical for boiler rooms.[1]

Extreme environments require highly specialized thermal thresholds to prevent accidental discharges. Blue bulbs shatter at 141 degrees Celsius, and purple bulbs activate at 182 degrees Celsius. Black bulbs can withstand temperatures up to 260 degrees Celsius before the air bubble collapses.[1]

The Myth of the Movie Sprinkler

Hollywood films routinely depict a single lighter or pulled fire alarm triggering every sprinkler in a building simultaneously. This cinematic trope fundamentally misrepresents how frangible glass bulbs actually function. The real mechanism is far more precise and localized.[5]

Because the shattering mechanism relies entirely on localized thermal expansion, fire sprinklers operate as strictly independent units. They do not react to smoke particles in the air. Furthermore, they are not wired to a central electronic fire alarm system.[1][5]

Only the specific sprinkler heads directly exposed to the intense heat of a fire will activate. If a fire starts in a wastebasket in one corner of an office, only the bulb directly above that heat plume will shatter. The rest of the room remains dry.[1][4]

This localized response is a deliberate engineering choice designed to minimize unnecessary water damage to the property. By restricting the water flow to the active fire zone, the system preserves municipal water pressure. This ensures maximum force for the heads that actually need it.[1][4]

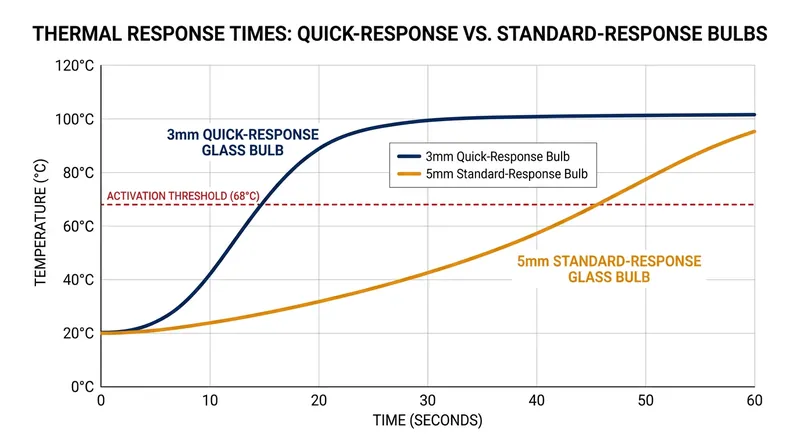

The speed of this localized response is governed by the physical thickness of the glass casing. Standard response sprinklers use a 5-millimeter bulb. In contrast, quick-response models utilize a thinner 3-millimeter bulb that absorbs ambient heat much more rapidly.[1]

The Design Margin

Selecting the correct activation temperature is a high-stakes balancing act between life safety and property protection. A bulb rated too high will delay the water release during an emergency. This delay allows the fire to spread beyond the system's control capacity.[1]

Conversely, a bulb rated too low risks an accidental discharge during a routine summer heatwave. To prevent these costly false alarms, engineers apply a strict temperature margin. This buffer is a mandatory component when designing commercial fire protection systems.[1]

The European EN 12845 standard dictates that a sprinkler's operating temperature must sit at least 30 degrees Celsius above the highest anticipated ambient temperature. The NFPA 13 standard enforces a similar safety buffer. "Ordinary- and intermediate-temperature sprinklers shall be used throughout," the NFPA code states, establishing a mandatory baseline margin.[3]

For example, an uninsulated attic that reaches 48 degrees Celsius in the summer cannot safely use a standard 68-degree red bulb. Engineers must install a 93-degree green bulb instead. This ensures the system maintains the required thermal buffer year-round.[3]

This margin ensures that the air bubble retains enough volume to absorb normal climate fluctuations without collapsing. The hydraulic shattering mechanism is reserved exclusively for rapid, extreme temperature spikes. The system only deploys when an actual fire threatens the structure.[5]

The Engineering Trade-off

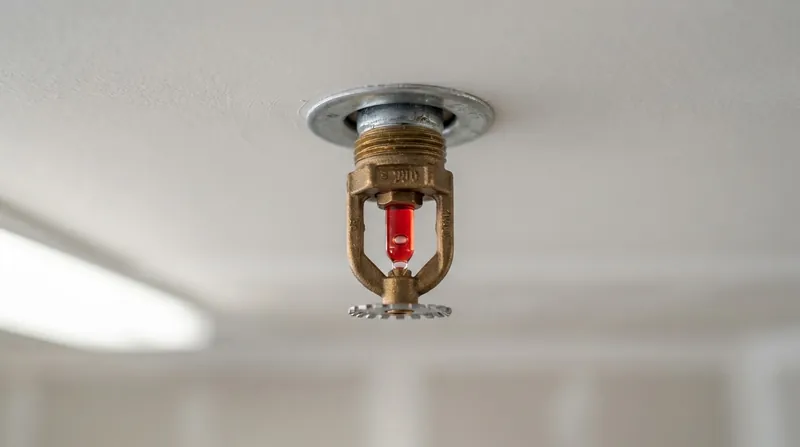

While frangible glass bulbs dominate modern commercial fire protection, they are not the only thermal release mechanism available. Some industrial environments rely instead on a fusible metal link. This alternative mechanism holds the water plug in place without using trapped gas.[1][2]

A fusible link consists of two metal plates joined by a precise solder alloy. This specific alloy is designed to melt at a predetermined temperature threshold. When the heat melts the solder, the plates separate, releasing the mechanical tension on the water valve.[2]

Fusible links lack the visual simplicity of the color-coded glass bulbs, but they offer distinct advantages in harsh environments. They are highly resilient against physical impacts and accidental shattering. This durability makes them ideal for heavy-duty manufacturing floors and unheated warehouses.[2][5]

However, glass bulbs provide superior corrosion resistance and a much wider array of precise temperature ratings. The hermetically sealed glass protects the glycerin fluid from chemical degradation. This ensures the activation point remains perfectly calibrated for decades without maintenance.[1][5]

The trapped air bubble remains one of the most elegant solutions in modern engineering. By harnessing the physical laws of thermal expansion and fluid mechanics, a fragile piece of glass provides an unbreakable defense. It stands as a silent guardian against catastrophic fires, waiting decades for a single moment of activation.[5]
