Why Salt Leaching Below 2 g/L Causes Quick Clay to Liquefy

The outcome of a quick clay landslide is not determined when a bulldozer moves earth or an earthquake strikes. It is determined centuries earlier, deep underground, when the concentration of salt in the pore water drops below two grams per litre.

This invisible threshold of salt leaching is the mechanical trigger that sets the trap, transforming stable ground into a metastable liquid waiting to collapse. Understanding this two-gram boundary changes how geotechnical engineers must assess risk in vulnerable regions like Scandinavia and the Ottawa Valley.[4]

If we only look for surface triggers—heavy rains, construction loads, or seismic tremors—we miss the underlying physics. The true hazard lies in the microscopic electrical forces governing the clay particles, which are dictated entirely by the salinity of the water trapped between them.[4]

The scale of this hazard is immense. On April 29, 1978, a farmer in Rissa, Norway, excavated 900 cubic yards of soil to expand his barn. That minor redistribution of weight triggered a chain reaction that liquefied five to six million cubic metres of clay, leaving a 1.5-kilometre slide face.[2]

The Marine House of Cards

The Rissa disaster perfectly illustrates the deceptive nature of quick clay. The ground appeared solid and had supported agriculture for generations, yet it flowed like a river the moment its internal structure was disturbed. To understand how solid earth behaves this way, we must look at how these clays formed.[2]

During the retreat of the glaciers at the end of the last ice age, fine rock flour washed into the sea. In this marine environment, the saltwater provided an abundance of positively charged sodium ions. These cations acted as an electrical glue, fundamentally altering the clay's suspension mechanics.

Clay particles naturally carry a negative surface charge, which normally causes them to repel one another. But the high concentration of sodium ions in the seawater masked this repulsion. This allowed the particles to flocculate and settle into an open, highly porous structure resembling a microscopic house of cards.[1]

This structure is incredibly delicate, yet capable of supporting immense weight as long as the chemical environment remains stable. The original marine clays often contained salt concentrations of 30 to 35 grams per litre, identical to the seawater in which they were deposited.[1]

At these elevated salinity levels, the electrical double layer surrounding each clay particle is tightly compressed. The danger begins with isostatic rebound. As the massive weight of the glaciers melted away, the Earth's crust slowly rose, lifting these marine clay deposits above sea level.[2]

The Double-Layer Expansion

In regions like the St. Lawrence Lowlands, these deposits—known locally as Leda clay—were elevated up to 200 feet above current river levels. Over thousands of years, fresh groundwater began to percolate through the porous clay, a process known as salt leaching.

This freshwater flow steadily washes away the sodium ions, diluting the pore water. As the salt concentration drops, the chemical equilibrium within the clay matrix shifts. The critical transition occurs when the salinity falls below the two-gram per litre threshold.

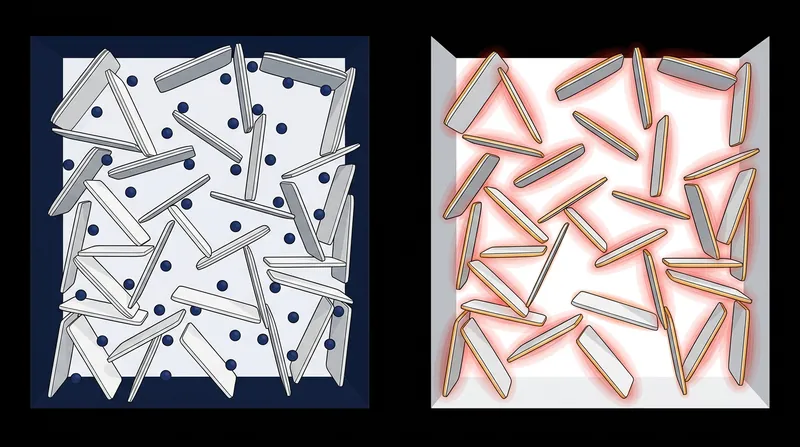

At this precise concentration, the diffuse double layer of ions surrounding each clay particle physically expands. This expansion is the invisible mechanism of disaster, increasing the repulsive electrical forces between the negatively charged clay particles to a critical level where they overwhelm the van der Waals forces of attraction.[1][4]

The clay enters a metastable state. It retains its solid appearance and can still support the ground above it, but its internal strength is entirely illusory. The water content of the leached clay is actually higher than its liquid limit, meaning there is enough trapped water to turn the mass fluid.

This is where the surface trigger finally plays its role. A sudden shock breaks the fragile bonds between the clay particles. Because the expanded double layers are actively pushing the particles apart, the structure cannot reform once the initial bonds are broken, and the house of cards collapses instantly.[2]

Micromechanical Evidence of Collapse

The solid clay matrix disintegrates, and the trapped pore water is released, suspending the clay particles in a frictionless slurry. Within seconds, a solid hillside liquefies into a flowing river of mud. The 2010 Saint-Jude landslide in Quebec, which claimed four lives, was driven by this exact mechanism.[2]

Recent studies on the Hachirogata clay in Japan have demonstrated that the micromechanical behaviour of the soil is dictated by this same salt-leaching process. The universal nature of this threshold highlights the fundamental physics governing clay particle interactions in aqueous environments, regardless of geographic origin.[1]

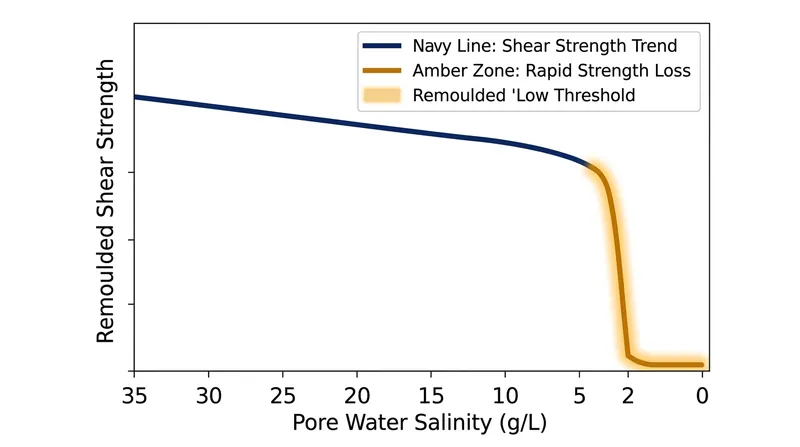

When researchers artificially leached the Hachirogata samples, the liquid limit dropped precipitously. The Canadian Geotechnical Journal reported that at low salinity, the remoulded shear strength fell to a minimum value of 1.5 kilopascals, rendering the soil incapable of supporting its own weight once disturbed.[1]

This loss of strength is entirely due to the double-layer repulsion pushing the particles apart. When the researchers reintroduced recycled salt mixtures to the remoulded quick clay, the liquid limit immediately increased, and the shear strength recovered to 33 kilopascals after 28 days of curing.[1]

The Case for Chemical Intervention

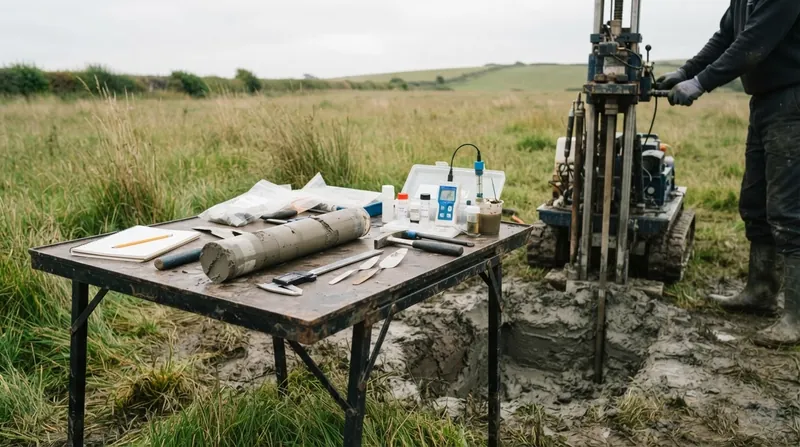

Because the problem is fundamentally chemical, the solution should be chemical. Geotechnical engineers have discovered that reintroducing salt to the clay can reverse the expansion of the double layer. By drilling wells and injecting potassium chloride into the ground, engineers can artificially raise the salinity of the pore water.[1][4]

Potassium chloride is particularly effective because potassium ions have a greater diffusion coefficient than calcium or sodium. As the potassium ions migrate through the clay, they compress the diffuse double layer, reducing the repulsive forces and allowing the clay particles to regain their cohesive strength.[1]

This chemical stabilization can increase the remoulded shear strength of the clay from near zero to over 15 kilopascals, effectively neutralizing the liquefaction risk. Potassium improves the clays' geotechnical properties to a greater extent than ions of higher valence, permanently altering the soil without massive excavation.[1]

Critics of chemical intervention argue that diffusion is too slow, taking months or years to secure a site, whereas mechanical stabilization like berms provides immediate safety. However, mechanical interventions require heavy excavation on metastable ground, which itself risks triggering the exact liquefaction event engineers are trying to prevent.[4]

Mapping the Chemical Fault Line

The challenge for modern infrastructure is identifying where this two-gram threshold has been crossed before a trigger event occurs. Traditional borehole sampling is slow and localized, often missing the specific zones where salt leaching has created quick clay. A single borehole might show stable clay, while a metastable zone lies nearby.[3]

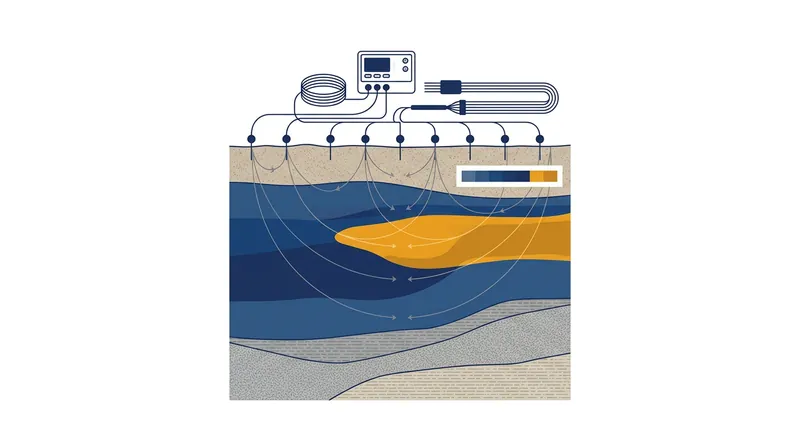

Instead, engineers now increasingly rely on electrical resistivity tomography to map the subsurface. Because salt water conducts electricity far better than fresh water, leached clays present a distinct electrical signature. By measuring the ground's electrical resistance, geophysicists can map the exact boundaries of the leached zones.[3]

This geophysical mapping is crucial for urban planning in regions underlain by sensitive marine clays. By understanding that the true hazard is the chemical state of the pore water, engineers can avoid building on metastable ground or proactively treat it with salt wells.[3]

The National Research Council of Canada has extensively documented these properties, noting that sensitivities range from extra-sensitive to quick in regions where the natural water content exceeds the liquid limit. Their research confirms that the structural integrity of Leda clay is entirely dependent on its undisturbed state.

Ultimately, the management of quick clay hazards requires a shift in perspective. We cannot prevent the earthquakes or the heavy rains that act as triggers, but we can map and monitor the invisible chemical thresholds that make those triggers dangerous. The two-gram per litre boundary is the true fault line.[4]

By focusing on the diffuse double layer and the salinity of the pore water, geotechnical engineering moves from reacting to landslides to predicting them based on physical chemistry. The house of cards will always be fragile, but with precise chemical mapping, we can ensure we know exactly where it stands.[4]
