How One Percent Air Drops Sonic Velocity to Save Dam Spillways From Cavitation

Structural engineers tasked with designing high-head dams often argue that surviving extreme water velocities requires flawless construction. They advocate for ultra-high-strength concrete and perfectly smooth spillway surfaces, treating the structure as a fortress that must endure the river’s assault through sheer material resilience.[1]

Fluid dynamicists view that approach as an expensive exercise in futility. They argue that no material on Earth can withstand the localized physics of boiling water collapsing against a solid boundary. In their view, fighting the fluid with brute strength is a guaranteed failure.[4]

The fluid dynamicists insist that the only viable solution is to fundamentally alter the properties of the water itself before it strikes the concrete. This fundamental disagreement over how to handle extreme hydraulic forces came to a head following near-catastrophic infrastructure failures in the late twentieth century.[2][3]

The Physics of Cold Boiling

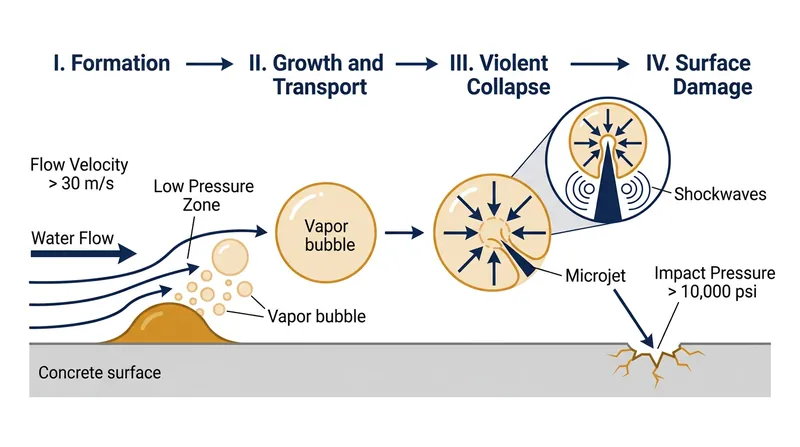

The destructive force at the center of this debate is cavitation. When water accelerates down a steep spillway, its velocity can easily exceed 30 meters per second. According to Bernoulli’s principle, this extreme velocity causes the localized fluid pressure to plummet.[1]

If the water flows over a slight surface irregularity—even a misalignment of a few millimeters—the pressure drops below the vapor pressure of water. The liquid literally boils at ambient temperature, forming pockets of vapor within the high-speed flow.[1][4]

These vapor cavities are inherently unstable. As they are swept downstream into zones of higher pressure, the surrounding water crushes them. The bubbles implode violently, generating microscopic jets of water that strike the adjacent concrete at supersonic speeds.[4]

"The impact pressure from a collapsing cavitation bubble can exceed 10,000 pounds per square inch," notes Dr. Henry Falvey in his seminal 1990 US Bureau of Reclamation monograph on spillway design. "No conventional construction material can resist that localized stress indefinitely."[1]

The Glen Canyon Warning

The limitations of the structural approach were exposed dramatically in the summer of 1983. Record snowmelt forced the operators of the Glen Canyon Dam in Arizona to utilize their emergency spillways for an extended period, sending massive volumes of water down the concrete tunnels.

Within days, the roar of the water changed pitch, and the surrounding bedrock began to vibrate. When engineers finally halted the flow and inspected the tunnels, they found that cavitation had excavated a massive hole in the three-foot-thick concrete lining.[1]

The imploding bubbles had eaten through the concrete and scoured away the sandstone bedrock beneath it. The resulting crater measured 32 feet deep and 134 feet long, threatening the structural integrity of the entire dam and proving that material strength alone could not stop cavitation.

Following the Glen Canyon incident, the dam engineering community realized that smoothing the concrete was a losing battle. Even if a spillway was cast perfectly, normal wear or small debris would eventually create the microscopic offsets required to trigger vapor cavity formation.[1][2]

Injecting the Cushion

The solution emerged from the fluid dynamics camp: spillway aerators. Instead of trying to prevent the vapor bubbles from forming, engineers decided to change how the water reacted when those bubbles inevitably collapsed.[2][4]

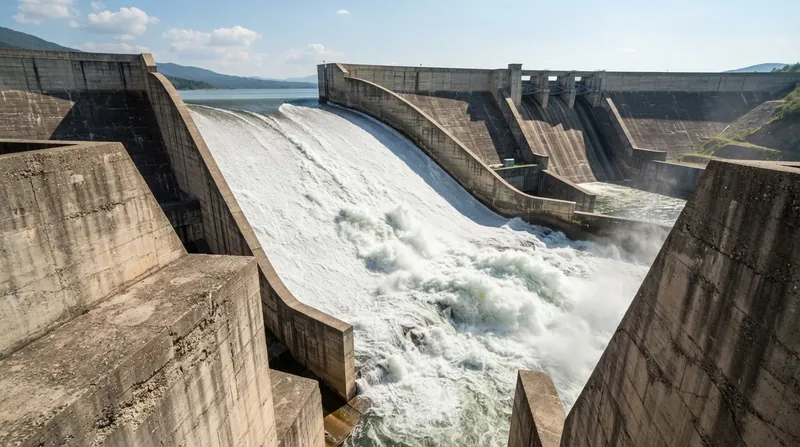

An aerator is a simple geometric feature—usually a small ramp or a step built directly into the spillway floor. As the high-velocity water launches off the lip of the ramp, it creates a localized vacuum beneath the jet.[1][2]

This vacuum passively sucks atmospheric air through ventilation shafts and entrains it into the underside of the water column. The flow reattaches to the spillway a few meters downstream, now carrying a dispersed mixture of microscopic air bubbles along the concrete boundary.[2][4]

"By introducing just a small fraction of air into the boundary layer, we fundamentally alter the acoustic properties of the fluid," explains the International Commission on Large Dams in their Bulletin 107 on spillway aeration. "The protection is absolute."[2]

The Compressibility Paradox

The mechanism that makes this work relies on a dramatic shift in sonic velocity. In pure, incompressible water, sound waves and pressure shocks travel at approximately 1,480 meters per second. This high sonic velocity allows the shockwave from a cavitation implosion to strike the concrete with undiminished force.[4]

Air, by contrast, is highly compressible. Sound travels through pure air at roughly 343 meters per second. When you mix the two phases, the resulting fluid exhibits a paradoxical combination of properties that defies intuitive averages.

A mixture containing just 1 percent air by volume retains 99 percent of the density of pure water. However, because the air bubbles are so easily compressed, the bulk modulus—the fluid’s resistance to uniform compression—plummets to a fraction of its original value.[4]

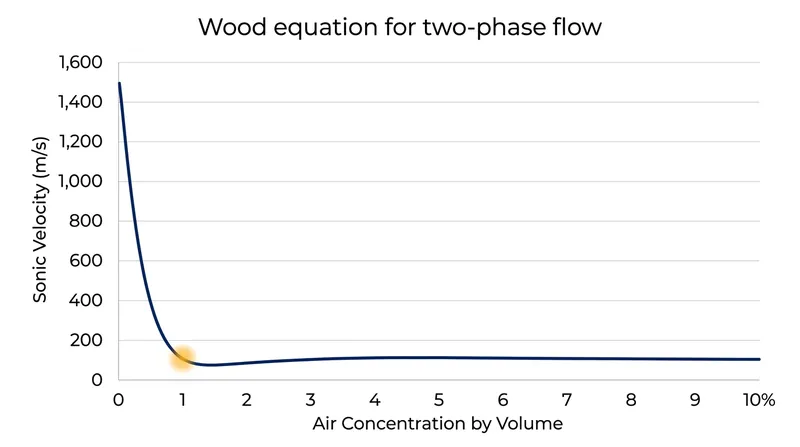

With the density of water but the compressibility of air, the sonic velocity of the mixture crashes. Adding just 1 percent entrained air drops the speed of sound in the fluid from 1,480 meters per second down to roughly 100 meters per second.[2][4]

Disarming the Shockwave

This 90 percent reduction in sonic velocity is the exact mechanism that saves the spillway. When a vapor cavity collapses inside this aerated mixture, the resulting shockwave must travel through a highly compressible medium to reach the concrete.[3][4]

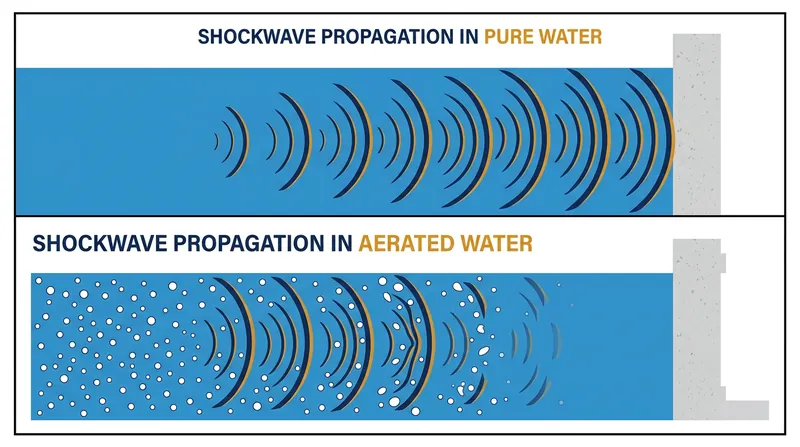

The entrained air bubbles act as microscopic shock absorbers. As the pressure wave hits them, the bubbles compress, absorbing the acoustic energy and preventing the shockwave from propagating efficiently through the fluid boundary layer.[4]

Because the sonic velocity is so low, the acoustic impedance of the fluid is drastically reduced. The peak impact pressure delivered to the concrete surface drops by a factor of more than 100, rendering the cavitation collapse completely harmless to the structure.[3]

"The air does not stop the water from boiling, nor does it prevent the cavities from collapsing," the Factlen Editorial Team notes in their analysis of two-phase flow dynamics. "It simply disarms the explosive yield of the collapse before the energy can reach the wall."[3]

Engineering the Airflow

Implementing this physics trick requires precise hydraulic engineering. The aerator ramps must be sized perfectly to the expected flow rates; if the ramp is too small, it will not pull in enough air to drop the sonic velocity past the critical threshold.[1][2]

If the ramp is too large, it launches the water jet too far, creating violent turbulence when the flow finally crashes back down onto the spillway. Engineers use physical scale models and computational fluid dynamics to dial in the exact geometry required for each specific dam.[2][4]

Furthermore, the entrained air does not stay in the boundary layer forever. Because air is buoyant, the bubbles slowly migrate upward through the water column as the flow travels down the spillway, eventually escaping from the free surface.[1][2]

To maintain the protective cushion, designers must install multiple aerator slots at calculated intervals down the length of the chute. This ensures that the air concentration at the concrete boundary never drops below the critical 1 percent threshold during the descent.[2]

The Global Standard

Today, spillway aerators are a mandatory feature on almost every high-head dam constructed worldwide. They represent a rare instance where a complex, destructive physical phenomenon is neutralized entirely by passive geometry rather than active machinery.[1][2]

The success of this approach forced a paradigm shift in civil engineering. It proved that attempting to out-build the forces of nature with stronger materials is often less effective than understanding and manipulating the underlying physics of the environment.[3]

By accepting that cavitation is inevitable at extreme velocities, engineers found a way to render it irrelevant. The concrete survives not because it is impervious to the shockwaves, but because the altered fluid simply refuses to deliver them.[3][4]

The next generation of dam designs continues to refine this principle. Researchers are currently investigating micro-aeration techniques that could provide the same acoustic dampening effect with even smaller volumes of air, potentially reducing the size of the necessary ventilation shafts.[2]

As climate change drives more extreme precipitation events, the ability to safely pass massive volumes of water over spillways has never been more critical. The passive protection offered by entrained air remains the primary defense against catastrophic erosion.[2][3]

The 1983 near-disaster at Glen Canyon stands as the final major failure of the brute-force era. The modern spillway survives by yielding to fluid dynamics, using a thin veil of air to silence the most destructive forces in hydraulic engineering.[3]
