The Geometric Flaw of Radar Charts: How Axis Ordering Distorts Area and Misleads Multi-Metric Comparisons

When researchers analyze complex, multi-metric trade-offs—such as comparing organic versus conventional farming across land use, greenhouse gas emissions, and water pollution—they must choose how to visualize those competing dimensions. A common choice is the radar chart, which collapses multivariate data into a single recognizable polygon. However, the resulting shape is dictated as much by arbitrary design choices as by the underlying numbers.[1]

A radar chart—also known as a spider chart or Kiviat diagram—displays multiple variables on axes radiating from a central zero-point. Data points on each axis are connected to form a polygon. This format is widely used in business intelligence and performance benchmarking because decision-makers can process a unified shape faster than a table of numbers.[2]

Yet that speed comes at the cost of severe mathematical distortion, beginning with the axis-order illusion. Unlike a bar chart, a circular layout imposes no natural discipline on axis placement. Six metrics can be arranged in 720 different ways around the circle.

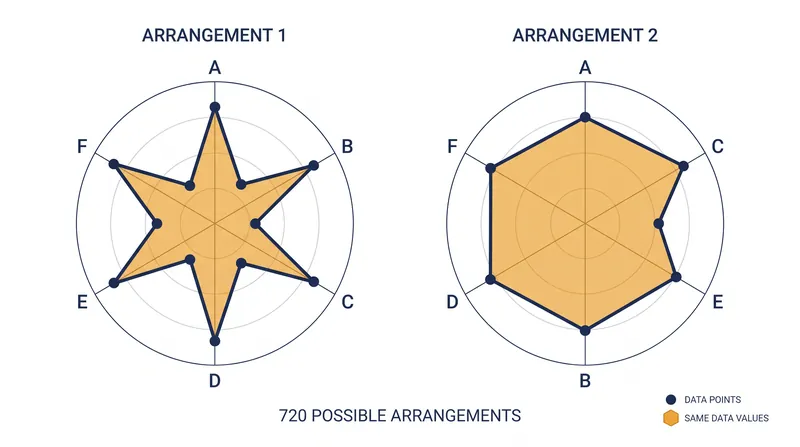

When the axis order changes, the shape of the polygon changes entirely. A profile that appears balanced and robust under one arrangement can look skewed and weak under another, without a single data point changing. Two analysts working with the exact same dataset can produce charts that tell completely different stories simply by shuffling the sequence of the variables.

In his 2018 paper examining visualization techniques, computer scientist Michael Correll categorizes radar charts among the "bad ideas in visualization" because they invite viewers to read shape even though that shape depends heavily on arbitrary axis ordering. The lines connecting data points between axes are mathematically arbitrary, implying a relationship or continuous trend between unrelated variables simply because they sit adjacent on the circle.[2][4]

The distortion compounds when the polygons are filled with color. In a radar chart, the importance of an item is visually represented by the polygon's size. However, because the chart uses polar coordinates, the enclosed area scales quadratically, not linearly.[2]

If a value on one axis doubles, the visual area it contributes to the polygon quadruples. This quadratic scaling disproportionately rewards entities that score highly on adjacent axes, creating a visual illusion of massive outperformance. Small numerical differences create disproportionately large visual changes.

These geometric constraints severely limit the chart's capacity. Visualization guidelines generally recommend a strict maximum of five to eight variables and no more than three to four overlaid series. Beyond that threshold, the polygons bleed into each other, creating unreadable visual clutter.

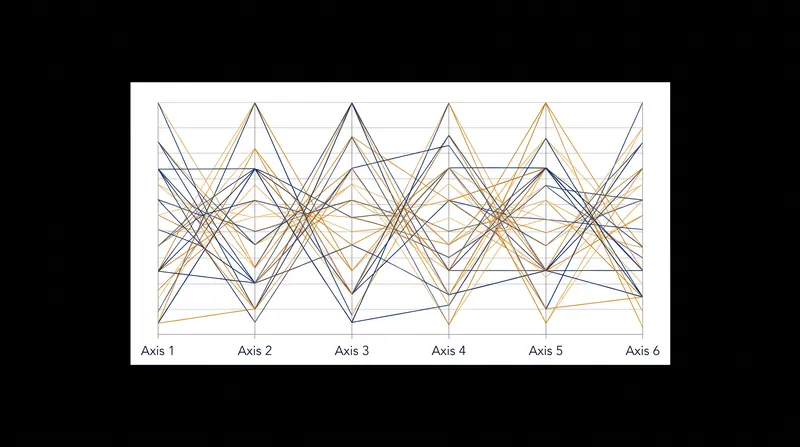

To resolve these distortions, data scientists rely on parallel coordinate plots. According to the mathematical definition, parallel coordinate plots are "a common method of visualizing high-dimensional datasets to analyze multivariate data having multiple variables, or attributes." Instead of scattering axes around a circle, this method arranges all variables as parallel vertical axes. Each observation is represented by a single line that connects its values across the linear frame.[3]

Because parallel coordinates do not enclose an area, they eliminate quadratic area bias entirely. The linear frame forces the analyst to compare actual values across dimensions, rather than judging the arbitrary geometry of a shape.[3]

This linear arrangement also solves the radial crowding limit. While a radar chart becomes illegible past eight variables, a parallel coordinates plot can visualize ten or more dimensions and plot hundreds of records simultaneously.[3]

For high-dimensional exploratory data analysis, aligning the axes in a common direction provides a mathematically consistent view of the trade-offs. It ensures that the patterns a viewer sees are driven by the data itself, not by the arbitrary geometry of a circle.
