How the 'Dimming Effect' is Confounding Nanotechnology Data Analysis

The products we rely on—from lipid nanoparticles delivering cancer drugs to the nanoscale wires inside our smartphones—depend on a fundamental rule of physics: at the nanoscale, size dictates behavior. But what happens if the data used to measure that size is systematically flawed?[1]

Nanomaterials form the basis of a $100 billion global industry, with applications spanning chemical catalysis, ceramics, paints, and pharmaceuticals. At this scale—where objects are measured in billionths of a meter—materials often exhibit properties that differ radically from their bulk forms. A chunk of gold, for instance, can appear ruby red when reduced to nanoscale dimensions.[2]

To harness these unique properties, researchers must establish a clear mathematical correlation between a particle's structure and its function. The standard analytical workflow involves measuring the size of a nanomaterial and plotting it against a performance characteristic, such as optical intensity or drug-carrying capacity.[2][3]

However, a pervasive statistical error has been quietly confounding these measurements across scientific studies. When analyzing the data, researchers frequently assume that their measurements of particle size are perfectly precise and accurate.[2][4]

In reality, measuring objects that are the size of a virus is fraught with limitations. Instruments like dynamic light scattering (DLS) or electron microscopes are powerful, but they are subject to environmental noise, calibration drift, and inherent methodological constraints.[3]

When scientists treat these imperfect size measurements as error-free during statistical analysis, they inadvertently distort the resulting data models. According to researchers at the National Institute of Standards and Technology (NIST), this uncertainty in the independent variable fundamentally biases the parameter estimates in correlative models.[2][3]

NIST electrical engineer Andrew Madison describes this phenomenon as "jostling a light bulb's dimmer switch." The overlooked sizing errors dim the apparent relationship between the size of a particle and its properties.[2]

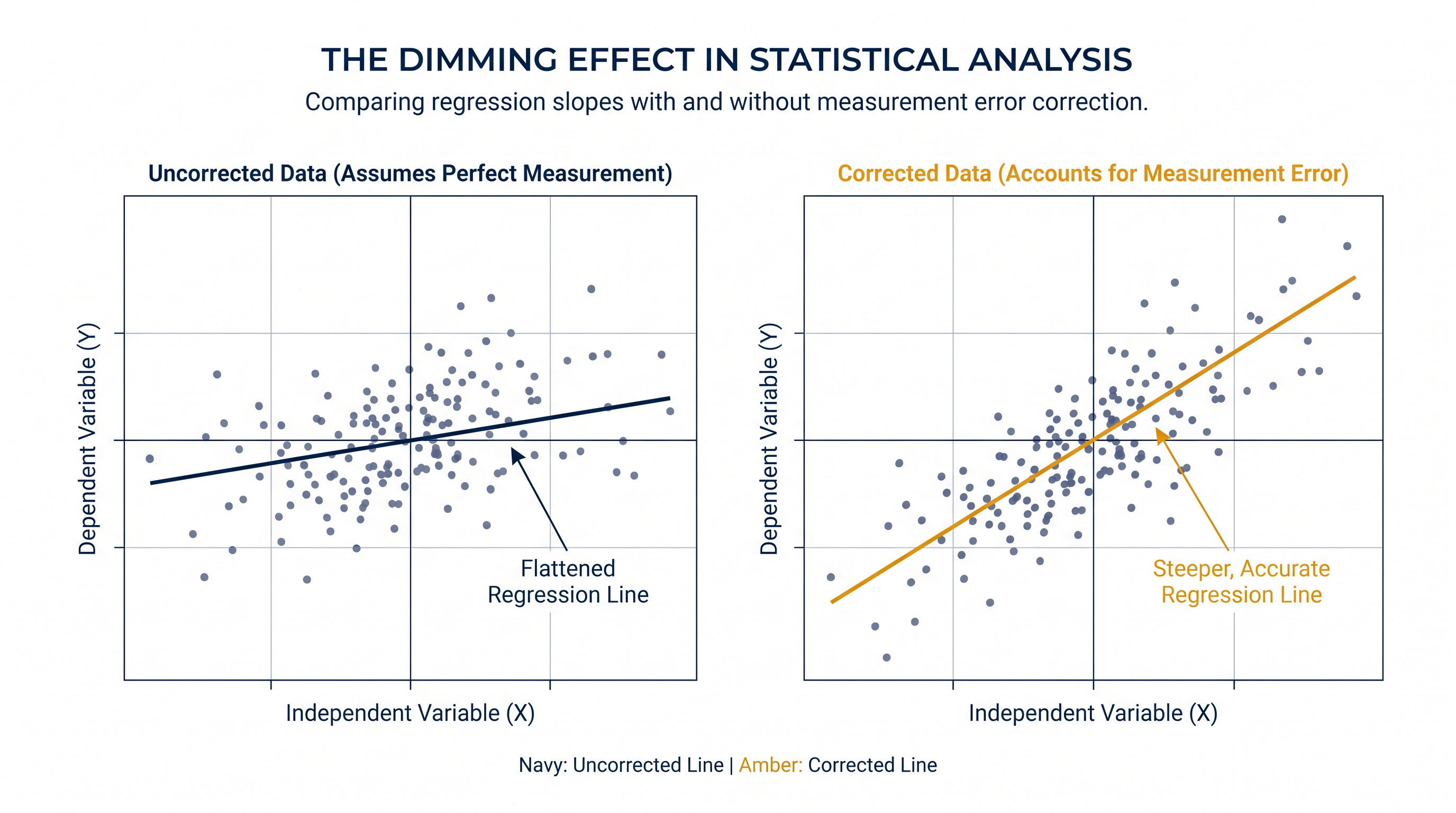

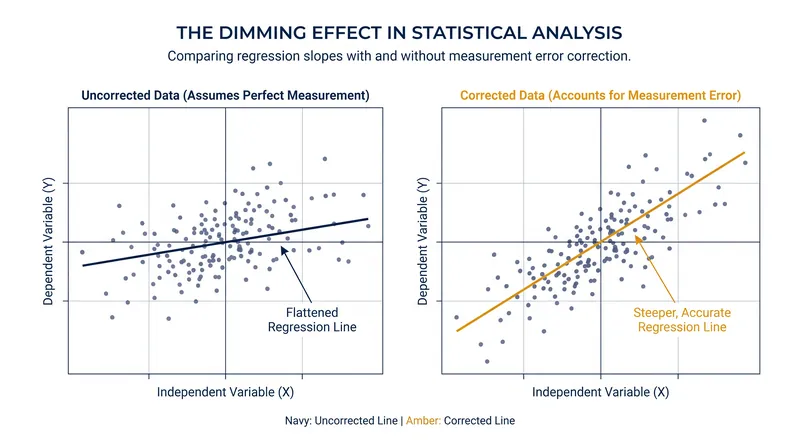

In statistical terms, this is known as attenuation bias. The measurement error flattens the slope of the regression line, making the correlation between size and performance appear significantly weaker than it actually is. A researcher might conclude that a nanoparticle's dimensions have only a minor influence on its behavior, when in fact the relationship is strong.[3][4]

This "dimming effect" has profound implications for product development and safety. As physical scientist Samuel Stavis notes, if a nanoparticle is designed to carry drugs for a medical treatment, a flawed analysis of its size-to-capacity ratio could lead to a mistaken understanding of the required dose.[2]

Similarly, in the semiconductor industry, if a nanoscale wire is measured imperfectly, engineers might miscalculate how much electrical current can safely flow through it, potentially compromising the performance of advanced microchips.[2][4]

To address this foundational problem, the NIST team developed a practical solution: a method-of-moments correction for least-squares estimates of correlative model parameters. Published in the journal ACS Nano, this mathematical correction reverses the dimming effect by explicitly quantifying the limited precision and accuracy of particle size measurements.[3]

The correction is highly interpretable and applies to a wide variety of statistical models. It focuses heavily on the prevalent power-law models used to correlate optical intensity and nanoparticle size, testing the limits of accuracy and providing a framework to prevent future analytical mistakes.[3]

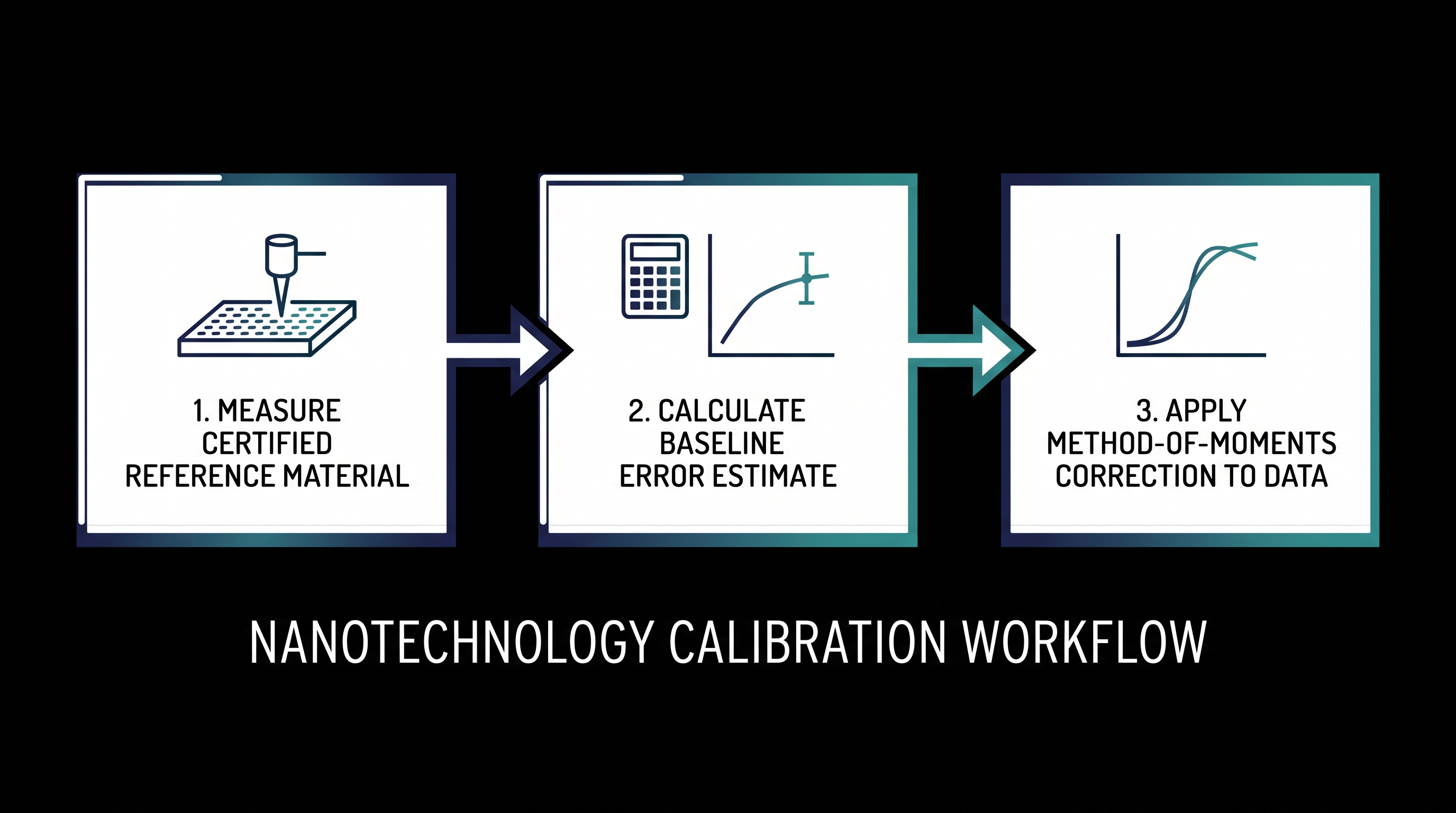

To implement this correction, laboratories must first estimate their own measurement errors. The most reliable method is to obtain a certified reference material—such as NIST-certified solutions of gold nanoparticles or polystyrene spheres—and measure its size using the lab's own instruments.[2]

The difference between the lab's empirical results and the known reference values provides the baseline error estimate. This estimate is then fed into the measurement error model, allowing the statistical software to adjust the regression analysis and reveal the true relationship between the particle's property and its size.[2][3]

While the mathematical correction offers a robust solution, it also highlights the transparent uncertainty inherent in nanoscience. Precision and accuracy limitations do not necessarily indicate that an instrument or method has failed; rather, they underscore the necessity of quantifying uncertainty as a standard practice in data analysis.[4]

Confronting an overlooked problem at the foundation of a research field is a significant undertaking. Yet, by adopting these measurement error models, the nanotechnology industry can ensure that its data analysis is as precise as the microscopic materials it seeks to understand, paving the way for safer and more effective nanoscale products.[1][3]
