How Synchronized LED Wristbands Turn Concert Crowds Into Massive Video Screens

The modern arena concert has undergone a visual revolution. Gone are the days when the audience's only contribution to a light show was the flickering of cigarette lighters or the static glow of smartphone flashlights.

Today, attending a major stadium tour—whether it is Taylor Swift's Eras Tour, Coldplay, or a blockbuster K-Pop act—means becoming an active participant in the production. Fans are handed LED wristbands or bring their own elaborate light sticks, which synchronize to create sweeping waves of color across the venue.[1]

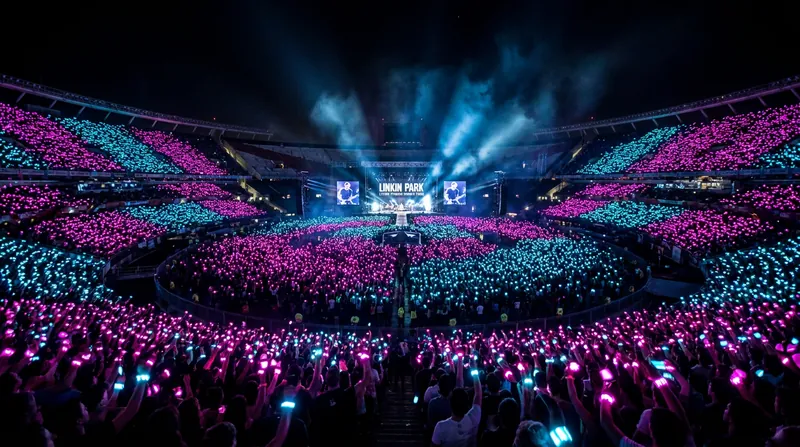

The effect is mesmerizing: 80,000 individual fans are suddenly transformed into a massive, undulating video canvas. A sea of red pulses to the beat of a drum, then instantly shatters into a randomized sparkle of blue and gold.[1][2]

But despite the futuristic appearance of these immersive light shows, the technology driving them is surprisingly grounded. There is no GPS tracking each fan's location, nor is there a complex artificial intelligence predicting crowd movement.[2]

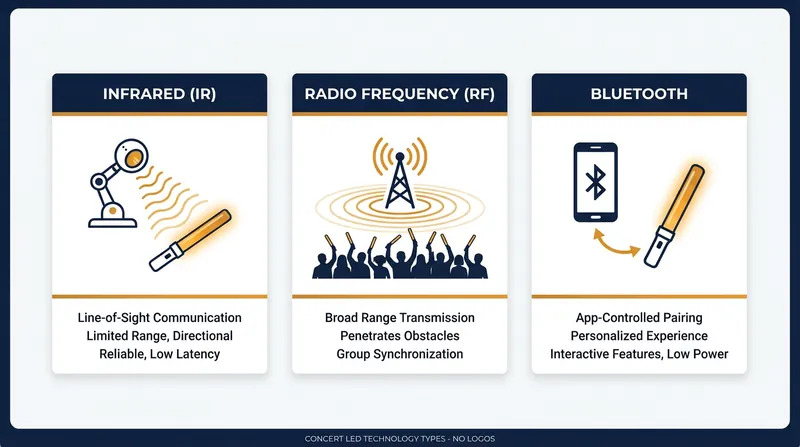

Instead, event technologists rely on three primary methods of wireless communication to pull off the illusion: Infrared (IR), Radio Frequency (RF), and Bluetooth. Each offers a different balance of scale, precision, and cost.[6]

The most widely used system for massive Western stadium tours is Infrared, pioneered by Montreal-based event technology company PixMob. The underlying technology is nearly 50 years old—it is the exact same mechanism used by a standard television remote control.[1][2]

In an IR setup, robotic transmitters are mounted on sound towers, lighting rigs, and the stage itself. These transmitters project invisible beams of infrared light across specific sections of the audience.[2]

The wristbands themselves are relatively "dumb" devices, containing only a basic receiver, a small microprocessor, a battery, and RGB LEDs. When a wristband falls under an infrared beam, it receives a command to display a specific color.[1][2]

To create complex shapes, such as a giant glowing heart or a sweeping wave, technicians place physical masks over the transmitters—much like a stencil. As the robotic transmitter pans across the crowd, the invisible shape moves with it, illuminating only the wristbands caught inside the stencil's beam.[2]

For smaller venues or simpler setups, Radio Frequency (RF) is the preferred tool. Companies like CrowdSync and CrowdLED utilize RF transmitters that blanket the entire arena with a single signal.[3][4]

Because RF signals travel through walls and bodies without needing a direct line of sight, they are incredibly reliable. However, they lack the spatial precision of Infrared. To create varied effects, RF wristbands are pre-programmed into different groups before they are handed out.[2][3]

When the lighting director sends a command, they can tell "Group A" to flash red while "Group B" pulses blue. The result is a randomized, sparkling effect that requires significantly less infrastructure than an IR matrix.[2]

The most advanced—and expensive—tier of crowd synchronization is found in the K-Pop industry, which utilizes Bluetooth technology and precise seat-mapping.[5]

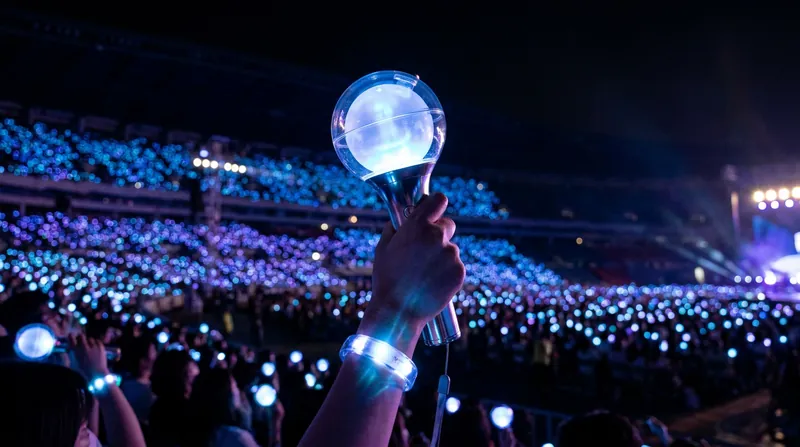

Unlike Western concerts where cheap wristbands are handed out at the door, K-Pop fans purchase official "light sticks" (such as BTS's ARMY Bomb). These are high-quality, $50-to-$100 collectibles that fans bring to every show.[5]

Before the concert, fans use a dedicated smartphone app to pair their light stick via Bluetooth and input their exact section, row, and seat number. This creates a perfect digital map of the arena.[5]

Because every single light stick is individually addressable based on its seat location, lighting directors can program astonishingly complex, high-resolution animations. They can spell out words, create intricate logos, or send a single pulse of light bouncing perfectly from the front row to the nosebleeds.[5][6]

Beyond the visual spectacle, this technology fundamentally alters the psychology of a live event. Event producers note that synchronized lighting creates a profound sense of unity, linking every audience member to the emotional timing of the music and turning passive spectators into active participants.[4]

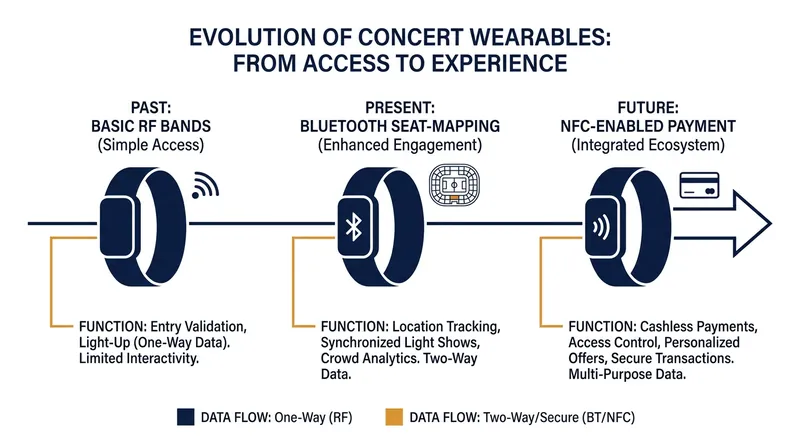

As the technology evolves, the industry is pushing toward sustainability and deeper interactivity. Companies are introducing fully recyclable wristbands and integrating NFC chips, allowing the same wearable that lights up the crowd to serve as a digital ticket or a tap-to-pay wallet.[3][6]
