How Orbital Refueling Works: The Cryogenic Science Unlocking Deep Space

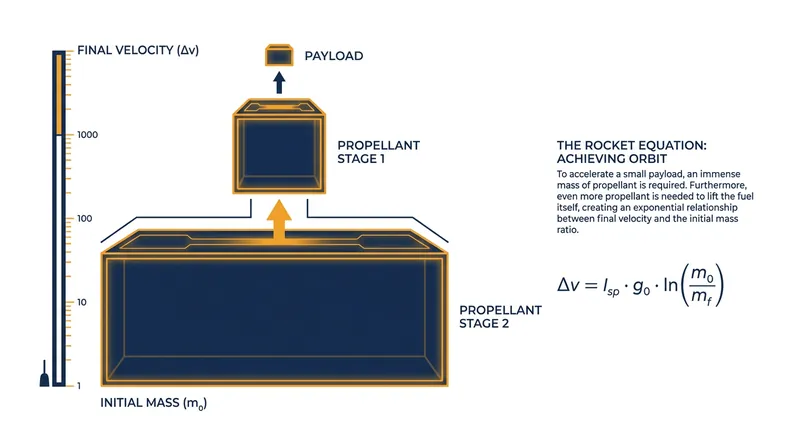

For decades, plans to send humans deep into the solar system have confronted a central, immovable engineering barrier: the tyranny of the rocket equation. The fundamental problem of spaceflight is not generating enough thrust, but rather managing the compounding penalty of mass.[3][8]

To travel to Mars, a spacecraft requires a massive amount of propellant. However, to lift that propellant off the surface of the Earth, the launch vehicle requires even more propellant. This mathematical reality dictates that every additional kilogram of cargo requires exponentially more fuel, severely limiting the size of payloads that can be sent directly to other planets.[3][8]

The structural solution to this limitation is orbital refueling. Instead of launching a single, impossibly massive rocket that carries all its fuel from the ground, space agencies are pivoting to a distributed architecture. A spacecraft launches into low Earth orbit nearly empty, and is subsequently filled by a fleet of dedicated tanker ships before departing for deep space.[2][3][5]

In 2026, this theoretical concept is moving into large-scale demonstration. Aerospace companies are preparing to execute the first full-scale cryogenic propellant transfer between two separate spacecraft in orbit, a milestone that will validate the flight software, thermal management, and docking stability required for interplanetary logistics.[3][6]

However, transferring fuel in the vacuum of space is an incredibly complex thermodynamic and fluid dynamics challenge. It bears no resemblance to pumping gas into a car on Earth.[1][8]

The first major hurdle is known as Cryogenic Fluid Management (CFM). The most efficient modern rocket propellants, such as liquid oxygen and liquid methane, must be stored at hundreds of degrees below zero to remain in a liquid state.[1][4]

In the harsh environment of low Earth orbit, spacecraft are subjected to intense, unfiltered solar radiation. If the cryogenic liquids absorb this heat, they begin to boil and turn into gas, increasing the pressure inside the tanks and forcing the spacecraft to vent the precious fuel into space—a phenomenon known as "boil-off."[1][4]

To combat boil-off during the weeks-long refueling process, engineers must utilize advanced thermal control systems. These include vacuum-jacketed plumbing, highly reflective multi-layer insulation, and active cryocoolers designed to keep the propellant loss rate to a fraction of a percent per day.[4][7]

The second, arguably stranger problem involves microgravity fluid physics. On Earth, gravity naturally pulls liquid to the bottom of a tank, ensuring that pumps always draw a steady stream of fluid.[4][8]

In orbit, liquids do not settle. Without gravity, cryogenic propellants form unpredictable, floating blobs suspended in the center of the tank. If a spacecraft simply opened a transfer valve in this state, the pumps would likely ingest pressurized gas instead of liquid fuel, ruining the transfer and potentially damaging the hardware.[4][8]

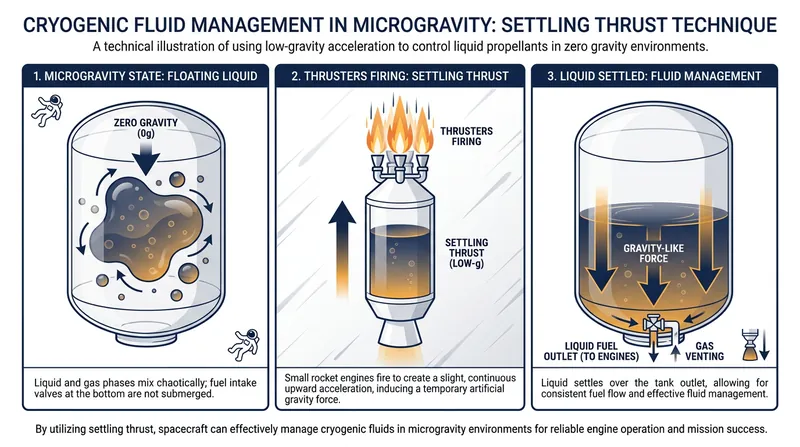

The ingenious solution to this microgravity problem is "settling thrust." Before the transfer begins, the docked spacecraft fire small maneuvering thrusters to accelerate the entire vehicle at a microscopic rate—roughly 0.001G. This tiny amount of artificial gravity is just enough to gently push the floating liquid blobs to the bottom of the tank, covering the intake valves.[4][8]

Once the liquid is properly settled, the actual transfer can begin. The docked vehicles use a carefully managed pressure differential—venting the receiving tank slightly while pressurizing the donor tank—to force the ultra-cold fluid through the umbilical connections and into the mission spacecraft.[5][6][8]

This intricate mechanism is the backbone of NASA's Artemis program architecture. Rather than refueling the crewed lunar lander directly with dozens of tankers, the current strategy utilizes an orbital "propellant depot."[5]

Under this depot architecture, a specialized storage spacecraft is parked in low Earth orbit. Over several weeks, multiple tanker flights launch from Earth, dock with the depot, and offload their cryogenic cargo until the depot is completely full.[2][5]

Finally, the primary mission spacecraft—such as the Human Landing System—launches into orbit. It docks with the fully loaded depot just once, takes on a massive fuel transfer in a single operation, and immediately departs for the Moon.[5]

This approach drastically minimizes the risk to the actual mission vehicle. By consolidating the complex, multi-flight tanker choreography onto an uncrewed depot, the crewed spacecraft avoids the hazards of repeated docking maneuvers and extended loiter times in low Earth orbit.[5][8]

The implications of mastering Cryogenic Fluid Management extend far beyond the immediate goals of the Artemis lunar landings. It represents a structural shift in the economics of space exploration.[1][3]

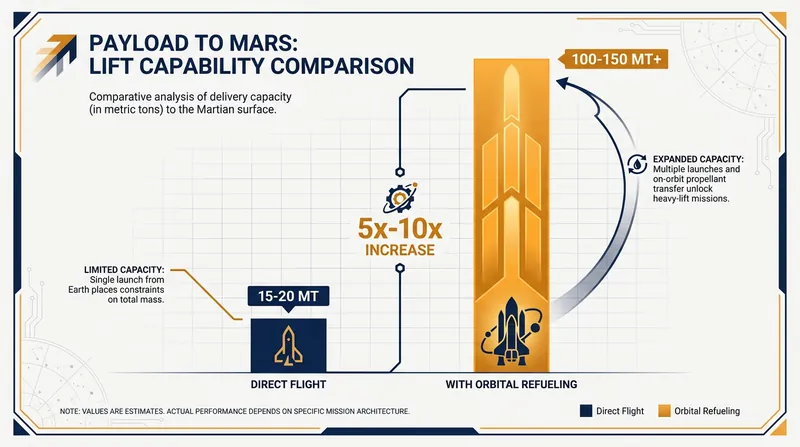

With reliable orbital refueling, a spacecraft can depart Earth orbit with its maximum payload capacity—often exceeding 100 metric tons—rather than sacrificing vital cargo space for transit fuel. This enables the transport of heavy habitats, rovers, and scientific laboratories required for permanent off-world bases.[2][3]

Furthermore, it unlocks the potential for fully reusable interplanetary architectures. A spacecraft can land on Mars, refuel using methane synthesized from the Martian atmosphere, return to Earth, and be refueled again in orbit to fly subsequent missions.[2][8]

As the aerospace industry prepares for the critical orbital transfer demonstrations of 2026, the success of these cryogenic systems will serve as a defining inflection point. Mastering the physics of orbital refueling is the necessary key to transforming humanity into a multi-planetary species.[3][8]
