Chinese Startup Claims Mass Production of Photonic Chips Using Nanoimprint Lithography, Bypassing US Export Controls

A Chinese semiconductor equipment startup has claimed a manufacturing breakthrough that, if verified, could punch a significant hole in the Western export control strategy. Hangzhou-based Prinano announced it has successfully validated the mass production of photonic chips on 8-inch silicon wafers. Crucially, the company claims to have achieved this without using deep ultraviolet (DUV) lithography equipment—the highly restricted, multi-million-dollar machines dominated by Dutch giant ASML.[1]

Instead of relying on conventional optical lithography, Prinano utilized a technique called nanoimprint lithography (NIL). According to the company's technical disclosures, this physical stamping process slashes manufacturing costs to roughly one-tenth of traditional DUV-based methods. By completely bypassing the complex optical projection systems that the United States and its allies have heavily restricted, the development offers a potential alternative pathway for China's domestic semiconductor supply chain.[1]

The geopolitical stakes of this claim are immense. For years, the core of the U.S. strategy to contain China's technological advancement has rested on a single bottleneck: light-based lithography. By restricting the export of ASML's advanced DUV and extreme ultraviolet (EUV) machines, policymakers aimed to cap China's chipmaking capabilities. Prinano's announcement suggests that rather than catching up in optical lithography, Chinese firms are actively engineering workarounds that render those specific choke points irrelevant for certain classes of chips.[1]

To understand the pivot, it helps to look at how modern chips are traditionally made. Conventional lithography is essentially a highly advanced photographic process. DUV and EUV machines use complex, ultra-precise mirrors and lenses to project light through a blueprint, shrinking the circuit pattern and etching it into a light-sensitive chemical layer on a silicon wafer. These optical systems are among the most complex machines ever built by humans, which is why ASML holds a virtual monopoly.

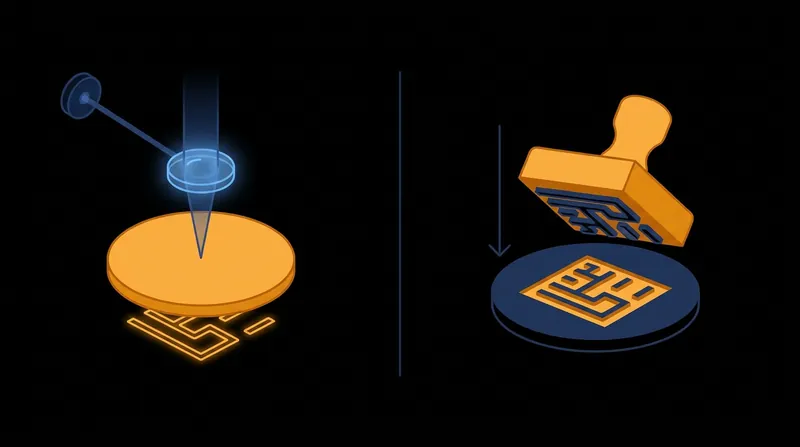

Nanoimprint lithography abandons the light projection entirely. Instead of projecting a pattern, NIL physically presses a nanoscale mold—like a microscopic stamp—directly into a specially prepared polymer resist layer on the wafer. The pattern transfers through physical contact. Because it eliminates the need for extreme light sources and flawless optical lenses, the capital expenditure required to build an NIL machine is a fraction of a DUV system.

Prinano claims its proprietary "PL-AS vacuum air-cushion" system solves several historical problems with the stamping method. Older NIL tools often pressed one small zone of a wafer at a time, which was slow and prone to alignment errors. Prinano asserts that its air-cushion technology applies uniform pressure across the entire 8-inch wafer simultaneously. This full-wafer compression reportedly reduces residual layer thickness variation to below two nanometers, ensuring consistent pattern depth.

The technical specifications claimed by the startup are highly competitive. Prinano reports that its equipment can achieve line-width resolutions below 10 nanometers, with alignment precision tuned to sub-100 nanometer levels. Working in collaboration with Shenzhen Litra Technology, the company transitioned from delivering its first prototype equipment in 2025 to validating actual wafer-scale production this summer.[1]

However, the target of this technology is just as important as the method. Prinano is not claiming to build smartphone processors or AI logic chips. The breakthrough is specifically tailored for photonic chips. Unlike traditional semiconductors that process electrical currents, photonic chips use light to transmit data. They are the foundational hardware for optical fiber communications, automotive LiDAR, and advanced environmental sensors.

Photonic chips are uniquely suited for nanoimprint lithography. The architecture of a photonic chip relies heavily on repeating, uniform structures like waveguides, gratings, and ring resonators. These repetitive geometries are much easier to replicate with a physical stamp than the chaotic, hyper-dense logic gates of a CPU. Furthermore, photonic chips are generally less sensitive to the microscopic defect rates that have historically plagued NIL when applied to logic chips.

This specialization intersects directly with the global artificial intelligence boom. As AI data centers scale to unprecedented sizes, the copper wires connecting thousands of GPUs are hitting physical limits for speed and heat. The industry is rapidly shifting to optical interconnects—using light to link chips together. If a Chinese firm can flood the market with cheap, mass-produced photonic chips, it secures a critical advantage in the invisible plumbing that powers next-generation AI infrastructure.

Despite the strategic elegance of the claim, Western semiconductor analysts are urging deep skepticism. A press release on WeChat is not a verified product, and Prinano has not disclosed any data regarding production volumes, commercial yields, or named customers. Independent third-party validation remains entirely absent, leaving the industry to take the startup's 90% cost-reduction figure as an ambition rather than a proven economic reality.[1]

History provides ample reason for caution. Nanoimprint lithography was widely written off as a dead end for mainstream chipmaking nearly two decades ago. While Japanese giant Canon has recently revived commercial NIL efforts with step-and-repeat systems, the physical realities of stamping at the nanoscale are brutal. Every time the mold touches the wafer, it risks picking up microscopic debris, leading to compounding defect rates and rapid template wear.

Analysts at research firms like SemiAnalysis point out that capital expenditure is only one variable in semiconductor economics. Even if an NIL machine costs one-tenth of a DUV tool, its true cost-effectiveness depends entirely on throughput and mold lifetime. If a multimillion-dollar stamp degrades after a few thousand impressions, the operational costs will quickly erase the initial hardware savings.[2]

Nevertheless, the announcement represents a tangible shift in how the semiconductor war is being fought. Rather than attempting to beat Western incumbents at their own game—a game protected by decades of patents and entrenched supply chains—Chinese firms are increasingly exploring asymmetric technologies. By applying discarded or niche methodologies to specific, high-growth sectors like photonics, they are finding paths of least resistance.[1]

Whether Prinano's 8-inch wafers are currently shipping in volume or are simply a successful laboratory proof-of-concept, the milestone is a clear signal. The global semiconductor landscape is fragmenting, and export controls are acting as a catalyst for parallel technological ecosystems. As the demand for optical computing accelerates, the race to manufacture light may ultimately be won without a single optical lens.
