Breakthrough 3D Silicon Chip Architecture Set to Extend Moore's Law and Reshape Consumer Electronics

For more than half a century, the technology industry has operated on a reliable, predictable metronome known as Moore's Law. By relentlessly shrinking transistors and packing more of them onto flat slices of silicon, engineers have delivered exponential leaps in computing power, transforming room-sized mainframes into pocket-sized smartphones. But that era of easy scaling is drawing to a close. As transistors approach the size of individual atoms, manufacturers are running into the hard physical limits of material science and quantum mechanics. Squeezing components any closer together on a two-dimensional plane is becoming both physically impossible and economically unviable.

To keep the digital revolution moving forward, researchers have realized that the only way left to go is up. In a landmark breakthrough published in the journal Nature, a team of engineers at the University of Illinois Urbana-Champaign has demonstrated a scalable method for stacking high-performance silicon circuits directly on top of one another. Led by materials science professor Qing Cao, the team has successfully built fully functional, three-dimensional silicon chips that stack active transistor layers like floors in a skyscraper.[1]

"Today it takes six microelectronic devices called transistors on a single plane to store one bit of information," Cao explained. "With vertical integration, you can distribute them across multiple layers. It's like replacing a sprawling suburb with high-rises: you get the same functionality, but the spatial footprint is reduced while making communication between layers faster and more efficient."[2]

The concept of vertical integration is not entirely new to the semiconductor industry. Commercial manufacturers already use a form of 3D packaging to stack high-bandwidth memory chips or combine separate processor dies. However, these existing methods rely on fabricating individual chips on separate wafers and then physically bonding them together after the fact. This "chiplet" approach is bulky, limits the density of the connections between layers, and is prone to microscopic alignment errors.[3]

The holy grail of chip design has long been "monolithic 3D integration"—a process where each new layer of transistors is fabricated directly on top of the previous one, on the exact same wafer. This allows for nanoscale alignment and a massive increase in the number of vertical connections. But until now, a fundamental roadblock stood in the way: the thermal budget.[1]

Fabricating high-quality, single-crystalline silicon transistors typically requires baking the wafers at blistering temperatures approaching 1,000 degrees Celsius. In a monolithic 3D process, the first layer of circuits is laid down along with its delicate copper or aluminum wiring. If engineers attempt to bake a second layer of silicon on top of it at 1,000 degrees, the metal interconnects of the bottom layer will melt, destroying the chip.[4]

Previous attempts to solve this heat problem involved using alternative, low-temperature materials for the upper layers, such as carbon nanotubes, metal oxides, or polycrystalline silicon. Unfortunately, these substitute materials consistently underperformed, offering a fraction of the speed and reliability of standard silicon. The resulting hybrid chips were too slow to justify the complexity of 3D manufacturing.[1]

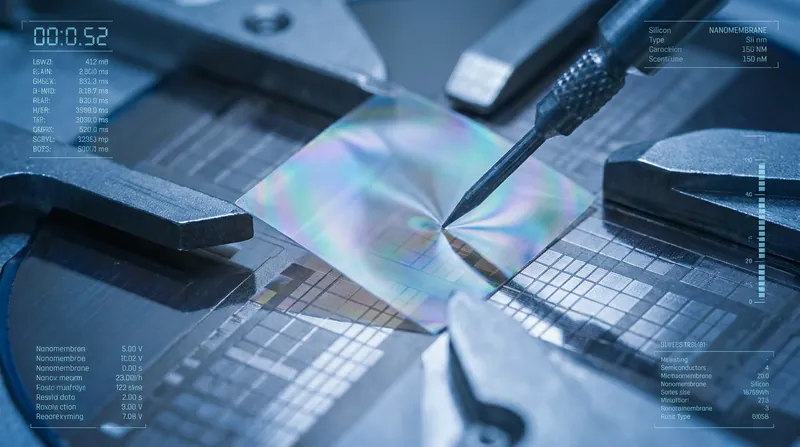

The Illinois team solved this by keeping the industry-standard single-crystalline silicon but completely changing how it is applied. Instead of growing the silicon directly on the chip, they create ultrathin, freestanding silicon "nanomembranes" from a separate donor wafer. These membranes are astonishingly thin—measuring 10 nanometers or less, roughly the size of a large protein.[5]

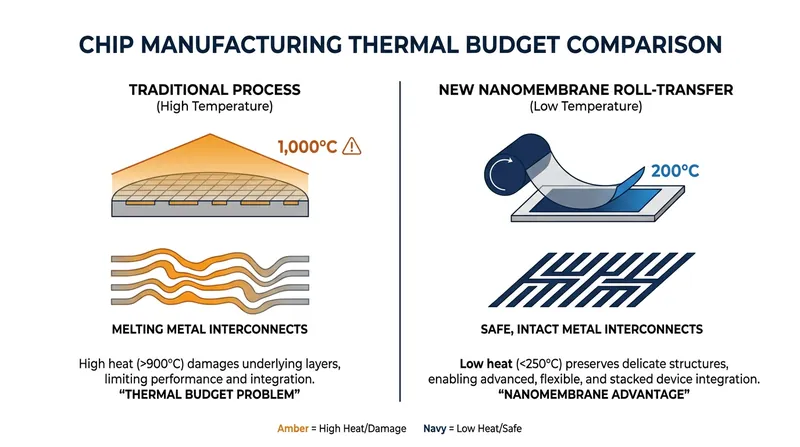

Because the membranes are so thin, they are highly flexible and can conform perfectly to the microscopic topography of the underlying circuit layer. The researchers use a specialized roll-transfer-printing process to laminate these silicon sheets onto the receiving wafer. This bonding process requires temperatures of no more than 200 degrees Celsius, well below the melting point of the metal wiring below.

To further protect the thermal budget, the team utilized "junctionless" transistor designs for the upper tiers. Traditional transistors require high-temperature chemical doping steps to create the junctions that control electrical current. By using uniformly doped nanomembranes, the researchers eliminated the need for these high-heat steps entirely, keeping the maximum processing temperature for the entire stacking procedure under 400 degrees Celsius.[1]

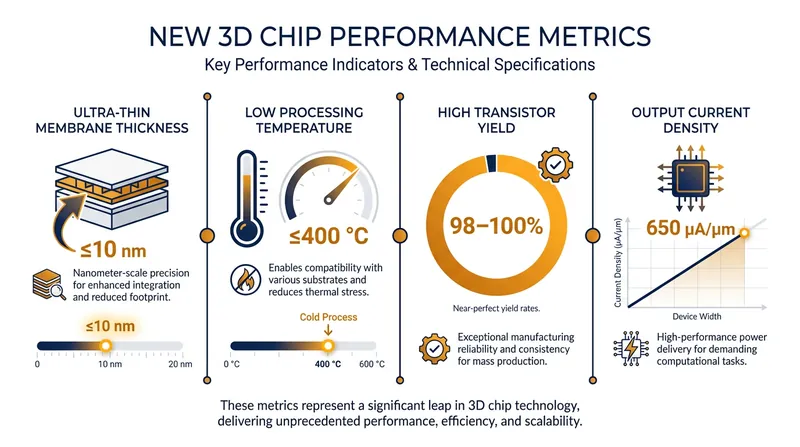

The results of this low-temperature lamination process are unprecedented. The researchers successfully fabricated three stacked layers of active circuitry, with each layer containing 625 transistors. Because they used standard single-crystalline silicon, the top-tier transistors delivered an output current density exceeding 650 microamps per micrometer—matching the performance of conventional, high-temperature silicon devices and outperforming alternative 3D materials by a factor of three to four.[1][3]

Crucially, the manufacturing yield for these stacked devices reached an astonishing 98 to 100 percent. In the semiconductor industry, where a single microscopic defect can ruin an entire processor, achieving near-perfect yields in a laboratory setting is a massive indicator of commercial viability. The team successfully wired these layers together to create functioning 3D logic gates and static random-access memory cells.[3][4]

The implications for performance extend far beyond just saving space. In a traditional flat chip, data must travel horizontally across relatively long microscopic distances, which requires energy and introduces "parasitic capacitance"—a phenomenon that slows down signal speeds. By stacking the circuits vertically, the wiring distances are drastically shortened. This allows data to move between logic and memory blocks with significantly higher bandwidth and a fraction of the power consumption.[5]

This leap in bandwidth and energy efficiency arrives at a critical moment for the technology sector. The explosive growth of artificial intelligence has pushed existing hardware to its absolute limits. Modern AI models require massive amounts of data to be shuttled back and forth between memory and processors, creating a bottleneck known as the "memory wall." Monolithic 3D integration directly addresses this ceiling, offering a physical architecture that can handle the extreme data demands of next-generation AI.

While many academic breakthroughs take decades to reach the market, this 3D silicon architecture is already on a fast track to commercialization. The research was conducted through the Center for Advanced Semiconductor Chips with Accelerated Performance, a National Science Foundation initiative backed by industry heavyweights including IBM, Intel, and the Taiwan Semiconductor Manufacturing Company.

With the fundamental physics and thermal challenges solved, the Illinois team is now preparing to transfer their roll-printing process to an industrial semiconductor foundry. If the technique scales successfully to mass production, it could fundamentally rewrite the roadmaps for consumer electronics.[3]

For the average consumer, the arrival of monolithic 3D chips will translate to a noticeable leap in everyday technology. Smartphones will be able to process complex on-device AI tasks instantly without draining the battery, laptops will run cooler while delivering desktop-tier performance, and wearable devices will gain unprecedented computational power without increasing in size.[2]

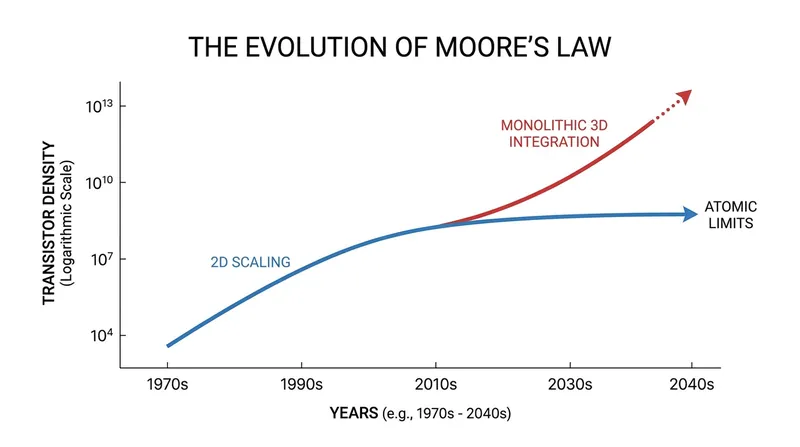

Most importantly, this breakthrough proves that the death of Moore's Law has been greatly exaggerated. While the era of shrinking transistors on a flat plane may be ending, the era of building upward has just begun. By turning the sprawling suburbs of silicon into densely packed skyscrapers, engineers have ensured that the exponential growth of computing power will continue for decades to come.[2]
