ASML Unveils 1000W EUV Light Source, Paving Way for 50% More Chips by 2030

The global semiconductor industry has been racing against the physical limits of light, but a new engineering milestone promises to fundamentally alter the economics of chipmaking. Dutch equipment giant ASML has successfully validated a proof of concept for a 1,000-watt extreme ultraviolet (EUV) light source, shattering previous power constraints. The breakthrough, confirmed by the company's lead technologists, marks a pivotal moment in the ongoing hardware race that underpins the artificial intelligence boom. By drastically increasing the raw power of the light used to print microscopic transistors, ASML is paving the way for a massive leap in manufacturing efficiency.[2][6]

To understand the magnitude of this achievement, one must look at the current bottlenecks in advanced silicon fabrication. Today, the most sophisticated EUV scanners operate at a maximum of 600 watts. This power cap limits the machines to processing approximately 220 silicon wafers per hour. As the demand for sub-2-nanometer architectures and complex AI accelerators explodes, foundries have been forced to build entirely new, multi-billion-dollar cleanroom facilities just to scale up their production volume. The industry has been desperate for a way to squeeze more output from existing infrastructure.[3]

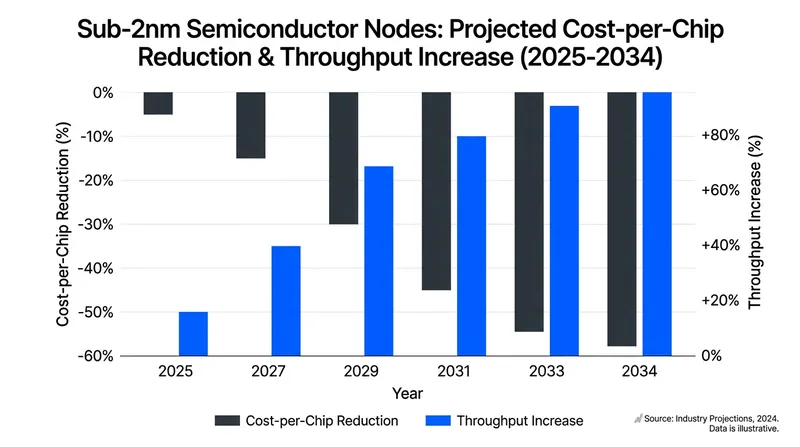

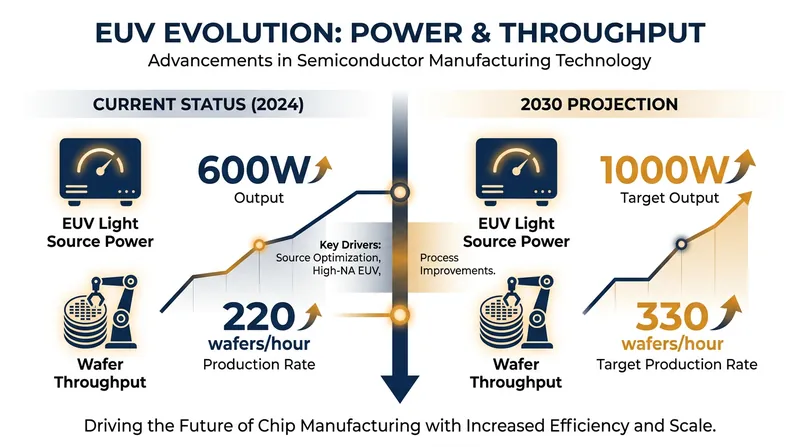

By pushing the EUV light source to a full kilowatt, ASML projects that foundries will be able to process roughly 330 wafers per hour by the end of the decade. This represents a staggering 50 percent increase in throughput per machine. For semiconductor manufacturers, this means they can dramatically increase their chip output without expanding their physical footprint. The ability to print 50 percent more chips in the same amount of time directly lowers the cost-per-chip, ensuring that the next generation of computing power remains economically viable for consumers and enterprise data centers alike.[1]

Generating 13.5-nanometer EUV light is widely considered one of the most complex engineering feats in human history. Because extreme ultraviolet light is absorbed by almost all matter—including air—the entire process must take place inside a near-perfect vacuum. The light is then collected and directed through a series of ultra-smooth, precision mirrors supplied by the German optics firm Carl Zeiss AG. These mirrors bounce the light onto a silicon wafer coated with specific light-sensitive chemicals, essentially "drawing" the incredibly tiny patterns that form the brain of a modern computer chip.[4][6]

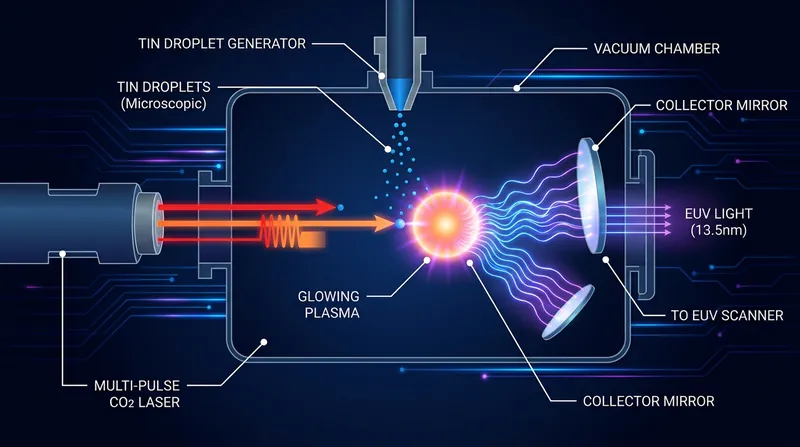

The actual creation of the light relies on a mind-bending manipulation of molten metal. Inside the machine's vacuum chamber, a specialized generator fires a continuous stream of microscopic tin droplets. A high-power carbon dioxide laser is then fired at these falling droplets, striking them in mid-air. The intense heat of the laser instantly vaporizes the tin, turning it into a superheated plasma. It is this glowing plasma that emits the crucial 13.5-nanometer EUV radiation required to print the industry's most advanced transistor nodes.[2][4]

To achieve the 1,000-watt threshold, ASML engineers had to radically accelerate and refine this already extreme process. The most significant architectural change involved the tin droplet generator. The system now fires approximately 100,000 tin droplets per second—nearly double the rate of the current 600-watt machines. Hitting 100,000 microscopic moving targets every second with a high-powered laser requires a level of precision and synchronization that pushes the absolute boundaries of modern physics and control systems. Managing the resulting debris and thermal load from this increased firing rate also required completely new impurity collection devices to protect the delicate wafer pellicles from contamination.[6]

Beyond simply firing more tin, the breakthrough relies on a sophisticated multi-pulse laser shaping technique. Rather than hitting the tin with a single, massive blast of laser energy, the new architecture employs a sequence of carefully timed pulses. This approach maximizes the conversion efficiency of the tin into plasma, ensuring that more of the laser's energy is translated into usable extreme ultraviolet light rather than wasted heat. This nuanced manipulation of the laser bursts is what finally allowed the engineers to cross the kilowatt threshold without destroying the internal components of the vacuum chamber.[3]

The exact sequence of this multi-pulse method is a marvel of microscopic choreography. According to technical disclosures, the process begins with a one-micron pre-pulse that strikes the spherical tin droplet, flattening it into a pancake shape. This is immediately followed by a rarefaction pre-pulse that expands and thins the material. Finally, the main ten-micron carbon dioxide laser burst ignites the flattened tin, converting the optimized surface area into a brilliant flash of EUV plasma. This three-step dance happens 100,000 times per second.

While laboratory records are common in the semiconductor industry, ASML stresses that this is a production-ready architecture. Michael Purvis, ASML’s lead technologist for EUV light sources, emphasized that the achievement is fully prepared for industrialization. "It's not a parlor trick or something like this, where we demonstrate for a very short time that it can work," Purvis noted. He confirmed that the system can sustain the 1,000-watt output under all the rigorous reliability and uptime requirements that commercial foundries demand for high-volume manufacturing.[1][4]

For semiconductor giants like TSMC, Samsung, and Intel, the economic implications of this sustained power are profound. The primary bottleneck in the AI era is physical manufacturing capacity. Building a new leading-edge fabrication plant costs upwards of $20 billion and takes several years to complete. By increasing the throughput of individual EUV scanners by 50 percent, foundries can dramatically scale their output within their existing cleanroom facilities. This raw power scaling is viewed as the most viable path to keeping Moore's Law alive in the face of skyrocketing transistor counts.[3]

The financial sector has reacted highly positively to the technological moat this creates for ASML. Wall Street analysts have reiterated strong buy ratings, noting that the productivity jump significantly strengthens the company's value proposition to chipmakers. Because these "Productivity Enhancement Packages" offer such a profound return on investment for foundries, ASML commands immense pricing power. The technological leap virtually guarantees high adoption rates for the upcoming Twinscan NXE:4000 series and High-NA systems, securing the company's revenue pipeline and capital expenditure efficiency well into the 2030s.[5][6]

The 1,000-watt milestone also serves as a critical strategic bulwark in the ongoing global tech war. While ASML remains the sole global manufacturer of commercial EUV machines, it faces intensifying geopolitical friction and strict export restrictions that prevent its most advanced tools from being sold to China. In response, nations are racing to develop sovereign lithography alternatives. Chinese firms, led by Huawei, are heavily subsidizing domestic EUV research, attempting to build a homegrown AI supply chain to bypass foreign technology restrictions.[2]

Simultaneously, ASML faces theoretical competition from Western startups attempting to rewrite the lithography rulebook. Companies like the U.S.-based Substrate are exploring entirely different physics, such as using particle accelerators to generate shorter-wavelength X-rays, claiming potential cost advantages. However, by continuously moving the technological goalposts and proving that traditional laser-produced plasma can scale to a full kilowatt, ASML makes it exponentially harder for these heavily funded rivals to ever catch up or offer a compelling economic alternative to established foundries.[2]

Integrating this immense power into commercial fabrication plants will not happen overnight. The 1,000-watt light source requires entirely new wafer and reticle stages to handle the increased speed, as well as upgraded resists and protective pellicles capable of withstanding the intense radiation. ASML is currently working with the broader semiconductor supply chain to prepare these ancillary technologies. The market expects the kilowatt upgrade to primarily target the upcoming Twinscan NXE:4000 series and the next-generation High-NA EUV models, which are slated for high-volume manufacturing later this decade.

Looking ahead, ASML is already setting its sights beyond the one-kilowatt mark. The company's engineering teams have stated there is a reasonably clear path toward 1,500 watts, and theoretically no fundamental physics barrier preventing a 2,000-watt source. As artificial intelligence models grow exponentially larger and demand ever-more-powerful silicon, this relentless scaling of extreme ultraviolet light ensures that the semiconductor industry will have the manufacturing muscle required to power the digital economy well into the next decade. The photon bottleneck has been broken, and the hardware race accelerates.[1]
