ANSI FL1 Standards: How Lumen Output, Beam Distance, and Runtime Define a Headlamp's True Performance

Like the EPA’s highway fuel economy ratings for vehicles, the ANSI/PLATO FL1 standard provides a unified testing protocol so buyers can compare products side-by-side [1][2]. But where a car's MPG rating describes its sustained performance, a headlamp's FL1 runtime rating only measures how long it takes to die to 10% of its initial brightness [3]. This single metric dictates how manufacturers design their internal power drivers, forcing a choice between consistent visibility and marketing-friendly battery life [5]. Understanding how these numbers are generated is the only way to predict how a headlamp will actually perform on a dark trail. For consumers navigating a saturated market of outdoor gear, understanding the nuances of this protocol is the difference between buying a reliable tool and falling for a clever technicality.[1][2][3][5]

Before 2009, flashlight and headlamp manufacturers could test their products however they wanted, leading to a chaotic retail environment [6]. One company's 500-lumen claim might be measured fresh off the production line at peak output, while another measured after 30 seconds of runtime [4]. The National Electrical Manufacturers Association (NEMA) fixed that by publishing the ANSI/NEMA FL 1-2009 standard, which established six core metrics: light output, peak beam intensity, beam distance, runtime, impact resistance, and water resistance [4][6]. This voluntary framework was rapidly adopted by major outdoor brands, transforming how portable lighting is marketed and sold globally. Prior to this, consumers had no reliable way to know if a budget headlamp was genuinely outperforming a premium model or simply using a more generous testing methodology.[4][6]

The shift exposed how inflated early marketing claims had become. "For old models of lamps produced before 2010... the luminous flux was calculated according to the specifications provided by the LED manufacturer," notes Fenix in its standard documentation [4]. "However, every lamp has certain losses in the optical system... Therefore, the previously stated calculated values may differ by up to approx. 30% compared to the values measured according to the ANSI FL 1 standard" [4]. By forcing brands to measure light out the front of the lens rather than at the emitter, the standard leveled the playing field. This 30% optical loss is a critical factor; the lens, reflector, and thermal management system all absorb or dissipate energy before it ever reaches the trail.[4]

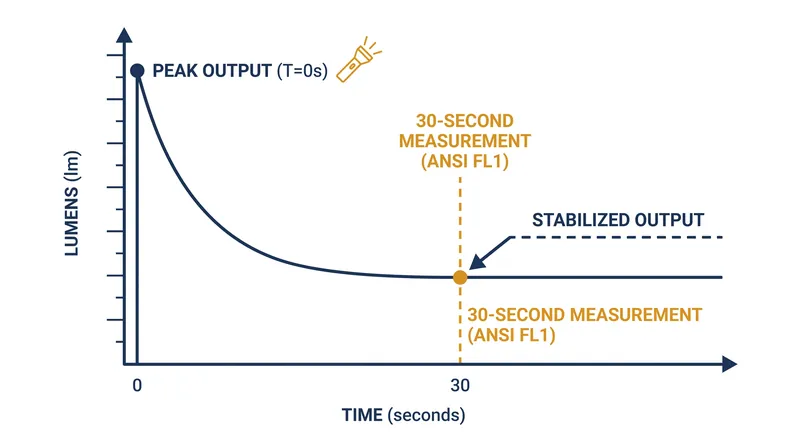

Under the FL1 protocol, light output is measured in an integrating sphere exactly 30 seconds after the device is turned on [1]. This delay accounts for the initial voltage sag and thermal throttling that occurs when a high-powered LED is first ignited [3]. A headlamp that blasts 1,000 lumens at startup but drops to 600 lumens by the 30-second mark to prevent overheating will be officially rated at 600 lumens [2][5]. This prevents manufacturers from advertising a split-second burst of brightness as the device's primary capability, ensuring the lumen rating reflects a stabilized output. This 30-second window is crucial for modern compact headlamps, which often lack the surface area to dissipate heat efficiently and must step down their power draw almost immediately.[1][2][3][5]

Beam distance is calculated from peak beam intensity, measured in candela, rather than total lumens [1]. The standard defines beam distance as the point where the light intensity falls to 0.25 lux—roughly the brightness of a full moon on a clear night [1][2]. Because the calculation uses the square root of candela divided by 0.25, doubling the beam distance requires four times the candela [5]. A 10,000-candela beam reaches 200 meters, while a 40,000-candela beam reaches 400 meters, forcing manufacturers to choose between a wide floodlight for camp tasks and a narrow spotlight for route finding [5]. This mathematical reality explains why a headlamp with a massive lumen count might still fail to illuminate a distant tree line if its optics scatter the light too widely.[1][2][5]

The most contested metric remains runtime [3]. The FL1 standard defines runtime as the continuous period from the 30-second mark until the light output drops to exactly 10% of its initial value [1][4]. This 10% threshold means the runtime number printed on the retail package is not how long the light stays at full brightness, but how long it produces at least a fraction of its starting output [3]. For a 300-lumen headlamp, the clock stops ticking only when the output falls below 30 lumens, which can take hours of slow dimming. Critics argue this allows for deceptive marketing, as a user might be left with a dim, barely usable beam for the majority of the advertised battery life.[1][3][4]

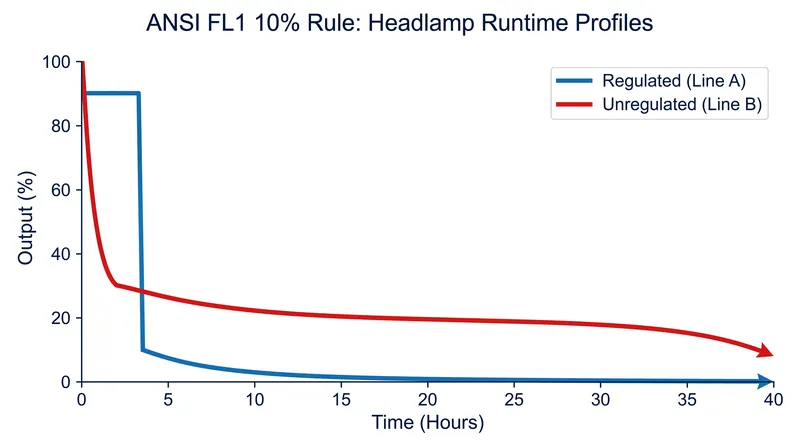

This creates a massive divergence in real-world performance [2]. Two headlamps can both claim a 40-hour runtime with entirely different behaviors [3]. One might hold 90% output for 3.5 hours and then shut off completely, providing excellent visibility until the battery dies [5]. The other might drop to 30% in the first hour and coast at a low output until the 40-hour mark, maximizing the FL1 rating at the expense of usable light [3]. Both comply with the standard, but they serve completely different users in the backcountry [2][5]. A trail runner needs the regulated 3.5-hour output to avoid tripping over roots, while a backpacker might prefer the 40-hour unregulated coasting to ensure they have some light left for reading in the tent.[2][3][5]

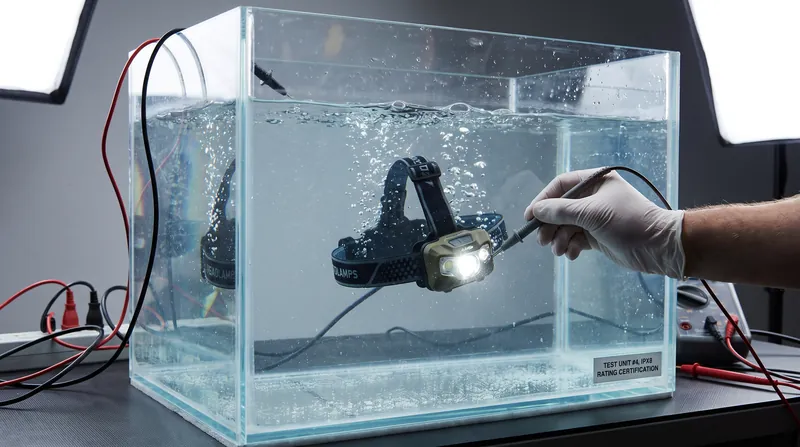

The standard also standardizes durability to ensure gear survives outdoor use [1]. Impact resistance requires the light to survive six drops onto cured concrete from a rated height without cracking [4]. Water resistance uses the IPX system, where IPX4 indicates splash resistance, IPX7 requires a 30-minute submersion at 1 meter, and IPX8 requires continuous submersion [1][4]. Stewardship of the standard moved to the Portable Lights American Trade Organization (PLATO) in 2016, renaming it ANSI/PLATO FL 1, ensuring the protocol keeps pace with modern LED capabilities and battery chemistries [1][6]. As the industry pushes toward higher outputs and smaller form factors, these standardized metrics remain the only objective baseline for evaluating whether a headlamp's true performance matches its packaging.[1][4][6]
