40°F, 4.0 Volumes of CO2, and a 5:1 Syrup Ratio: The Calibration That Defines Fast-Food Fountain Soda

A paper cup sweating through your grip on a July afternoon promises a specific, sharp bite, but that bite depends entirely on a thermal ceiling. If the water flowing through a restaurant's beverage lines breaches 40 degrees Fahrenheit, the entire chemical structure of the drink fails. Carbon dioxide, the gas responsible for the aggressive fizz that cuts through a heavy meal, refuses to stay dissolved in warm liquid. Without that deep chill, the gas escapes the moment it hits atmospheric pressure, leaving behind a dead, syrupy liquid that no amount of ice can resurrect.[2]

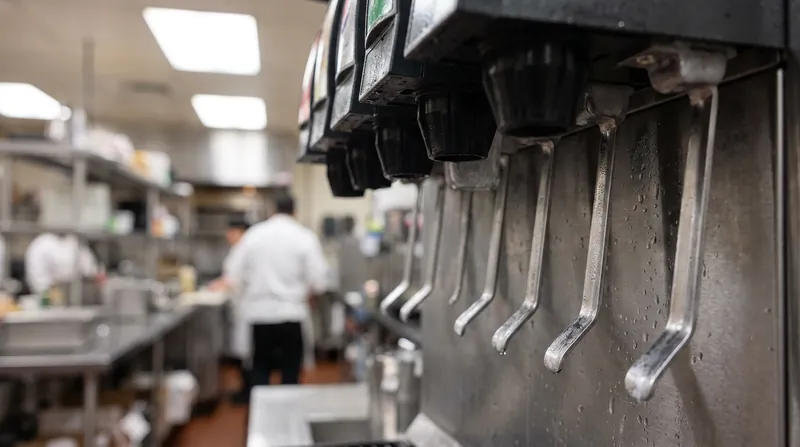

The foundation of the fountain system is the Brix ratio, an industry metric that dictates the exact proportion of purified water to concentrated flavor. According to Donastar's 2021 technical guidelines, the overwhelming majority of traditional, sugar-sweetened sodas require a strict 5:1 ratio—five parts carbonated water to one part syrup. This is not a suggestion; it is the precise dilution rate formulated by beverage companies to ensure a cola poured in a Georgia drive-thru tastes identical to one poured in a Tokyo cinema.[3]

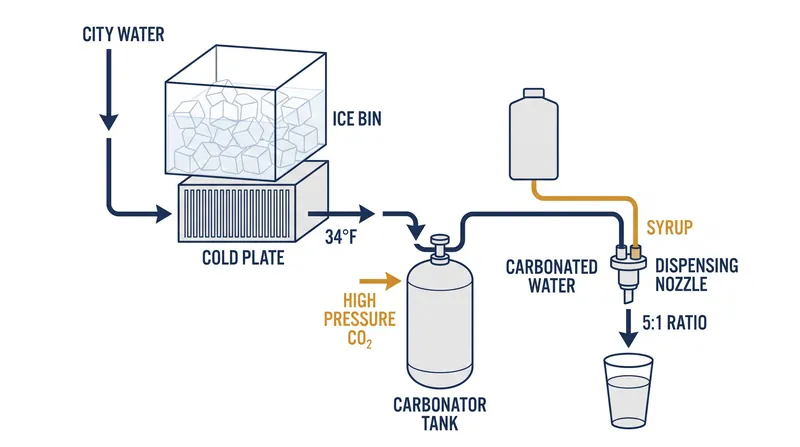

Before the water ever meets the syrup at the dispensing nozzle, it must be violently infused with gas. Inside a stainless steel carbonator tank, a high-pressure pump forces chilled water into a chamber filled with CO2. The University of Florida’s Institute of Food and Agricultural Sciences (IFAS) notes in its 2024 beverage guide that achieving the standard commercial carbonation level—roughly 4.0 volumes of CO2—requires specific pressure settings calibrated against the water's temperature. "The colder the water, the more carbon dioxide it can absorb," the IFAS researchers explain, highlighting the inverse relationship that governs the entire process.[1]

Maintaining that chill is an operational hurdle. Bernick's, a major beverage distributor, points out that the optimal water temperature for a fountain system sits between 34°F and 38°F. To achieve this, modern dispensers utilize a cold plate—a heavy block of cast aluminum embedded with stainless steel tubing, which sits directly beneath the machine's ice bin. As ice melts, it chills the plate, which in turn cools the incoming city water just seconds before it reaches the nozzle.[2]

That ice does more than cool the hardware; it is a calculated ingredient in the final cup. Fast-food operators calibrate their 5:1 syrup ratios with the expectation that the cup will be filled with ice. As the ice melts during the consumer's meal, it provides a secondary dilution. SC Beverage's technical breakdown emphasizes that when a machine's calibration drifts—often due to fluctuating municipal water pressure or a failing regulator—the resulting drink becomes either aggressively sweet or harshly acidic, ruining the intended flavor profile.

The equipment managing this delicate balance has evolved significantly to handle high-volume environments. Innovative Cooling Inc. (ICI), which manufactures rapid chilling systems, details how their 2024 "SODA FAST" technology circulates a glycol bath to maintain the water lines at a constant 34°F, even during peak lunch rushes when the system is dispensing gallons per minute. This continuous chilling prevents the "warm draw"—the phenomenon where the first drink poured after an idle period tastes flat because the water sitting in the ambient lines warmed up.[4]

Despite the precision of the hardware, the human element remains the greatest variable in the equation. Syrup lines must be flushed, nozzles soaked, and water filters replaced to prevent mineral buildup from altering the water's taste. A perfectly calibrated 5:1 ratio and 4.0 volumes of CO2 mean nothing if the municipal water supply carries a heavy chlorine load or if the syrup boxes are stored in a hot utility closet.[2]

The next time you press a plastic lid onto a paper cup, the sharp hiss of escaping gas is the sound of a successful thermal and chemical equation. The margin for error is razor-thin. If the cold plate warms by just five degrees during a lunch rush, the CO2 breaks suspension, the syrup dominates the palate, and the signature bite of a fountain soda vanishes before it ever reaches the straw.[1][2]
