How Bimodal Grind Distributions Build the Structural Resistance Required for 9-Bar Espresso

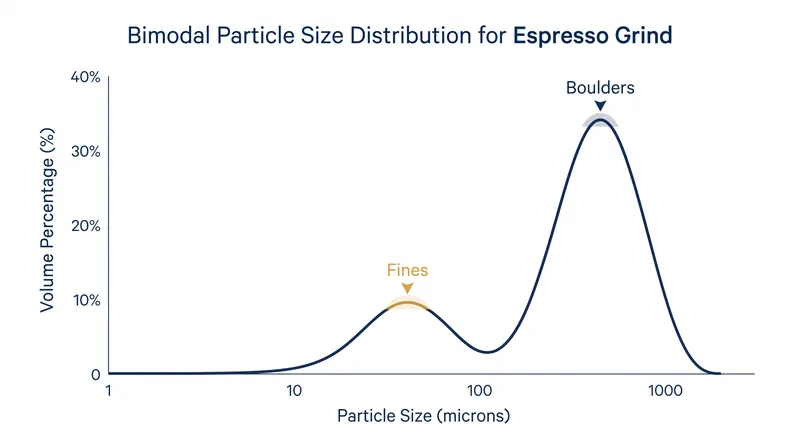

Inside a materials characterization lab at the University of Oregon in April 2023, a laser diffraction analyzer scattered a red beam through a suspended sample of ground Ethiopian coffee. The machine mapped a microscopic landscape of jagged cellulose, plotting the exact size of millions of particles on a logarithmic curve. The resulting graph did not show a single, neat bell curve of uniform grounds. Instead, it revealed two distinct peaks: a massive mountain of larger particles and a secondary, sharp spike of microscopic dust.

The specialty coffee industry long chased the theoretical ideal of a perfectly uniform grind, assuming that identical particles would extract at identical rates. But when researchers began analyzing the physical mechanics of a high-pressure extraction, they discovered that uniformity actually destroys the shot. This dual-peak pattern, known as a bimodal distribution, is the hidden architectural foundation of modern espresso.[2]

Espresso is defined by pressure. A standard machine forces water through a compacted puck of coffee at 9 bars—roughly 130 pounds per square inch. If the coffee grounds are perfectly uniform, the water simply pushes them apart, finding the path of least resistance in a phenomenon known as channeling. The water rushes through these localized channels in seconds, leaving the rest of the puck dry and under-extracted.

To resist that immense pressure, the coffee puck requires structural integrity. This is where the bimodal distribution becomes critical. The larger particles, typically measuring between 400 and 600 microns, act as the structural bricks of the puck. The microscopic particles, known as fines and measuring under 100 microns, act as the mortar.[1][2]

As pressurized water hits the puck, it forces these microscopic fines downward until they wedge into the gaps between the larger boulders. This migration creates a dense, semi-permeable barrier that restricts water flow, building the necessary back-pressure to maintain 9 bars. "The bimodal nature of coffee grinding is not a defect, but a structural requirement for high-pressure extraction," notes the 2023 Scientific Reports analysis.

This mechanical requirement explains the enduring debate between conical and flat burr grinders. Conical burrs, which crush beans through a cone-shaped pathway, naturally produce a wider bimodal distribution with up to 32% fines by volume. This makes them highly forgiving; the abundant fines easily pack into a resistant puck, producing the thick, viscous shots associated with traditional Italian espresso.[1]

Flat burrs, which shear beans between two parallel rings, produce a much tighter distribution with only about 18% fines. While this uniformity increases flavor clarity by preventing the over-extraction of microscopic dust, it removes the structural mortar. To compensate for the lack of fines and prevent channeling, baristas using flat burrs must grind the entire dose significantly finer, shifting the primary boulder peak closer to 300 microns.[1][2]

The laser diffraction data proves that the perfect espresso grind is not a uniform one. It is a carefully engineered mixture of structural boulders and flow-restricting dust. By understanding this bimodal architecture, baristas can manipulate burr geometry and particle distribution to control exactly how water navigates the puck, transforming a chaotic high-pressure environment into a precise extraction.[2]
