The 9-Bar Maximum: How 1940s Spring-Lever Engineering Established the Global Standard for Espresso Extraction

Early 20th-century steam-powered coffee machines relied on the brute force of boiling water to push liquid through roasted grounds, maxing out at roughly 1.5 to 2 bars of pressure and leaving a thin, bitter, scorched liquid in the cup. The 1947 spring-lever machine changed one crucial variable: it decoupled the pressure from the water temperature. By using a heavy steel spring to drive a piston, a barista could force water through the coffee bed at a massive 9 bars of pressure while keeping the water temperature well below the boiling point.[2][3]

That single mechanical shift transformed the sensory experience of drinking coffee. Instead of a harsh, watery brew, the immense pressure emulsified the insoluble oils and carbon dioxide trapped inside the roasted beans. The result was a thick, hazelnut-colored foam that floated on top of a viscous, highly concentrated liquid. Achille Gaggia famously marketed this new beverage as "crema caffè naturale"—natural coffee cream—forever changing the global expectation of what a premium coffee should look and taste like.[2][6]

The journey to that golden foam began in the bustling cafés of 1930s Milan. Achille Gaggia, a café owner frustrated with the bitter, burnt taste of steam-brewed coffee, began experimenting with alternative extraction methods. The fundamental engineering problem was that steam pressure is inextricably linked to temperature. To generate more pressure in a sealed boiler, the water must be heated hotter. By the time a machine generated even 2 bars of pressure, the water was well over 100°C (212°F), effectively scalding the delicate coffee grounds before the extraction even began.[2][3][6]

Gaggia realized that to extract the optimal flavors, the water needed to hit the coffee bed at roughly 90°C (194°F), but with significantly more force than steam alone could provide. His early 1938 patent utilized a screw-piston mechanism, which required the barista to manually crank the pressure. It was a step in the right direction, but it was physically exhausting and inconsistent from shot to shot, relying entirely on the individual strength of the operator.[2][6]

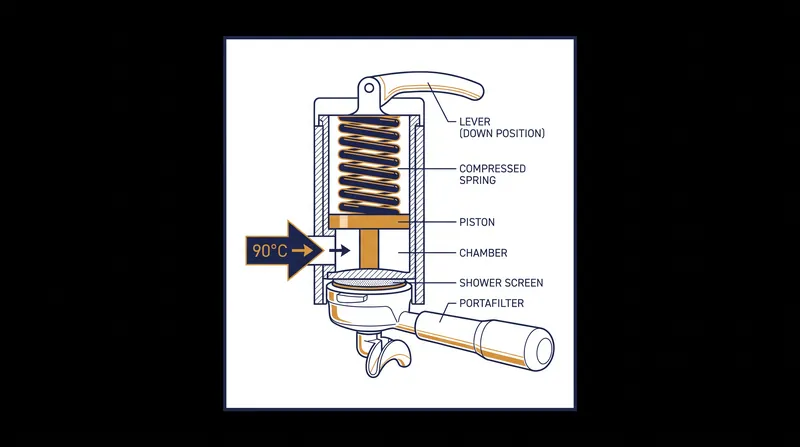

The true breakthrough arrived in 1947 with the introduction of the spring-piston lever mechanism. Instead of relying on steam or a manual screw, this design utilized a massive, tightly coiled steel spring housed inside the brew group. The barista's job shifted from generating the pressure to merely loading the spring. By pulling a long external lever downward, the barista compressed the spring and simultaneously opened a valve, allowing hot water from the boiler to flood the chamber above the coffee grounds.[1][2][7]

When the barista released the lever, the magic happened. The heavy steel spring expanded, driving a piston downward and forcing the trapped water through the tightly packed bed of finely ground coffee. This mechanical action generated a peak pressure of approximately 9 bars—roughly 130 pounds per square inch (PSI). Because the force was provided entirely by the spring, the water temperature could be independently regulated by the boiler, solving the scorching problem that had plagued the industry for half a century.[1][4]

The specific figure of 9 bars was not the result of a calculated chemical optimum or a rigorous scientific study of flavor extraction. As analysts at Clive Coffee have noted, it was largely "Espresso's Greatest Accident." The 9-bar peak was simply the physical limit of the commercial steel springs available in post-war Italy, balanced against the maximum physical force a human barista could comfortably exert to compress that spring hundreds of times a day in a busy café.[4][7]

At 9 bars of pressure, water behaves differently. It forces its way through the dense puck of coffee in about 25 to 30 seconds, a rapid extraction time that gave "espresso" (meaning pressed out, or fast) its modern identity. The intense pressure acts as a solvent, aggressively stripping the soluble flavor compounds from the cellular structure of the bean while simultaneously emulsifying the lipids. This rapid, high-pressure extraction captures the bright, volatile aromatics before the harsher, bitter tannins have time to dissolve.[1][5][7]

As Gaggia's spring-lever machines proliferated across Italian espresso bars in the 1950s, the distinctive 9-bar extraction profile became the de facto definition of the beverage. Customers learned to look for the thick crema as a visual guarantee of quality. Competing manufacturers were forced to adapt, abandoning their steam-driven designs to develop their own high-pressure systems to meet the new consumer demand for crema-topped coffee.[2][3]

The next major evolution occurred in 1961 with the release of the Faema E61, a machine that replaced the mechanical spring with an electric rotary pump. When Faema's engineers designed the pump, they didn't start from scratch to find a new optimal pressure. Instead, they calibrated the electric pump to exactly mimic the 9-bar peak of Gaggia's spring levers, ensuring the resulting coffee would match the taste and texture that Italians had come to expect.[3][7]

That engineering decision cemented 9 bars as the unquestioned global standard for espresso. For the next six decades, virtually every commercial and high-end home espresso machine was factory-calibrated to hit exactly 9 bars of pressure. The standard became so entrenched that generations of baristas and roasters built their entire extraction theories, grind size recommendations, and roast profiles around that specific mechanical constant.[5][7]

However, modern coffee science is beginning to question the absolute necessity of the 9-bar rule. With the advent of variable-pressure machines, researchers and baristas can now test extractions at any pressure they choose. What they are finding is that 9 bars, while excellent for producing voluminous crema, is not always the most efficient or forgiving way to extract flavor from a coffee bean.[5][7]

At 9 bars of pressure, the water hits the coffee puck with immense violence. This high force often leads to "channeling"—a phenomenon where the water finds microscopic weak points in the coffee bed and carves a path of least resistance, over-extracting the coffee along that channel while leaving the rest of the puck under-extracted. This results in a shot that is simultaneously bitter and sour.[1][5]

Recent insights from institutions like the Espresso Academy suggest that lowering the peak pressure to 6 or 7 bars can actually produce a superior cup. At 6 bars, the water flows more gently through the coffee bed, significantly reducing the risk of channeling. The extraction is more even, yielding a sweeter, softer, and more balanced flavor profile, particularly when brewing lighter, denser roasts that are popular in modern specialty coffee.[5][7]

The trade-off for this lower-pressure approach is visual. A 6-bar extraction typically produces slightly less crema than a traditional 9-bar shot, as there is less force available to emulsify the oils and trap the carbon dioxide. For traditionalists, a thinner crema is a sign of a flawed shot, but for modern extraction innovators, it is a worthwhile sacrifice for a sweeter, more articulate flavor profile.[5][7]

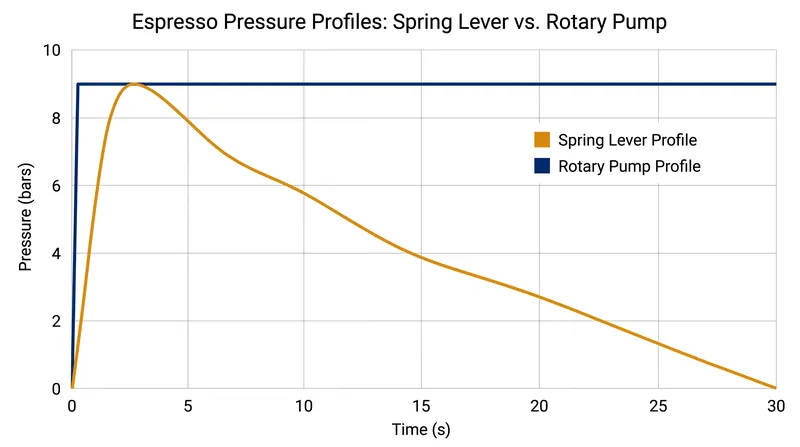

Interestingly, the original spring-lever machines naturally incorporated a form of variable pressure. Unlike a rotary pump that hits 9 bars and stays there, a spring lever hits its 9-bar peak at the very beginning of the extraction and gradually declines in pressure as the spring expands and the shot progresses. This declining pressure profile—starting high to saturate the puck and tapering off to prevent over-extraction—is now highly sought after and digitally replicated by the most advanced modern espresso machines.[1][4]

Today, the coffee industry exists in a fascinating transition period. While cutting-edge cafés experiment with 6-bar extractions and digitally controlled pressure profiling, the vast majority of the world's espresso is still brewed at exactly 9 bars. It remains the universal baseline, the starting point from which all other variables—grind size, dose, and yield—are adjusted.[5][7]

The next time you watch a barista lock a portafilter into a gleaming modern machine and press a button, consider the invisible forces at work. The thick crema and intense flavor cascading into the cup are not the result of a flawless chemical equation. They are the enduring echo of a 1940s Italian spring, a brilliant mechanical workaround that accidentally perfected the way the world drinks coffee.[2][4][7]
