100,000 P/E Cycles vs. 1,000 P/E Cycles: How NAND Cell Structure Dictates SSD Lifespan and Cost

The lifespan of a solid-state drive is not measured in years, but in program/erase (P/E) cycles. Every time data is written to a NAND flash memory cell, a high voltage is applied to force electrons through an insulating oxide layer into a floating gate, where they are trapped to represent data [1]. To erase the data, an even higher voltage pulls the electrons back out [2]. This process physically degrades the oxide layer. Eventually, the layer becomes so damaged that it can no longer reliably trap electrons, and the cell fails [3].[1][2][3]

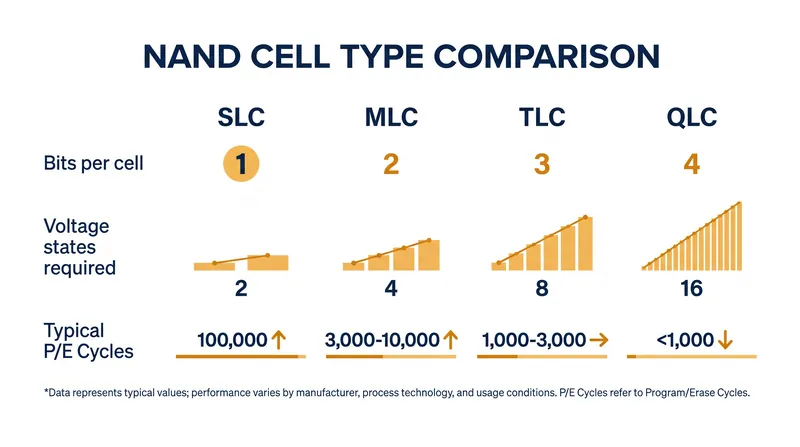

The number of P/E cycles a drive can survive before this failure occurs is entirely dependent on how the manufacturer chose to store the data. The fundamental trade-off in SSD engineering is between density and endurance, and it is governed by the number of voltage states a single cell is asked to hold [4].[4]

In a Single-Level Cell (SLC) drive, each memory cell stores exactly one bit of data: a 0 or a 1 [4]. The drive only needs to distinguish between two voltage states—empty or full [5]. Because the margin for error is so wide, the oxide layer can degrade significantly before the drive misreads the cell. As a result, SLC drives boast an endurance of roughly 100,000 P/E cycles [2]. They are the most durable, the fastest, and the most expensive drives on the market, reserved almost exclusively for enterprise servers and industrial applications where constant, heavy write workloads are the norm [3].[2][3][4][5]

To lower costs and increase capacity, manufacturers developed Multi-Level Cell (MLC) technology, which stores two bits of data per cell [4]. This requires the drive to distinguish between four distinct voltage states [5]. The margin for error shrinks, meaning the cell cannot tolerate as much physical degradation before a read error occurs. MLC endurance drops to between 3,000 and 10,000 P/E cycles [2]. This was the standard for early consumer SSDs, offering a balance of price and longevity [3].[2][3][4][5]

The consumer market then shifted to Triple-Level Cell (TLC) NAND, which stores three bits per cell [4]. This requires eight voltage states [5]. The precision required to read and write these eight states is immense, and the tolerance for oxide degradation is correspondingly low. TLC drives typically survive between 1,000 and 3,000 P/E cycles [2]. Despite this massive drop in endurance compared to SLC, TLC became the dominant technology for consumer drives because it dramatically lowered the cost per gigabyte, and 1,000 P/E cycles is still sufficient for the average user who mostly reads data (like loading an operating system or a game) rather than constantly writing it [3].[2][3][4][5]

The current frontier of cost reduction is Quad-Level Cell (QLC) NAND, storing four bits per cell [4]. This requires the drive to manage 16 distinct voltage states within the same microscopic floating gate [5]. The endurance penalty is severe: QLC drives are generally rated for fewer than 1,000 P/E cycles, often hovering around the 100 to 1,000 cycle mark depending on the specific manufacturing process and the quality of the controller [2].[2][4][5]

The industry is already developing Penta-Level Cell (PLC) technology, which will store five bits per cell, requiring 32 voltage states [4]. The endurance of PLC is expected to be even lower than QLC, pushing the limits of how much degradation the oxide layer can sustain before the cell becomes unreadable [4].[4]

To mitigate these inherent physical limitations, SSD manufacturers employ sophisticated controllers and firmware algorithms. Wear leveling ensures that write operations are distributed evenly across all the cells on the drive, preventing any single cell from failing prematurely [1]. Over-provisioning sets aside a portion of the drive's total capacity—often 7% to 28%—that is invisible to the user [1]. When a cell inevitably fails, the controller seamlessly remaps the data to one of these reserve cells, extending the usable life of the drive [1].[1]

The marketing of SSDs rarely highlights these architectural differences directly. Instead, manufacturers advertise a Terabytes Written (TBW) rating, which is a calculated estimate of how much data can be written to the drive over its lifetime before the warranty expires [1]. A 1TB TLC drive might have a TBW of 600, meaning you could write 600 terabytes of data to it before it is expected to fail [1]. For a consumer writing 20 gigabytes a day, that drive would theoretically last over 80 years. However, for a video editor writing hundreds of gigabytes daily, the TBW limit becomes a very real constraint, making the underlying cell structure a critical purchasing factor [3].[1][3]
